ULTRAFLEX 10 MeP

  • Code: ULTRAFLEX 10 MeP
€ 10,00
Maximum order quantity: 100

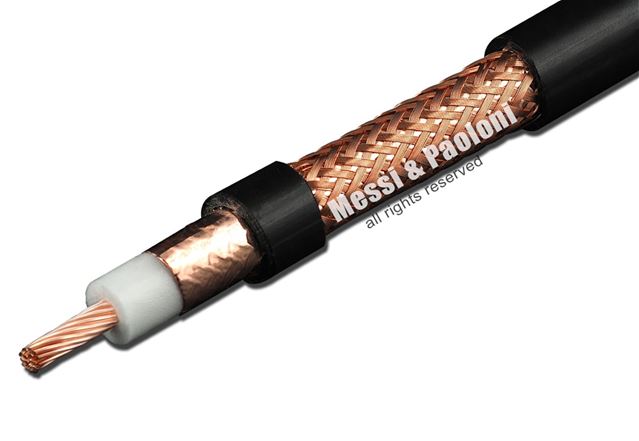

MeP ULTRAFLEX 10

[10.3mm cable]

WHY CHOOSE THIS CABLE:

- Extraordinary flexibility: a sophisticated 7-wire stranded copper central conductor guarantees perfect connection with motorized antennas and rotors .

- It has the same dimensions as the RG 213 / U but is much more performing and flexible. Compared to the latter, it is immune to electromagnetic interference and, using the connectors in our range, some have reported having benefited from it by lowering the squelch by two notches.

- Top shielding efficiency:> 105dB (SA). This leads to a drastic reduction in background noise. Among other things, the braiding is made with 24 spools, instead of 16, guaranteeing a good 50% more crossings.

- If transmitting above 4 Ghz, we highly recommend the HYPERFLEX 10 model, the most technologically advanced corded cable on the international market.

* PVC sheaths are more flexible, but they are NOT suitable for burial .

ELECTRICAL FEATURES
Impedance @ 200Mhz: 50 Ohm ± 3
Minimum bending radius: up to 15 bends:
80mm single fold: 40mm T
emperature: from -40 ° C to + 60 ° C
Capacitance: 78 pF / m ± 2
Propagation speed: 83%
Shielding efficiency: 100-2000 MHz> 105 dB
Shielding class: A ++
Conductor resistance: 3.2 Ohm / Km
External conductor resistance: 9.2 Ohm / Km
Sheath voltage test: 8 kV
Net weight (100m): 13 Kg
MAX peak power: 13,000 WATT
Connectors: UHF (PL), N, BNC, SMA, TNC, 7/16
