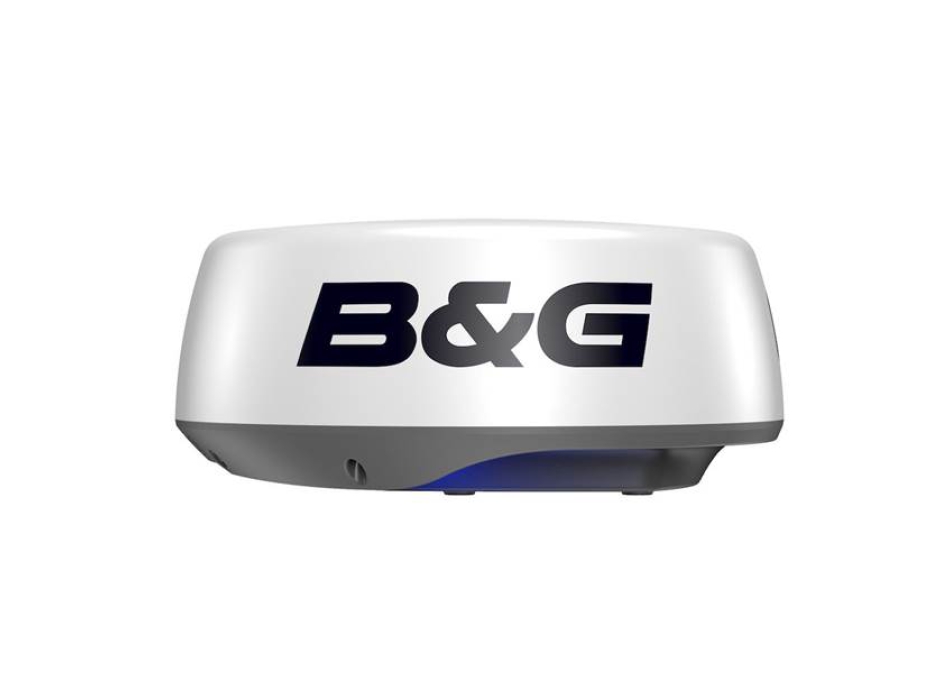

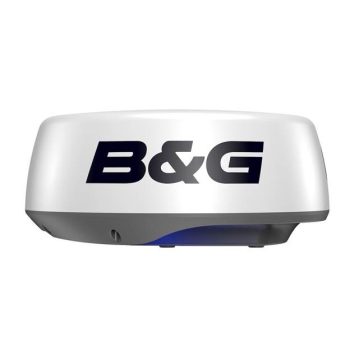

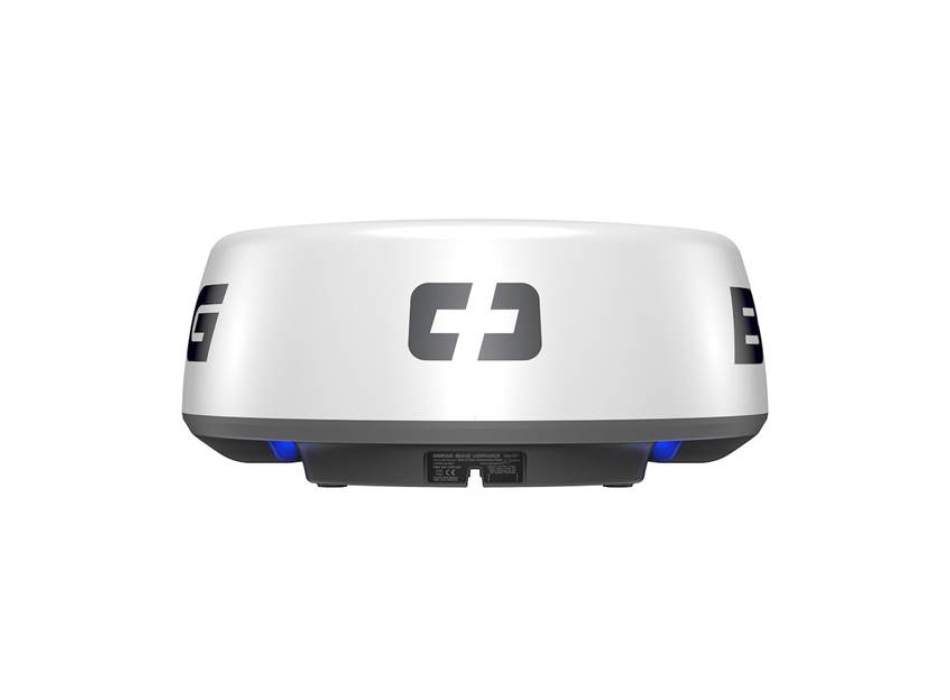

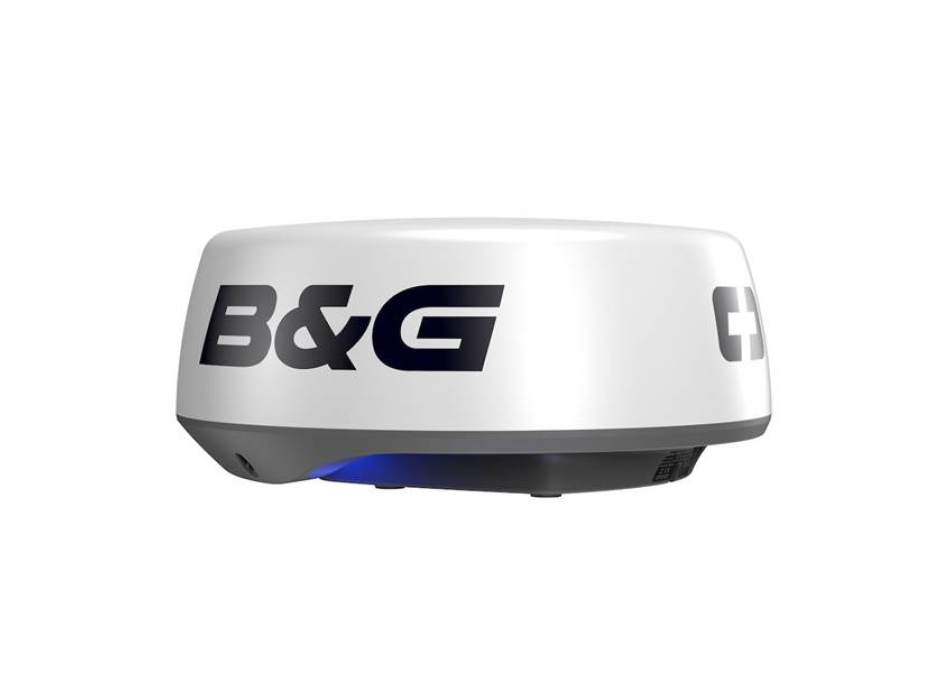

B&G HALO 20+ 36nm Radar Antenna

  • Code: 000-14539-001
€ 2.499,00 € 2.940,20 -15%

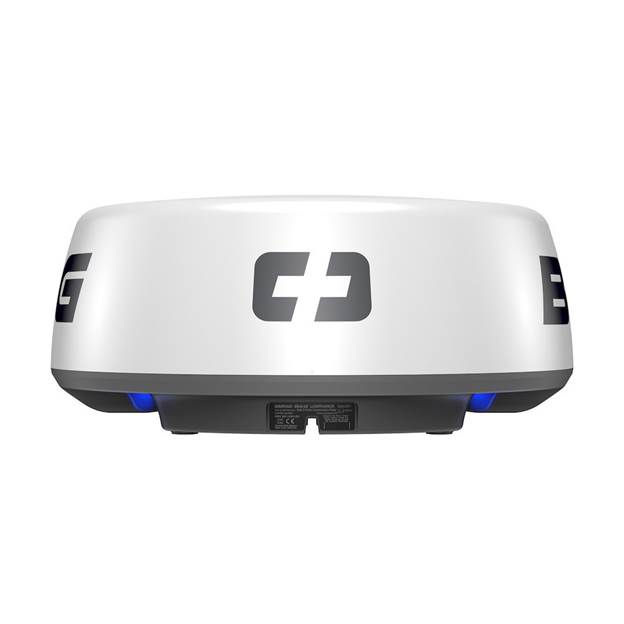

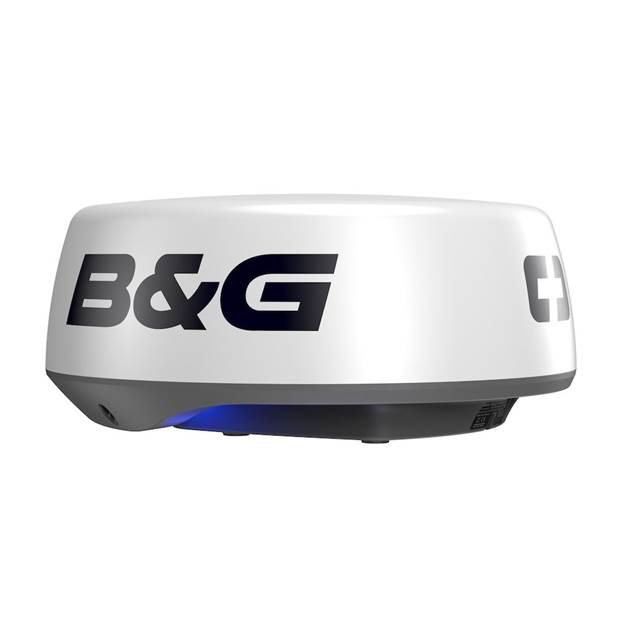

B&G HALO 20+ Radar Antenna

HALO20 + offers near real-time vision, with industry-leading 60-rpm short-range operation to avoid collisions. It allows you to identify hazards instantly thanks to VelocityTrack ™ and Doppler radar technology and to enjoy short and long range coverage (up to 36 nautical miles) via a single 20 "radome antenna.

Excellent performance in short and medium distances
Extend the view from the bow of the boat up to 36 nautical miles with pulse compression radar technology that not only provides a powerful mix of short and long range detection, but also offers precise target definition with minimal disturbance.

Short and long range viewing with one compact antenna
Ideal for a wide range of small power boats, the HALO20 + comes with a compact dome antenna that offers high quality short to medium range detection.
The pulse compression technology of the HALO20 + radar makes no compromises when it comes to detection for any selected distance, while the narrowing of the beam offers better separation between small or distant targets.




Always ready to use
The HALO20 + radar wakes up instantly from low-power standby mode, delivering high-speed radar coverage exactly when and where it's needed. Even when the HALO20 radar is completely off, it starts up in seconds, unlike traditional pulse radars which take minutes. Whether navigating in high-traffic waters or in poor visibility conditions, the HALO20 + radar instantly filters and eliminates noise to provide a clear, up-to-date picture of your surroundings.

Main features
25W pulse compression
VelocityTrack ™
Target staining
ARPA automatic target detection (next SW update, not on release)
Double reach without compromise
High speed rotation 1 ° 60 rpm
How to use the radar
Radius sharpening that works
48 / 36nm range
Low profile and light weight 6.9 / 5.9 kg
Unrivaled short range
Excellent target detection
InstantOn ™
Low energy consumption
Technical specifications

Supply voltage 10.5 - 31.2 VDC (12 / 24V systems)
Maximum wind speed 100 knots (51 m / s)
Warranty period 2 Years
Typical power consumption 20W
Operating temperature range -25 ° to + 55 ° C (-13 ° to + 130 ° F)
Maximum power consumption 29W
Maximum range, 36 NM scale
Beam width 4.9 ° H nominal (-3dB) 2.5 ° with target separation on high x 25 ° V
Weight 5.9 kg (13 lbs) without cable
Minimum range, scale 50 m / 200 ft / 50 yd
Dimensions diameter 510mm (20 ")
Dimensions (height x width x depth) 510mm dia x 223mm H. (20 "dia x 8.8" H)
Recommended fuse rating 5A
Humidity 95% RH at 35 ° C (95 ° F)
Compliance with FCC approvals, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5 / EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2, 9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
Harbor, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative motion, True Motion radar modes
IPX6 waterproof level
Pulse Compression radar technology
B&G MFD interface
Rotation speed Up to 60 RPM (Range Dependent)
D. chiedevo se l'antenna radar sia compatibile con B&G Zeus³S 9" Kartenplotter e che genere eventuale di staffa dovrei acquistare per albero barca a vela hanse modello 348. In caso compatibilità affermativa desideravo poter ricevere preventivo ordine per l'acquisto del tutto .. magari con pioccolo sconto ! Provvederò immediatamente all'acquisto una volta ricevuto preventivo e coordinate iban. è gradito conoscere anche i tempi di ricezione prodotti. Grazie per l'attenzione e risposta . Mario
R. 16-03-24<br /> Buongiorno, confermo la compatibilità, più tardi Le invio un preventivo.<br /> Cordiali saluti.<br /> Luigi Bianchi<br />
D. Vorrei sapere se avete la basetta per albero per il radar Halo 20 plus di bandg
R. 05-09-23 Buonasera, se intende il supporto per albero, sì certo, eccolo.di seguito: https://www.painestore.it/scanstrut_sc20_supporto_radar_albero Cordiali saluti. Luigi Bianchi
D. Ma questa è solo l’antenna o nel prezzo c’è compreso anche il visore? È compatibile con il Vulcan 12’’
R. 14-01-23 Buongiorno, il prezzo è riferito alla sola antenna, il display è sempre da acquistare a parte. Compatibile con Vulcan 12". Cordiali saluti. Luigi Bianchi
