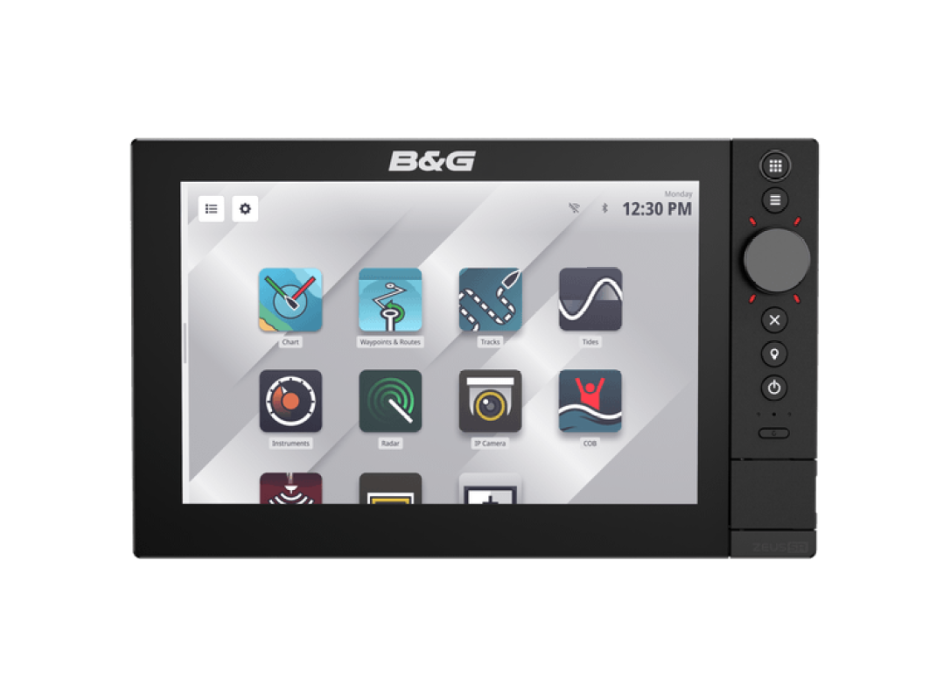

B&G Zeus SR-10 Display 10" Chartplotter/GPS
Go Beyond Your Instinct
Go beyond your instincts with the Zeus SR chartplotter. Zeus SR features a new 8-core processor and a redesigned interface for a smoother, faster navigation experience.
Instant Response

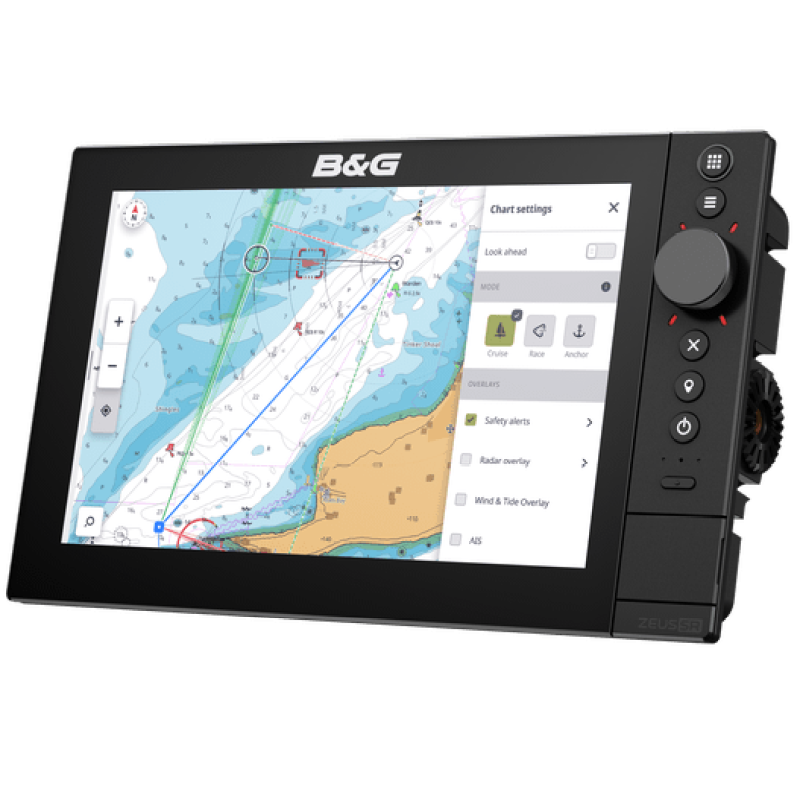

With Zeus SR, chartplotting power enters a new era. Our most powerful 8-core processor delivers a smoother, faster user experience. You no longer have to worry about slow controls and can switch instantly between apps. The fast instrument operation also revolutionizes the C-MAP® charting experience, allowing users to zoom and pan the chart more seamlessly than ever before.
And when you’re underway, real-time sensor feedback instantly provides the data you need at the helm, further confirming your instincts and allowing you to navigate with peace of mind.
Extreme Simplicity

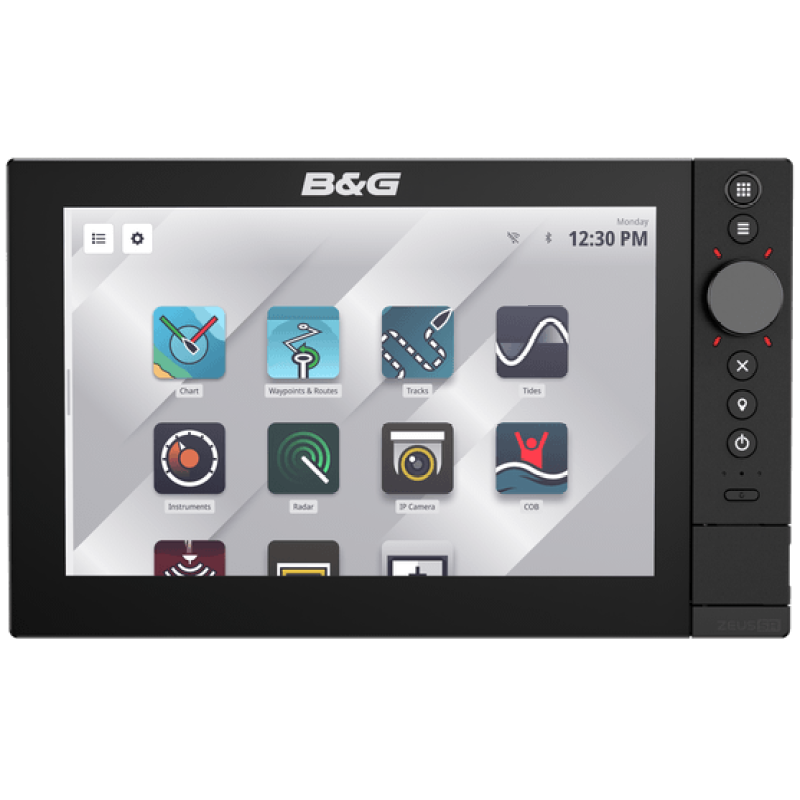

The redesigned interface makes Zeus SR even easier and faster to use. The display looks like a smartphone, making it easy to understand and navigate through your favorite apps, highlighting the most frequently used ones for easier access. Plus, with mode selection, it’s never been easier to find the tools you need when you need them.
Enhanced Control Capabilities
With feedback from the world’s top sailors, we know what details matter when you’re on the water. That’s why Zeus SR offers three flexible control options. The bezel-less touchscreen is supported by a rotary dial and keypad, making the chartplotter easy to use in all conditions and at all times while you’re on the water. We’ve also added configurable buttons, giving you instant access to your favorite functions with just one press. With Zeus SR, you’re always in complete control.
Other Features
SolarMAX™ IPS HD Display
The touchscreen is visible from all angles and in all conditions, even through polarized sunglasses.
Full integration

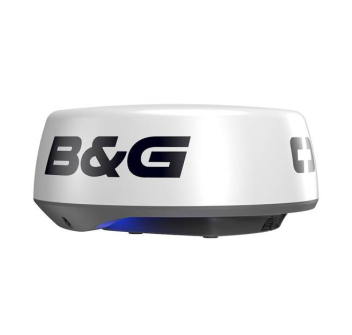

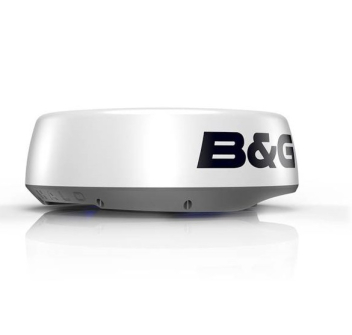

Compatibility with HALO® radar, Triton® 2 sailing autopilots, Triton 2 and Nemesis® instruments, sensors, sonar and more.
B&G App Integration
Explore charts on and off the water, and take advantage of the free 12-month premium membership you get with the purchase of a DISCOVER® X or REVEAL® X card*.
*Mirroring and App control features are not currently available on B&G Zeus SR.
X-Chart Manager
Update cards directly on your device, without the need for a PC.
Support for IP cameras
Connect an IP camera for complete visibility of the vessel.
Simple connectivity
Support for Wi- Fi® , Ethernet, and NMEA 2000® .
Specifications
Display: Viewing angles80° top/bottom, 80° left/rightBacklight colorWhiteDisplay size10 inchesScreen brightness>1200 nitsDisplay resolution1280 x 800
Connectivity: BluetoothBluetooth 4.0 with support for Bluetooth Classic (currently not used)
NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity: No
Wi-Fi Connectivity: ElementWi-Fi 5 (IEEE 802.11ax)
SD card memory2x (microSD®, SDHC®)

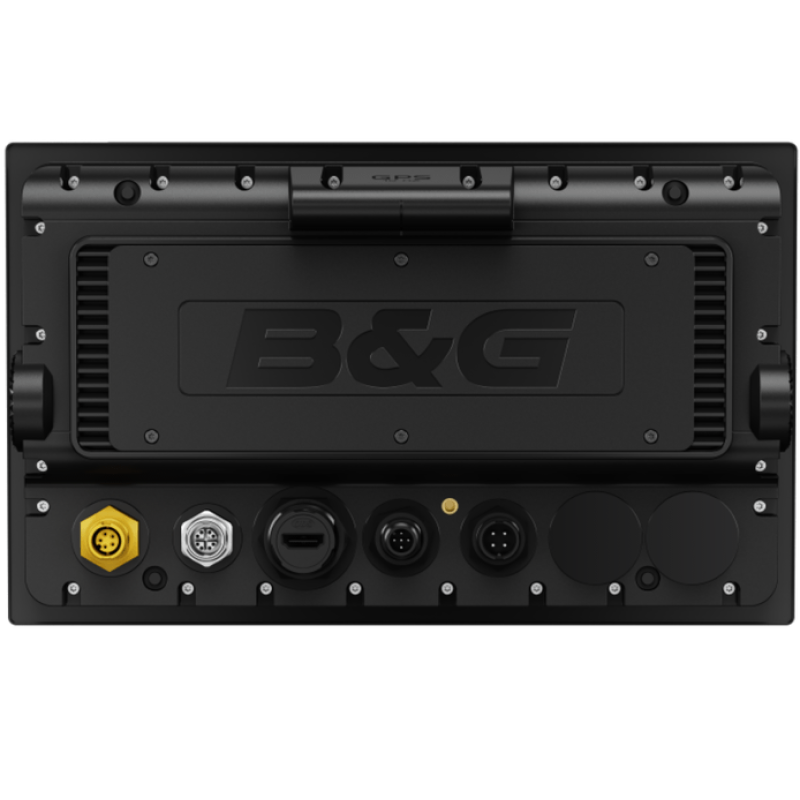

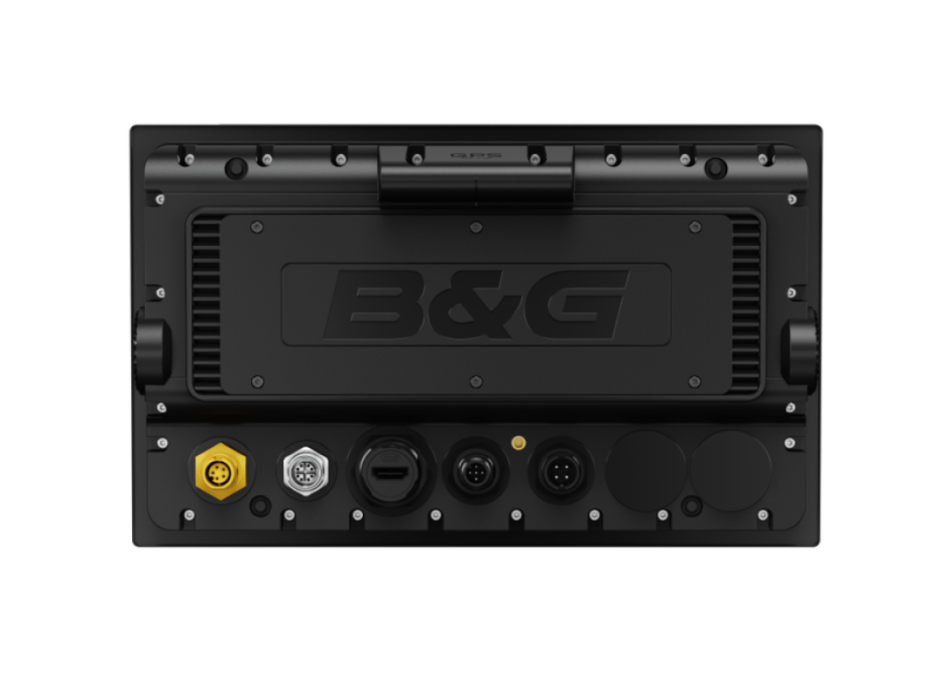

Ethernet ports: 1 port (X-Coded M12 GbE), 1 port (yellow, 5-pin), VideoVideo In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera
Cartography

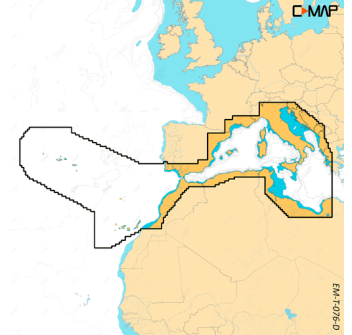

Supported charts: C-MAP Discover™
Autopilot
Steering modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, NavManeuvering turn patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth
Electric
Maximum power consumption: 28W
Supply voltage12/24 V DC (10 - 31.2 V DC min - max)
Recommended fuse rating5A
Environment
Operating temperature range: -15°C to 55°C (5°F to 131°F)
Storage temperature range: -20°C to 60°C (-4°F to 140°F)
Waterproof level: IPX6 and IPX7
Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Vibration shock 100,000 cycles of 20 G
GPS
GPS Receiver Channels32 ChannelsCorrection10 Hz high speed update (internal)
Refresh rate 10Hz
Position AccuracyHorizontal Accuracy 3 m (9.8 ft)
GPS10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS)
MFD
AIS: Receive AIS data over NMEA 2000
Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible
Cartography included: World wide basemap (not for navigation).Detailed chart card required
Digital switching: Czone / DDS
Sonar Compatibility: No built-in Echosounder ports.
Compaible with Network Sonar modules: S3100, S5100, Other MFDs with echosounder ports
Waypoints, routes, tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: Zeus3, Zeus3 GH maximums will apply if on the same network
Physicist
Dimensions (height x width x depth)
Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33″ x 6.93″ x 3.13″)
With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43″ x 7.73″ x 3.13″)
Weight1.8 kg (3.97 lb)
Compass safety: 35 cm (1.15 ft)
Mounting typeBracket mount (bracket supplied).
Rear mount (brackets supplied)
Other
Interface: Hybrid multi-touch screen, buttons, and rotary knob
Languages: -German (Deutsch) -English (English) -Dutch (Nederlands) -Danish (Dansk) -Spanish (Español) -French (Français) -Italian (Italiano) -Norwegian (Norsk) -Portuguese (Português) -Finnish (Suomi) -Swedish (Svenska) -Icelandic (Islenska) -Greek (ελληνικά) -Chinese (中文) -Turkish (Türkçe) -Estonian (Eesti) -Croatian (Hrvatski) -Lithuanian (Lietuvių) -Latvian (Latviešu) -Polish (Polski) -Chinese Simplified (中文) -Japanese (日本語) -Korean (한국어) -Ukrainian Warranty Period 2 Years
