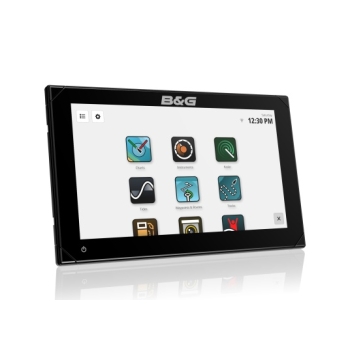

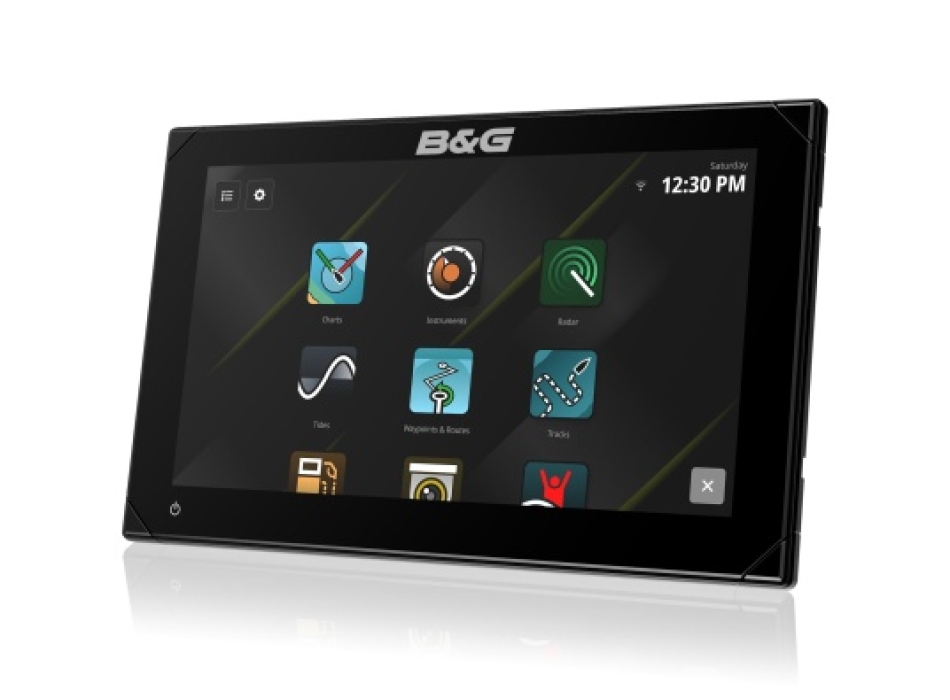

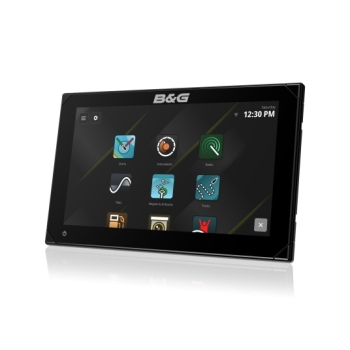

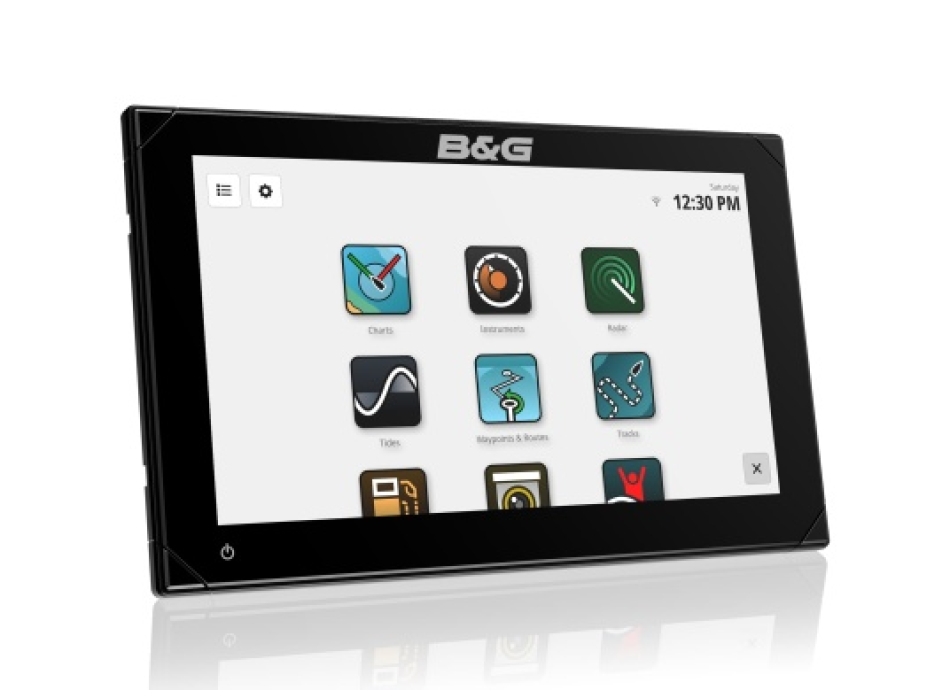

B&G Zeus S 9 Display 9" Chartplotter GLOBAL

  • Code: 000-15221-001
€ 1.479,00 € 1.744,00 -15%
B&G Zeus S 9 Multifunction display 9"
Zeus ® S is the most intuitive and easy-to-use sailing chartplotter. With unique navigation modes that provide all the data you need for your situation, detailed mapping and new, improved and award-winning navigation features from B&G.

Navigation mode
Improve your sailing with easy-to-interpret guidance from B&G's award-winning navigation features for cruising and racing, with updates to SailSteer™, Layline, StartLine, Routes, Regattas and more.
Safety alerts powered by C-MAP protect against grounding and dangerous objects.

Mapping
C-MAP ® DISCOVER™ X and REVEAL™ Tide and current projections improve trip planning and route tracking, further supported by our fastest-ever automatic route calculation. Plus, get quick, one-touch access to POIs, tides, channels and more.

Integration
Zeus S is designed to be the heart of your navigation system. With built-in WiFi, Ethernet and NMEA 2000, it's easy to connect to autopilots, radar, instruments and sensors including wind, depth, speed, GPS and compass. Connecting with the B&G app offers additional control and navigation options, both on and off the boat.

Intuitive
Zeus S makes data easy to read and even easier to digest. The interface is designed to feel familiar, with a new setup wizard to get you started and helpful feature tips to guide you along the way. Get hassle-free software updates, on- and off-water trip planning, and the same clear, precise map views across Zeus® S, app, and web.

Navigation modes for cruising and racing, providing exactly the data you need for your situation.

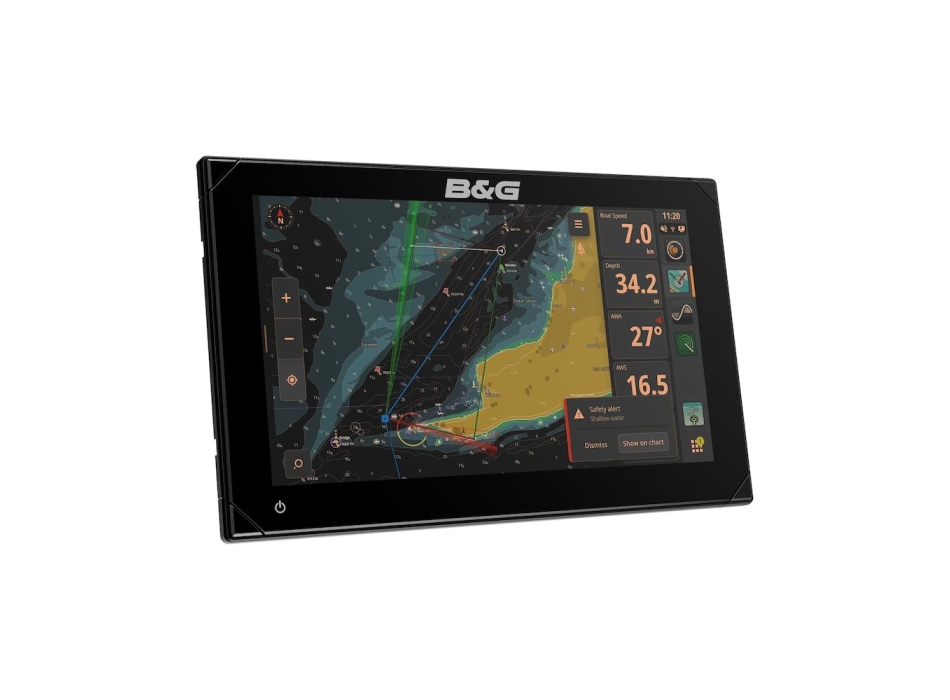

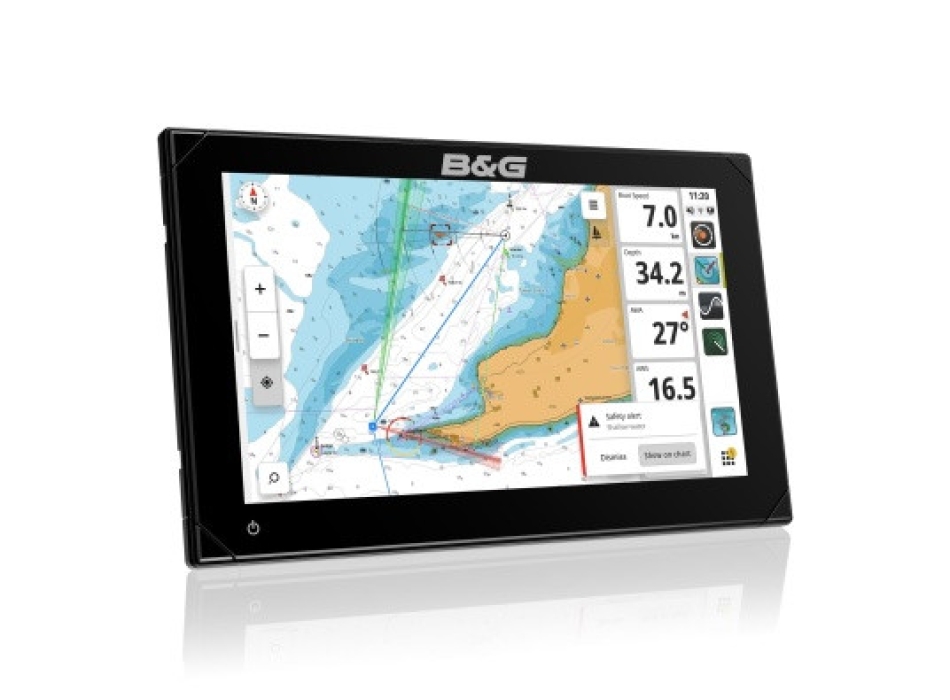

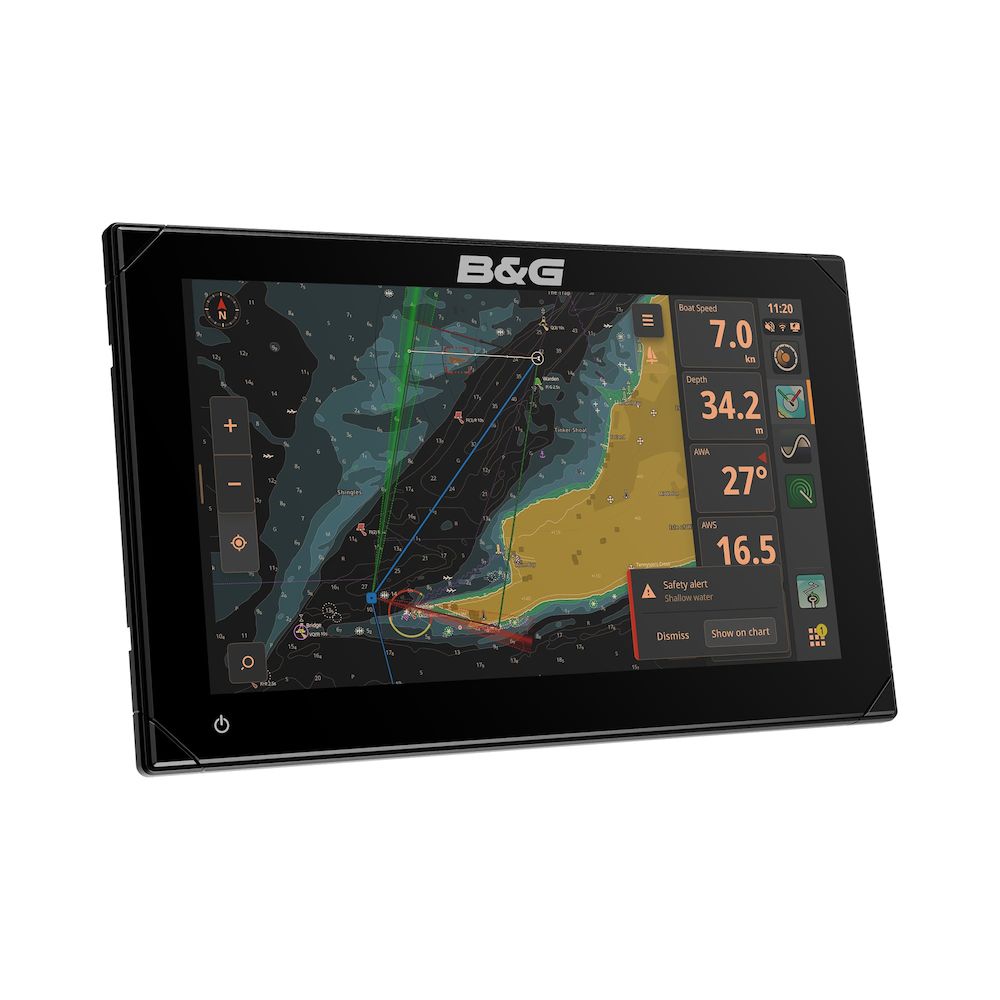

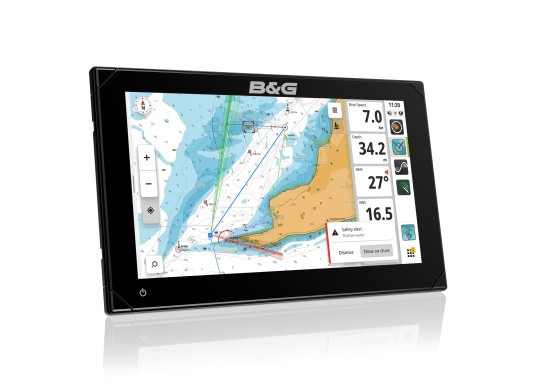

NEW safety alerts feature based on C-MAP, to avoid shallow water and dangerous objects on a collision course
Includes B&G's award-winning sailing features, plus exclusive new updates to Laylines, Routes, SailSteer™ and StartLine
C-MAP ® DISCOVER™ X and REVEAL™ X charts present highly accurate data with intuitive viewing options for easy navigation
High definition SolarMAX™ IPS touch screen, visible from all angles and in all conditions, even with polarized sunglasses
Full integration with HALO® radar, Triton2 pilots, Triton2 and Nemesis® instruments, sensors and more.
Configuration wizard to get up and running straight away
B&G ® App Integration: Access data and mapping both on and off the water
Wireless connectivity, plus full Ethernet and NMEA 2000® networking capabilities
IP camera support

Characteristics
Connectivity
NMEA 0183 NO
NMEA 2000 1 Micro-C NMEA 2000 port, 1 LEN
PC connectivity NO
video IP camera support
Wifi IEEE802.11b/g/n

Screen

Backlight color White
Resolution 1280 x 800
Screen brightness 1200 nits
Size and type 9" IPS SolarMax touchscreen display for wide viewing angles, extreme clarity and visibility in sunlight with polarized sunglasses
Viewing angles 85° (top, bottom, left and right)

Electric

Power consumption, max. 29.7W
Recommended fuse rating 3A
Supply voltage 12V DC (10 - 17V DC)
Humidity IEC 60945 Humid heat 66°C (150°F) at 95% relative (18 hours)

Environment

Temperature operating range -15°C to 55°C (5°F to 131°F)
Shocks and vibrations 100,000 cycles of 20 G
Storage temperature range -20°C to 60°C (-4°F to 140°F)
Degree of waterproofness IPx6 and IPx7

GPS

Correction High speed update 10Hz (internal)WASS, MSAS, EGNOS, GLONASS
GPS receiver channels 32 channels
Position accuracy Horizontal accuracy 3 m (9.8 ft)
Update rate 10Hz

MFD

AIS Receive AIS data over NMEA 2000
Cartography supported C-MAP Discover™
External storage 1 MicroSD slot
GPS Internal, 10 Hz, WASS, MSAS, EGNOS
Radar (including compatibility) Halo Dome radar, open array Halo radar
Sonar (including compatibility) One 9-pin Xsonic 1kW sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
Waypoints, routes, tracks 6000 waypoints, 500 routes with 100 maximum route points, 50 tracks with up to 12,000 track points.
Compass Safe Distance: Metric, Imperial 50cm (1.7ft)

Physicist

Dimensions (W x H x D) 239x149x73 mm (9.4x5.9x2.9")
Mounting type Bracket (supplied), panel or flush mount
Weight 2.2kg (4.9lbs)
