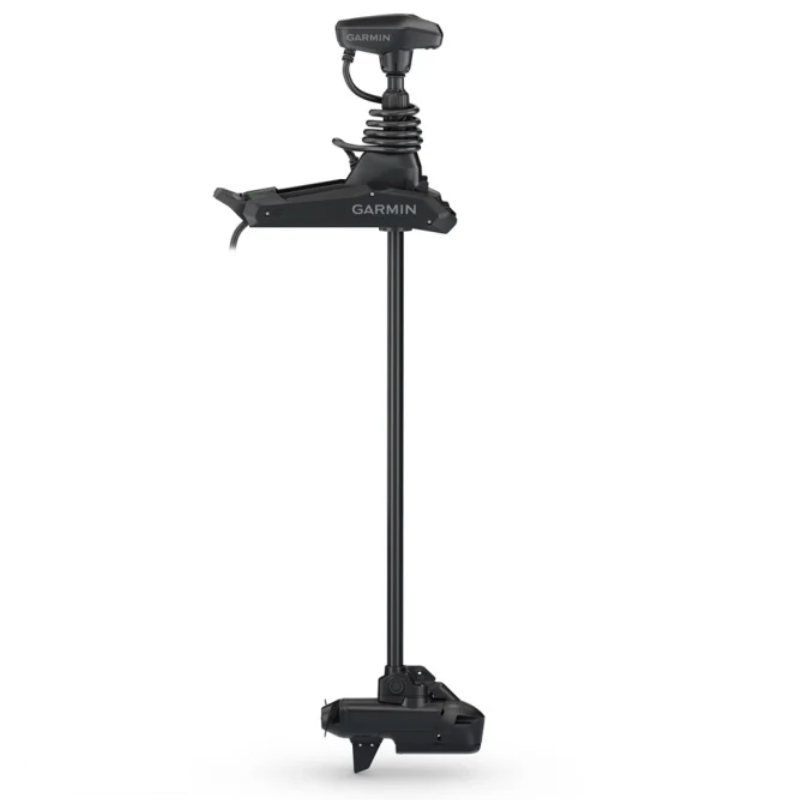

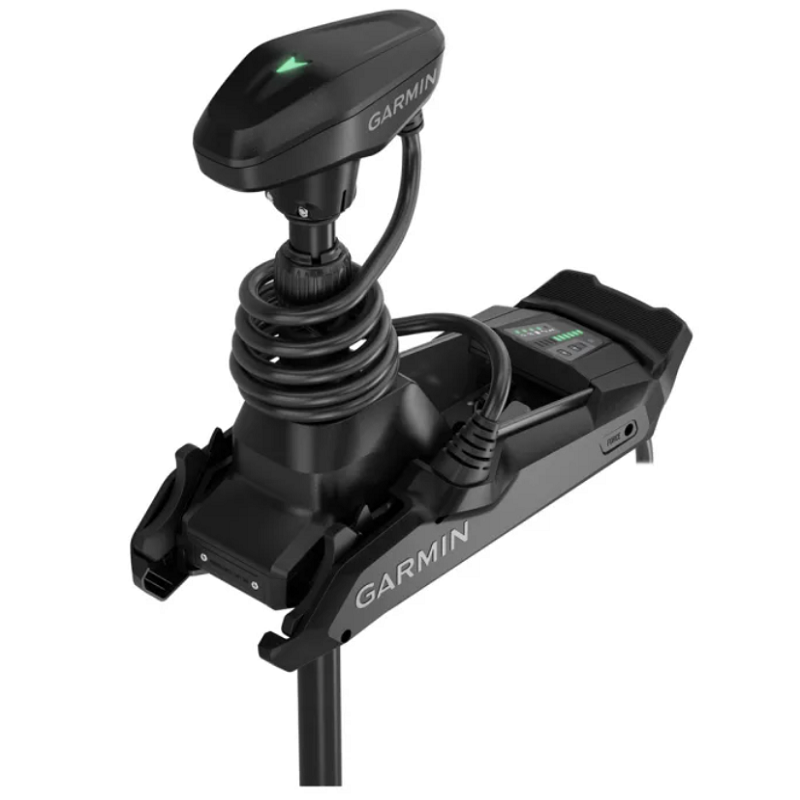

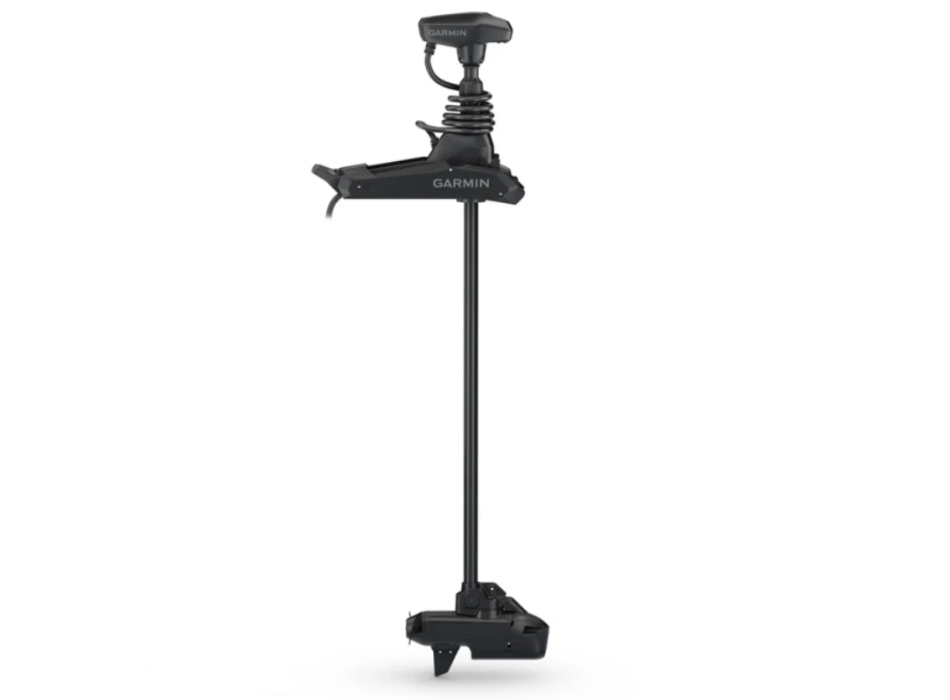

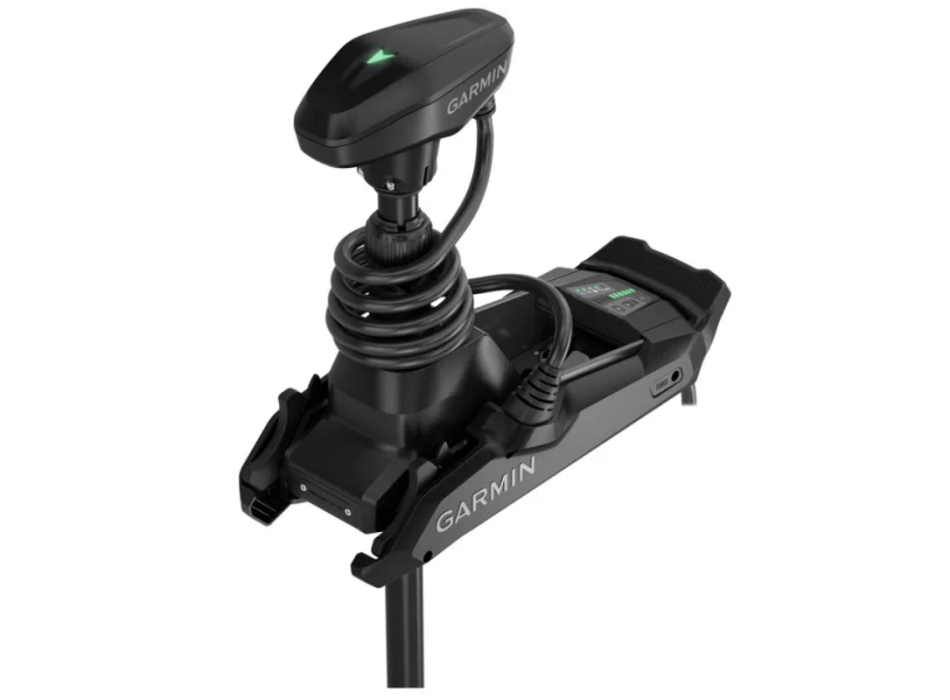

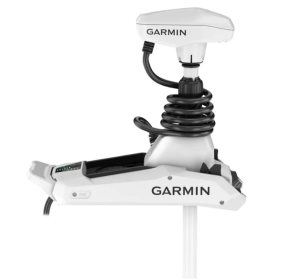

Garmin Force Kraken with 63" stem

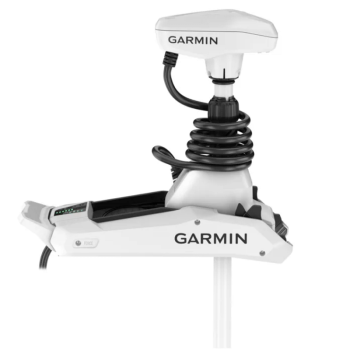

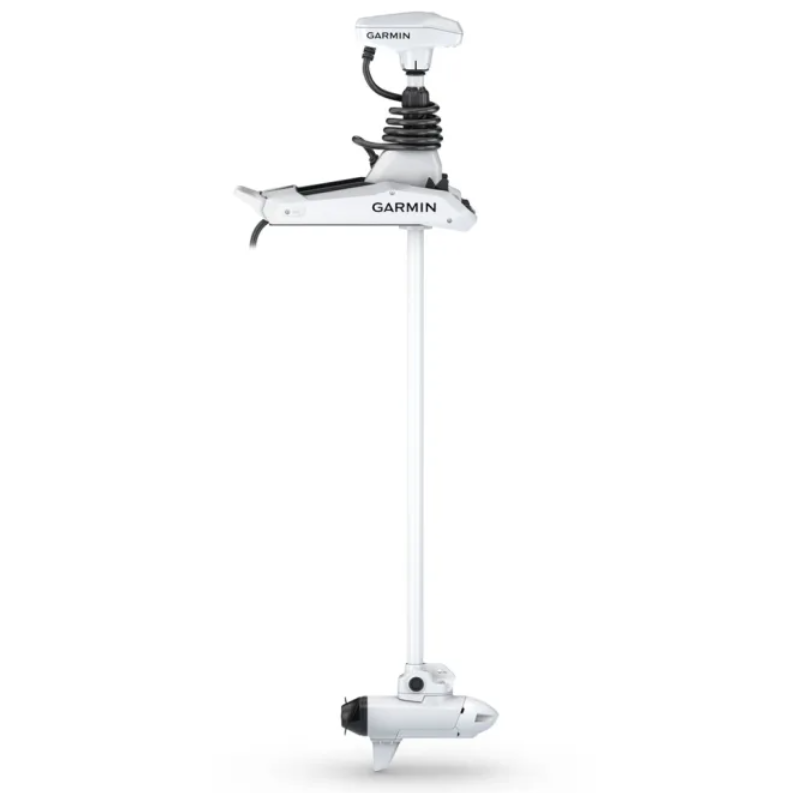

Use the drop-down menu and choose the Black or White model.
  • Code: 010-02574-00
€ 4.700,00
CHOOSE THE COLOR
you chose:

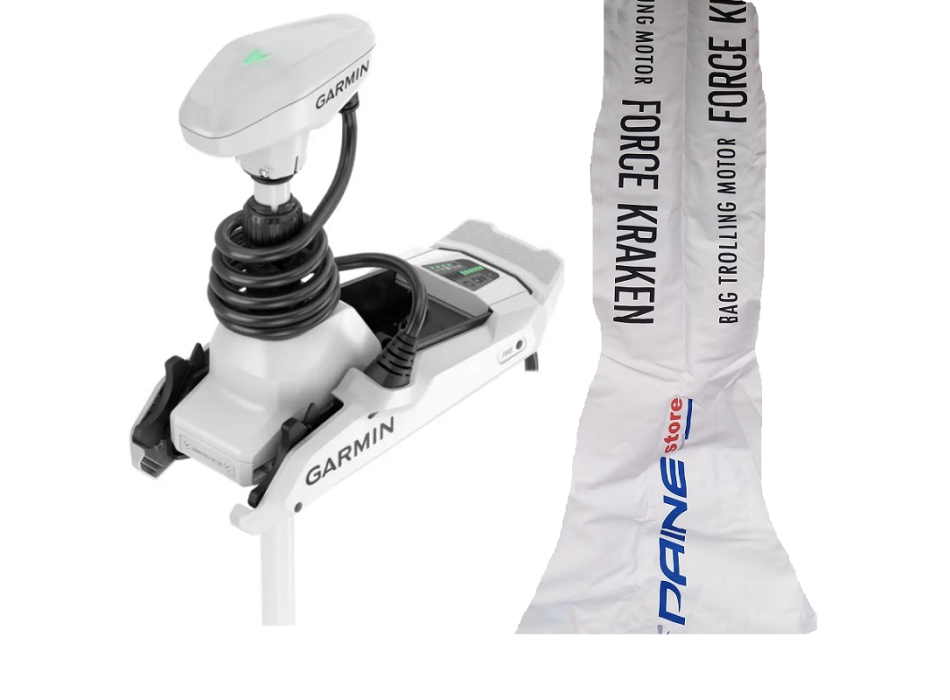

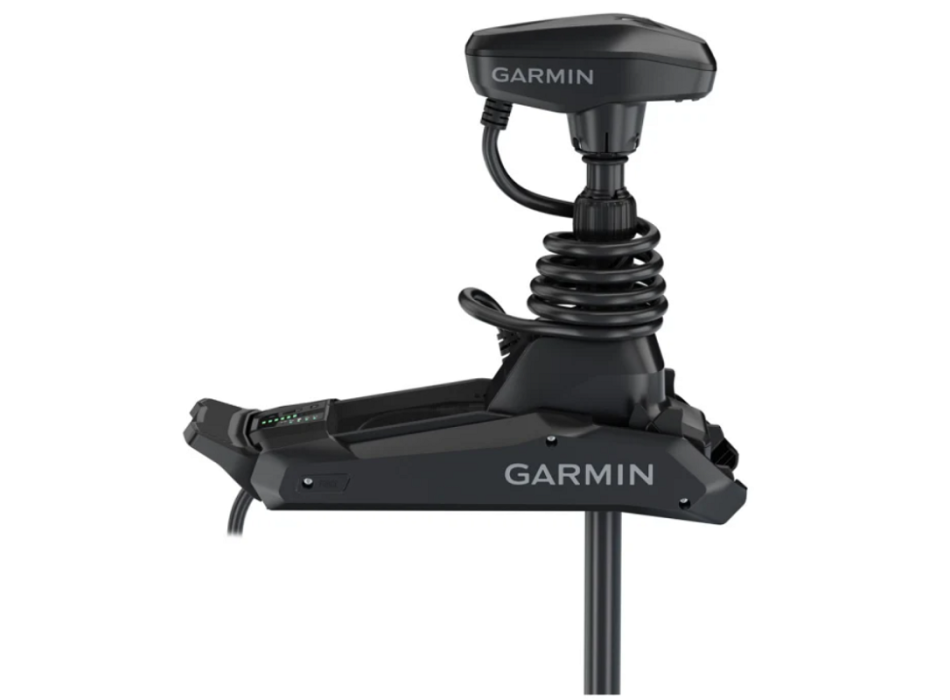

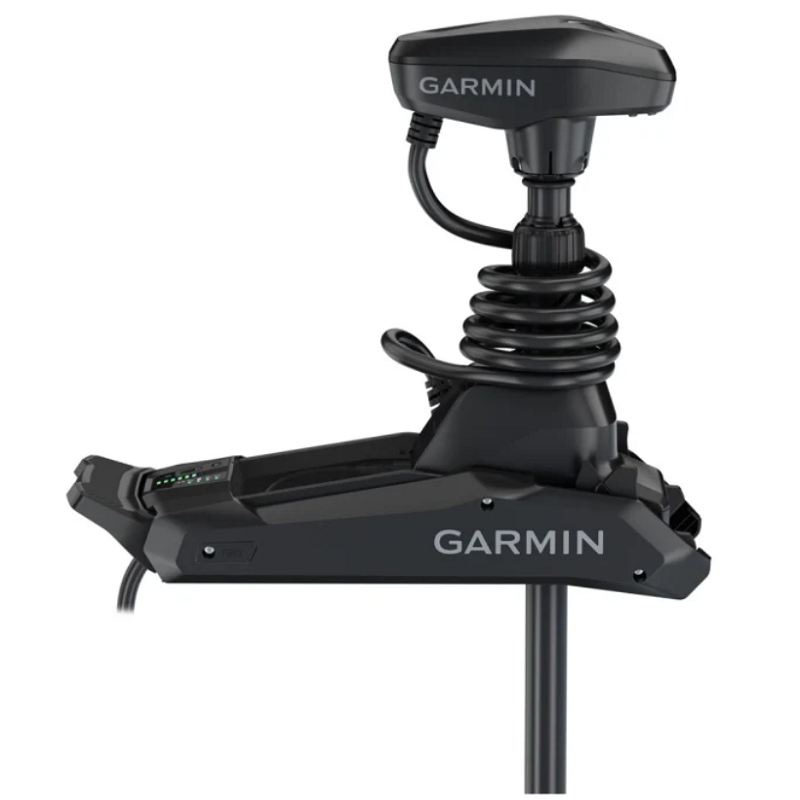

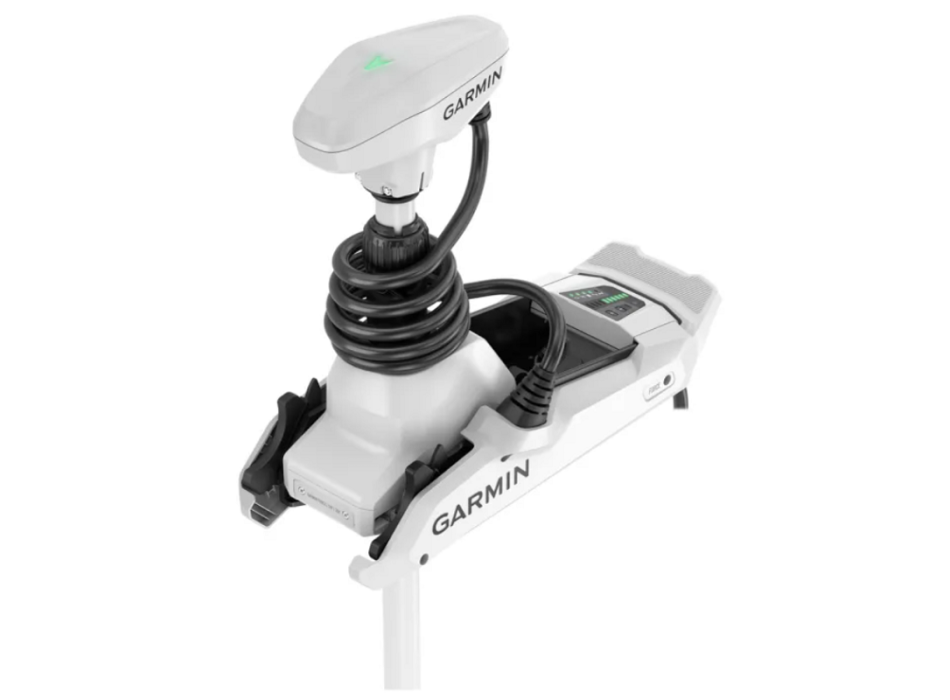

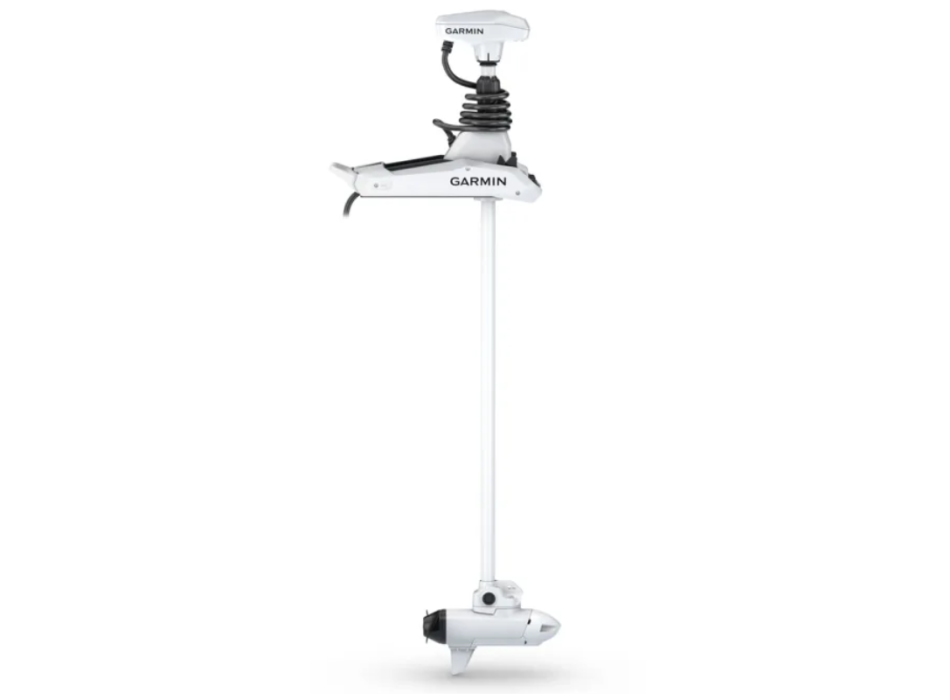

Garmin Electric Motor Force KRAKEN 63"

QUIET OPERATION. THE MOST POWERFUL ELECTRIC MOTOR IN THE INDUSTRY; 100 LBS OF PROPULSION 1
Don't scare the fish; the motor is extremely quiet above and below the water surface.

WIRELESS INTEGRATION. WIRELESS INTEGRATION WITH GARMIN CHARTPLOTTERS
Connect to compatible chartplotter to create and follow routes while fishing with electric motor.


SMARTWATCH INTEGRATION. INTEGRATION WITH YOUR QUATIX.
Connect your compatible Garmin smartwatch to control your tack, mooring point and more from your wrist.

STAY IN PLACE. MOORING POINT AND MULTIBAND GPS TO KEEP YOUR POSITION
The mooring point offers our most precise technology to keep the vessel in place.

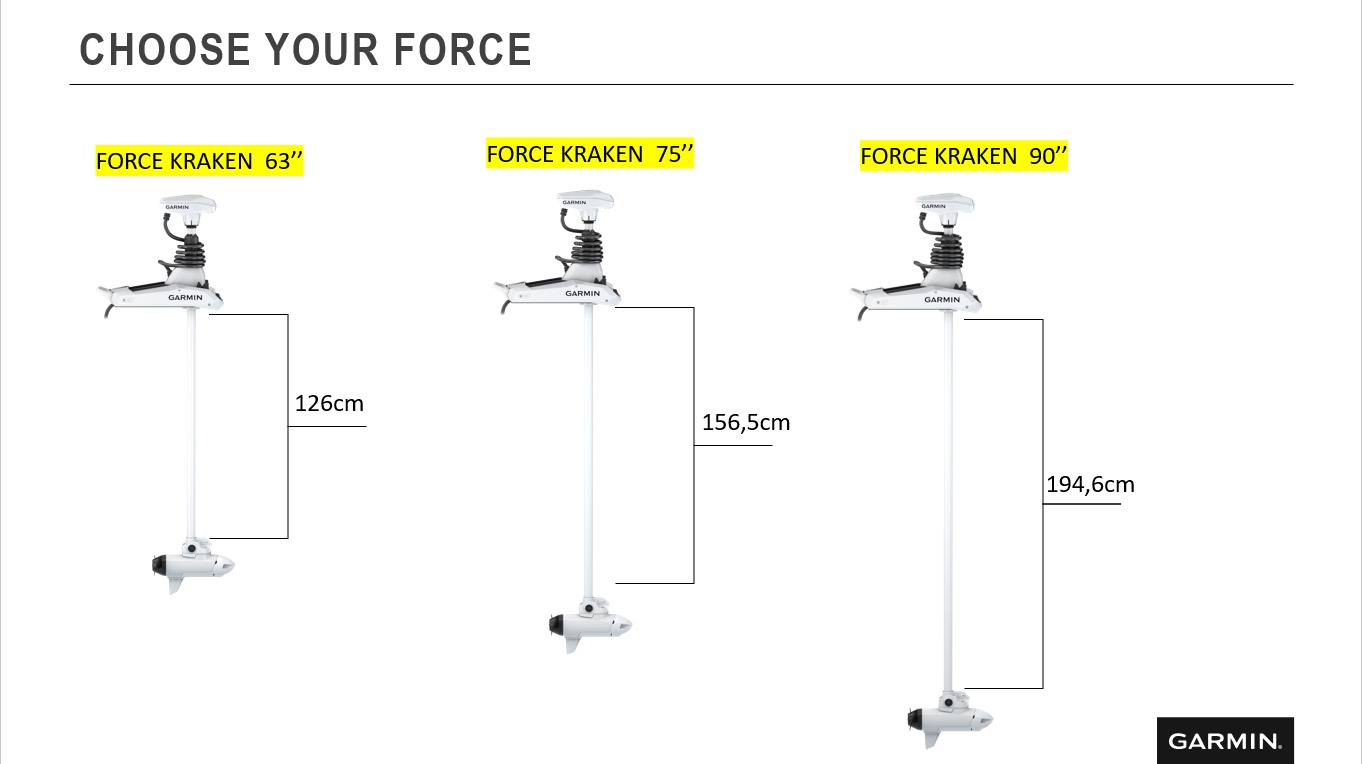

STEM SUITABLE FOR EACH BOAT. AVAILABLE WITH 63″, 75″ AND 90″ SHANK
Three different heights to be compatible with your boat.

FLOATING REMOTE. Use the included remote control to navigate anywhere with our intuitive Point 'N Go technology.

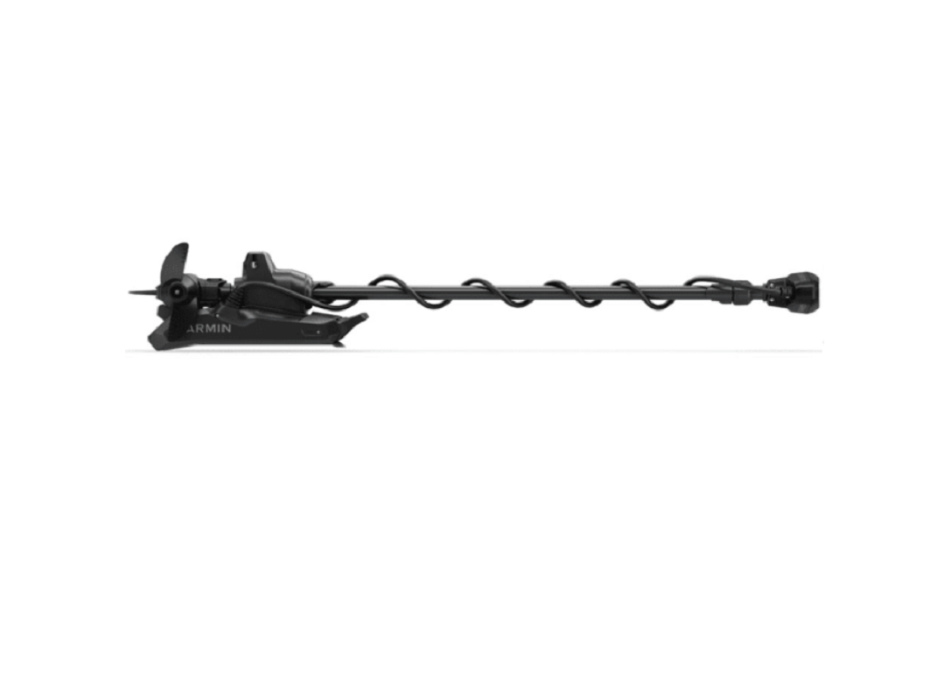

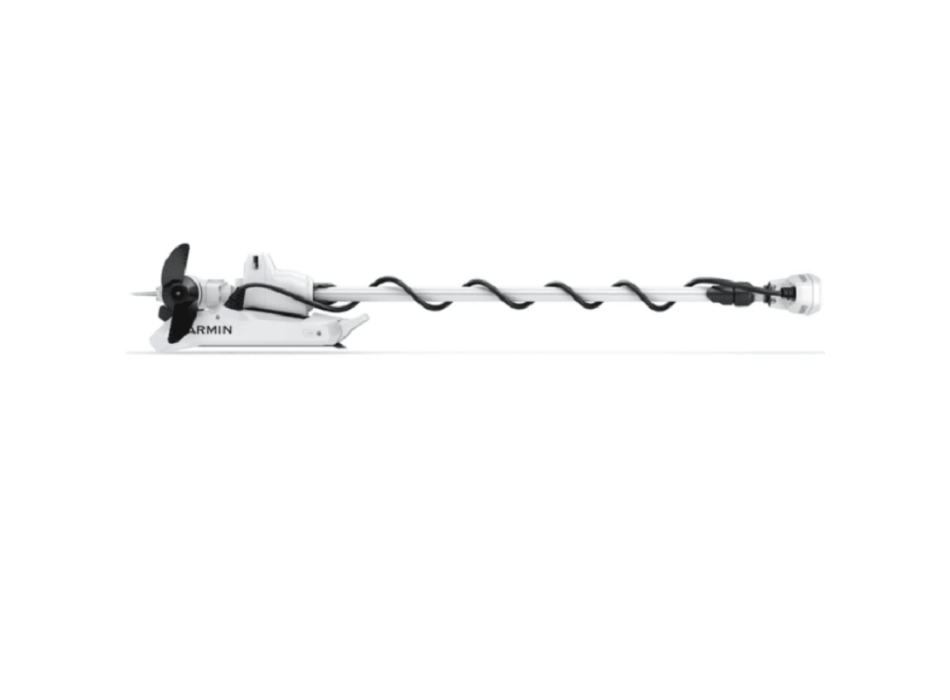

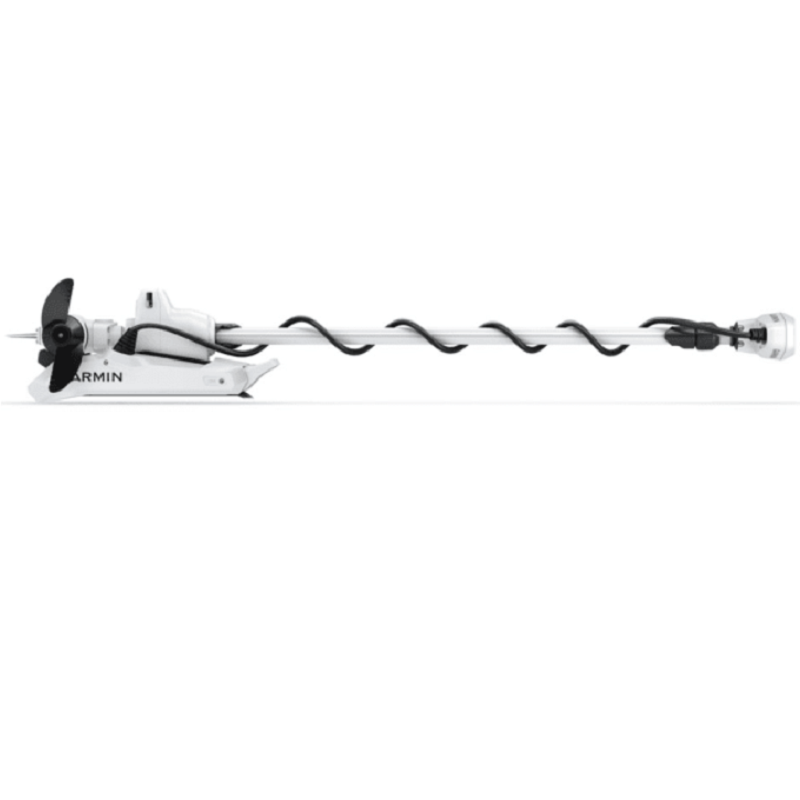

The Force Kraken electric motor is designed, with a longer shaft, for boats with higher freeboards and with a swivel mount for easy installation on boats with limited transom space.



HIGH POWER
With 100 lbs of propulsion1, the Force Kraken is the most powerful electric motor on the market.

DESIGNED TO RESIST
The rugged composite stem and all components are built to withstand the harshest marine conditions and are protected from corrosion and salt spray.

LONG LIFE BATTERY
The efficient brushless motor design offers longer run times than brushed motors and lets you focus on fishing without worrying about battery life.

SPECIALLY MADE DESIGN
This electric motor is optimized to operate in harsh conditions, on 24 or 36 volts, thanks to the power and efficiency of the brushless design.

LIVESCOPE™ SOUNDER CABLE MANAGEMENT
Keep the LiveScope sonar cable protected by routing the transducer cable through the electric motor shaft (accessory purchase required).

IDEAL FOR BAY BOAT AND CENTER CONSOLE
Simplified installation in case of limited transom space, thanks to the swivel mount. The 63″, 75″ and 90″ stems fit a variety of boat sizes and deck configurations.
TECHNICAL FEATURES

General

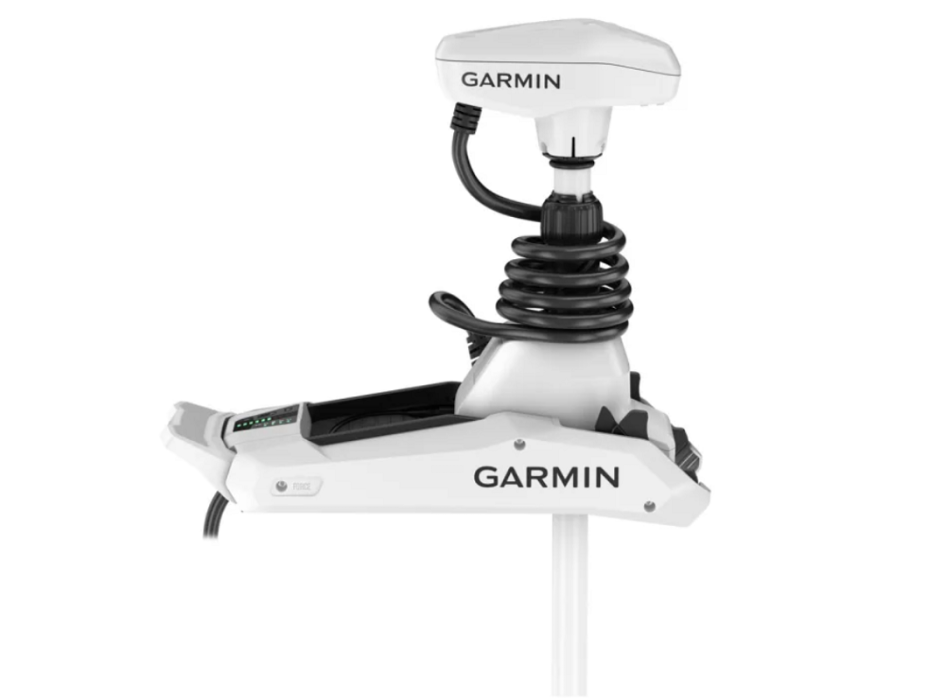

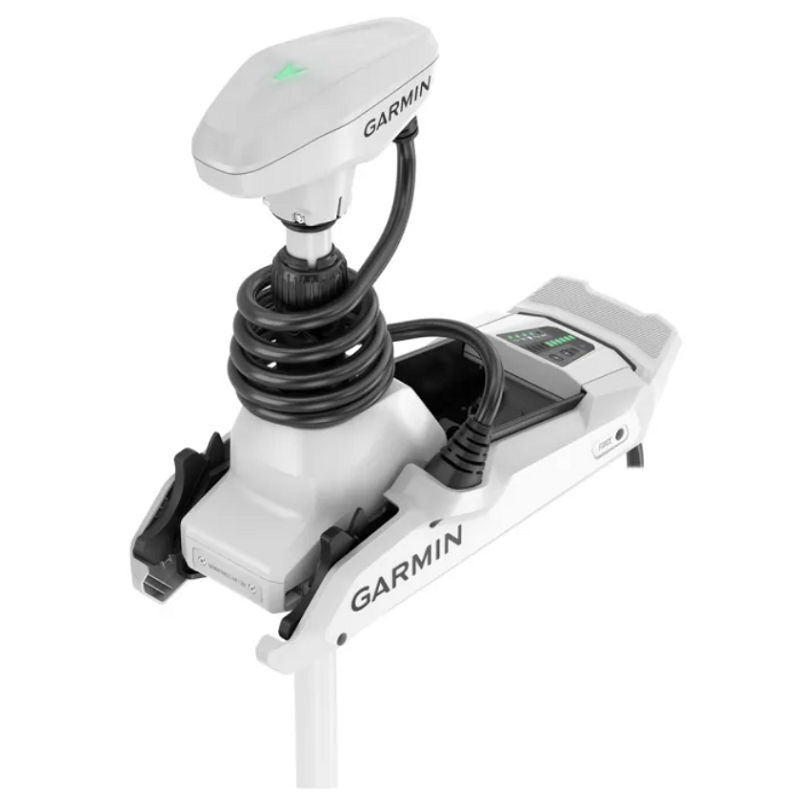

COLOR White or Black
USE Fresh water, brackish water and salt water
IPX7 WATERPROOF RATING
INSTALLATION POSITION Bow

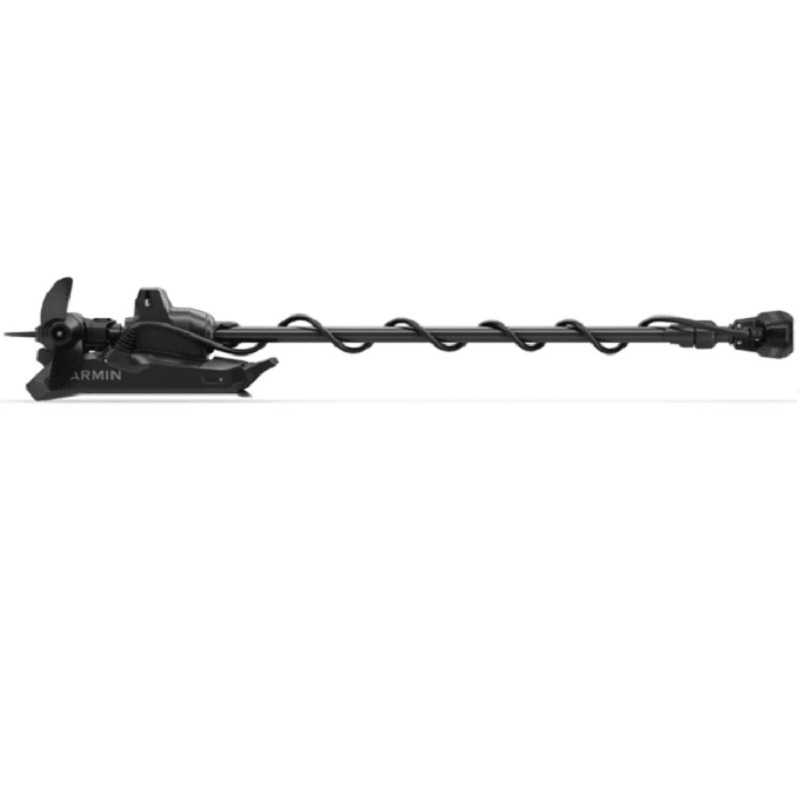

MOUNTING STYLE Swivel mount
MAXIMUM DISPLACEMENT 100 lbs per ISO 13342 with 36V high efficiency propeller or 80 lbs per ISO 13342 with 24V DC high efficiency propeller
INTEGRATED COMPASS SENSOR
BUILT-IN GPS Yes (Dual Frequency GPS)
WARRANTY 3 years
REMOTE CONTROL INCLUDED Yes (included)
COMPATIBLE WITH FOOT CONTROLS
BATTERY INDICATOR
SPEED CHECK Yes (20 steps)
BRIGHT DIRECTION INDICATOR

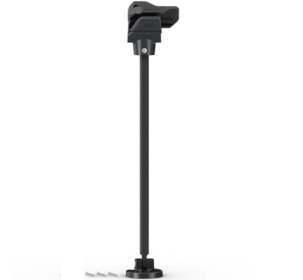

BRIDGE STABILIZER Yes (90" only)

Electrical characteristics
VOLTAGE 24V/36V.
ELECTRIC GUIDE

Sonar functions and specifications

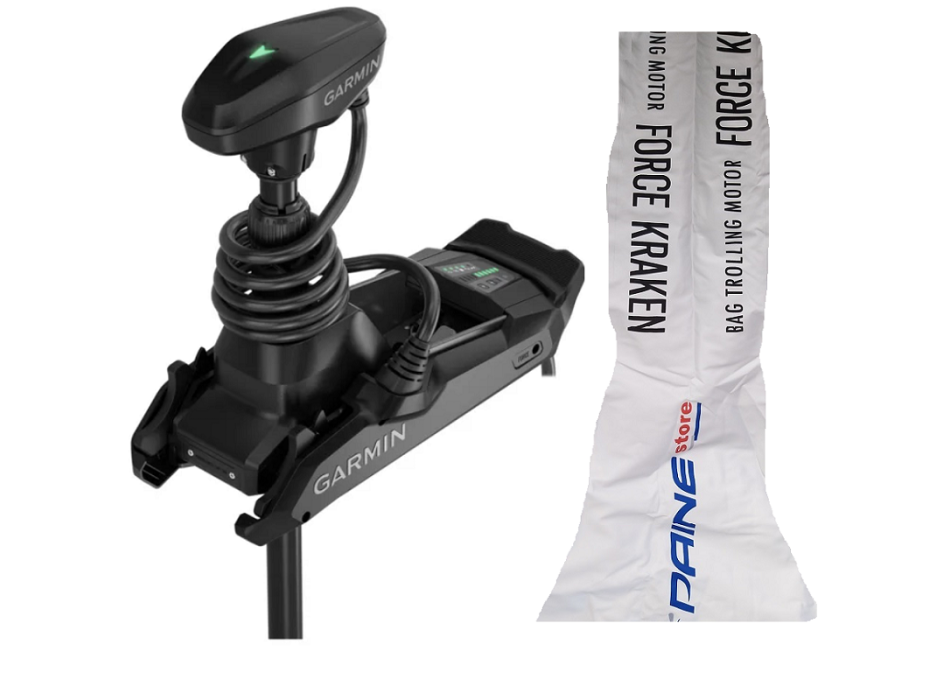

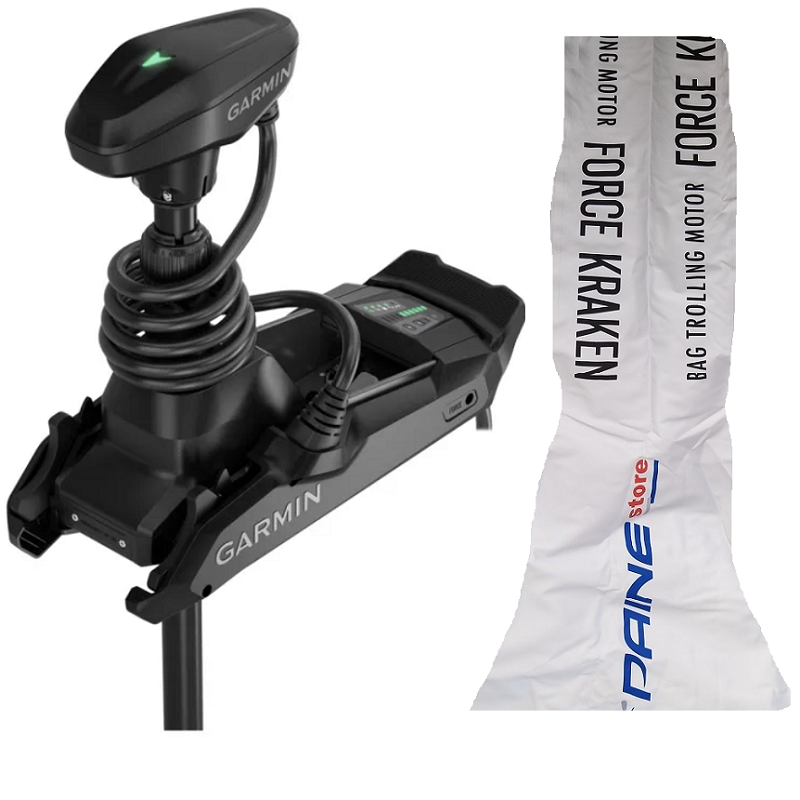

GT56UHD-TR TRANSDUCER included only in the Black versions
LIVESCOPE CABLE INTEGRATION Yes (LiveScope transducer and Kraken mounting bracket required)
QUATIX REMOTE SUPPORTED

Autopilot functions
COMPLETING THE ROUTE
MOORING POINT
DIRECTION MAINTENANCE
CRUISE CONTROL
FUNCTIONS VIA GESTURES Yes (manual+, direction hold+, slow forward+)

Features Remote control
SCREEN SIZE 1.2″ (30.4 mm) diameter
SCREEN RESOLUTION 240 x 240 pixels
DISPLAY TYPE Color, anti-glare, transflective MIP (Memory-In-Pixel)
PROGRAMMABLE CHARTPLOTTER BUTTONS
CHECKING THE AUTOPILOT FUNCTIONS
IPX7 WATERPROOF RATING
BATTERY LIFE Typical use with backlight turned off, 43.2 weeks
FLOATS

Caratteristiche

Sei interessato ad una offerta privata?
D. buongiorno, vorrei avere info riguardo la lunghezza del gambo avendo una Saver Cabin Fisher 22 che pesa 1400 kg a vuoto e ha una distanza dall'acqua alla prua di 70 cm, penso che il 63'' sia giusto visto che la lunghezza del gambo senza la testa è di 140 e togliendo 70 cm pescherebbe appunto 70 cm considerando che deve pescare almeno 50/60 cm. Altra info è sulla batteria da abbinare considerando che abitando lontano dal mare la vorrei portatile così da poterla ricaricare a casa e che le mie uscite sono di circa 10 ore in totale a traina con il vivo o a bolentino o a ligth drifting. Grazie Filippo
R. 22-10-23 Buongiorno, corretta la Sua considerazione, però verificherei meglio la distanza rispetto al pelo d'acqua, guardando il suo modello di barca, visto anche il fatto che è cabinata, penserei più al gambo da 75". In merito alle batterie, siamo in procinto di ricevere delle batterie al Litio di qualità ad un costo interessante, intorno ai circa 1.200,00 euro versione 24V 100Ah e circa 1.500,00 euro per la versione 36V 78Ah. Non abbiamo ancora test sui Kraken, posso però affermare che sui modelli da 63" e basandosi sulle prestazioni con MinnKota, dovrebbe riuscire a coprire tranquillamente le 10 ore, poi questo è influenzato anche dalle condizioni del mare. Cordiali saluti. Luigi Bianchi
