Garmin Force Kraken with 75" stem

(0)

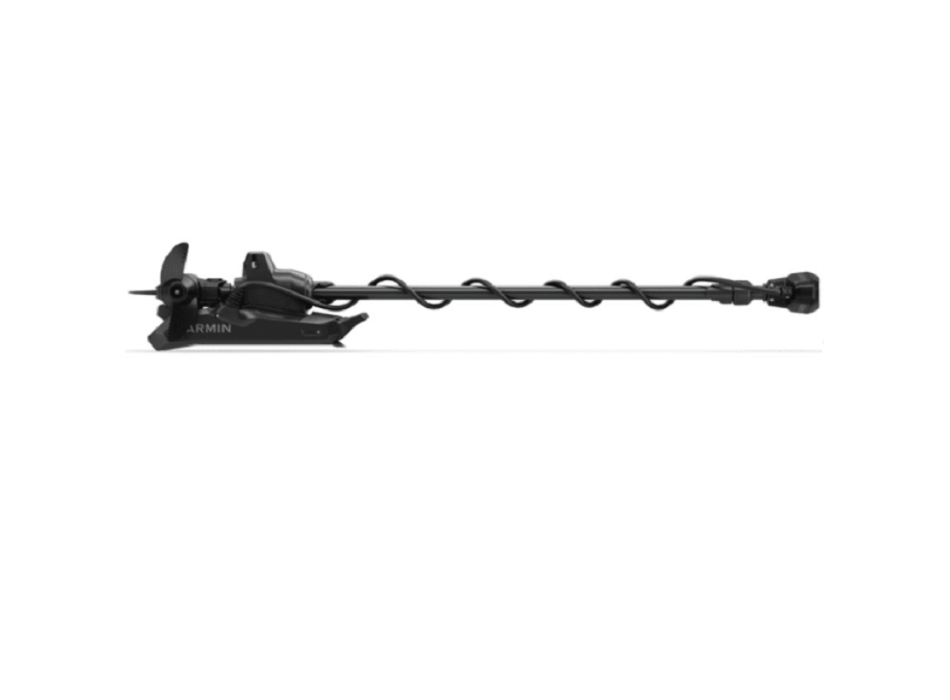

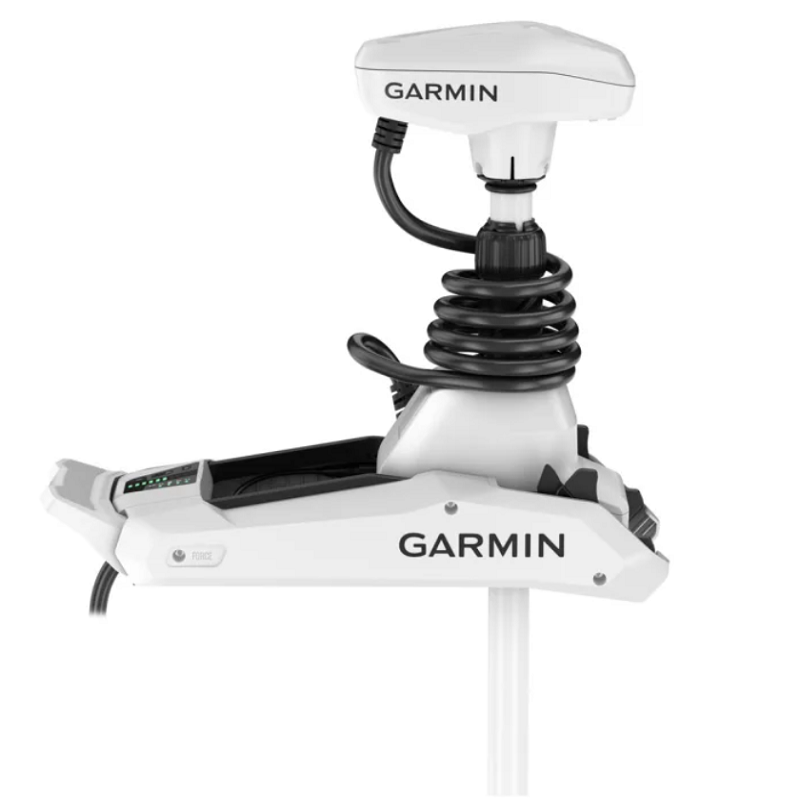

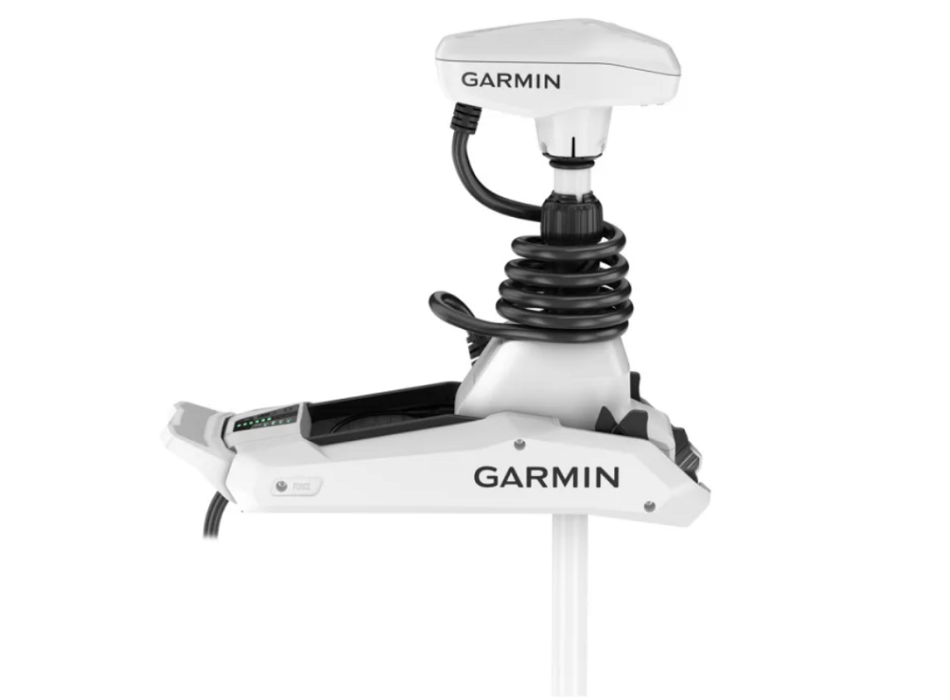

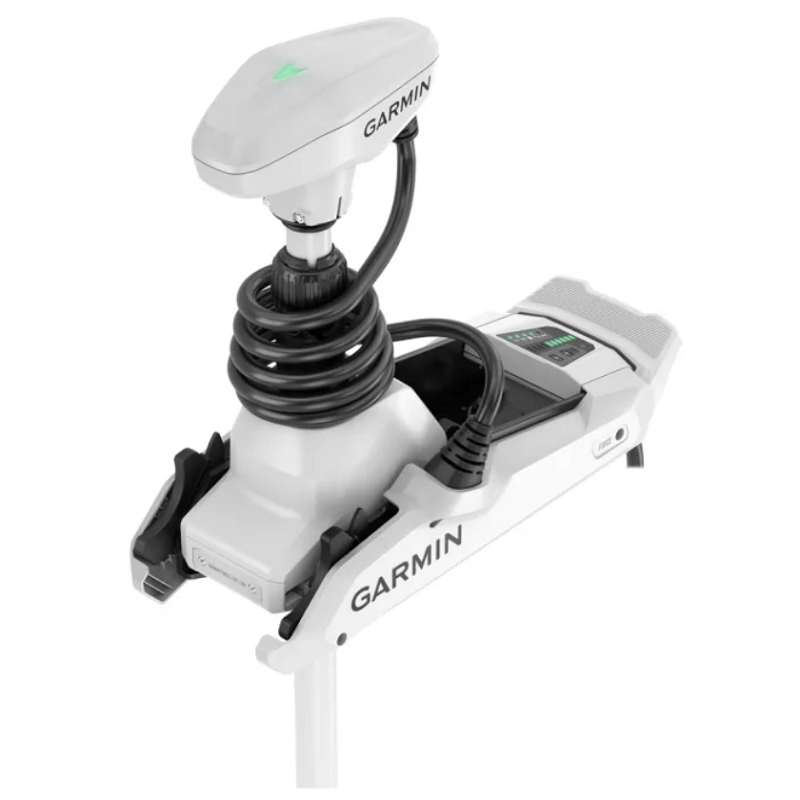

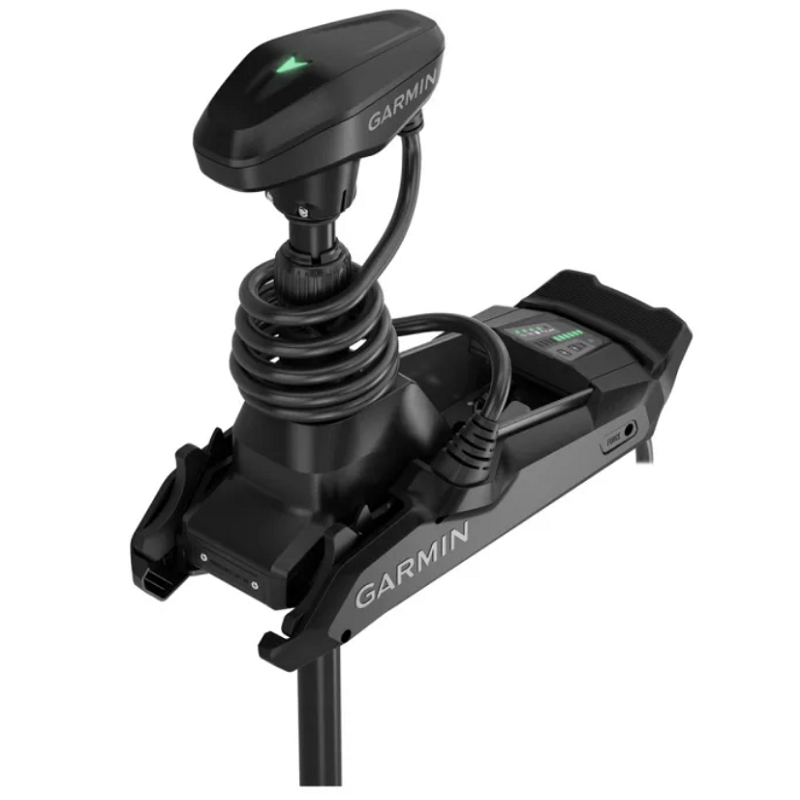

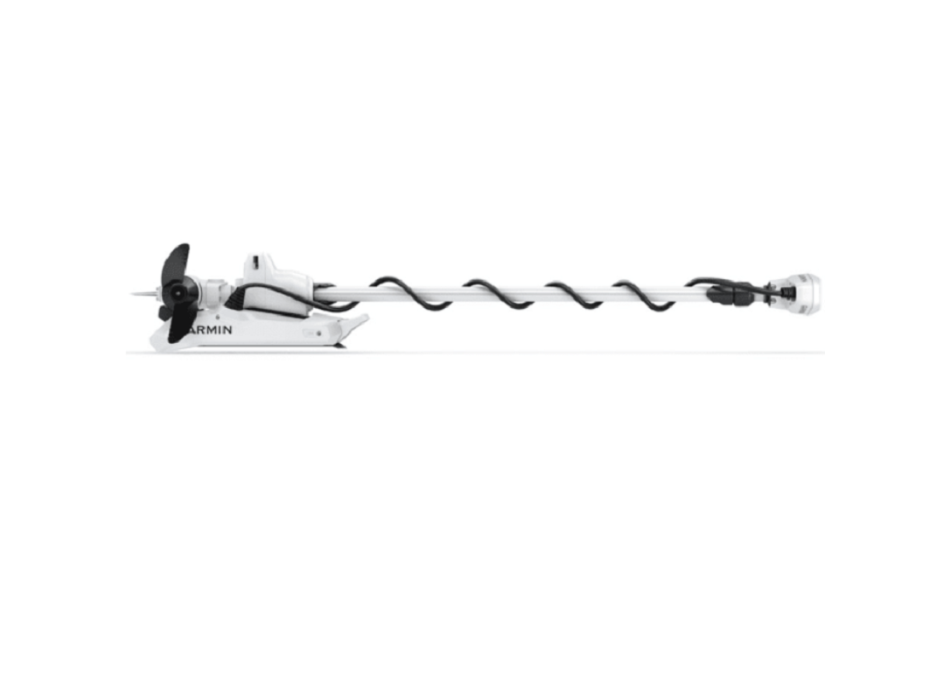

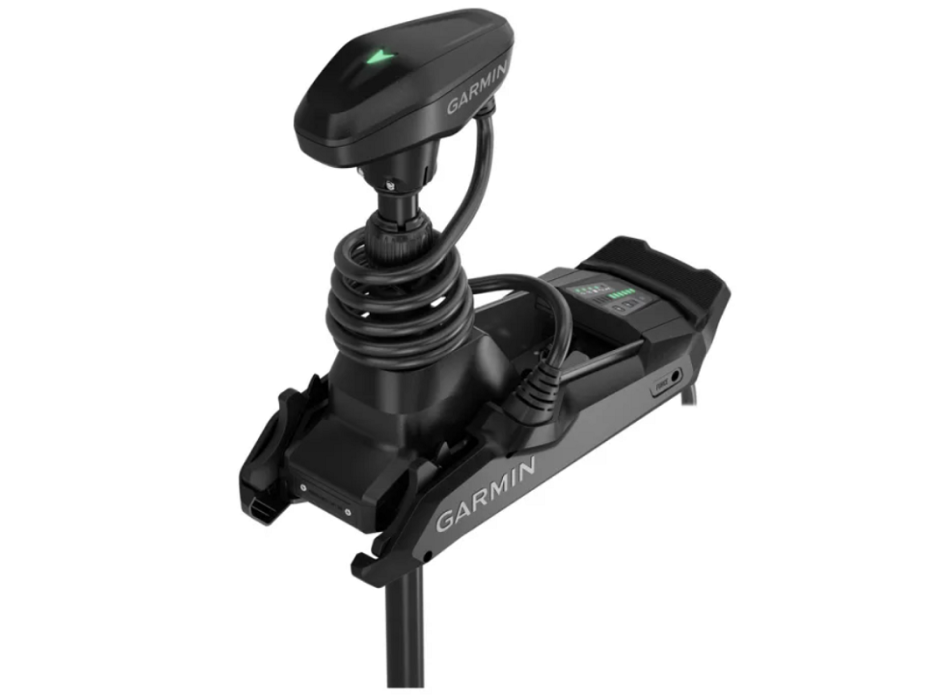

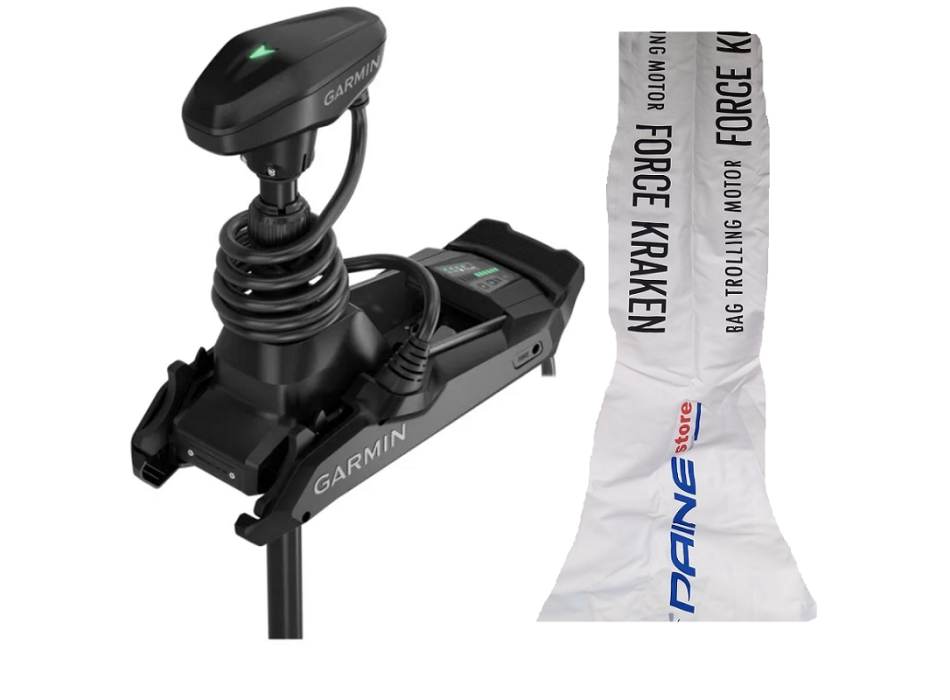

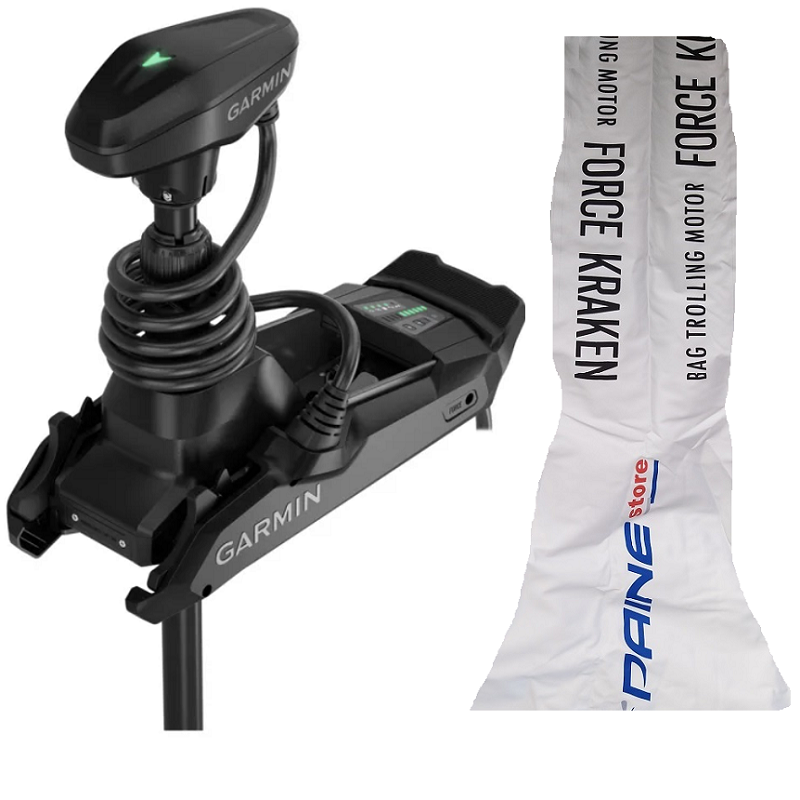

Use the drop-down menu and choose the Black or White model.
On our Blog page , you'll find answers to questions about the most suitable engine model for your boat.

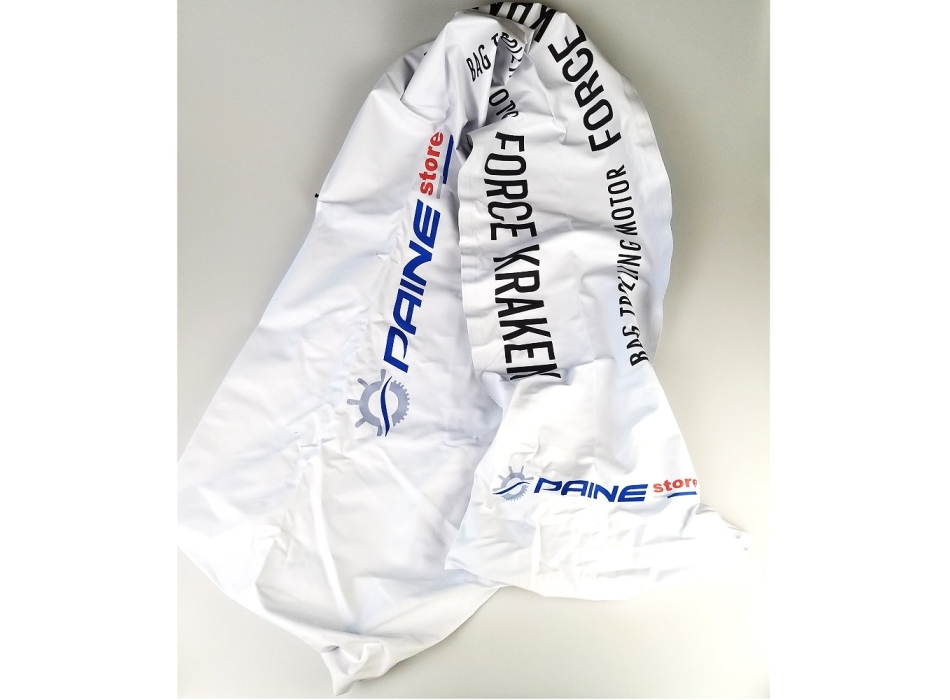

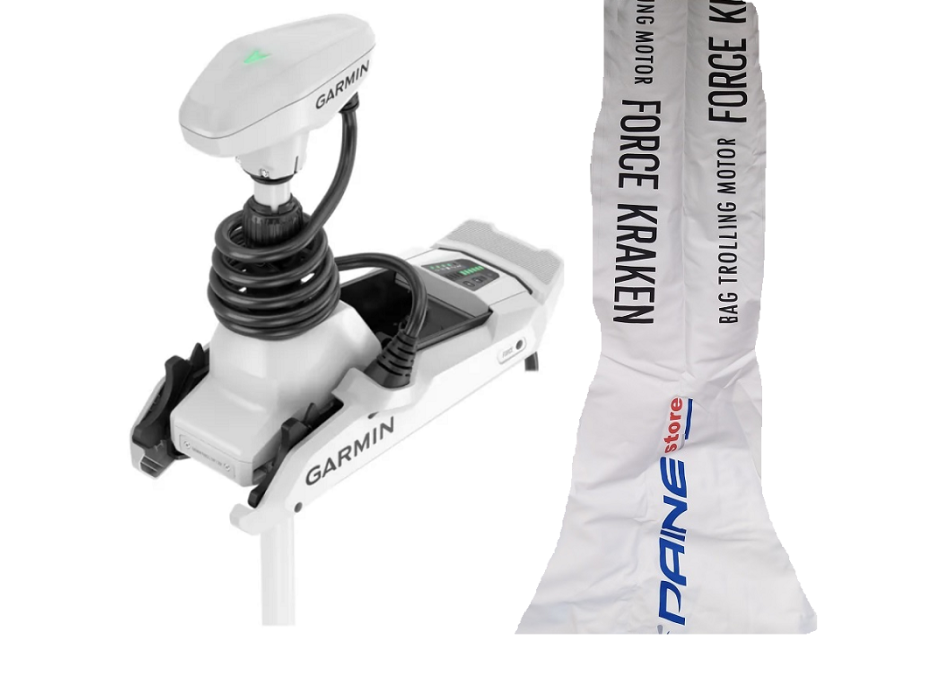

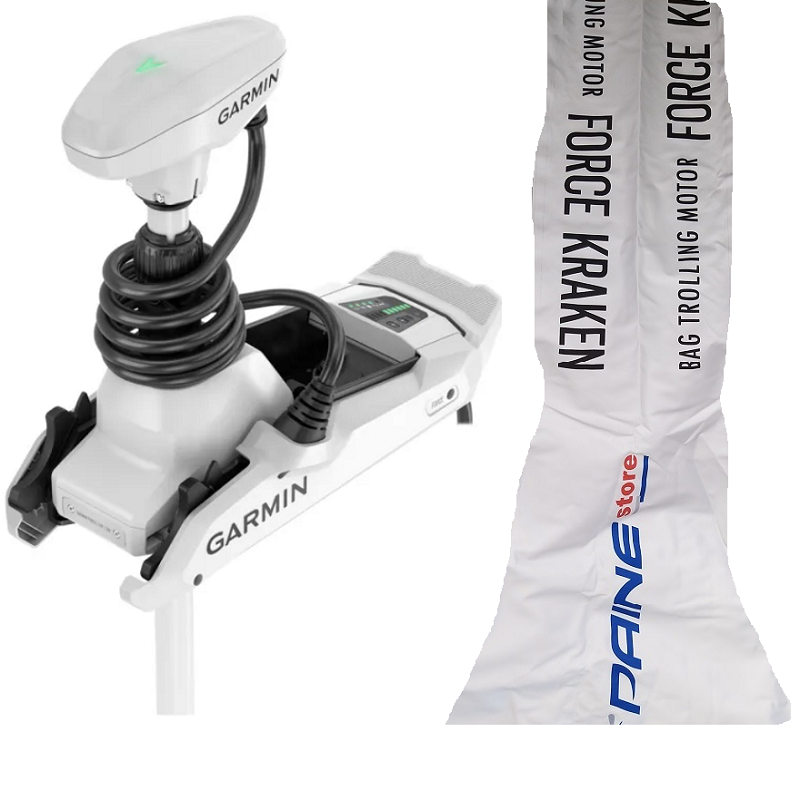

Our PAINESTORE protective bag is included for free.
  • Code: 010-02574-10
  • Brand : Garmin
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
starting from € 4.199,00 € 4.700,00 -11%

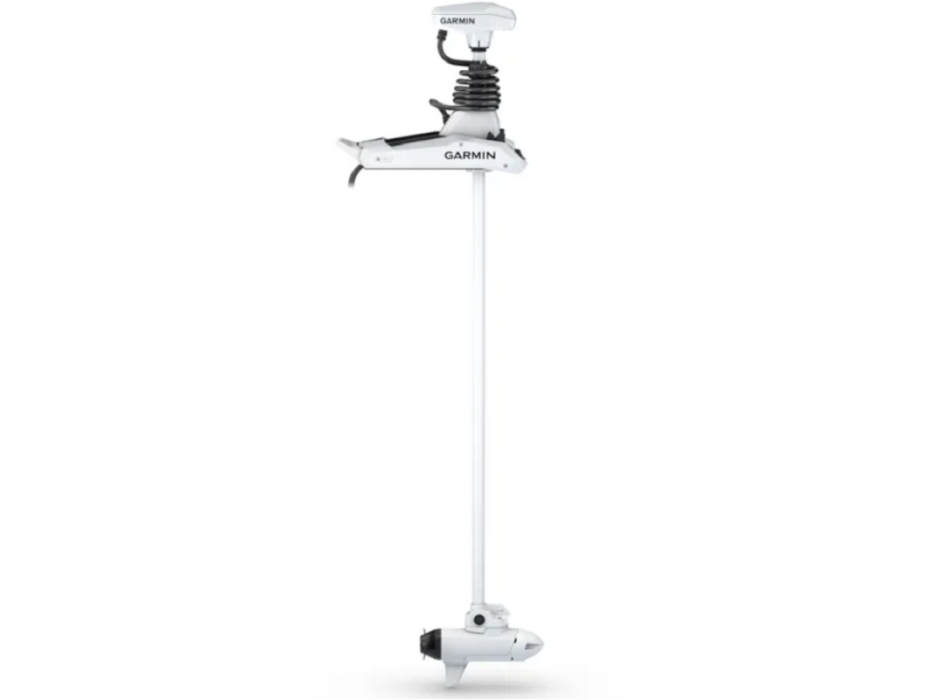

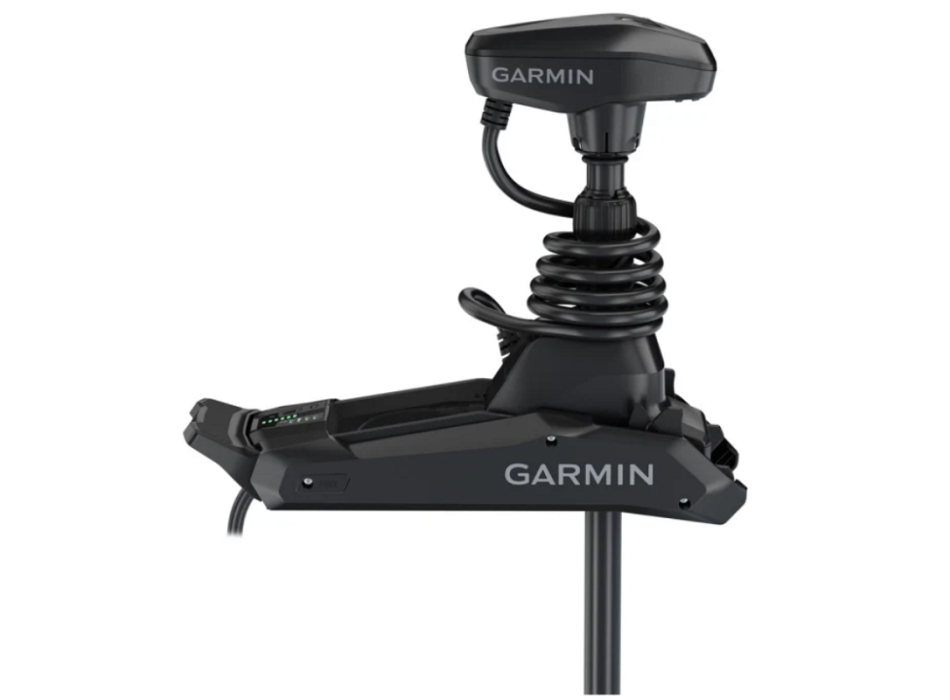

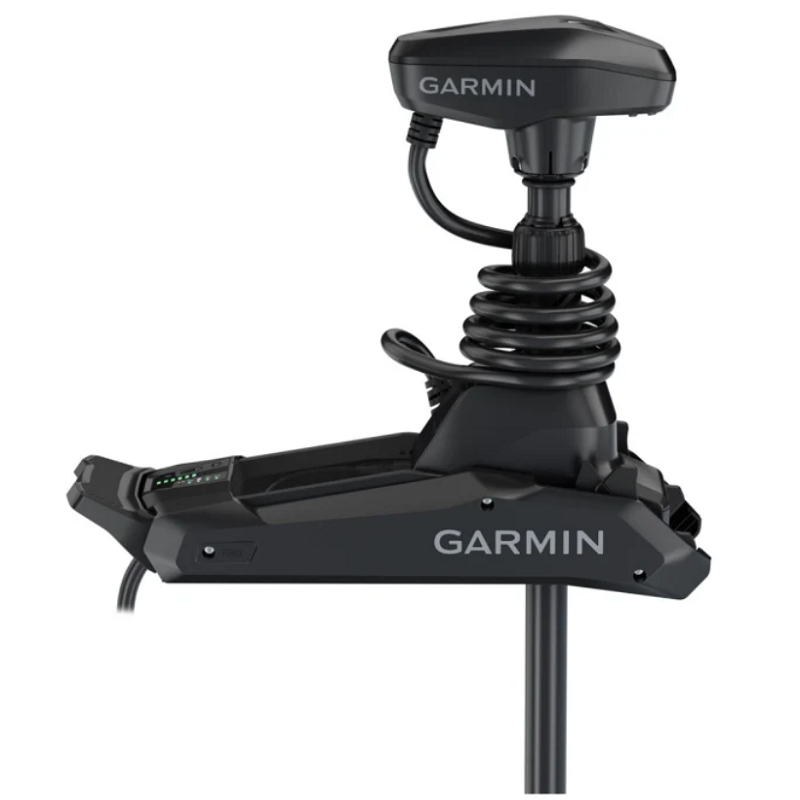

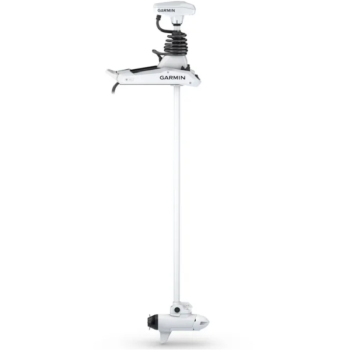

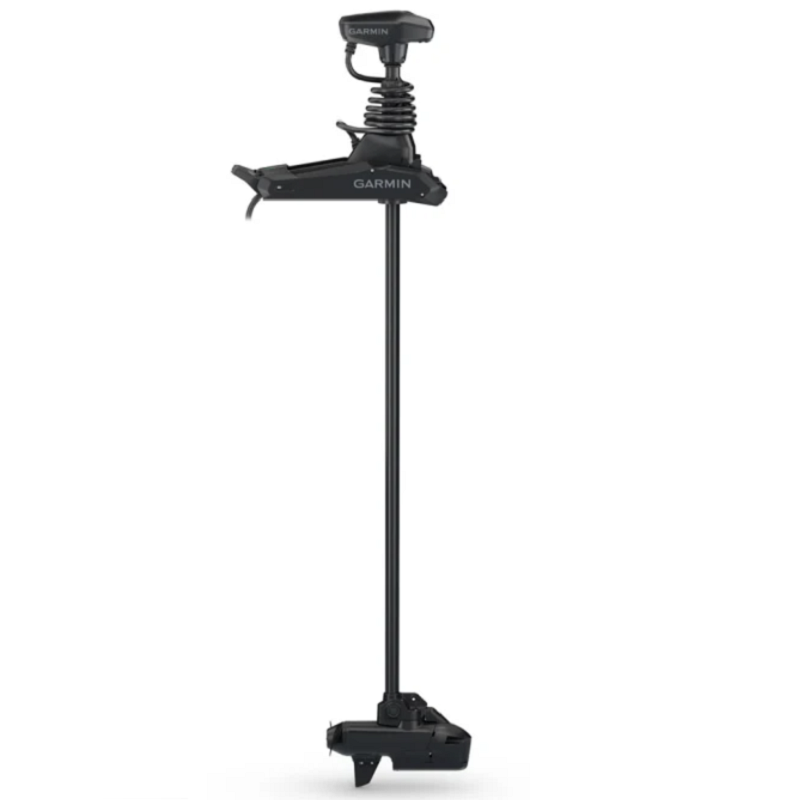

Garmin Force KRAKEN 75" Electric Motor

QUIET OPERATION. THE MOST POWERFUL ELECTRIC MOTOR IN THE INDUSTRY; 100 LBS OF PROPULSION .
Don't spook the fish; the motor is extremely quiet above and below the water surface.

WIRELESS INTEGRATION. WIRELESS INTEGRATION WITH GARMIN CHARTPLOTTERS
Connect to a compatible chartplotter to create and follow routes while fishing with the electric motor.

SMARTWATCH INTEGRATION. INTEGRATION WITH YOUR QUATIX.
Connect your compatible Garmin smartwatch to control your tack, anchor position and more from your wrist.

STAY IN PLACE. MOORING POINT AND MULTIBAND GPS TO MAINTAIN YOUR POSITION
The mooring point offers our most precise technology to hold your vessel in position.

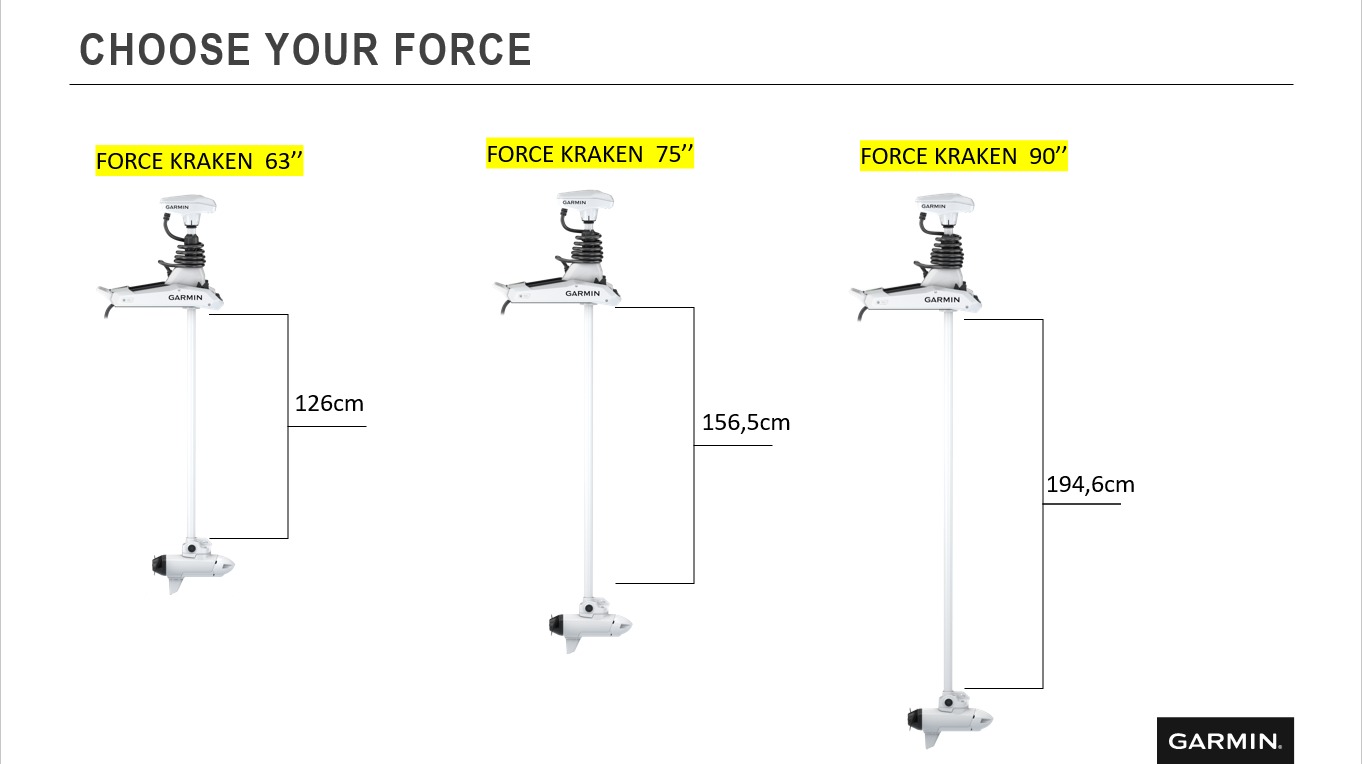

STEM SUITABLE FOR ANY BOAT. AVAILABLE IN 63″, 75″, AND 90″ STEMS
Three different heights to match your boat.

FLOATING REMOTE CONTROL. Use the included remote to navigate anywhere with our intuitive Point-and-Go technology.

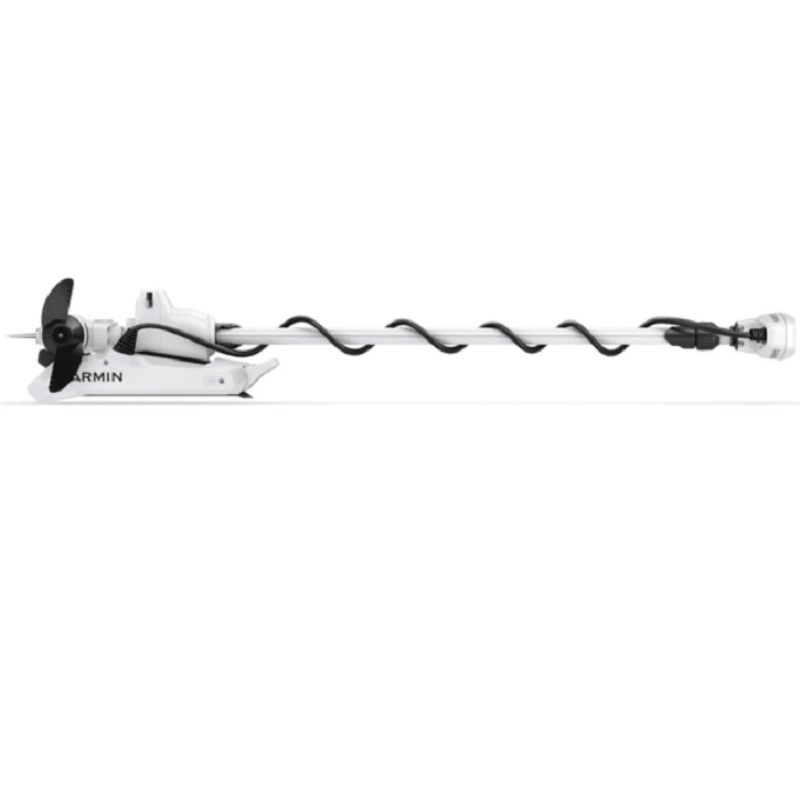

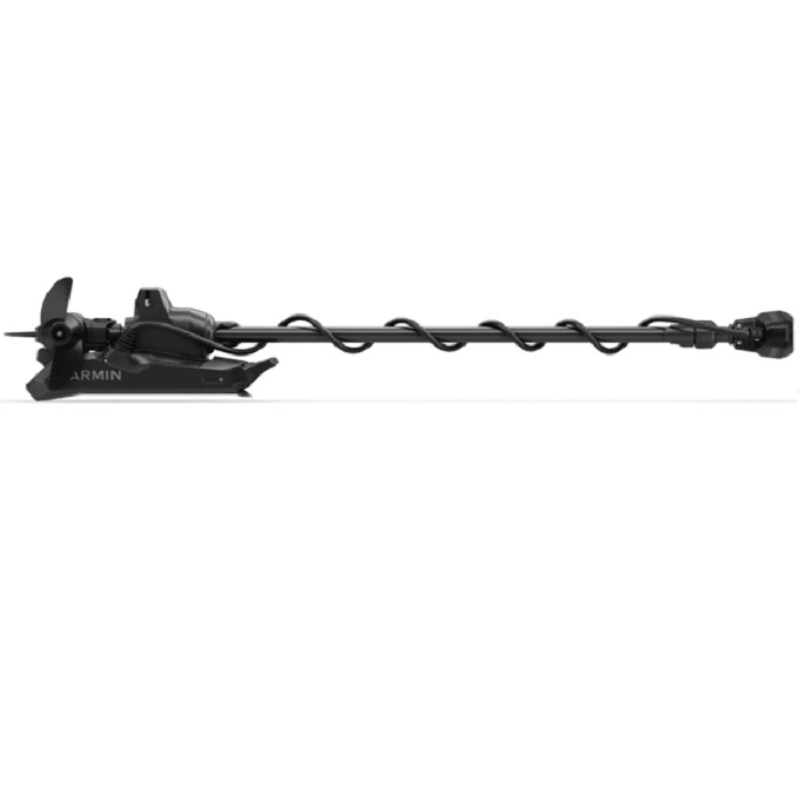

The Force Kraken electric motor is designed with a longer shaft for boats with higher freeboard and a swivel mount for easier installation in boats with limited stern clearance.



HIGH POWER
With 100 lbs of propulsion1, the Force Kraken is the most powerful electric motor on the market.

DESIGNED TO LAST
The rugged composite shaft and all components are built to withstand the harshest marine conditions and are protected from corrosion and salt water.

LONG-LASTING BATTERY
The efficient brushless motor design offers longer run times than brushed motors, allowing you to focus on fishing without worrying about battery life.

SPECIALLY MADE DESIGN
This electric motor is optimized to operate in harsh conditions, at 24 or 36 volts, thanks to the power and efficiency of the brushless design.

LIVESCOPE™ SOUNDER CABLE MANAGEMENT
Keep your LiveScope sonar cable protected by routing the transducer cable through the electric motor shaft (accessory purchase required).

IDEAL FOR BAY BOATS AND CENTER CONSOLE
Simplified installation in limited transom space thanks to the swivel mount. The 63", 75", and 90" stems adapt to various boat sizes and dashboard configurations.
TECHNICAL CHARACTERISTICS

General
COLOR White or Black
USE Fresh water, brackish water and salt water
IPX7 WATERPROOF RATING
INSTALLATION POSITION Bow
MOUNTING STYLE Swivel mount
MAXIMUM DISPLACEMENT 100 lb per ISO 13342 with 36V high efficiency propeller or 80 lb per ISO 13342 with 24V DC high efficiency propeller
INTEGRATED COMPASS SENSOR
BUILT-IN GPS Yes (Dual-frequency GPS)
3 year warranty
REMOTE CONTROL INCLUDED Yes (included)
COMPATIBLE WITH FOOT CONTROLS
BATTERY INDICATOR
SPEED CONTROL Yes (20 steps)
DIRECTION INDICATOR LIGHT
BRIDGE STABILIZER Yes (90" only)
WEIGHT: 24.5 KG​​​​​​​

Electrical characteristics
VOLTAGE 24V/36V.
ELECTRIC GUIDE

Fishfinder Features and Specifications
GT56UHD-TR TRANSDUCER included in Black versions only
LIVESCOPE CABLE INTEGRATION Yes (LiveScope transducer and Kraken mounting bracket required)
QUATIX REMOTE CONTROL SUPPORTED

Autopilot functions
COMPLETION OF THE ROUTE
MOORING POINT
MAINTAINING DIRECTION
CRUISE CONTROL
GESTURE FUNCTIONS Yes (manual+, direction hold+, slow forward+)

Remote Control Features
SCREEN SIZE 1.2″ (30.4 mm) diameter
SCREEN RESOLUTION 240 x 240 pixels
DISPLAY TYPE Color, anti-glare, transflective MIP (Memory-In-Pixel)
PROGRAMMABLE CHARTPLOTTER KEYS
CHECKING AUTOPILOT FUNCTIONS
IPX7 WATERPROOF RATING
BATTERY LIFE Typical usage with backlight at minimum, 43.2 weeks
FLOATS
D Salve ho un gommone di 8 metri e la prua è abbastanza alta … Di quante lb occorre? La batteria è compresa ?
R 12-07-24 Buonasera, non mi soffermerei troppo sul tema libbre, più che altro avrei necessità di sapere l'altezza della prua rispetto al "pelo d'acqua", grazie. Cordiali saluti. Luigi Bianchi
D Salve, a me interessa che sia per acqua salata il colore nero va bene ma non mi serve il trasduttore incluso, se mai ci fosse.
R 09-11-23 Buongiorno, confermo, indicato anche per utilizzo in mare, trasduttore incluso. Abbiamo disponibili anche le piastre volutamente non le mettiamo disponibili al momento per evitare che i clienti in questa fase acquistino solo quelle. Disponibile ad inviarle un'offerta privata. Cordiali saluti. Luigi Bianchi
D Severeve come helica di prua?
R 24-09-23 Buongiorno, assolutamente no, la funzione dei motori di prua che abbiamo sul nostro sito è solo per funzione ancora. Cordiali saluti. Luigi Bianchi
D Buongiorno, sono a chiedere un preventivo e da quando sarà disponibile il nuovo motore elettrico Force Kraken della Garmin. Sono interessato al modello 75" bianco. Grazie Saluti Alessandro
R 06-09-23 Buongiorno, per la versione bianca posso offrirla a 4.400,00 euro. Arrivo previsto entro fine mese, stiamo già prendendo pre ordini perchè ne arriveranno pochissimi pezzi, noi ne abbiamo già in ordine da Garmin una ventina assortiti fra i vari modelli. Cordiali saluti. Luigi Bianchi
D Salve ho un Imbarcazione wellcraft 26" La distanza del piano di montaggio al pelo d'acqua è 120 cm. Che modello posso acquistare tra i tre disponibili?
R 26-08-23 Buonasera, vista l'altezza della prua, consiglierei il modello con gambo da 90": https://www.painestore.it/garmin_force_kraken_con_gambo_da_90_ Stiamo già organizzando i preordini perchè ne arriveranno un quantitativo limitato da Garmin per Settembre. Cordiali saluti. Luigi Bianchi
