B&G Simrad NAC-3 Autopilot Core Pack

(0)
  • Code: 000-13336-001
  • Brand : B&G
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 2.589,00 € 3.047,72 -15%
B&G NAC-3 Autopilot Core Pack:
NAC-3 Autopilot Basic Package

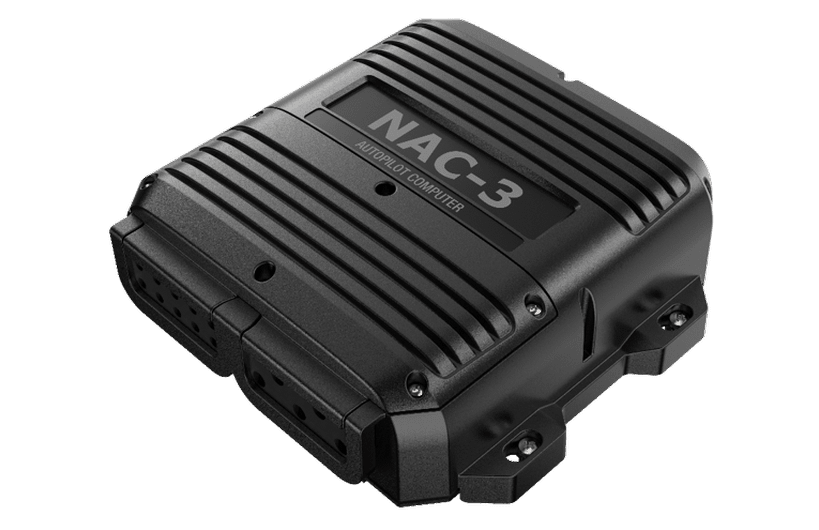

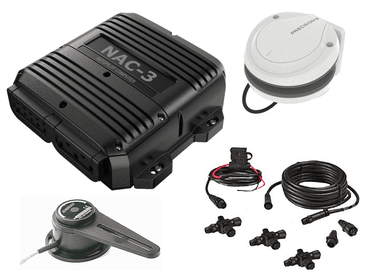

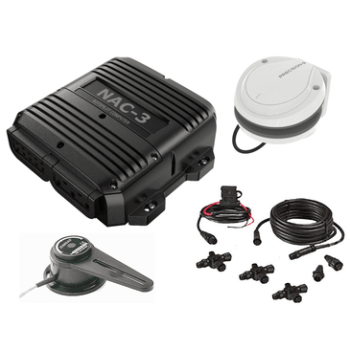

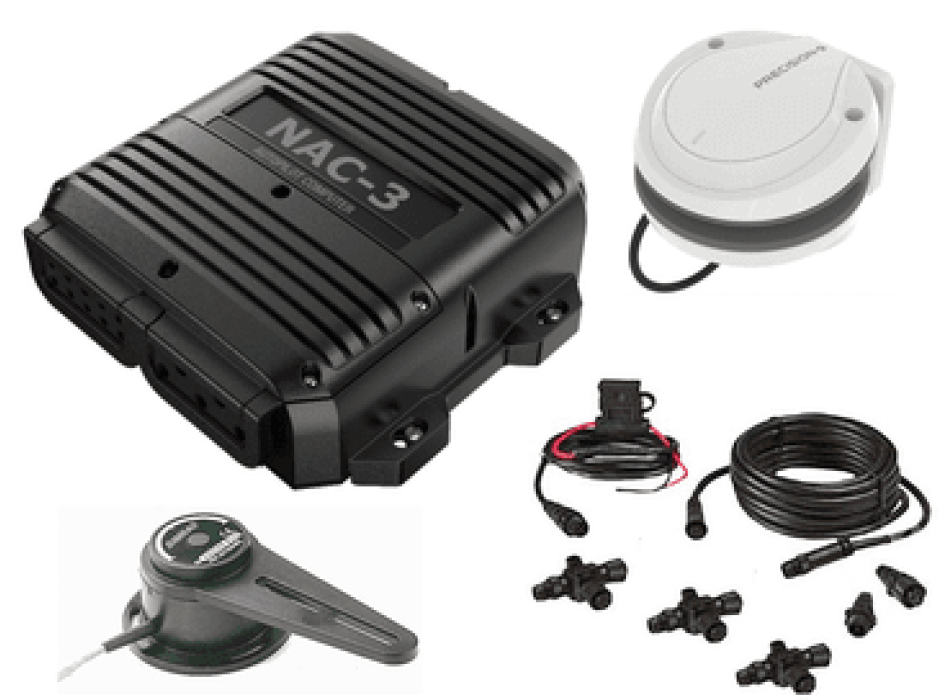

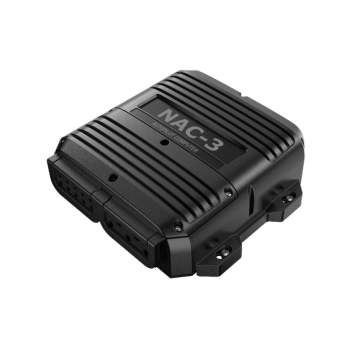

This package includes the Simrad NAC-3 autopilot computer, RF25N rudder feedback unit, Precision-9 solid-state compass, plus all the cables and connectors needed to build an NMEA 2000® network backbone or connect the autopilot system to an existing NMEA 2000® network. This package is recommended for vessels with steering systems over 10 meters (35 feet) in length and is suitable for use with high-current drive pumps including the Simrad RPU160 and RPU300, mechanical drives such as the Simrad DD15, hydraulic linear drives such as the HLD2000 series, and solenoid valves.

Multiple control options
Choose from a range of dedicated autopilot controllers or control your autopilot from your existing Simrad multifunction display. Install additional autopilot stations, ideal for dual-helm vessels, or add the Simrad WR10 wireless remote control for instant steering and autopilot control from anywhere onboard.

Ease of installation and configuration
Industry-standard NMEA 2000® networking and NMEA 0183® input provide reliable connectivity to sensors, autopilot controllers, and multifunction displays anywhere onboard. Autotuning simplifies setup and ensures optimal steering performance, while automatic compass calibration continuously improves heading accuracy as you navigate.
TECHNICAL SPECIFICATIONS
  • Autopilot system main components: just add a drive unit and a controller
  • Ideal for time boats over 10 metres (35 feet) in length.
  • Compatible with high current drive pumps, mechanical drives, hydraulic linear drives and solenoid valves
  • Take control with the Simrad AP44 autopilot controller, IS42 display and OP12 keypad, or a networked multifunction display
  • Simple setup with automatic adjustment and compass calibration
D Salve è integrabile per completarlo, con b&g network anno 2000 attualmente sulla barca? Grazie
R 02/05/2026 Buonasera, spiacente purtroppo non compatibile, deve acquistare anche almeno una tastiera e display Triton: https://www.painestore.it/b_g_display_triton2 https://www.painestore.it/b_g_triton2_tastiera_pilota Oppure un GPS Chartplotte compatibile. Cordiali saluti. Luigi Bianchi
D Buongiorno il pilota nc3 simrad nac 3 autopilot core pack funziona con il display controller hydra pilot B&G? e con l'attuatore idraulico B&G? Grazie Filippo Masci
R 03-05-25 Buongiorno, spiacente purtroppo non compatibile, deve aggiungere o un display anche un comando Triton Autopilota, oltre al display sempre Triton se non ha un Chartplotter compatibile. L'attuatore invece rimane compatibile con NAC-3. Cordiali saluti. Luigi Bianchi
D Ho necessità vdel pilota automatico x barca a vela Millennium 40 timoneria a ruota con frenelli, disponibilità e posto, grazie saluti pieffr composity, Paolo
R 22-04-22 Buongiorno, avrei necessità di avere qualche chiarimento: 1. dislocamento della barca 2. ha già un autopilota installato a bordo? 3. come strumentazione ha sempre B&G? Grazie. Cordiali saluti. Luigi Bianchi
D Hello, is the NAC-3 Core Pack available for immediate delivery within italy? how long does it take to receive? thank you best regards Thomas Ghelfi
R 20-05-2021 Hello Mr. Thomas, I confirm you, the NAC 3 Package cod. 000-13336-001, is available in my stock. Best regards.
