B&G Triton2 Wireless Pack

  • Code: 000-14956-002
€ 1.554,00 € 1.828,78 -15%
B&G Triton2 Wireless Pack

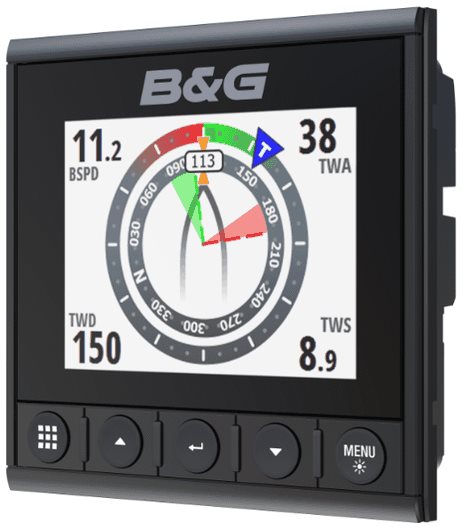

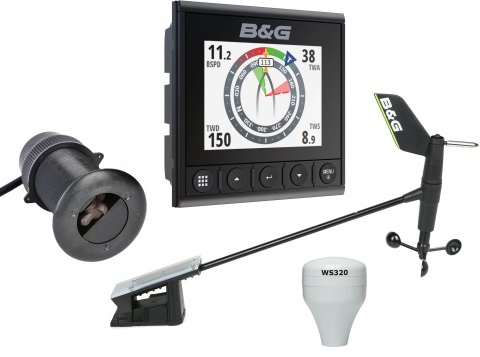

Triton2 Display, WS320 Wireless Wind Sensor and Transd. DST 810

Performance for everyone
Triton and Pilots instruments offer excellent performance synonymous with B&G for common and recreational boating in an easy-to-use, affordable package.

Advantages:
Clearer Screen -Triton offers industry-leading display technology. By optically binding the display, you ensure a clearly visible screen in all conditions with no condensation.
Ease of use - The simple menus are easy to access thanks to the presence of clearly indicated functional buttons
Intelligent Sail Steering
Low Power Consumption -Triton uses a reduced amount of power, allowing for longer surfing time without charging. Triton displays use significantly less power than most competitors.
Chartplotter Integration -You can navigate to a certain waypoint or follow a route by connecting the Triton Pilot to your compatible chartplotter

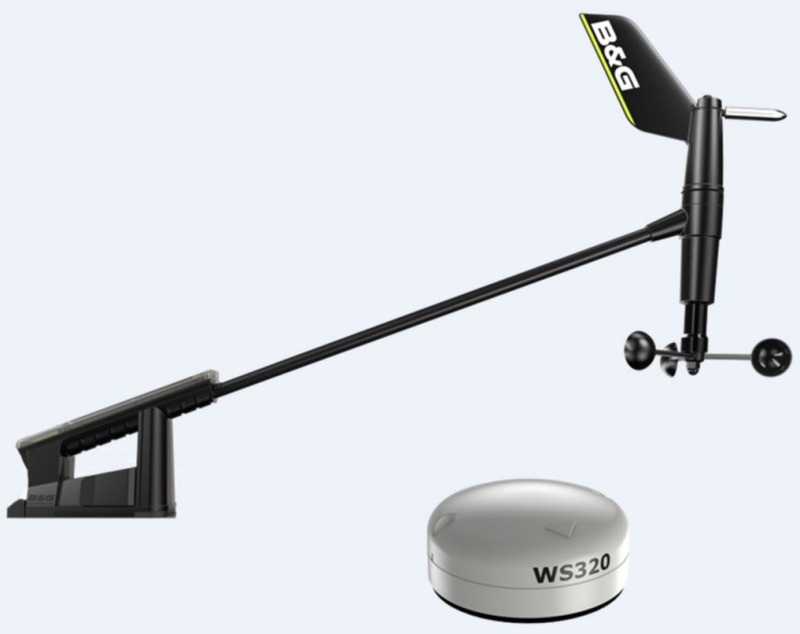

WS320 sensor
The revolutionary WS320 wireless wind sensor is ideal for boats with masts up to approximately 25 metres. Easy to install, very light and high performance, WS320 achieves levels of precision and aerodynamics like never before. Additionally, the rechargeable solar power management system ensures that data is always available for your instruments and autopilots, regardless of weather conditions. The WS310 wired option offers the same levels of precision and aerodynamics as the wireless model and allows installation in trees above 25 metres.

One of the main challenges with wind sensors is installation. The new WS320 wireless series is lightweight and eliminates the need to run cables through the mast of small boats, making installation much easier. Choosing a wireless sensor does not mean sacrificing the level of precision as it is the same as the wired version, providing wind data excellently and at a speed of five times per second.

ATTENTION: before installing the sensor on the masthead, carry out the "pairing" procedure with the Wireless / NMEA 2000 interface.
Technical specifications

Overview
Dimensions 118 x 115 x 28 mm (4.6 x 4.5 x 1.1 inches)
Weight 0.32 kg (0.7 lb)
Power Consumption 1.8 watts (MAX.)
Network load 3 LEN
Black colour
Display size 4.1 inches (diagonal). 4:3 image format
Transflective TFT-LCD display type, with protective coating. White LED backlighting
Display resolution 320 x 240 pixels
White lighting for day mode. Red, green, blue or white for night mode
Environmental protection, IPx7 waterproof
Environmental protection, humidity up to 95%RH
Safety distance from the compass 300 mm
Operating temperature -15 to +55 ºC (5 to +131 ºF)
Storage temperature -30 to +70 ºC (-22 to +158 ºF)

Caratteristiche

Sei interessato ad una offerta privata?
D. Buongiorno Ho appena acquistato il BG TRITON WIRELESS PACK assieme ad un display sempre TRITON dovendo sostituire la mia vecchia strumentazione BG che consiste in due vecchi display uno per la direzione del vento e l’altro per la velocità. Vogliate cortesemente confermarmi che il materiale che Vi ho ordinato comprende anche i cavi di collegamento dei due strumenti e del sensore profondità e velocità e fornirmi uno schema di montaggio , tenendo presente che nella mia barca non esiste rete NMEA . Cordiali saluti Ing, Vincenzo Puglisi
R. 21-03-23 Buongiorno, ringrazio innanzitutto per l'ordine. In teoria la confezione prevede tutto il necessario per l'installazione, dobbiamo solo verificare insieme le distanze fra i vari componenti, quindi cortesemente mi mandi un piccolo schema con distanze indicative fra, trasduttore Depth/Speed, piede albero e display Triton. Ringrazio anticipatamente. Cordiali saluti. Luigi Bianchi
D. Buongiorno, nel kit sono presenti anche i cablaggi e le connessioni NMEA 2000 necessarie ?
R. 07-03-22 Buonasera, sì certo è incluso anche il kit avviamento NMEA 2000. Cordiali saluti. Luigi Bianchi
D. Buon giorno Luigi, io vorrei installare un Triton2 sulla barca a vela ma dal manuale B&G non trovo nessun riferimento al dato della VMG , grazie per il suo aiuto, ralph
R. 03-01-22 Buongiorno e Buon Anno, confermo che il dato della VMG (velocity made good) è presente sul display triton2 e lo può visualizzare su una pagina dedicata, ed è la velocità dell'imbarcazione nella direzione del vento, allo stesso modo può visualizzare la VMC (velocity made on course) che è la velocità di avvicinamento ad un waypoint. Deve naturalmente avere i dati boat speed, heading, wind e GPS, installati a bordo. Cordiali saluti. Luigi Bianchi
D. Buongiorno, avendo un altezza dell'albero di 8,5m dal piano coperta, l'interfaccia wireless deve essere installata sull'albero? A che distanza massima dalla testa? Essendo la mia barca carrellabile, spesso devo disalberare, come suggerisce di gestire il cavo di rete per l'interfaccia? Grazie Saluti Giuseppe
R. 20-01-2021 Buonasera, assolutamente no, l'interfaccia deve essere installata all'interno della barca. Il sensore in testa d'albero è lui che è in WiFi, l'interfaccia è necessaria per ricevere i dati e trasformarli sulla rete NMEA 2000. Cordiali saluti. Luigi Bianchi
D. Buongiorno è compatibile/interfacciabile con Simrad GEO 7? Grazie
R. 20-06-2020 Buon pomeriggio, confermo la compatibilità con Simrad GO7 via NMEA 2000. Cordiali saluti. Luigi Bianchi
