Garmin Package gWind Pack

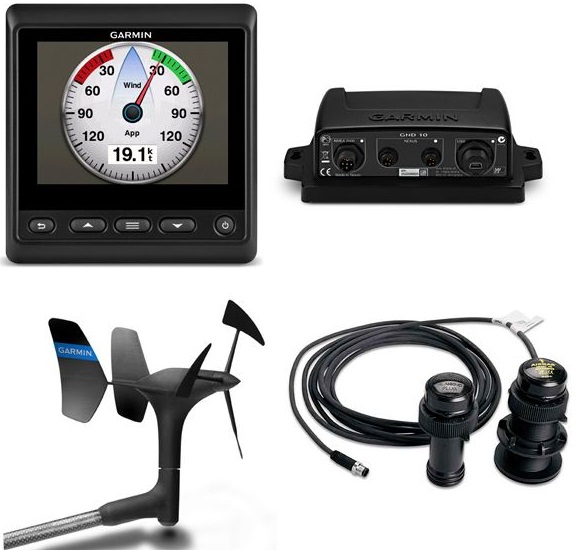

GMI 20 display, cabled wind transducer, and DST 810 echo/log transducer
Innovative GMI 20 control unit Large and bright 4” color LCD display
Extremely high contrast and anti-reflective treatment for the best possible daytime visibility
Maximum night visibility with red/black and green/black colors
Auto-scroll function of navigation data
Flush or recessed installation
Featuring a large, bright 4” display and large LCD characters, the GMI 20 is easy to read from a distance and from any angle. This new multifunction display offers the best possible nighttime visibility, with three different color combinations (full color, red/black, green/black) and is perfectly visible in sunlight thanks to the high contrast of its latest-generation LCD.
Thanks to its technological design, the GMI 20 harmonizes and characterizes any dashboard. The GMI 20 allows the display of over 100 navigation data, including: speed, depth, wind, GPS, engine data and much more. The GHC 20 package includes two bezels: "black" for installations with Glass Helm chartplotters and "silver" for installations with 4000/5000/6000/7000 series chartplotters.
Wind transducer Forward wind detection for more accurate data in light wind conditions
Double direction stabilizer
Optical data readout for superior performance at low wind speeds
The GND™ 10 Black box converts Nexus Network data to NMEA 2000 and enables seamless integration between compatible Garmin chartplotters and Nexus instruments.
Plug-and-play Nexus – Garmin installation via NMEA 2000
The gWind transducer, thanks to its forward-facing wind reading, provides more accurate data in light wind conditions, while the double directional stabilizer provides more reliable data. This type of transducer, unlike cup-type transducers, guarantees greater efficiency. Combined with optical reading, this transducer offers superior accuracy at low wind speeds.
An integral part of the system is the GND™ 10, a plug-and-play black box that converts Nexus Network data to NMEA 2000, allowing Garmin users to use Nexus instruments and vice versa.
Display Specifications Dimensions:(H×W×D): 110 x 115 x 30 mm
Weight: 247g
Temperature range: -15° to 70°C
Waterproof: IPX7
Power consumption: maximum 2.5W
Maximum unit voltage: 32 Vdc
NMEA 2000® Input Voltage: 9-16 Vdc
LEN NMEA 2000: 6 (300 mA at 9 Vdc)
Wind transducer specifications Unit Dimensions, WxH: 610mm x 345mm (17.7" x 11.8")
Weight: 260 grams
Cable length: 25 m
Waterproof: Yes (IPX6)
Temperature range: -15°C to 70°C (5°F to 158°F)
Voltage: 9-16V
Power consumption: 0.33 W
Compass safe distance: N/A
Angle accuracy: better than ±1.5°
Speed: better than ±3%
NMEA 2000® Load Equivalency Number (LEN) Number: N/A
Wireless connectivity: no
Packaging GMI™ 20
Black mask
Silver mask
Protective cover
Built-in installation kit
gWind wind sensor
Installation kit
25m masthead cable
NMEA 2000 Power Cable
NMEA 2000 drop cable
DST 810 depth/speed transducer
“T” connectors
NMEA 2000 Terminals
Documentation
