-15%

B&G Vulcan 9 FS GPS / Chartplotter 9 "Display

  • Code: 000-13214-001
€ 929,00 € 1.098,00 -15%

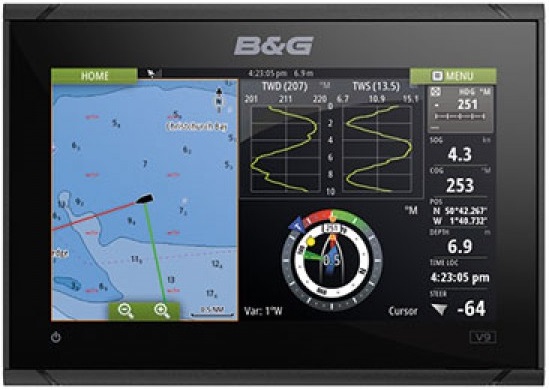

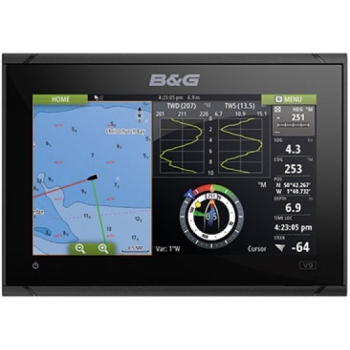

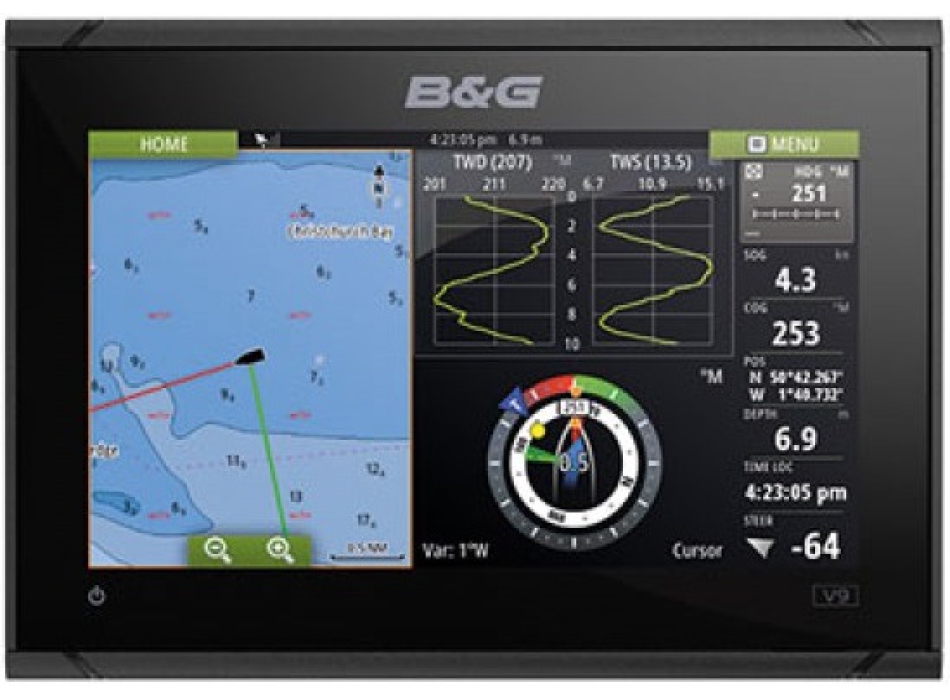

B&G Vulcan 9 FS
GPS / Chartplotter Display 9 "

Multi-touch and intuitive navigation chartplotter
B&G Vulcan 9 navigation chartplotters offer innovative navigation capabilities, controllable via an intuitive multi-touch display. Integration with on-board instrumentation allows you to take advantage of award-winning navigation features such as SailSteer ™ and SailingTime, as well as the ability to view all essential navigation data on a single screen or superimposed on charts.
With the addition of a ForwardScan ™ transducer you can see what is hiding in front of and below the surface, while the integration of a Broadband radar allows you to follow targets that are near and far. Thanks to built-in Wi-Fi technology, you can also use an existing tablet device as a display for mirroring - a value-added dual station option for smaller vessels.

Main functions
Complete chartplotter with all functions
This powerful chartplotter has all common functions, such as waypoints, routes and tracks. It is equipped with a high-performance internal GPS antenna, which guarantees maximum accuracy in location detection.
Dedicated navigation and cruise functions

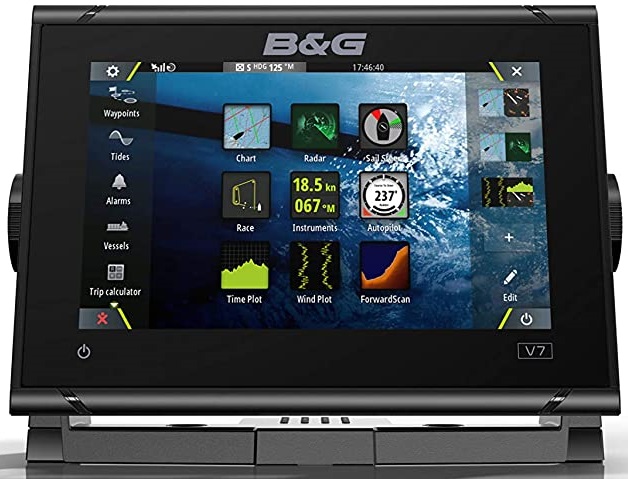

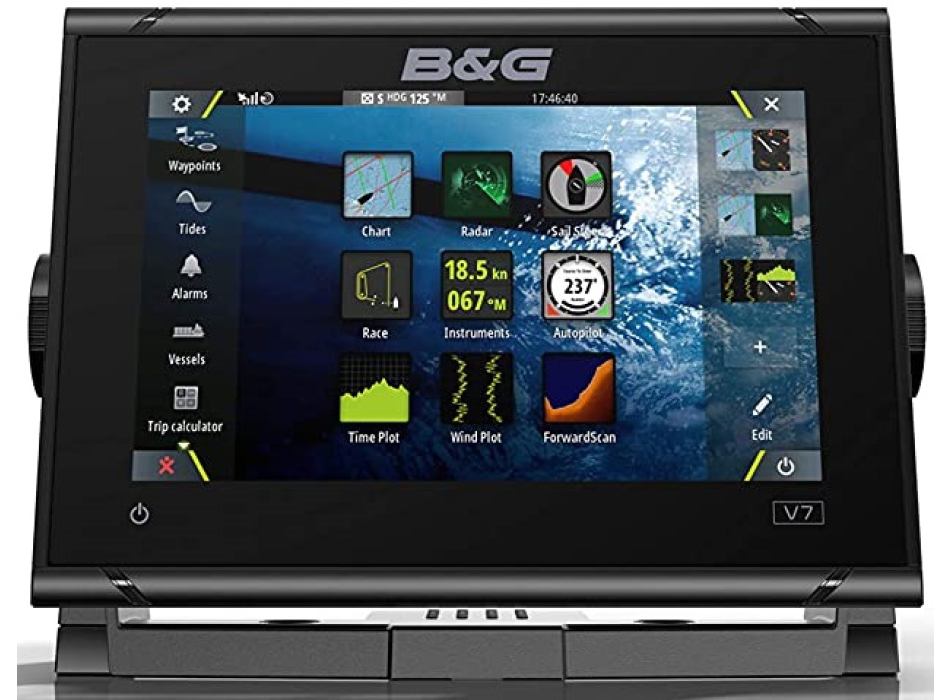

The Vulcan 9 chartplotter includes a dedicated multi-touch navigation interface, from which you can access award-winning B&G SailSteer ™ and SailingTime features.

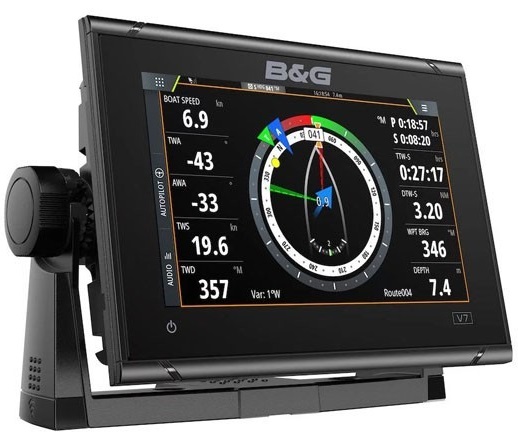

Instrument display
Integration of Vulcan 9 with on-board instrumentation to use it as a large, high-visibility instrument display. Ability to create and customize data page layouts with division into one, two and 4 parts.
Widescreen multi-touch display
The Vulcan 9's design offers a large display in a small form factor. The intuitive multi-touch interface incorporates common gestures such as zooming and panning with the use of your fingers, making the Vulcan 9 incredibly easy to use.
Choice of maps
You can choose from C-MAP ™, Navionics®, NV Digital ™ or Insight chart options to take full advantage of the route planning and calculation functions.
Integrated Wi-Fi
Integrated Wi-Fi connectivity offers easy access to GoFree ™ online services via smartphone hotspot or marina hotspot. The Vulcan 9 can also be used as a mirroring screen with a compatible smartphone or tablet, resulting in a convenient and easy-to-carry dual station solution on board.
Intelligent NMEA2000 network connectivity
You can easily connect an essential navigation and cruise kit, including, for example, navigation instruments, B&G SonicHub marine audio server, ZG100 external GPS antenna and VHF Marine DSC radio. Vulcan 9 collects data while browsing and always makes it within reach

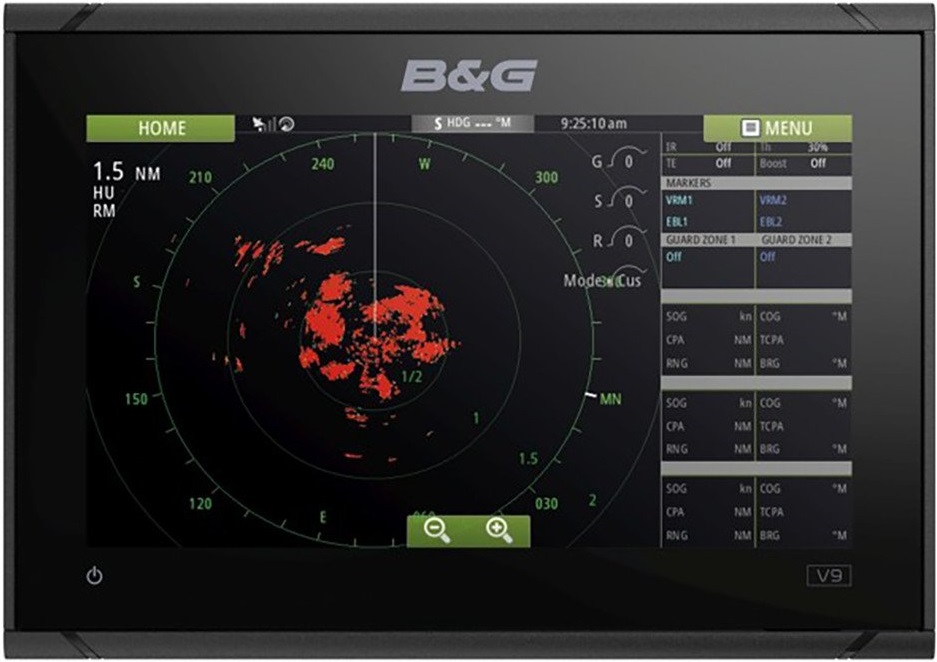

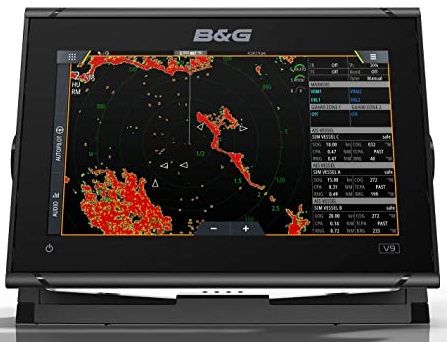

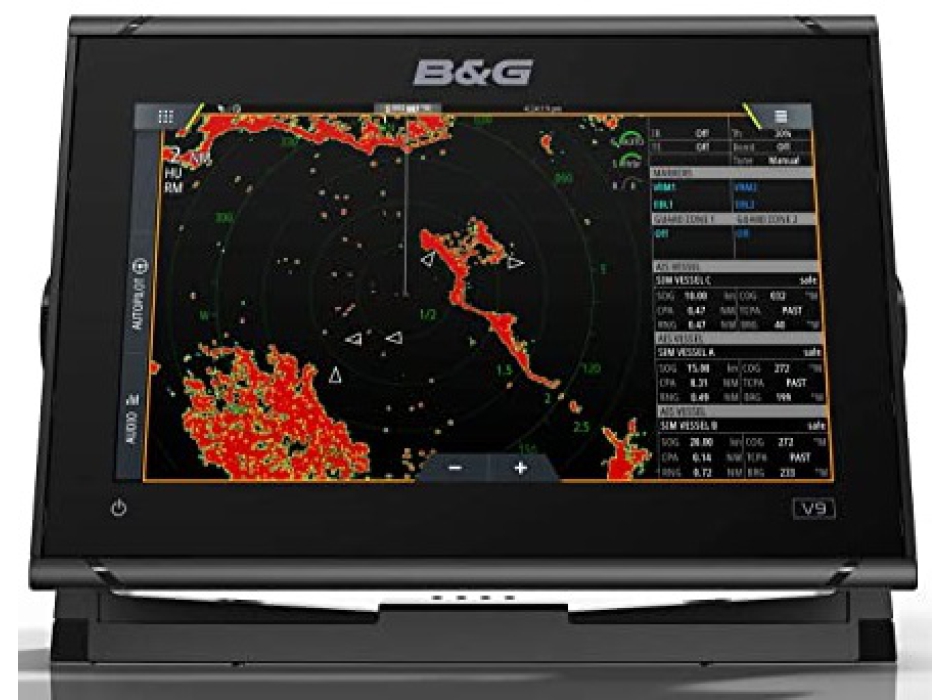

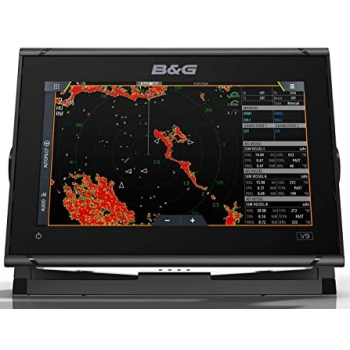

Broadband Radar ™
More effective monitoring with Broadband 3G ™ or 4G ™ radar, capable of identifying and tracking targets with high accuracy from the bow up to 36 nautical miles away (4G).
ForwardScan ™
With the addition of an optional ForwardScan ™ transducer, you can see what lies ahead underwater with accurate depth information. You can explore waters that are not clearly shown on maps or that are unknown with a clear image of the bottom in front of your boat.
Technical specifications

Overview
Display size 9 "
TFT display, widescreen
Resolution 800 x 480
1200 nit brightness
IPX7 environmental protection
Operating temperature from -15 to +55 ºC
Languages: English (US), English (GB), Danish, German, Spanish, Finnish, French, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish, Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Arabic, Farsi (some languages require additional language packs from B&G distributors)
1 x microSD multimedia port
NMEA 2000 connectors, sonar transducer, Ethernet (B&G Broadband radar only), power supply
2 year warranty (up to 3 years if part of an eligible system installed by a B&G certified dealer).
IPX7 waterproof level / standard
Product width 243mm / 9.56in
Product depth 83 mm / 3.26 in
Product height 171mm / 6.71in
Weight 1.32kg / 2.91lbs

Diet
Power supply 12 V

GPS navigation
Antenna type 10 Hz Internal GPS
Seabed mapping Navico seabed map and Navionics Global basemap
Navionics / C-MAP / NV Digital Charts / Insight mapping options

Network connectors
NMEA input / output NMEA 2000

Sonar
CHIRP and DownScan type
Frequencies 50/200/455/800 kHz Transducer type Transom or thru
D. Buonasera, in relazione all'acquisto di un vulcan 9, chiedo la compatibilità con strumentazione esistente in barca Pilota autohelm raymarine 6000 e tridata st 60+ ecc. ed in caso i connettori necessari. Inoltre vorrei affiancare un ICOM IC-M510E AIS, vorrei sapere se sia sempre interfacciabile. vorrei conferma anche della disponibilità a magazzino del charplotter. attendo cortese sollecito riscontro. Saluto cordialmente umberto
R. 31-03-22 Buonasera, in merito alla compatibilità con ST600 e ST60, devo dire sinceramente che ultimamente penso che B&G abbia modificato il software perchè fino a qualche mese fa tramite il kit E22158 era possibile vedere sul Vulcan tutti i dati SeaTalk del Raymarine, ora purtroppo no. Quindi dovrebbe acquistare una AT10 per mettere in comunicazione solo il Vulcan con l'autopilota. Confermo invece la compatibilità in NMEA 2000 con il VHF per la visualizzazione dei bersagli AIS. Tutto disponibile a nostro stock. Cordiali saluti. Luigi Bianchi
D. Buongiorno desidero sapere se questo modello e' compatibile quindi interfacciabile con Simrad serie GO.Grazie
R. 07-12-2021 Buongiorno, purtroppo non compatibile, fra l'altro i prodotti serie GO non possono essere collegati in rete con altri GO per la condivisione della cartografia, ecoscandaglio o Chartplotter. Cordiali saluti. Luigi Bianchi
D. buonasera, io ho tutto raymarine su un imbarcazione a motore, volevo sostituire con questo, e' possibile cambiare solo il gps ?
R. 26-11-2021 Buonasera, onestamente rimarrei su Raymarine, non so cosa abbia a bordo di preciso di prodotti Raymarine, certo è che l'eventuale integrazione con l'autopilota per esempio, è più semplice grazie al kit E22158: https://www.painestore.it/raymarine_kit_conversione_stng_a_seatalk_1_cod_e22158 Consiglierei quindi un Axiom 9: https://www.painestore.it/raymarine_axiom_9_display_9_multifunzione_1 Cordiali saluti. Luigi Bianchi
D. Vorrei acquistare il ferword
R. 23-06-2021 Buonasera, al prezzo del Vulcan 9FS, dovrà aggiungere anche il trasduttore ForwardScan: https://www.painestore.it/forwardscan_transducer Cordiali saluti. Luigi Bianchi
D. Vorrei sapere se è compresa anche l’antenna radar
R. Buonasera, se Le interessa anche il Radar dovrà valutare la seguente inserzione: https://www.painestore.it/b_g_vulcan_9_radar_3g_pack Cordiali saluti. Luigi Bianchi
D. Buongiorno sarei interessato al B&G Vulcan 9. Come pacchetto compreso nel prezzo cosa trovo? Ci sono delle mappe del Mediterraneo più dettagliate da acquistare? Io avrei un problema, avendo a bordo tutte apparecchiature Raymarine del 2006 ho connessioni sea talk quindi mi servirebbe anche un adattatore per far comunicare il B&G a Raymarine. Potrebbe gentilmente farmi un offerta del necessario per poter installare il B&G Vulcan 9 ? Grazie
R. Buongiorno, nella confezione non è inclusa nessuna cartografia. Per il collegamento con Raymarine Le necessita il seguente kit di conversione dati cod. E22158: https://www.painestore.it/raymarine_kit_conversione_stng_a_seatalk_1_cod_e22158 Dovrebbe aver già ricevuto l'offerta dettagliata. Cordiali saluti. Luigi Bianchi
D. Buongiorno, sono interessato al Vulcan 9, dalle FAQ vedo che e' comprensivo di C-MAP free Mediterraneo, ma se cerco questa opzione al link indicato non trovo nulla. Nel prezzo di 1159,00 quindi non e' inclusa alcuna cartografia? grazie F.Guggia
R. Buonasera, era riferita ad una vecchia promozione scaduta a fine Maggio. Se vuole posso proporLe una Navionics Plus 43XG al prezzo di 108,00 euro anzichè 204,00 euro. In caso sia interessato, può acquistare il Vulcan 9 e una UpDate: https://www.painestore.it/navionics_update Penseremo noi poi ad attivare la carta. Cordiali saluti. Luigi Bianchi
D. Vorrei cortesemente sapere se nell'offerta ad € 1.049,00 è inclusa la scheda cmap e se le istruzioni sono in italiano. Grazie
R. Buonasera, certamente sì, promo CMAP FREE inclusa e menù in italiano, garanzia Italia due anni. Per ottenere la carta CMAP in omaggio, dovrà inserire nel carrello anche l'articolo CMAP FREE a costo zero: https://www.painestore.it/c-map_free_cartografia_mediterraneo_gratuita Cordiali saluti. Luigi Bianchi
