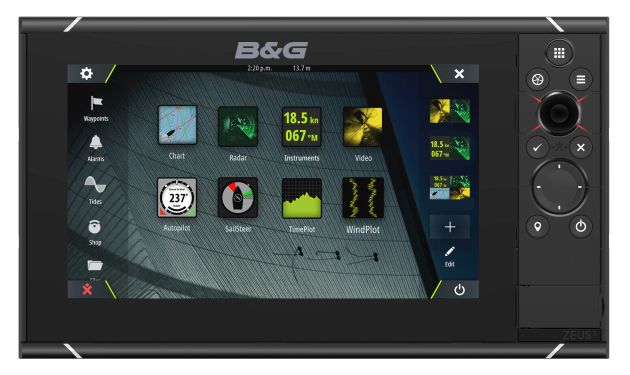

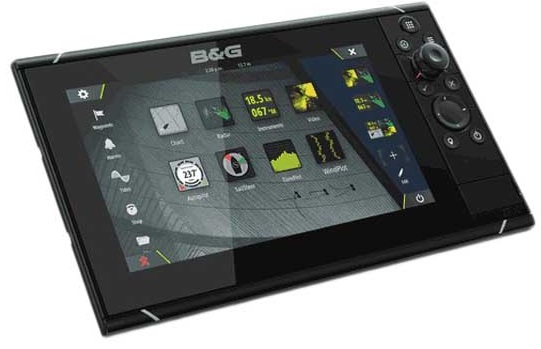

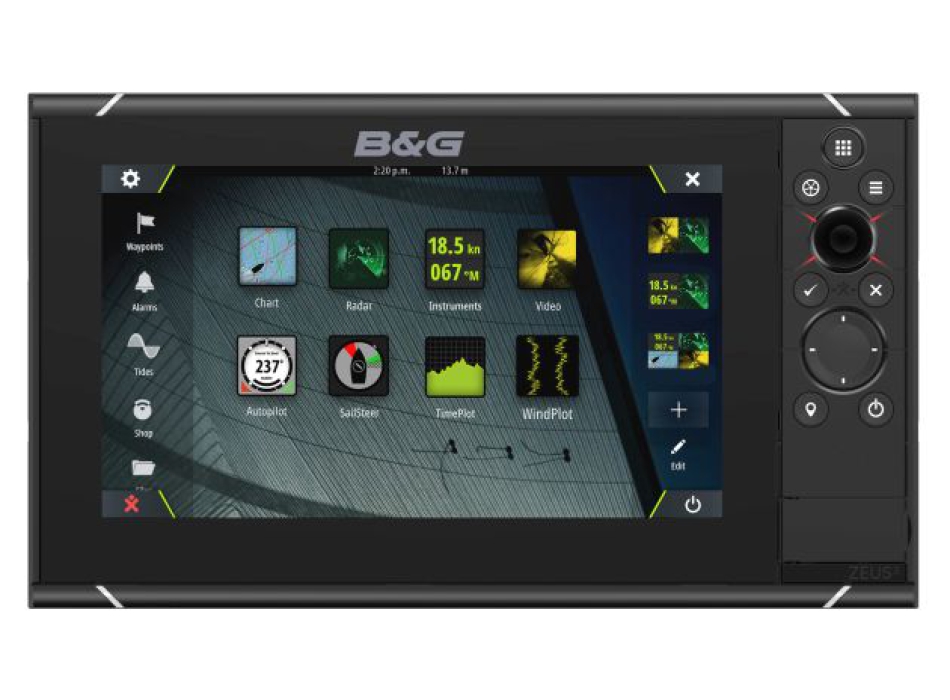

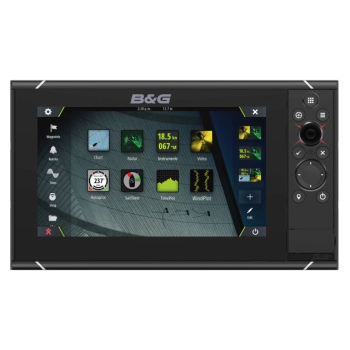

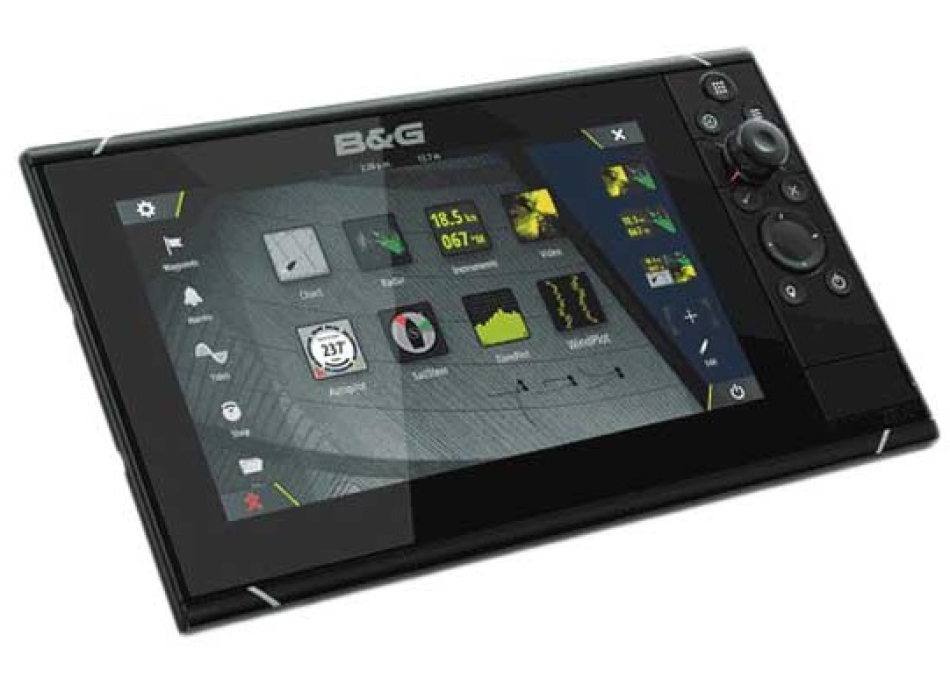

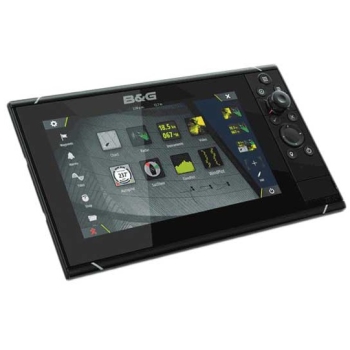

B&G Zeus³ 9 Multifunction 9" display
New version S
Specially designed for sailing The new Zeus 3S chartplotters offer ultra-fast response times, so you'll have all the information you need, when you need it. Easy to use, the Zeus 3S features B&G's unique built-in navigation features, simplifying navigation, calculating routes, adding waypoints, and displaying sailing and racing data at the touch of a button or screen.
Super-fast processor for instant response Enhance your situational awareness like never before with the Zeus 3S's high-performance processor. This chartplotter's powerful processor allows it to simultaneously manage charts, radar, ForwardScan, and autopilot controls without compromising performance, providing all the tools you need for confident navigation, knowing you can monitor your surroundings.
Navigate with confidence with B&G’s award-winning navigation features for cruising and racing, including;

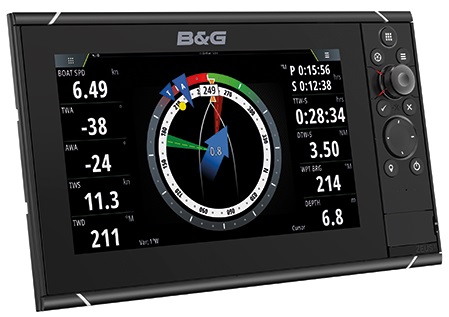

SailSteer, RacePanel, StartLine, Laylines, SailingTime, Advanced Windplot and Weather Routing with PredictWind integration.
Unbeatable clarity and control A multi-touch screen and dedicated keyboard combined with our ultra-bright SolarMax IPS HD display, which supports multiple gestures and wide viewing angles in direct sunlight, provides maximum control and visibility from any angle, light or weather.
Easy network expansion
Simply add power to use Zeus 3S as a versatile standalone chartplotter with premium navigation features. However, for an optimal experience, it's easy to network the chartplotter with H5000 IP, AutoPilot, ForwardScan, FLIR IP cameras, NMEA2000 and 0183, as well as the latest HALO and Wideband radars, for optimal target detection, low power consumption, instant power on, and weather mode. Built-in WiFi allows you to connect and mirror or control the Zeus 3S screen from a smartphone or tablet.
Specifications
Display resolution 1280 x 720
Screen brightness 1200 nits
Waterproof level IPX6 and 7
NMEA 2000 Connectivity 1 x NMEA 2000 Micro-C port, 1 LEN
Supply voltage 10 - 31.2 V DC
Refresh rate 10 Hz
Vibration shock 100,000 cycles of 20 G
Operating temperature range -15°C to +55°C (5° F to 131° F)
Internal memory 16 GB
SD card storage 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
Ethernet ports 1 x 5 pin yellow connector x 10/100 Mbit
Video 2 x composite (RCA connectors)video inputs. Optional video/data cable required (P/N 000-00129-001). HDMI output
Warranty period 2 Years
Storage temperature range -20°C to +60°C (4°F to 140°F)
Maximum power consumption 28 W
Weight 3.1 kg (6.83 lbs.)
GPS Receiver Channels 34 Channels
Dimensions (Height x Width x Depth) 287 x 166 x 90 mm (11.30 x 6.55 x 3.50") with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72)
Safety compass 50 cm (1.7 ft)
Recommended fuse rating 5A
Waypoints, routes, tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Viewing angles 80° top/bottom, 80° left/right
Steering modes Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Mounting type Bracket (Supplied) or panel mount
Radar compatibility Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar
GPS Built-in 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS.SBAS (WAAS, EGNOS, MSAS, GAGAN)
Approvals CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2
Cold start repair time 50 sec, Satellite reacquisition 5 sec
C-Zone digital switching, Naviop
Autopilot Full auto pilot control and commissioning
Full touch screen interface (multi-touch) and full keypad control, OP50 remote controllers
Position accuracy Horizontal Accuracy 3 m (9.8 ft)
Supported Charts Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Wi-Fi Connectivity Internal Element
Bluetooth Internal
PC Connectivity No
AIS Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)
SiriusXM weather via WM-3 / WM-4 (USA only), GRIB
Standard Language Pack Languages: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish
Sonar compatibility Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders
Turning patterns U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Multimedia via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Correction WASS, MSAS, EGNOS, GLONASS Galileo, Beidou, QZSS.SBAS
Backlight color White
Cartography included World basemap
