Furuno FCV600

  • Code: IMD040670AA
€ 1.320,00 € 1.574,00 -16%

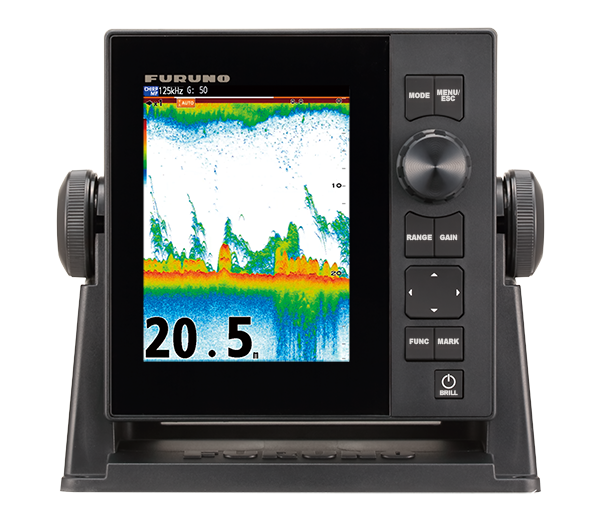

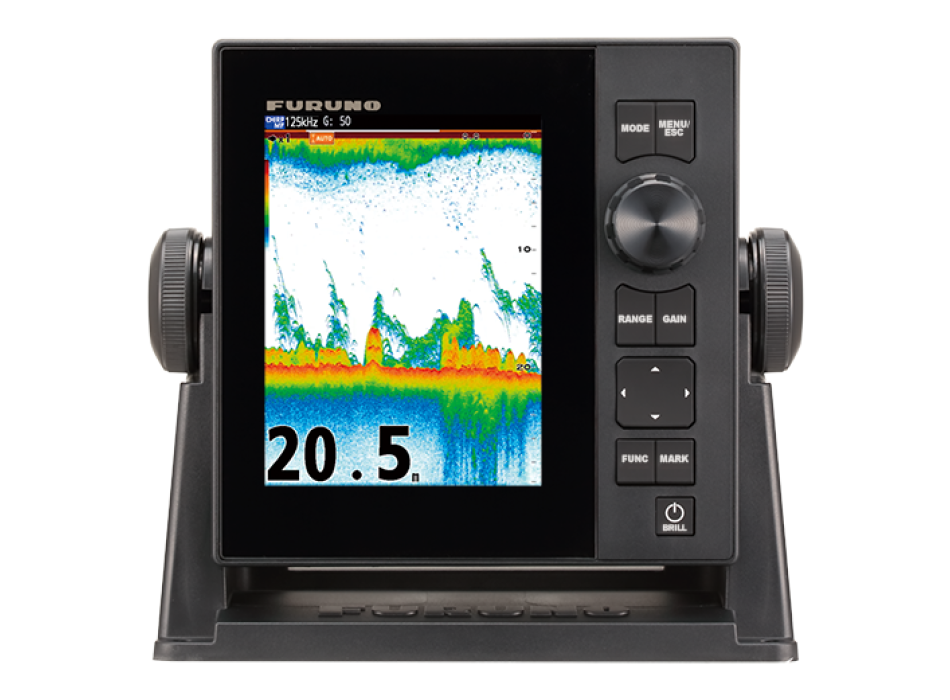

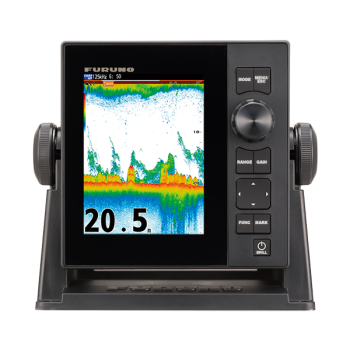

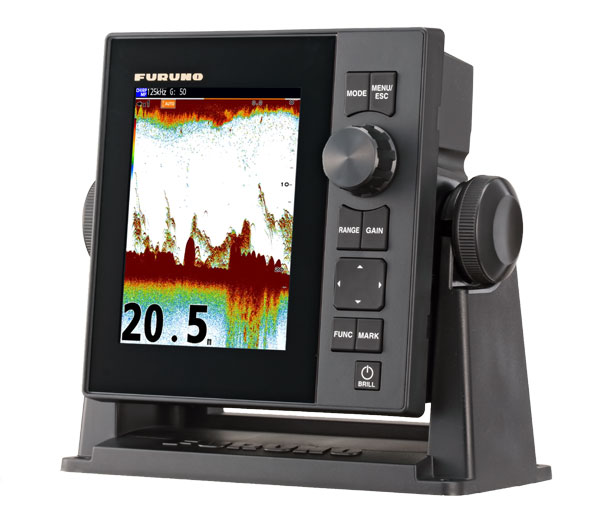

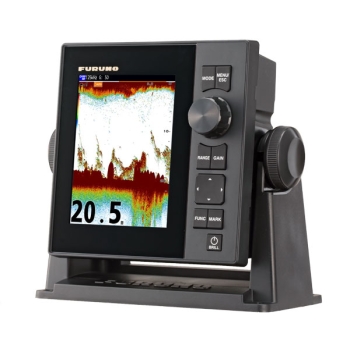

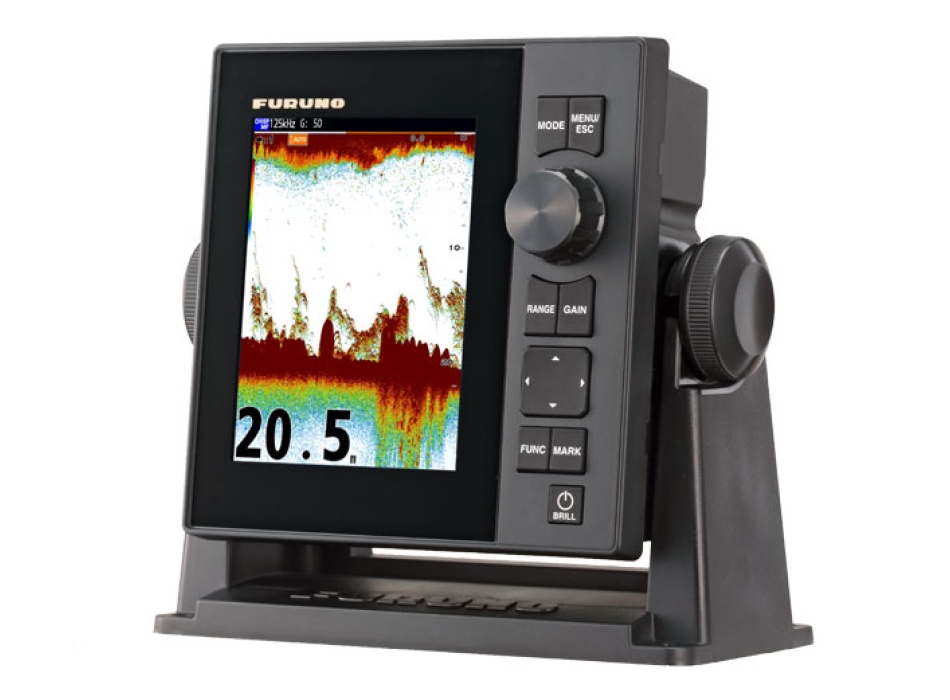

Furuno FCV600

INCREASE YOUR CAPTURES WITH TRUECHO CHIRP™ AND FURUNO'S REVOLUTIONARY BROADBAND FEATURES!

The FCV-600 combines the power of TruEcho CHIRP™ with a series of revolutionary identification technologies to clearly distinguish fish from other structures, such as the seabed or coral reefs. This helps you fish more effectively than ever before.

TRUECHO CHIRP™

Traditional CW (continuous wave) fishfinders transmit a signal composed of a single frequency, while CHIRP fishfinders transmit a linear frequency modulated signal, a wave with a frequency that increases over time. The FCV600 and FCV800 can use a broadband transducer to transmit across a frequency spectrum, achieving better target resolution. With Furuno's TruEcho CHIRP™, you'll see greater detail and unprecedented target separation.

ACCU-FISH™

The ACCU-FISH™ size assessment feature, a proprietary Furuno technology, instantly identifies individual fish. To assess the size of individual fish, the echo returns are analyzed for strength and displayed on the screen according to size (10 to 199 cm, at a depth of 2 to 100 m).
(In some cases, the fish size indicated may differ from the actual size. Please read the operator's manual carefully before using this function.)

BOTTOM DISCRIMINATION

The Bottom Discrimination feature allows the Fish Finder to indicate whether the bottom is composed primarily of rocks, gravel, sand or mud, providing valuable information that helps you locate rich fishing areas and increase your catches. The standard graphical display mode shows the most probable bottom composition as a graph or four colors, while the probability display mode shows the most probable bottom composition as a graph.
(Read the operator's manual carefully before using this function.)

COLOR RANGE EXPANSION

With the expansion of the color range, the range of identifiable echoes is expanded so you can intuitively identify bottom fish from the seabed. Reefs, structure and fish near the seabed are shown in slightly separated colors, making it easy to distinguish structure from fish at a glance.

NEW COLORS

Sunlight and Yellow color combinations offer improved visibility in bright sunlight.

WIRELESS CONNECTIVITY

A second display can be installed to show echo and navigation data from the FCV600 and FCV800 via wireless network, so you can monitor the underwater situation from the stern or bow while fishing.

REZBOOST™

RezBoost™ is a revolutionary signal processing technology developed by Furuno that improves resolution and target separation using conventional narrowband CW transducers.
With RezBoost™ you can expect higher resolution, sharper images and improvements in ACCU-FISH™ function.
RezBoost™ can significantly improve the capabilities of conventional narrowband transducers. Compared to traditional signal processing (FDF) techniques, a RezBoost™ fish finder produces an image up to 8 times* clearer. What is possible with a conventional narrowband transducer, just like one you may have installed on your boat, is truly impressive.**

*RezBoost™ performance may vary depending on depth, range and signal frequency used.
** Advanced thru- or transom-mount transducer mode compatible with RezBoost™.

Characteristics
SCREEN
Display unit: 5.7" TFT color LCD.
Number of pixels: VGA 480 x 640

ECHO SOUNDER
Frequency:
CW: 50 and 200 kHz
CHIRP: 40 to 225 kHz
Transducer: 300W/600W
Range range: 2 - 1200 m
Pulse length and PRR: 0.04 to 3.0 ms, maximum 3,000 pulses/min
Display Modes: Single Frequency, Dual Frequency, Zoom, Navigation Data, A-Scope, Marker Zoom, Bottom Lock, Bottom Discrimination, Color Expansion, ACCU-FISH™, RezBoost™
ACCU-FISH™: Yes
Bottom Discrimination: yes

OTHER
Waterproof: IP56
Power: 12-24V DC: 1.0 - 0.6A
Dimensions: 210 (W) x 198 (H) x 120 (D) mm
Weight: 1.3kg (with mounting bracket)

Caratteristiche
