Fusion MS-AM402 2-Channel Class AB Amplifier

(0)
  • Code: 010-01499-00
  • Brand : Fusion
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 193,00 € 229,00 -16%

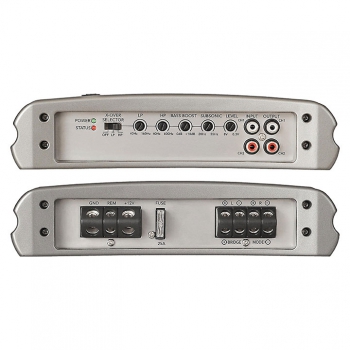

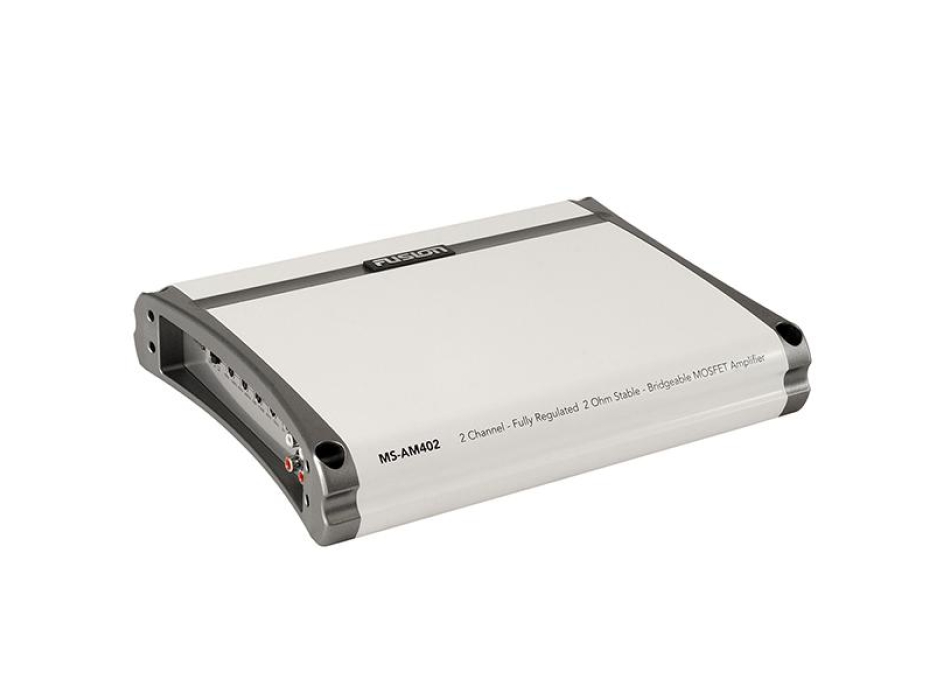

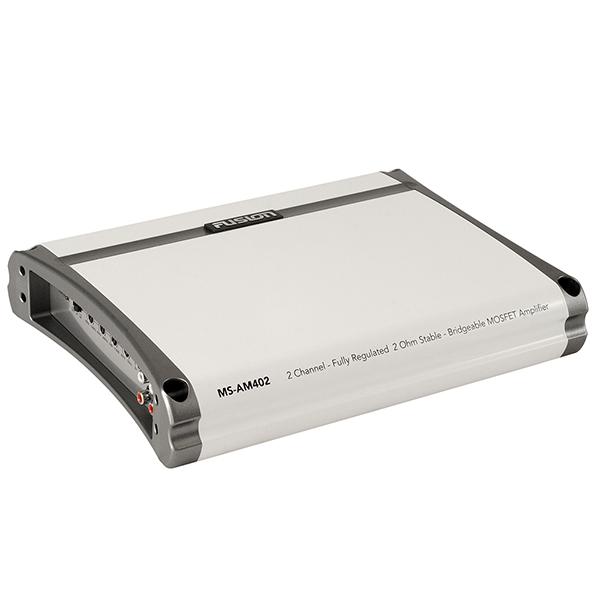

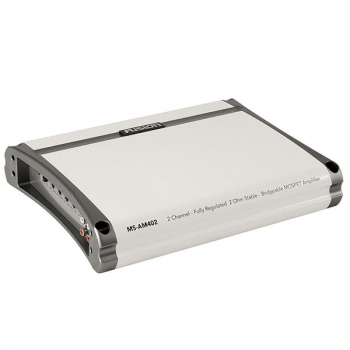

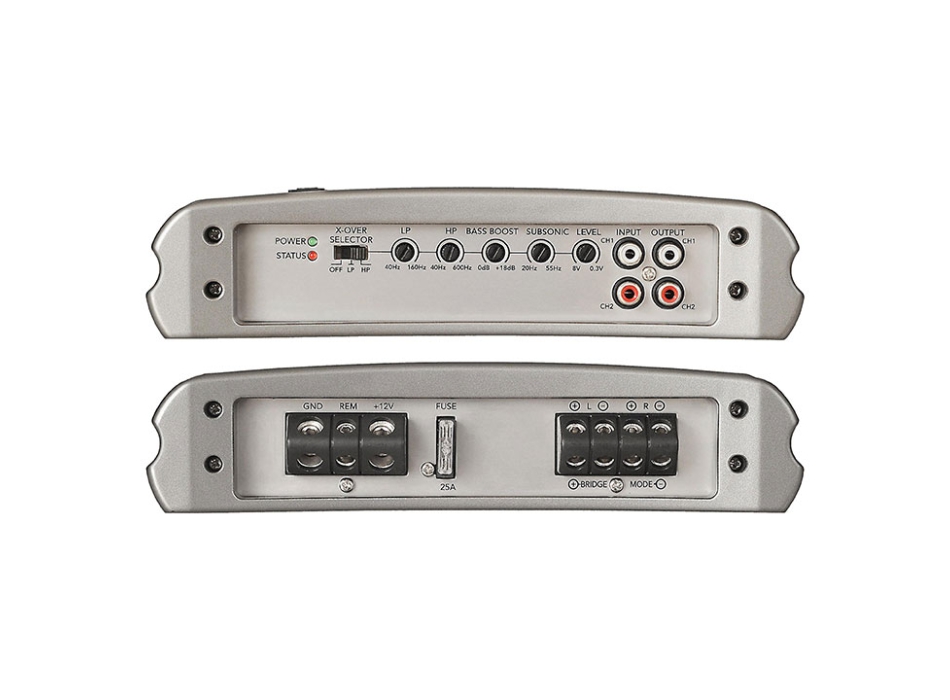

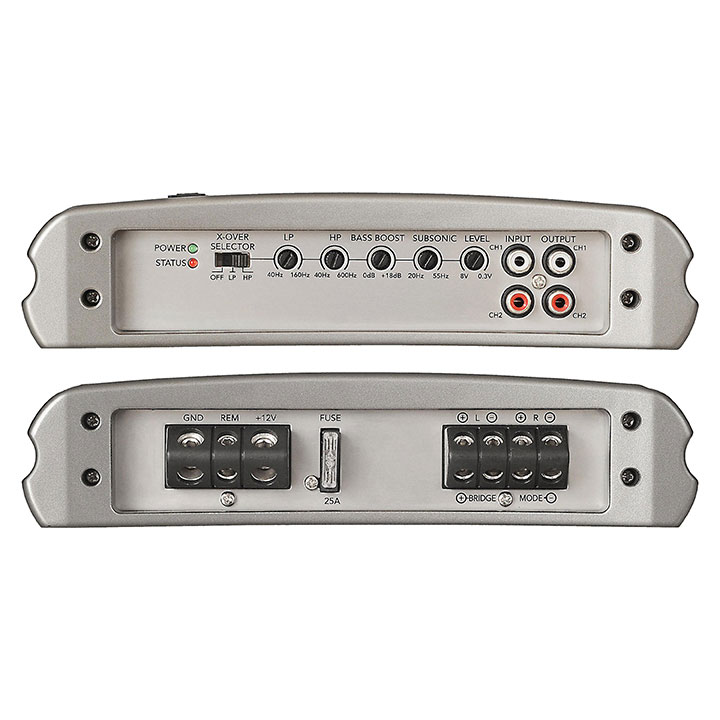

FUSION MS-AM402 2-Channel Class AB Amplifier

The stable 2 Ohm stereo offers the possibility of connecting an additional pair of speakers in parallel, 2 per channel at 2 Ohms (for a total of 4 speakers)
Marine-Grade Connections Nickel-plated RCA connectors and stainless components enhance signal flow for optimal output
Class A/B Design Stable 400 ohm 2 ohm (per channel) design ensures clean and powerful amplification of the input signal, enough to rock the boat
Conformal coated circuitry provides additional protection from salt air and humidity to ensure maximum product life.
RCA line output and RCA pass-through output allows connection of multiple amplifiers for enhanced system performance 2 channels capable of powering 2 speakers, a sub (bridged) or 4 speakers in parallel

TECHNICAL SPECIFICATIONS

  • Amplifier Class Class-AB
  • Rated Power (2 Ohms) 100 Watts RMS x 2 at 14.4V - 2 Ohms 1% THD
  • Rated Power (4 Ohm Bridged) 200 Watts RMS x 1 at 14.4V - 4 Ohm Bridged 1% THD
  • Frequency response 5Hz - 38kHz +/- 3dB
  • Peak power 400 Watt
  • Rated Power (4 Ohms) 65 Watts RMS x 2 at 14.4V - 4 Ohms 1% THD
  • Length 296 mm [11-/2/3"]
  • Depth 229mm [9"]
  • Height 53mm [2-1/16"]
D Salve, potrebbe andar bene questo amplificatore abbinato ad una radio Fusion RA70N e DUE COPPIE di Fusion_altoparlante_ms-fr6021 ? Grazie, saluti, Pierantonio
R Buongiorno, premetto che la RA70N gestisce già due coppie di casse per due zone senza amplificatore. Può inoltre gestire altre due zone stereo distinte come pre out, è possibile quindi aggiungere eventualmente un amplificatore anche a 4 zone oppure due amplificatore a due canali, in merito alla Sua richiesta quindi sconsiglierei di abbinare due coppia di casse ad un unico amplificatore, sempre bene metterle sui canali in modo distinto. Spero di essermi spiegato. Cordiali saluti. Luigi Bianchi
