-20%

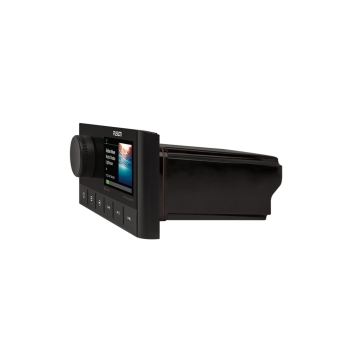

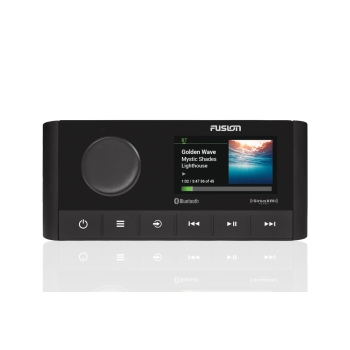

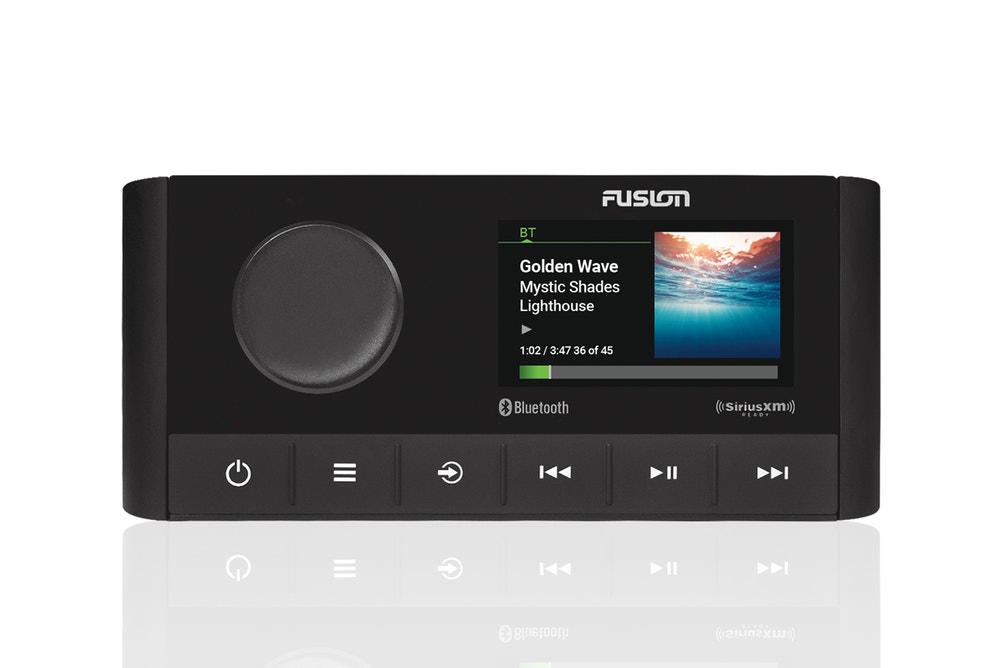

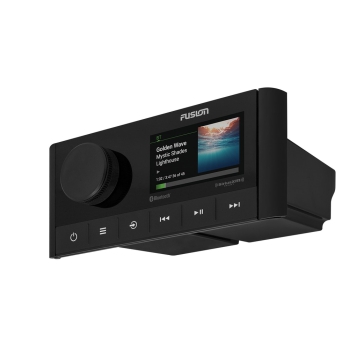

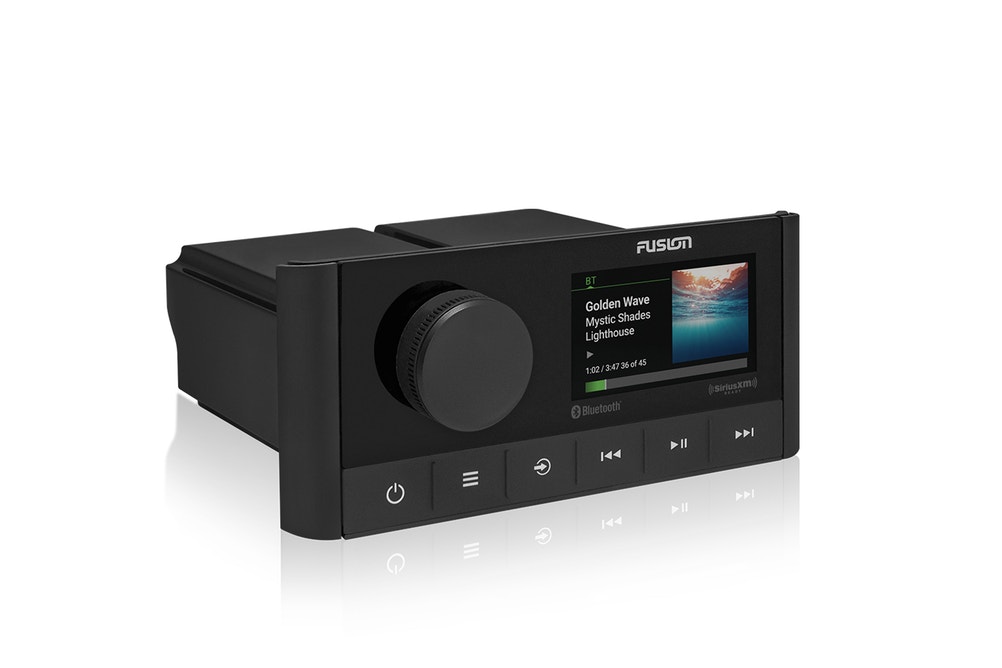

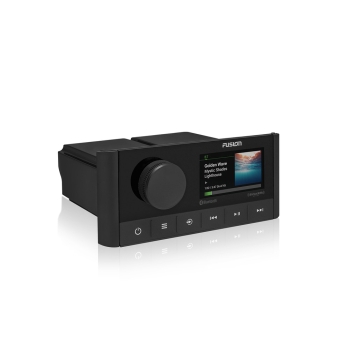

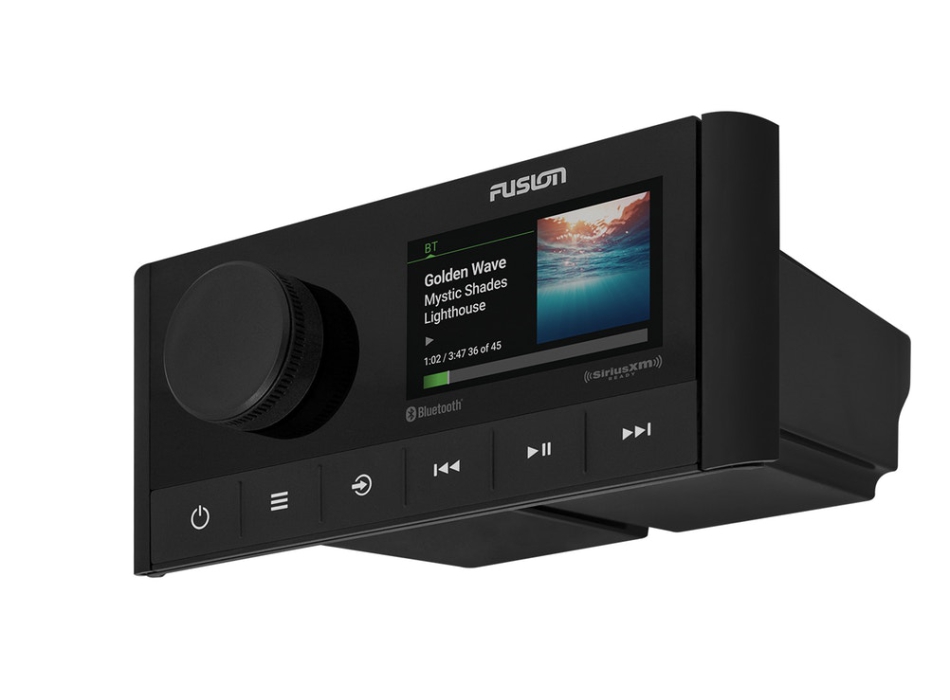

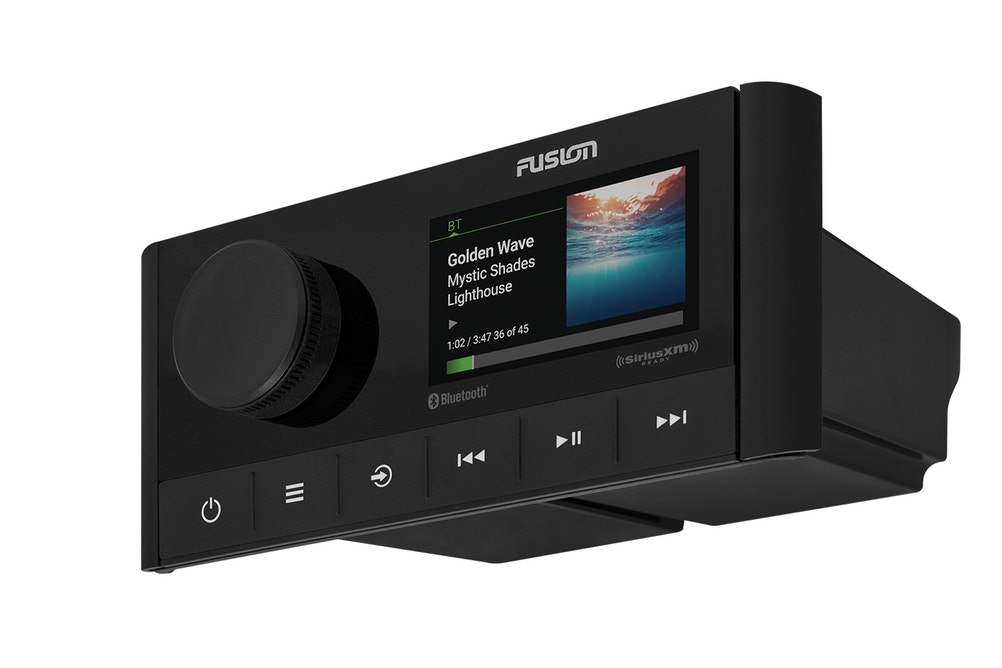

Fusion MS-RA210 Marine Radio/Stereo BT

  • Code: 010-02250-00
  • Brand : Fusion
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 384,00 € 479,00 -20%

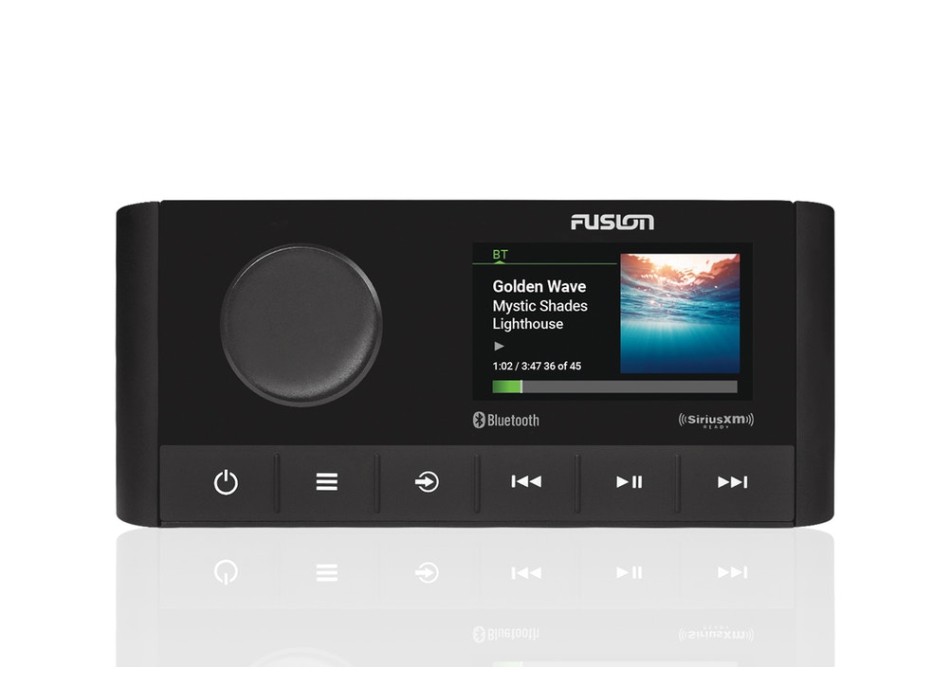

FUSION MS-210 Radio/stereo with Bluetooth
Marine entertainment system with Bluetooth and DSP

New aesthetics, compact design and advanced audio capabilities.

Sources: AM / FM / Bluetooth / USB / AUX / iPhone / iPod / MTP / DAB+ ready (requires MS-DAB100A) / SiriusXM ready (requires SiriusXM Connect vehicle tuner)

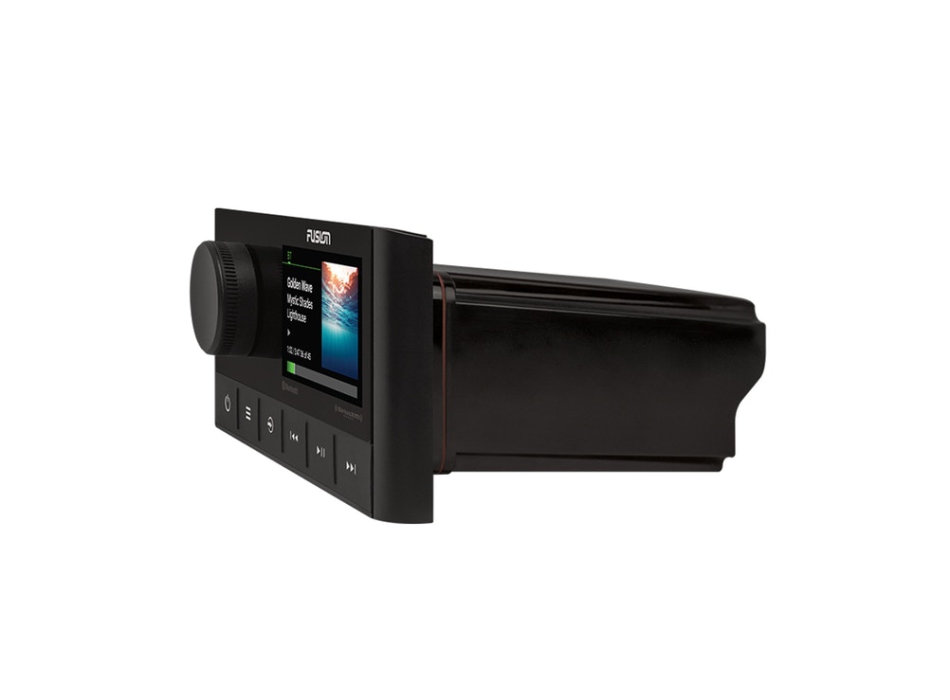

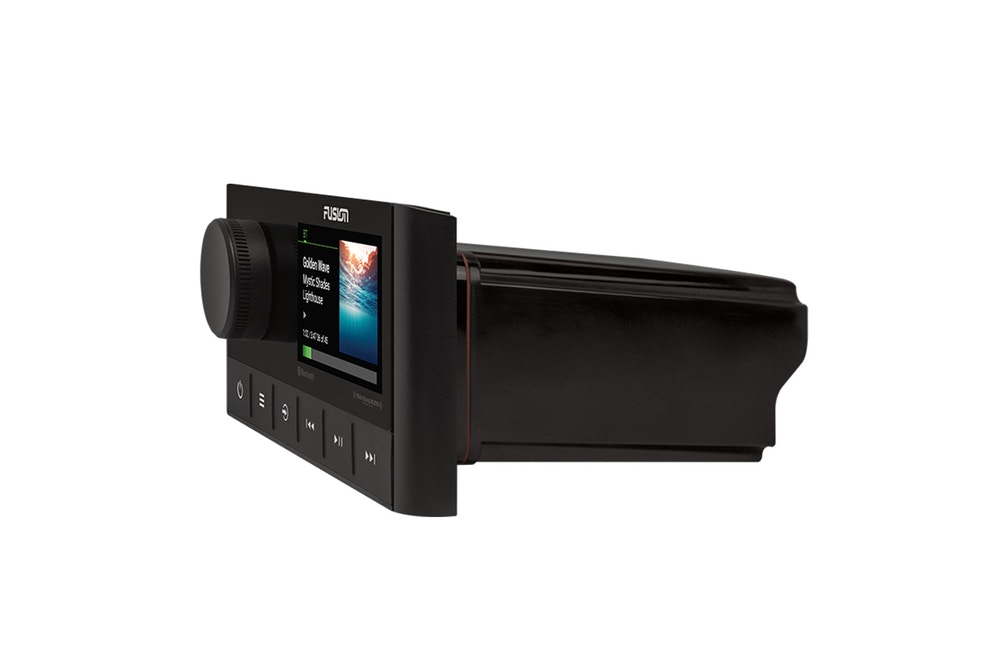

Introducing the new MS-RA210, a compact marine stereo designed to deliver a premium audio entertainment experience on the water. The MS-RA210 features Fusion's new design aesthetic and revolutionary digital signal processing technology for optimized listening in any environment. The sleek design, with the option to either flush-mount the stereo or integrate it flat, provides a visually appealing finish to your dashboard, making the MS-RA210 a stylish addition to your vessel.


Characteristics:
Fresh Design Aesthetics: The MS-RA210 features a brilliant 2.7" optically bonded color LCD display embedded in a black faceplate for improved visibility and style. The black faceplate blends seamlessly into the dash, complementing the other electronics and DMF for a clean, uniform, and elegant installation that provides consistency across the entire helm.

Digital Signal Processing (DSP): A technically superior listening experience made simple, Fusion DSP produces superior sound quality in any room, at any volume level. The power lies in real-time audio signal optimization and processing combined with the revolutionary technology built into our products. The built-in DSP chip monitors the music being played and adjusts loudness curves for quality audio at any volume level, while the feed-forward limiter anticipates a peak in the audio and adjusts the gain to
Make distortion a thing of the past. Using environmental information and acoustically engineered Fusion speaker, subwoofer, and amplifier profiles, you can enjoy customized, optimized audio in any area of your boat.

Setting up DSP profiles is easy with the free Fusion-Link™ app. With just a few taps, you can configure the pre-configured DSP profile once and get back to enjoying what you love on the water, listening to high-quality audio customized for your ears and the environment.

Multiple Source Options Available: The MS-RA210 offers multiple source options, with Bluetooth, AM/FM radio, iPhone/iPod, MTP, SiriusXM and DAB+ radio available, USB and AUX connections ready at your fingertips.

IPX6 & IPX7 Ingress Protection: Designed and engineered for the harsh marine environment, the MS-RA210 has an impressive IPX6 and IPX7 (when mounted properly) water-resistant front panel that's built to perform and last on board.

Fusion-Link™: The industry-standard protocol for on-water audio integration and control, Fusion-Link enables control of your entertainment directly from paired multifunction displays, compatible Apple or Android devices via the Fusion-Link app, and Garmin watches via Fusion-Link Lite. With multiple control options, no matter what you're doing on your boat, you're always in control of your audio entertainment.

Multi-Zone™ Technology: Two independent audio zones are available for a personalized listening experience on board, each with advanced localized menu controls including volume limits, zone naming, zone disablement, and more. Note: Subwoofer and full-range outputs require additional amplification.

Class D Amplifier (Minimum 4 Ohm Impedance): The built-in Class D amplifier offers greater efficiency, meaning you can listen to your music at higher volume levels for longer without worrying
of battery consumption.
Technical specifications:

2.7" optically bonded color LCD screen
Audio sources AM / FM / Bluetooth / USB / iPhone / iPod / AUX / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect Vehicle Tuner) / DAB+ Ready (available in Europe and Australia only) Note: SiriusXM and DAB+ do not support traffic or weather.
Digital Signal Processing (DSP) yes
Fusion speaker, subwoofer and amplifier profiles pre-configured via DSP yes
Fusion-Link Control (Wireless) Yes
Bluetooth wireless technology Bluetooth audio streaming, music control (via devices compatible with Bluetooth A2DP / AVRCP 1.3 protocols)
SiriusXM-Ready yes
ANT® technology yes
NMEA 2000® (MFD control - Fusion-Link) yes
Works with NRX remotes yes
Suitable for DIN-Cut-Out Yes - requires adapter plate
Water resistance (IP rating) IPX6 and IPX7 from the front panel when installed correctly
Internal Class D amplifier (minimum impedance 4 Ohm)
Peak power 200W max
Multilingual User Interface: Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish
Auxiliary inputs 1 RCA input (AUX)
USB 2.0 Port One USB 2.0 port (for phone charging / media playback)
SiriusXM One SiriusXM port (requires optional SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM Radio One Motorola antenna connector port
Speaker channels 2 x channels, 1 pair per zone (2 zones amplified)
RCA Pre-Out (Left, Right & Subwoofer) 2 Zones (1 x L + R per zone, 1 x Sub per zone - All require external amplification)
Operating voltage +10.8V - 16V DC
DAB+ Ready. Fusion DAB+ module required (sold separately). Available only where DAB or DAB+ broadcasting is supported.
Software Updates Available via USB – from the Fusion-Link app on a USB-connected phone or from a USB flash drive.
Dimensions: Length x Height x Depth (front panel incl. volume encoder) 157mm x 68mm x 22mm [6-3/16" x 2-11/16" x 7/8"]
Mounting Dimensions: Height x Depth 49.8mm x 104.6mm [1-15/16" x 4-1/8"]
D non ci sono problemi se lo allaccio all'amplificatore Fusion SG-DA51600 5 canali Classe D per 4 altoparlanti e un subwoofer tra l'amplificatore interno ed esterno quanti watt avrei ?
R 10/05/2026 Buonasera, sì confermo, può collegare la Radio RA210 all'ampli SG-DA51600 che consente appunto di collegare due doppie di casse ed un SUB. Non è importante il dato totale dei Watt perchè sono sempre zone differenti e distanti fra loro. Cordiali saluti. Luigi Bianchi
D Devo sostituire una fusion ms-ra205 , ho letto che questa ha la stessa dima dí montaggio quindi mi confermate che non devo fare fare modifiche? È nmea2000? O comunque posso controllarla come faccio oggi da uno Zeus 2? Grazie
R 17/11/2025 Buongiorno, sì certo confermo la compatibilità, si collega sempre in NMEA2000. Cordiali saluti. Luigi Bianchi
D Buongiorno, posseggo il modello FUSION ms ra205, dal momento che non funziona volevo sostituirlo. Volevo sapere se la dima di montaggio e gli attacchi dietro sono uguali tra i 2 modelli Quanto costa il modulo DAB? Grazie
R 10-07-23 Buonasera, le dimensioni esterne sono identiche, mentre dovrà ricablare i collegamenti dei cavi. Di seguito link al sito per il DAB: https://www.painestore.it/fusion_modulo_dab_con_antenna_dab100 Inserendo questo codice Coupon avrà uno sconto extra del 6%: garfu6 Cordiali saluti. Luigi Bianchi
D buongiorno, desideravo sapere se è necessaria l'antenna radio extra.vi ringrazio
R 18-05-22 Buon pomeriggio, sì confermo, necessaria: https://www.painestore.it/fusion_antenna_a_filo_ms-sa1_8 Cordiali saluti. Luigi Bianchi
D buongiorno, sono possessore di una radio fusion MS RA 205 che purtroppo non mi funziona più. Pensavo di indirizzarmi sulla MS RA 210 ma volevo sapere: 1. le misure dell'alloggiamento sono identiche o devo allargare o restringere? 2. Il cablaggio che ho della 205 è uguale o vanno modificati gli spinotti di alimentazione o altro? Grazie mille
R 17-05-22 Buonasera, le dimensioni sono identiche, il cablaggio invece sarà purtroppo da sostituire. Cordiali saluti. Luigi Bianchi
D Buonasera compatibile con raymarine a98 e raymarine a68 tramite rete nmea 2000? Grazie
R 11-03-22 Buongiorno, sì confermo la compatibilità. Cordiali saluti. Luigi Bianchi
D Buonasera, Voglio sostituire la mia Sony con L autoradio fusion ra210, mi domandavo se c’è un kit , o è compreso per compensare il foro della vecchia radio. Cordialmente Christian surico
R 16-09-2021 Buonasera, se ricordo bene, la vecchia Sony aveva delle dimensioni abbastanza importanti. Proporrei quindi una mascherina di plexiglass nera di adattamento al costo di 30,00 euro. Dovrebbe eventualmente comunicarmi le dimensioni, grazie. Cordiali saluti. Luigi Bianchi
D buonasera, non riesco a capire dov'è la presa per la chiavetta USB. sul frontale non la vedo
R 07-06-2021 Buonasera, la porta USB è su retro dello stereo, dovrebbe aggiungere anche la presa attacco frontale: https://www.painestore.it/fusion_presa_stagna_usb/aux_ms-cbusb3_5 Cordiali saluti. Luigi Bianchi
D Buonasera, vorrei sapere qual è l'amperaggio d'uscita della rpesa USB. Grazie
R 14-01-2021 Buonasera, la presa USB non viene utilizzata per la ricarica dei telefoni se è quello che intende, solo per inserire delle chiavette contenenti brani musicali. Cordiali saluti. Luigi Bianchi
D Buonasera, dovrei sostituire la mia vecchia radio Fusion, ma sono indeciso su i modelli, potete gentilmente dirmi che differenza c'è tra la MS-RA70N e la MS-RA210 ? grazie mille, Fabrizio
R 11-01-2021 Buongiorno, a livello di funzionalità più o meno si equivalgono, la differenza sostanziale è che la 210 ha un'estetica nuova similare alle Apollo. Cordiali saluti. Luigi Bianchi
D Salve sono interessato all'acquisto del fusion ms-ra210 mi consigliate gli altoparlanti che dovrei abbinare? Ne vorrei montare 2+2 (2 a poppa nel roll-bar + 2 prua) E se occorre altro per completare l'impianto antenna cavi etc... grazie
R 06-05-2020 Buongiorno, compatibile con tutte le casse Fusion che trova sul sito. Nelle casse sono già inclusi dei cavi, per quanto riguarda l'antenna, di seguito link al sito per l'antenna filare: https://www.painestore.it/fusion_antenna_a_filo_ms-sa1_8 Cordiali saluti. Luigi Bianchi
