Fusion SG-DA41400 4-Channel Class D Amplifier

(0)
  • Code: 010-01969-00
  • Brand : Fusion
€ 424,00 € 499,00 -15%
FUSION SG-DA41400 4-Channel Class D Amplifier

Our most amazing, efficient and powerful marine amplifiers for the ultimate audio experience.

Fusion Signature Series marine amplifiers are designed specifically for the marine environment. Boasting some of the most impressive environmental protections available, they deliver signature performance on the water like never before.
Introducing one of our most efficient and impressive marine amplifiers, the SG-DA41400. Its True-Marine design will resist corrosion, and its incredible 1400 watts of peak power will easily power four Signature speakers or two Signature speakers and a subwoofer. Dedicated channels and bridging options are also available to create your own setup.

The SG-DA41400 is a 4-channel Class D Hi-Fi marine amplifier. The main advantage of a Class D amplifier is its low battery consumption and high power output, making it the perfect amplifier for marine environments. The SG-DA41400 also features conformal-coated PCBs for maximum product durability and performance, and the amplifier chassis is also a heatsink to reduce internal component temperatures and increase efficiency.

Undeniably a statement piece, the stunning stainless steel mirror control panel cover hides and protects all cable connections and setup controls, with an attractive finish to complement any installation.

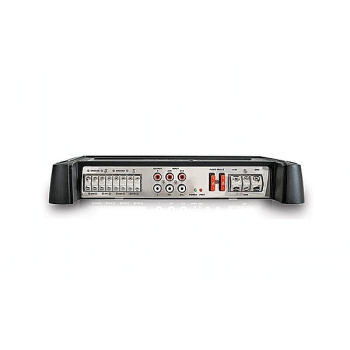

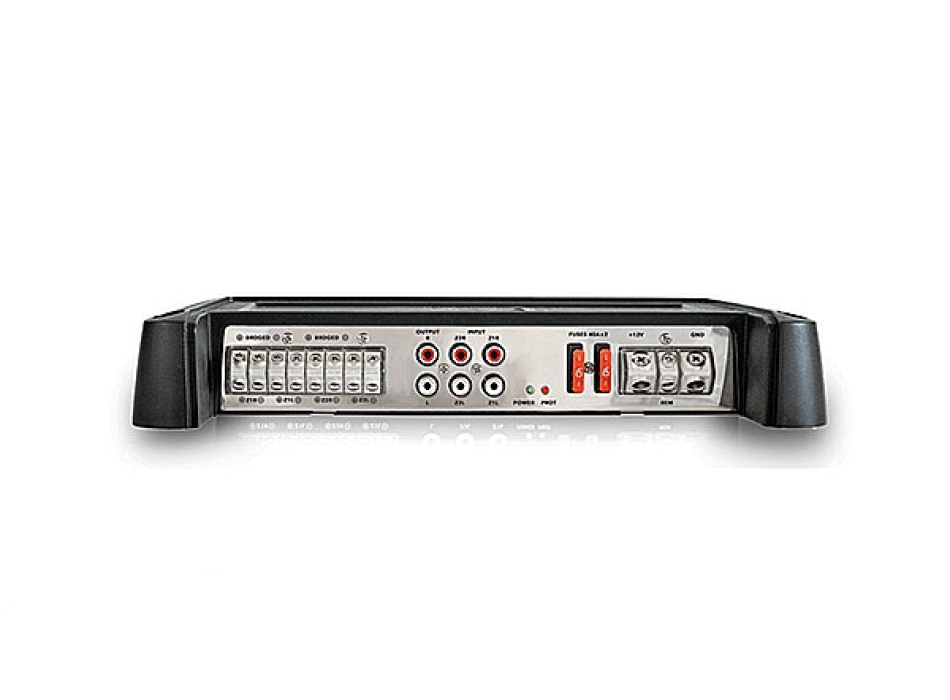

Zone 1 and 2 outputs include four speaker channels plus a subwoofer. RCA line-level inputs allow for easy connection to new or existing systems.

Characteristics:
Class D Amplifier Technology - The highly efficient Class D design delivers 1400 watts of peak power while drawing less current than a standard Class AB amplifier. This design delivers greater efficiency and power to your speakers, allowing you to enjoy your music longer.
1400 Watts Peak Power - Easily power 4 speakers or 2 speakers and a subwoofer with 1400 Watts peak power.
Marine-Ready Design with Conformal-Coated PCBs - Extending the life of your amplifiers, the Signature Series are specifically designed for marine use with conformal-coated PCBs to provide additional protection from the elements.

Rigid Aluminum Alloy Heatsink - Molded into a unique die-cast frame, the fin layout is precisely calculated to increase the heatsink surface area and improve heat dissipation.

Stainless Steel Mirror Finish - The polished stainless steel control panel cover hides and protects all cable connections and settings controls, while providing an attractive finish to complement any installation.
Speaker Configuration - Whether you need 2 Ohms per channel or 4 Ohms in parallel, the Signature Series amplifier has your setup options covered to achieve optimal output levels.
Connect up to two speakers per channel at 2 Ohms, or for more power, connect two channels at 4 Ohms to connect two subwoofers.

Zone Designation - To align with the Fusion entertainment system's zone philosophy, the input and output connections are labeled as zones.

True-Marine Design - Signature Series amplifiers are perfect for the marine environment and offer a 3-year warranty.
Product specifications
  • Amplification class Class-D
  • Frequency response 10Hz - 65kHz
  • Peak power 1400 Watt
  • Rated Power (4 ohms) 150 Watts RMS x 4 @ 14.4 V - 4 ohms 1% THD
  • Rated Power (2 ohms) 220 Watts RMS x 4 @ 14.4 V - 2 ohms 1% THD
  • Rated Power (4 Ohm Bridged) 440 Watts RMS x 2 @ 14.4V - 4 Ohm Bridged 1% THD
  • Mounting dimensions
  • Length 300mm [11-13/16"]
  • Depth 210mm [8-1/4"]
  • Height 50mm [2"]
