Fusion MS-AM504 4-Channel Class AB Amplifier

(0)
  • Code: 010-01500-00
  • Brand : Fusion
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 288,00 € 339,00 -15%

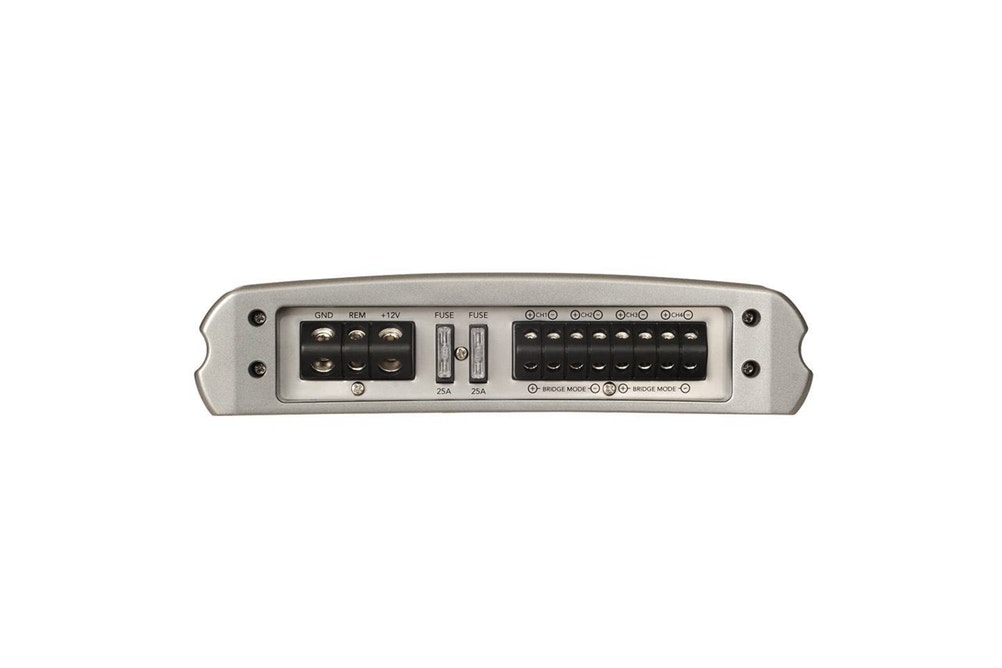

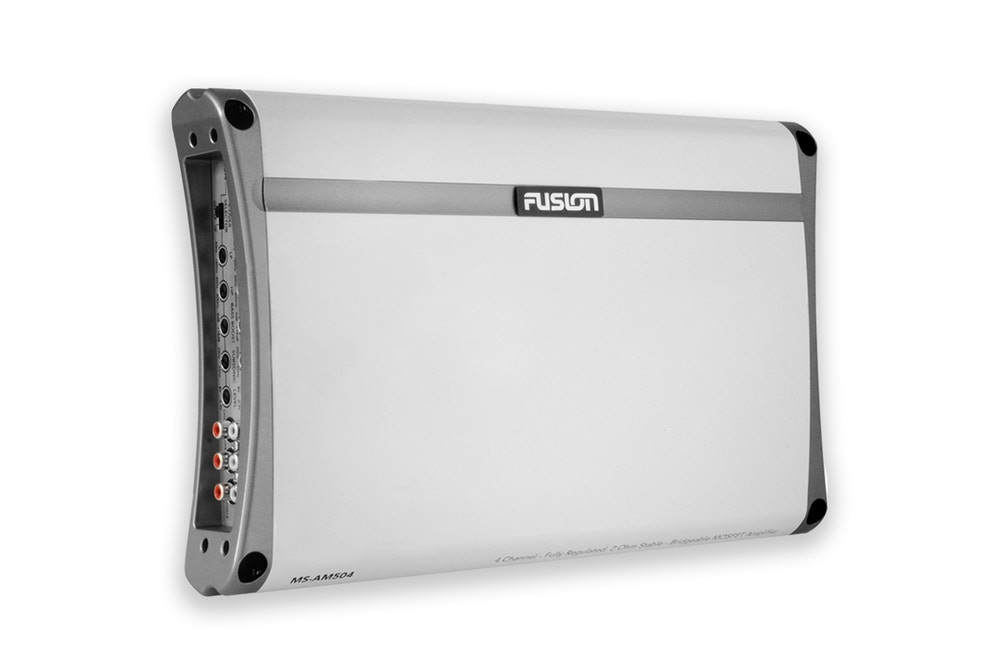

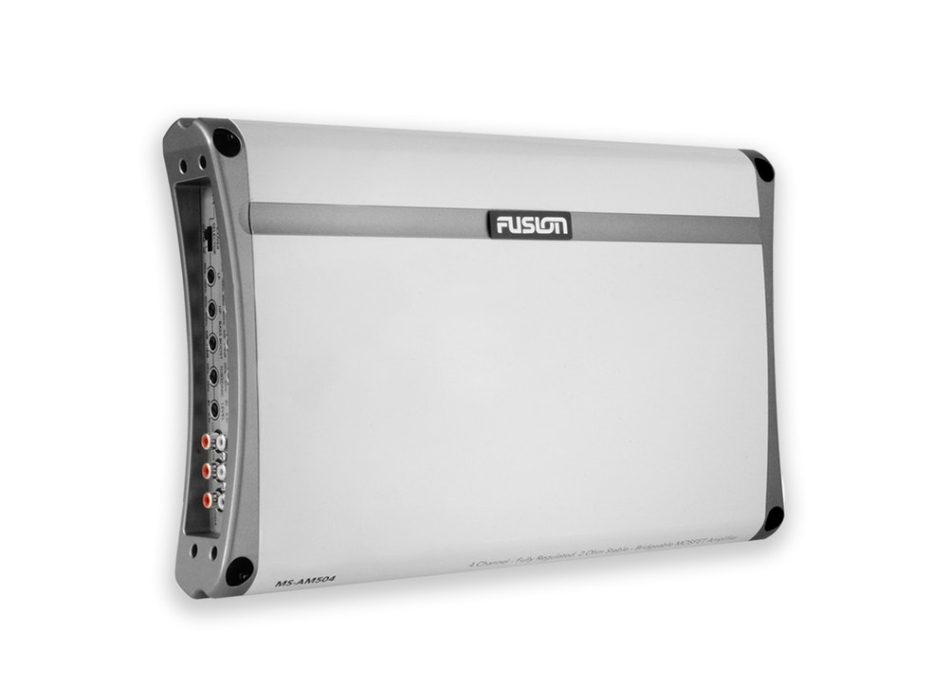

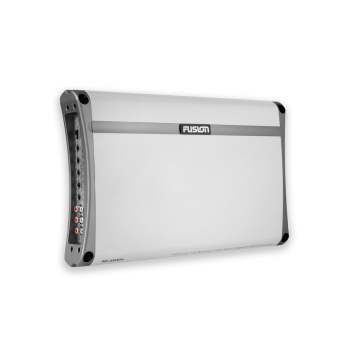

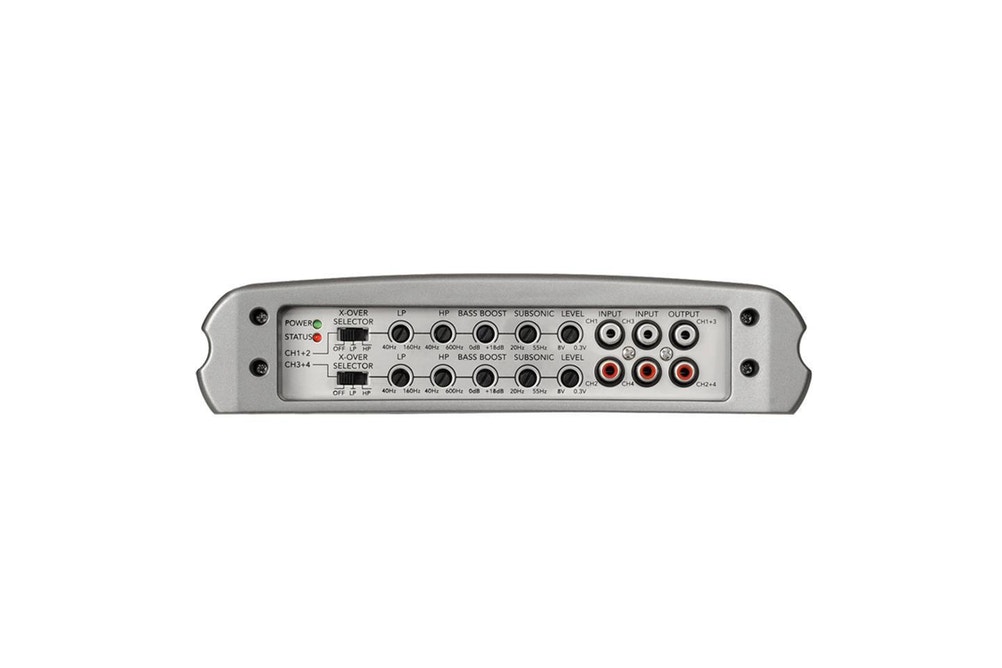

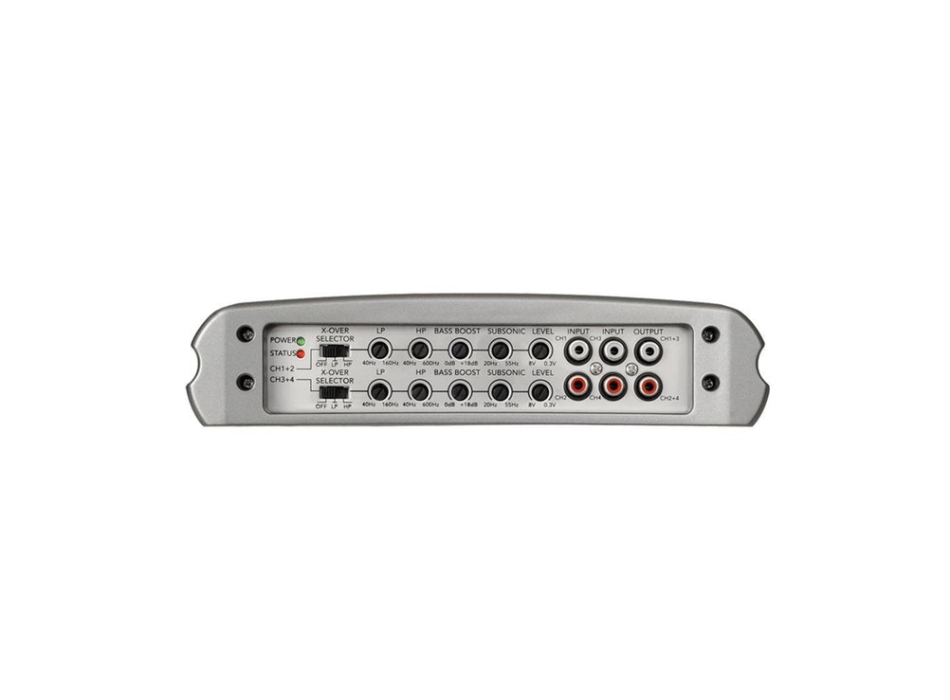

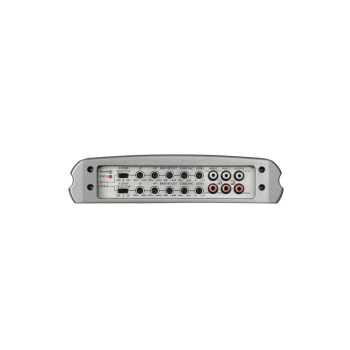

FUSION MS-AM504 4-Channel Class AB Amplifier

Practical and purpose-built for quality audio amplification on the water.

The FUSION AM Series marine amplifiers are specifically designed for the marine environment. Boasting some of the most impressive environmental protections available, they deliver performance on the water like never before.
With 4 channels and a peak power output of 500 Watts, the MS-AM504 will power a pair of Fusion speakers plus a 10" subwoofer, or up to four pairs of speakers (with 2 speakers in parallel each channel at 2 Ohms), to spread sound around your vessel.

Incorporating thermally coated and conformal PCBs for maximum product durability and gold-plated connectors for improved signal flow, the MS-AM504 reproduces clean, powerful audio with enough power to rock the boat.

Characteristics:
500W peak power to power up to eight speakers
Class AB amplifier: efficient power with lower cross-over distortion
Conformal coated PCBs - water resistant protection from salt air and humidity
FUTRANZ Heatsink Technology: Transfers heat more efficiently and provides greater thermal stability with maximum component reliability.
FRAT (Fusion Regulated Amplifier Technology): Provides massive output power at low voltage.
FIST (Fusion Intercooled Semi-Conductor Technology) - blocks internal power switching to quickly remove heat from all associated semiconductors

Fusion AM Series marine amplifiers are the perfect complement to any Fusion marine stereo system.
Product specifications
  • Amplification class Class-AB
  • Frequency response 5Hz - 38kHz +/- 3dB
  • Peak power 500 watts
  • Rated power (4 ohms) 65 Watts RMS x 4 @ 14.4 V - 4Ω 1% THD
  • Rated power (2 ohms) 100 Watts RMS x 4 @ 14.4 V - 2Ω 1% THD
  • Rated Power (4 Ohm Bridged) 200 Watts RMS x 2 at 14.4V - 4Ω Bridged 1% THD
  • Mounting dimensions
  • Length 366mm [14-7/16"]
  • Depth 229mm [9"]
  • Height 53mm [2-1/16"]
D Vorrei sapere se l'input può essere dato da un cellulare (se ha il Bluetooth) ed i tempi di consegna
R 21-06-2021 Buonasera, purtroppo no, perchè non ha il Bluetooth interno, quindi necessario un dispositivo Bluetooth che può essere per esempio anche una box BB100: https://www.painestore.it/fusion_ms-bb100_black_box_pack Cordiali saluti. Luigi Bianchi
