Fusion SG-DA51600 5-channel Class D amplifier

(0)
  • Code: 010-01968-00
  • Brand : Fusion
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 579,00 € 649,00 -11%

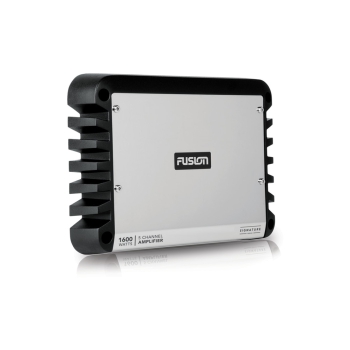

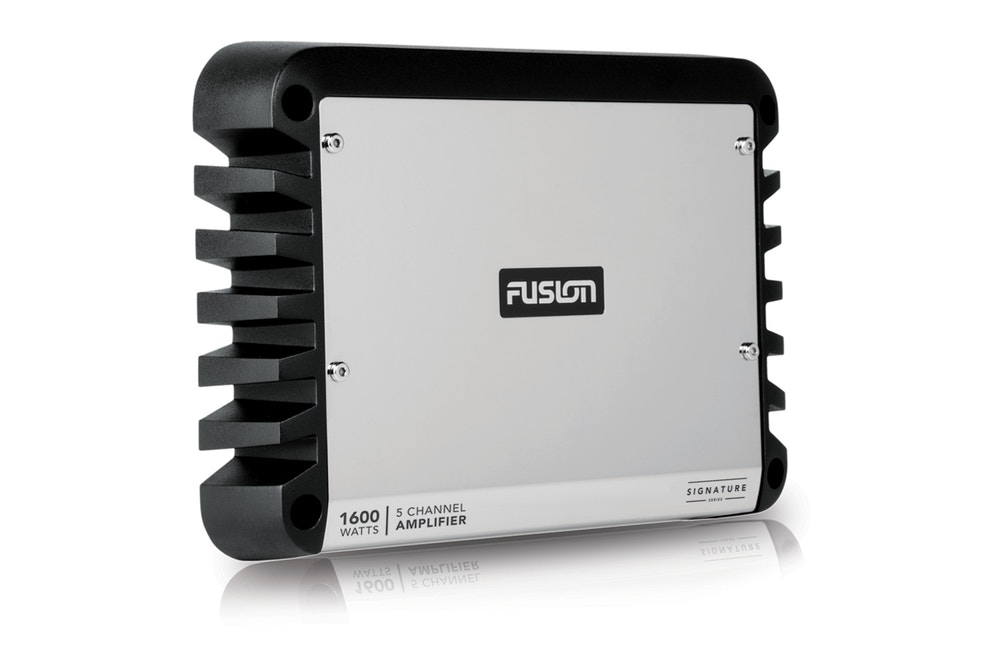

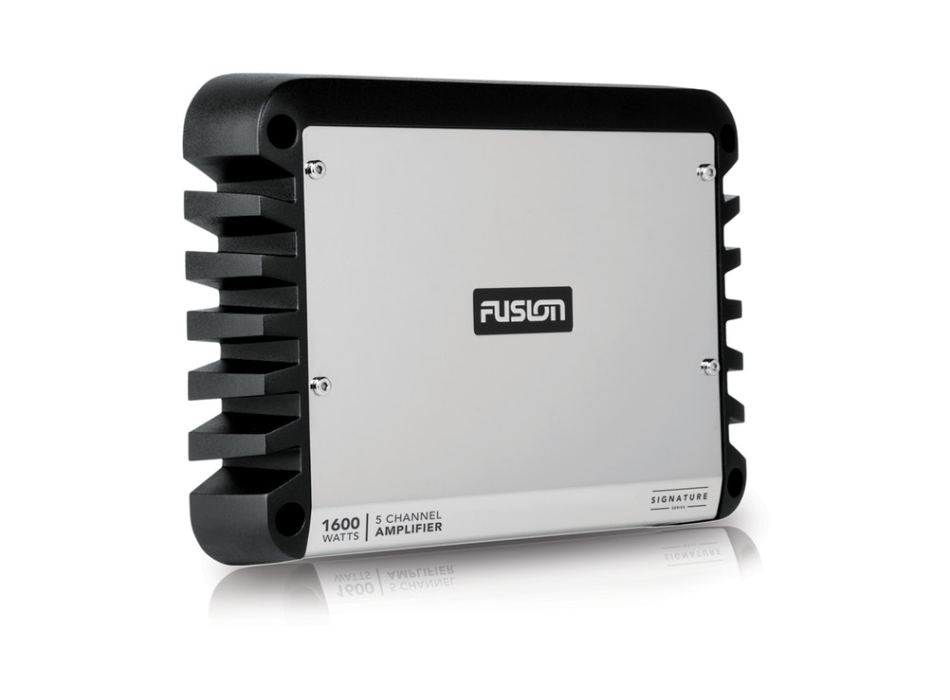

FUSION SG-DA51600 5-channel Class D amplifier

Our most amazing, efficient and powerful marine amplifiers for the ultimate audio experience.

Fusion Signature Series marine amplifiers are specially designed for the marine environment. Boasting some of the most impressive environmental protection available, they deliver signature performance on the water like never before.

Introducing one of our most efficient, amazing and powerful marine amplifiers, the SG-DA51600. Its True-Marine design will resist corrosion and the incredible 1600 Watt peak power will easily power 4 speakers and 1 subwoofer.

SG-DA51600 is Fusion's first 5-channel Class D Hi-Fi marine amplifier. The main advantage of a Class D amplifier is that it has low battery drain with high power, making it the perfect amplifier for the marine environment. SG-DA51600 also has conformal coated PCB for maximum product life and performance, furthermore the amplifier chassis is a heat sink, to reduce the internal temperature of the components and increase the efficiency.

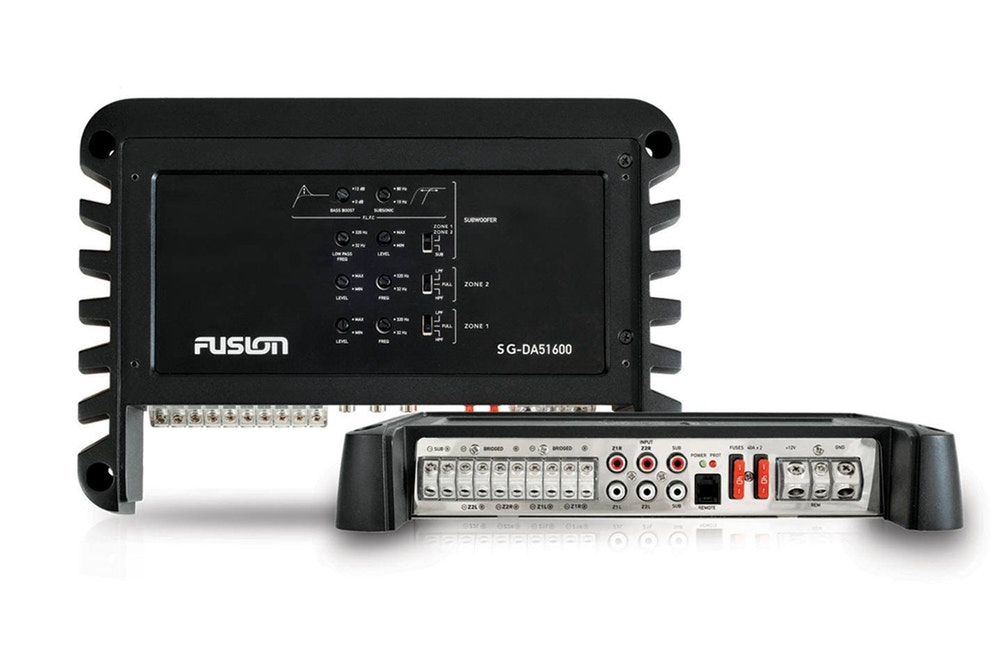

Undeniably a standout piece, the stunning stainless steel mirror control panel cover hides and protects all cable connections and setting controls, with an eye-catching finish to complement any installation.

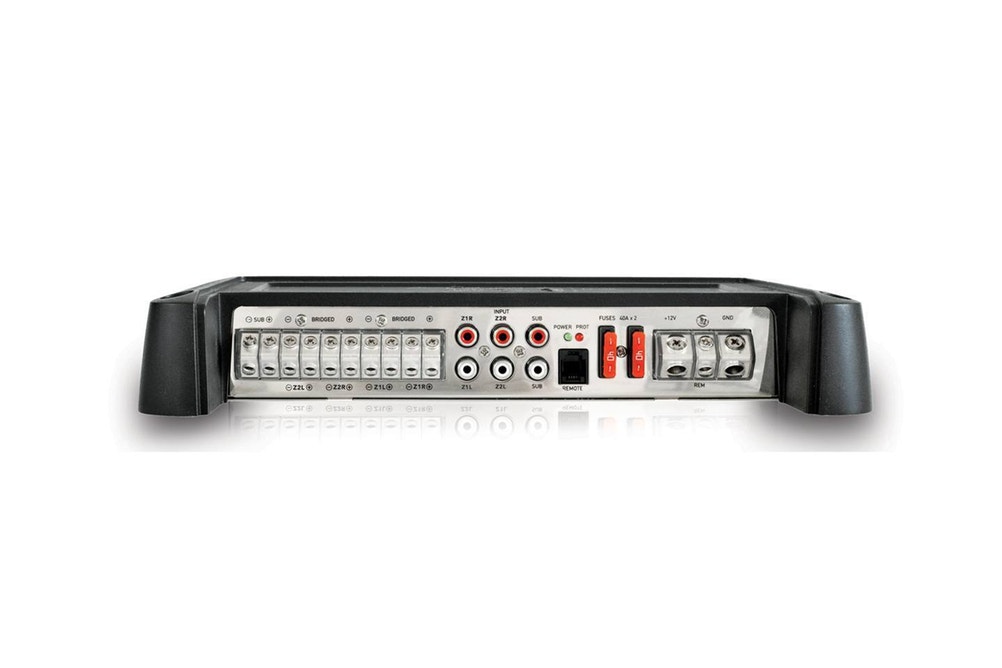

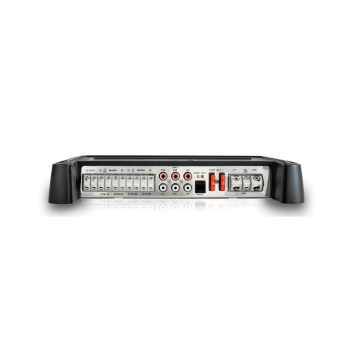

Zone 1 and Zone 2 outputs include four speaker channels plus a subwoofer. RCA line level inputs allow easy connection to new or existing systems.
Product Specifications
  • Class-D amplification class
  • Frequency response 10Hz - 50kHz
  • Peak power 1600 watts
  • Nominal Power (4 ohms) 80 Watts RMS x 4 + 250 Watts RMS x 1 @ 14.4 V - 4 Ohms 1% THD
  • Nominal Power (2 ohms) 130 Watts RMS x 4 + 330 Watts RMS x 1 @ 14.4V - 2 ohms 1% THD
  • Nominal power (4 ohms bridged) 250 Watts RMS x 2 @ 14.4 V - 4 Ohm bridged 1% THD + 250 Watts RMS x 1 @ 14.4 V - 4 Ohm 1% THD
  • Mounting dimensions
  • Length 300mm [11-13 / 16 "]
  • Depth 210mm [8-1 / 4 "]
  • Height 50mm [2 "]
D buona sera, vorrei sapere se all'amplificatore e' possibile installare 4 casse+1 sub oppure 4 coppie di casse (8in totale) +1 subwoofer grazie
R 27-05-24 Buonasera, con l'amplificatore in oggetto è possibile abbinare n. 2 coppie di casse ed 1 subwoofer. Se deve abbinare n. 4 coppie di casse ed 1 subwoofer, serve un ampli a 8 canali come il SG-DA82000 ed un ampli SG-DA12250 per il subwoofer: https://www.painestore.it/fusion_amplificatore_sg-da82000_8_canali_classe_d https://www.painestore.it/fusion_amplificatore_sg-da12250_per_subwoofer Cordiali saluti. Luigi Bianchi
