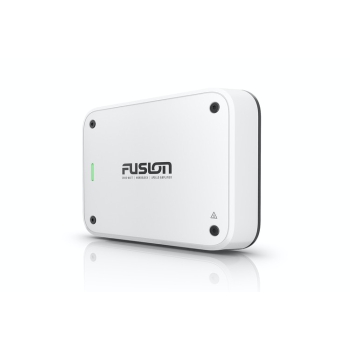

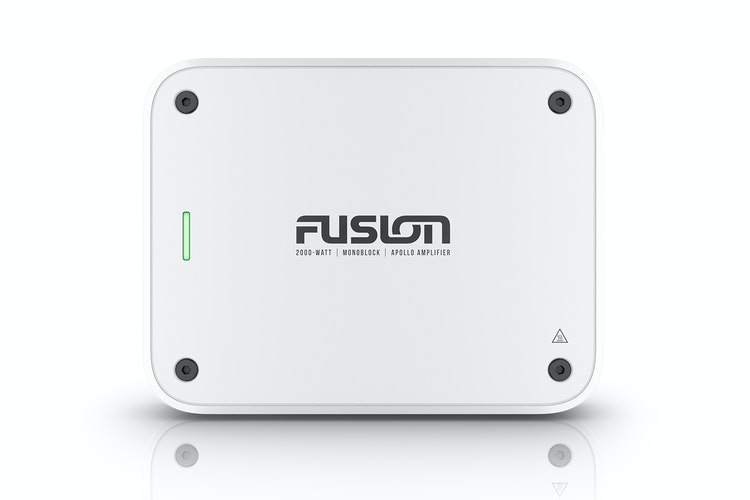

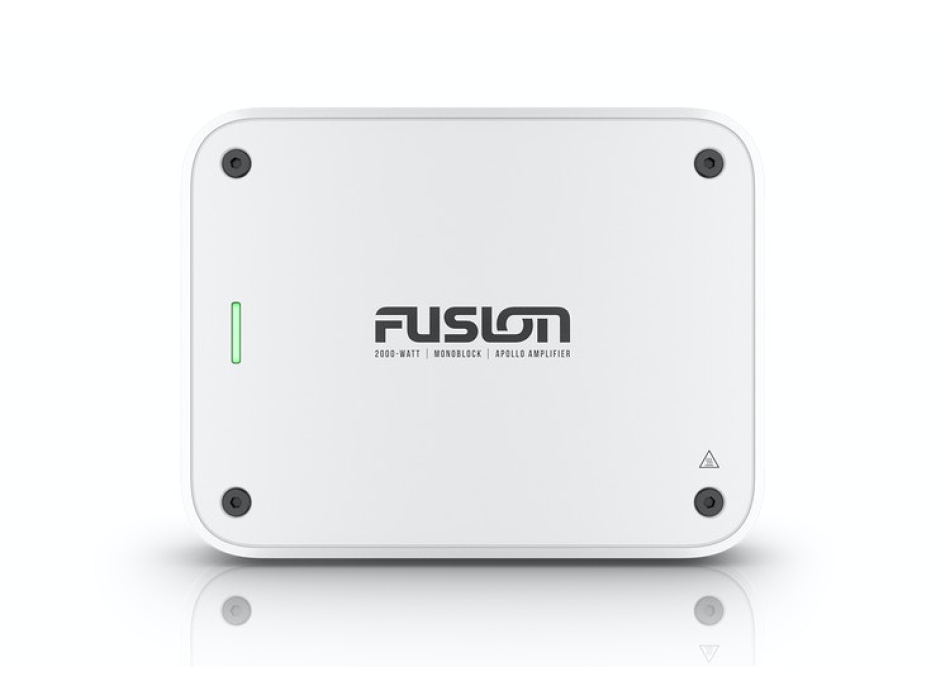

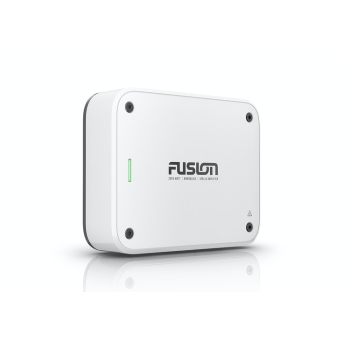

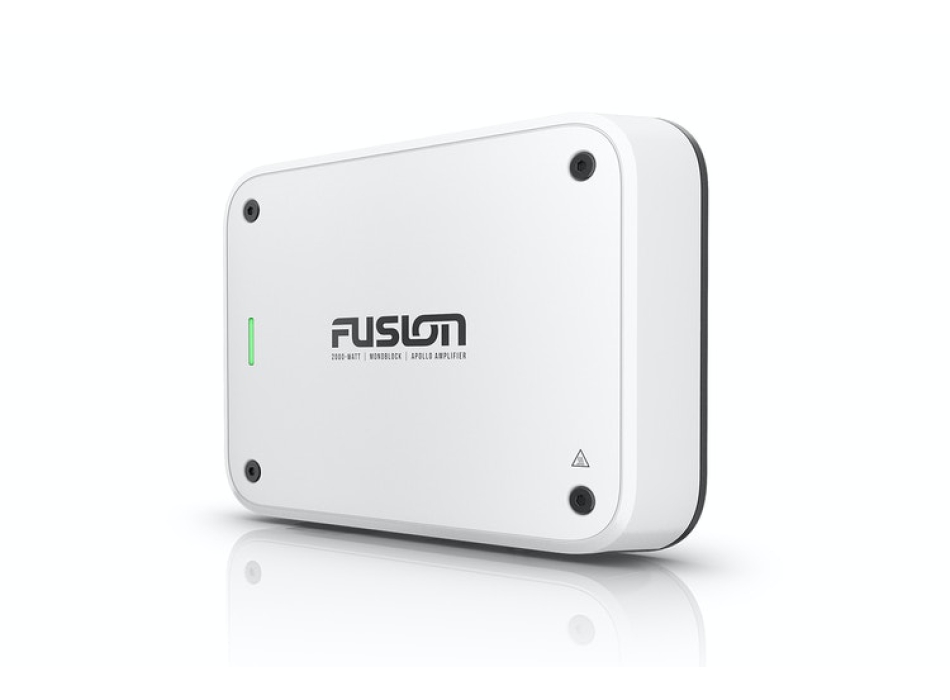

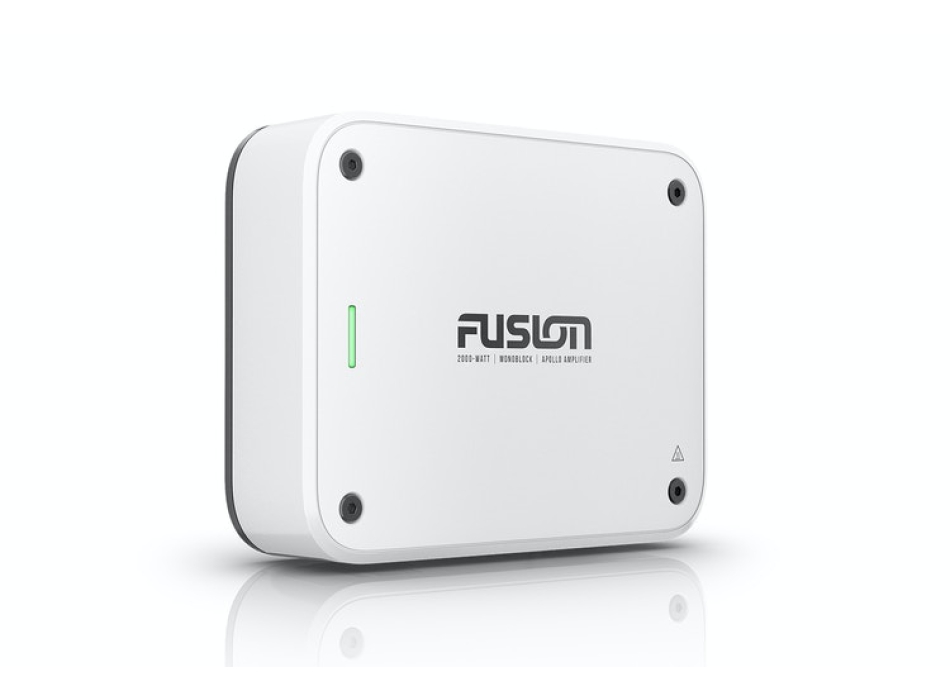

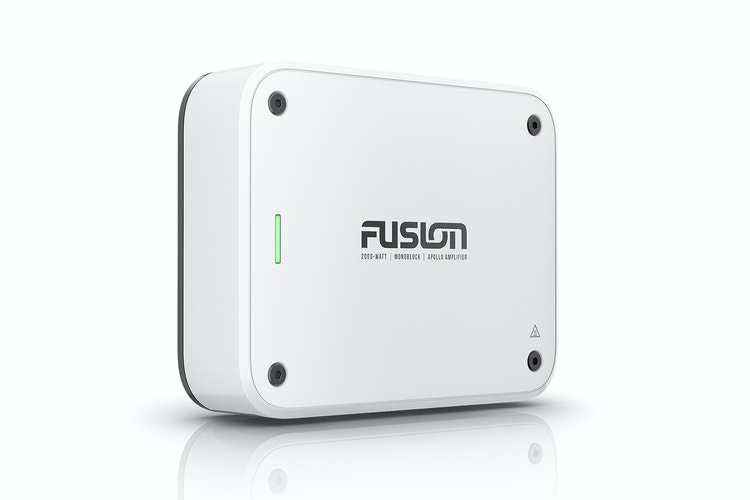

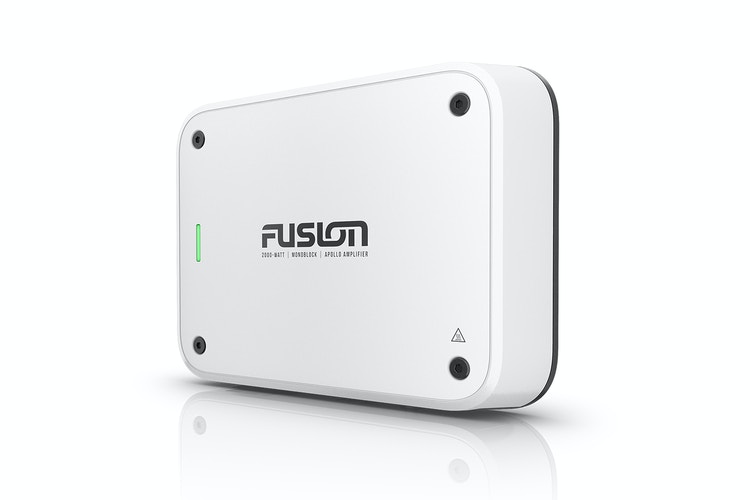

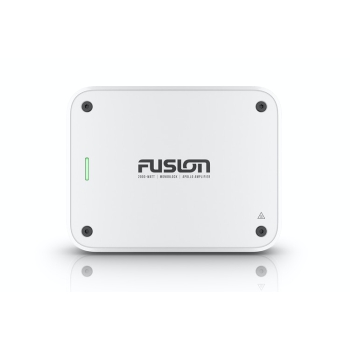

Fusion Apollo MS-AP12000 1 Channel Class D Amplifier

  • Code: 010-02284-10
€ 550,55 € 649,00 -15%
FUSION MS-AP12000 1-channel 2000W amplifier

It is the difference between listening to music and hearing it.

Compatible with apollo series stereos only , designed specifically for use with your Fusion® DSP-equipped marine stereo and Fusion speakers .

This powerful and efficient monoblock amplifier makes the difference between listening to music and hearing it. With an impressive 650 watts RMS (at 4 ohms), this amplifier is specifically designed to power a subwoofer. The Easy Tune feature automatically adjusts sound settings for the best sound quality without manual adjustments (requires setup via the Fusion-Link ™ app on a compatible smartphone).
Impressive power: 650 watts RMS (at 4 ohms), specifically designed to power a subwoofer.
Efficient Class D design: consumes less power, so you can listen to music longer at higher volumes, with less battery consumption.
Easy Tune function: Automatically adjusts sound settings for the best possible sound quality without the need for manual adjustments (requires setup via the Fusion-Link app on a compatible smartphone).
LED Indicator: Shows problems with electrical currents and short circuits, as well as the temperature.
Less Total Harmonic Distortion: The amplifier is designed with minimal distortion and noise, allowing for better audio quality.
Ignition Protection : Intelligent electronic fuse prevents damage from over / under current, temperature, output short circuit and other failures.
Conformal coated PCB: The amplifier circuit has been specially coated to provide advanced protection from the marine elements.
Powder Coated Aluminum Finish: Salt spray, temperature, vibration and UV test with a modern aesthetic design to add style to your boat.

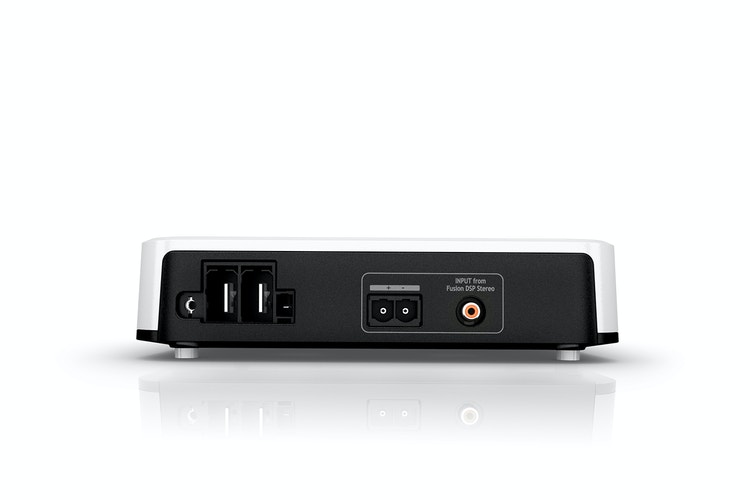

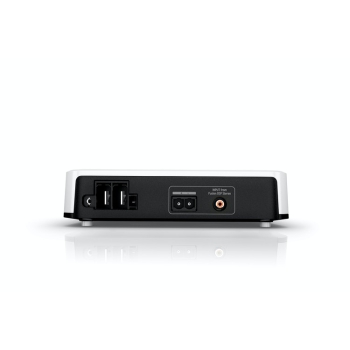

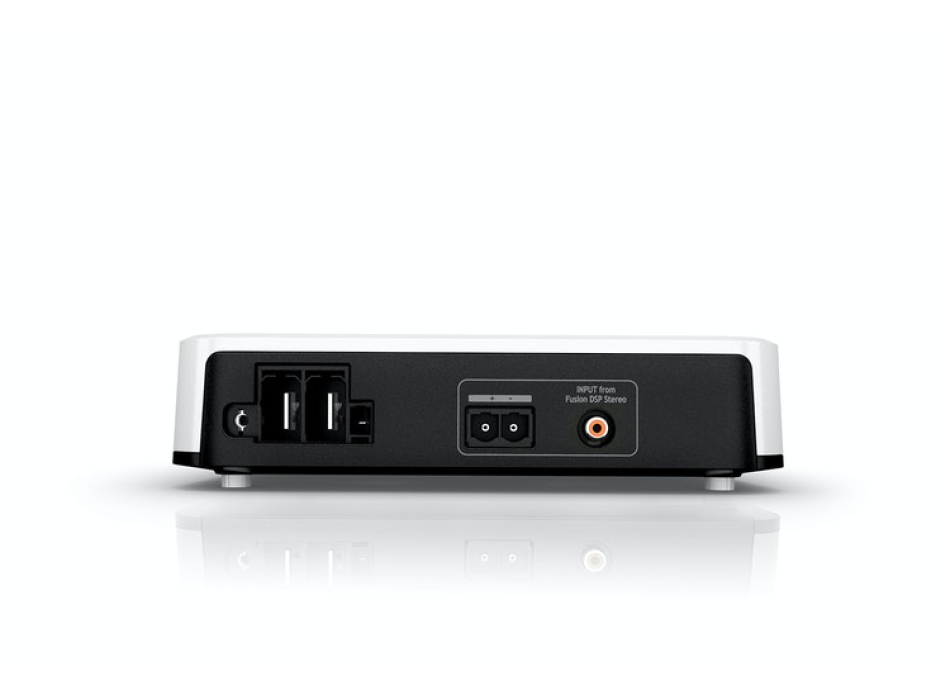

Easy installation: Proprietary cable connectors and a mounting bracket are included in the package. The cable connectors allow you to pre-wire your speakers / subwoofer, while the mounting bracket allows you to simply snap the amplifier into place for a clean finish.

True-Marine ™ Design: Designed to withstand the harshest marine environments season after season and comes with a 3 year warranty.
  • Physical dimensions without bracket (WxHxD) 9.25 x 7.06 x 1.75 inches (235 x 180 x 45 mm)
  • Physical dimensions with bracket (WxHxD) 9.25 x 7.06 x 2.13 inches (235 x 180 x 50 mm)
  • Weight 4.85 lbs (2.2 kg)
  • IPX2 water rating
  • Class -D amplifier class
  • CEA-2006 rated power 650 watts RMS x 1 @ 14.4V - 4 ohm input <1% THD
  • Total rated output power - 2 ohms (watts) 1100 watts RMS x 1 @ 14.4 V input - 2 ohms <1% THD
  • Peak power (watts) 2000-watts
  • 2 V RMS input sensitivity
  • Input impedance 22k ohm
  • Operating voltage 10.8V - 16V DC
  • Current consumption (StandBy) <5 mA @ 14.4 V input
  • Current consumption (idle) <0.89A @ 14.4V input
  • Current consumption (maximum) 87 A
  • Fuse Electronic fuse 125 A (no replacement necessary)
  • Security to expansion (SAE J1171)
  • Protection circuits Reverse voltage, under / over voltage in input, over temperature, short circuit in output
  • Operating temperature range 32 ° to 122 ° F (0 ° to 50 ° C)
  • 3 years warranty
