Fusion MS-RA210 Pack with XS Classic Cases

  • Code: 010-02250-50
€ 533,50 € 630,00 -15%

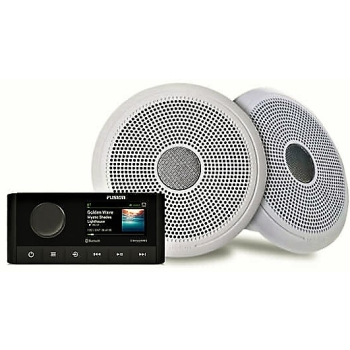

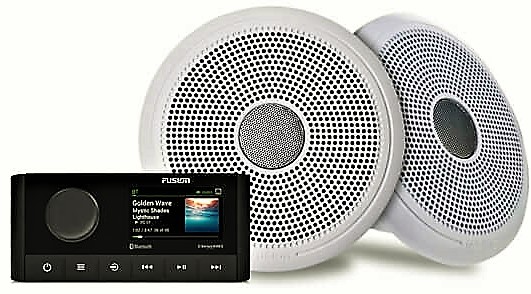

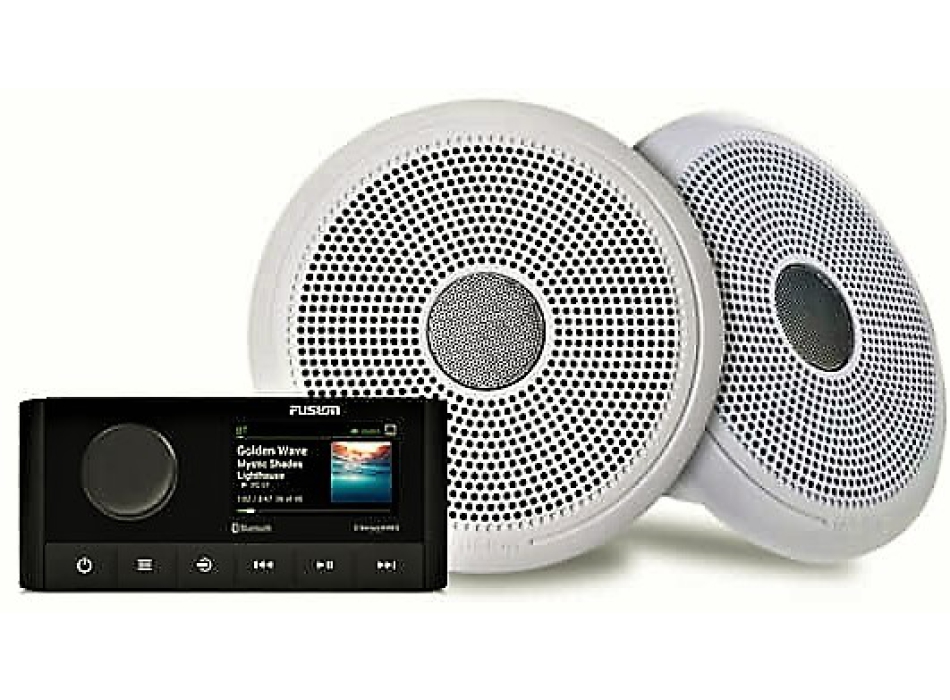

Fusion MS-RA210 Pack With Case XS Classic
New aesthetics, compact design and advanced audio capabilities.

Sources: AM / FM / Bluetooth / USB / AUX / iPhone / iPod / MTP / DAB + ready (requires MS-DAB100A) / SiriusXM ready (requires SiriusXM Connect vehicle tuner)

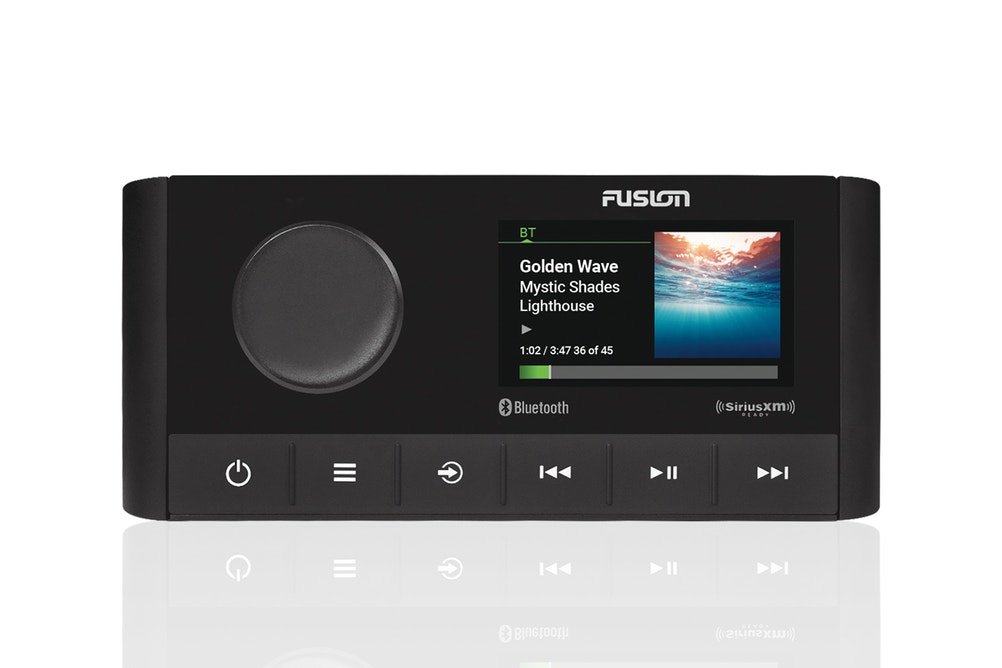

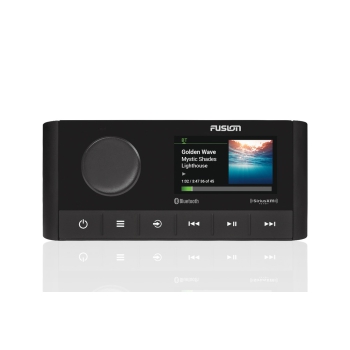

MS-RA210, is a compact marine stereo designed to deliver a quality audio entertainment experience on the water. The MS-RA210 features Fusion's newly designed aesthetics and revolutionary digital signal processing technology for enhanced listening in any environment. The sleek design with the option to mount the stereo with a conventional flush finish or integrate it flat, ensures a visually appealing finish to your dashboard, making the MS-RA210 a stylish addition to your ship.

New Design Aesthetics: The MS-RA210 features a brilliant, optically bonded 2.7 "color LCD display that is incorporated into a black front face for ease of visibility and enhanced styling. The black front face blends seamlessly with the dash, to offer uniformity across the entire wheelhouse.

Digital Signal Processing (DSP): A technically superior listening experience made simple, Fusion DSP produces superior sound quality in any room, at any volume level. Power is real-time optimization and processing of the audio signal coupled with the revolutionary technology built into our products. The integrated DSP chip monitors the music being played and adjusts loudness curves for quality audio at every volume level, while the feed-forward limiter anticipates a peak in the audio and adjusts the gain to make distortion a memory of the past. Using environmental information and acoustically designed Fusion speaker, subwoofer and amplifier profiles, you can enjoy personalized and optimized audio in any area of your boat.
Setting up DSP profiles is made easy with the free Fusion-Link ™ app. With just a few taps, you can set up the preconfigured DSP profile once and get back to enjoying what you love on the water, listening to high-quality audio customized to your ears and environment.
Multiple Source Options Available: The MS-RA210 offers multiple source options, with Bluetooth, AM / FM radio, iPhone / iPod, MTP, SiriusXM and DAB + radio available, ready USB and AUX connections at your fingertips.
IPX6 and IPX7 Ingress Protection: Designed for the harsh marine environment, the MS-RA210 has an impressive IPX6 and IPX7 (when properly mounted) water resistant front panel built to perform and last on board.
Fusion-Link: The industry standard protocol for on-water audio integration and control, Fusion-Link allows you to control your entertainment directly from paired multifunction displays, compatible Apple or Android devices via the Fusion-Link app and Garmin watches via Fusion-Link Lite. With multiple control options, no matter what you're doing on your boat, you can always be in control of your audio entertainment.

Multi-Zone Technology: Two independent audio zones are available for a personalized listening experience on the vessel, each with advanced localized menu controls including volume limits, zone naming, disabling zones and more. Note: Subwoofer and full range outputs require additional amplification.

Class D Amplifier (4 Ohm Minimum Impedance): Built-in Class D Amplifier offers higher efficiency, meaning you can listen to your music at higher volume levels for longer without worrying
battery consumption.

Acoustically optimized for an excellent sound experience on the water.

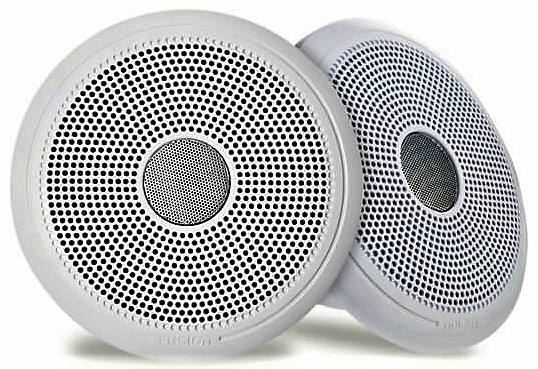

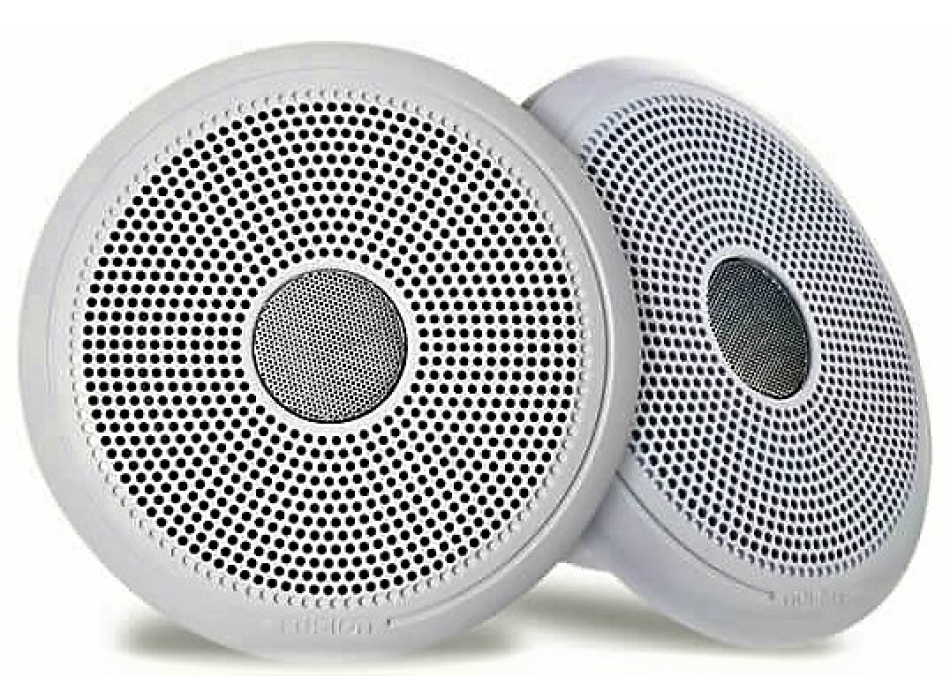

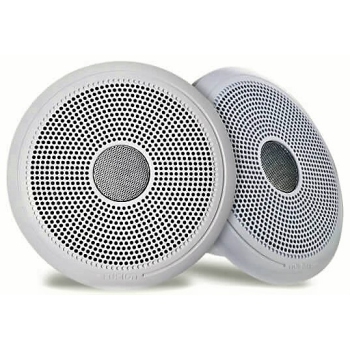

Continuing to set the benchmark for marine audio entertainment, Fusion's new XS Series speakers feature quality audio reproduction and enhanced marine aesthetics at a mid-range price. Optimized for marine use and built for performance, these stylish speakers are designed to produce consistent high quality audio at all volume levels, season after season.

With a weatherproof IP65 rating, True-Marine ™ accreditation and an industry-leading 3-year warranty, you can rest assured that your XS Series speakers are built to last on your boat.

Optimized XS Classic Full Range Speaker:
The XS Series speakers are acoustically optimized for marine performance, combining optimized speaker drivers and tweeters to produce quality sound at all volumes.

True-Marine ™ Project: Extensively tested to operate in harsh marine environments, the XS Series has an IP65 rating and True-Marine accreditation.

Two Grid Options Supplied: Enjoy the freedom to choose the right finish for your ship, with both Classic White and Classic Black grills provided in the box.

Designed to be ISO12216 compliant: Tested to international standards for pressure and watertightness, recognizes that the XS series are designed and built to the highest industry standards in terms of quality and robustness.
  • Optically bonded 2.7 "color LCD screen
  • Audio sources AM / FM / Bluetooth / USB / iPhone / iPod / AUX / MTP / SiriusXM-Ready (US only, requires optional SiriusXM Connect Vehicle Tuner) / DAB + ready (only available in Europe and Australia) Note: SiriusXM and DAB + they don't support traffic or weather.
  • Digital Signal Processing (DSP) yes
  • DSP pre-configured Fusion speaker, subwoofer and amplifier profiles yes
  • Fusion-Link control (wireless) yes
  • Bluetooth wireless technology Bluetooth audio streaming, music control (via devices compatible with Bluetooth A2DP / AVRCP 1.3 protocols)
  • SiriusXM-Ready yes
  • ANT® technology yes
  • NMEA 2000® (control via MFD - Fusion-Link) yes
  • Works with NRX remotes yes
  • Suitable for DIN-Cut-Out Yes - requires an adapter plate
  • Water resistance (IP rating) IPX6 and IPX7 from the front panel when properly installed
  • Internal Class D amplifier (minimum impedance 4 Ohm)
  • Power peak 200 W max
  • Multilingual User Interface Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese ( PT) / Slovenian / Spanish / Swedish / Thai / Turkish
  • Auxiliary inputs 1 RCA input (AUX)
  • USB 2.0 port One USB 2.0 port (for phone charging / media playback)
  • SiriusXM One SiriusXM port (requires optional SiriusXM Connect vehicle tuner, does not support traffic and weather conditions)
  • AM / FM radio One Motorola antenna connector port
  • Speaker channels 2 x channels, 1 pair per zone (2 powered zones)
  • RCA pre-out (left, right and subwoofer) 2 zones (1 x L + R per zone, 1 x Sub per zone - All require external amplification)
  • Operating voltage + 10.8V - 16V DC
  • DAB + Ready Fusion DAB + module required (sold separately). Only available where DAB or DAB + broadcast is supported
  • Software updates Available via USB - from the Fusion-Link app on a USB connected phone or from a USB flash drive.
  • Dimensions: length x height x depth (front panel incl. Volume encoder) 157mm x 68mm x 22mm [6-3 / 16 "x 2-11 / 16" x 7/8 "]
  • Mounting dimensions: height x depth 49.8mm x 104.6mm [1-15 / 16 "x 4-1 / 8"]
  • Speaker Size 6.5 "
  • Peak power 200 watts
  • RMS rated power 50 watts
  • Efficiency (1 W / 1 M) 91 dB
  • Frequency response 80Hz - 18kHz
  • Nominal impedance 4 ohms
  • Recommended amplifier power (RMS) 20-150 W / Ch
  • Tweeter type Aluminum dome
  • Cone / surround material Polypropylene with fabric covering
  • Mounting clearance 135mm (5-5 / 16 ")
  • Mounting depth distance 67mm (2-5 / 8 ")
  • Optimal shell volume (sealed shell, filled with absorbent material) 8L
  • Operating temperature range 0 to 50 ° C (32 to 122 ° F)
  • Storage temperature range -20 to 70 ° C (-4 to 158 ° F)
  • Water and dust resistance (IPX classification) IP65
  • 3 years warranty
D. buongiorno , io oggi in barca ho un Fusion MS-RA60 se vorrei sostituirlo con il MS210 dovrei variare il foro di montaggio ? attendo riscontro ,grazie
R. 15-05-23 Buonasera, stesso foro, non deve fare alcuna modifica. Cordiali saluti. Luigi Bianchi
D. Buongiorno desideravo sapere se è compatibile con axiom 9 pro e se necessita di ulteriori componenti per comunicare con display ray marine. Grazie
R. 17-05-22 Buon pomeriggio, sì confermo la compatibilità. Per quanto riguarda i collegamenti, da verificare se a bordo sia già presente la rete cablata NMEA 2000. Diversamente servirà il kit avviamento NMEA 2000: https://www.painestore.it/kit_di_avviamento_nmea_2000_ Cordiali saluti. Luigi Bianchi
