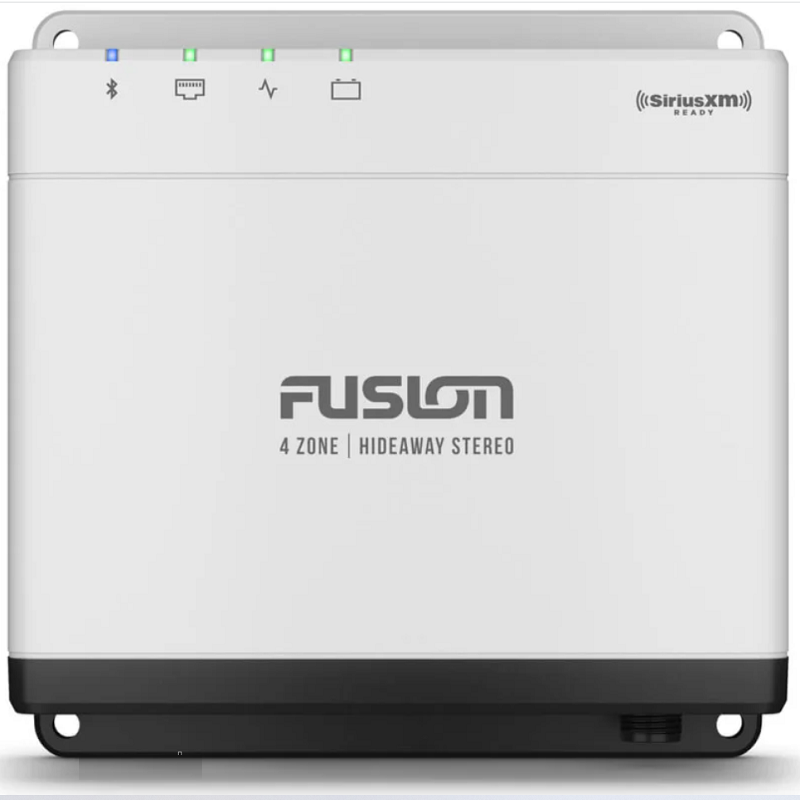

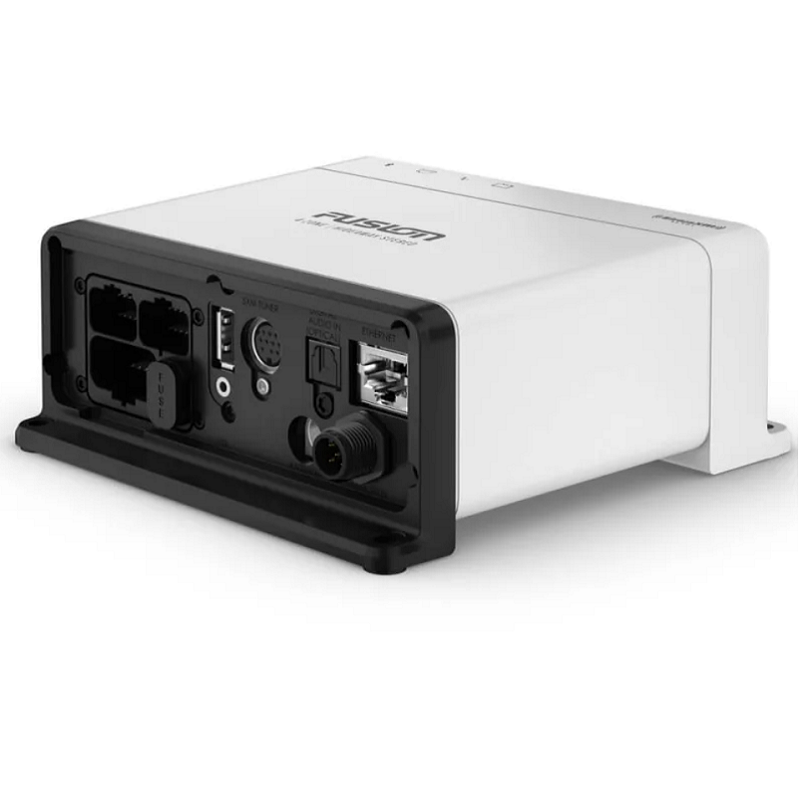

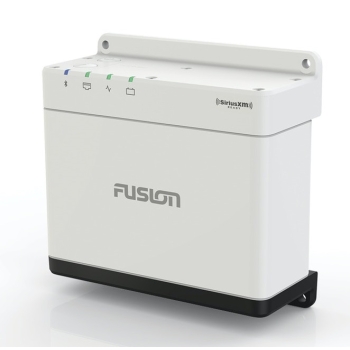

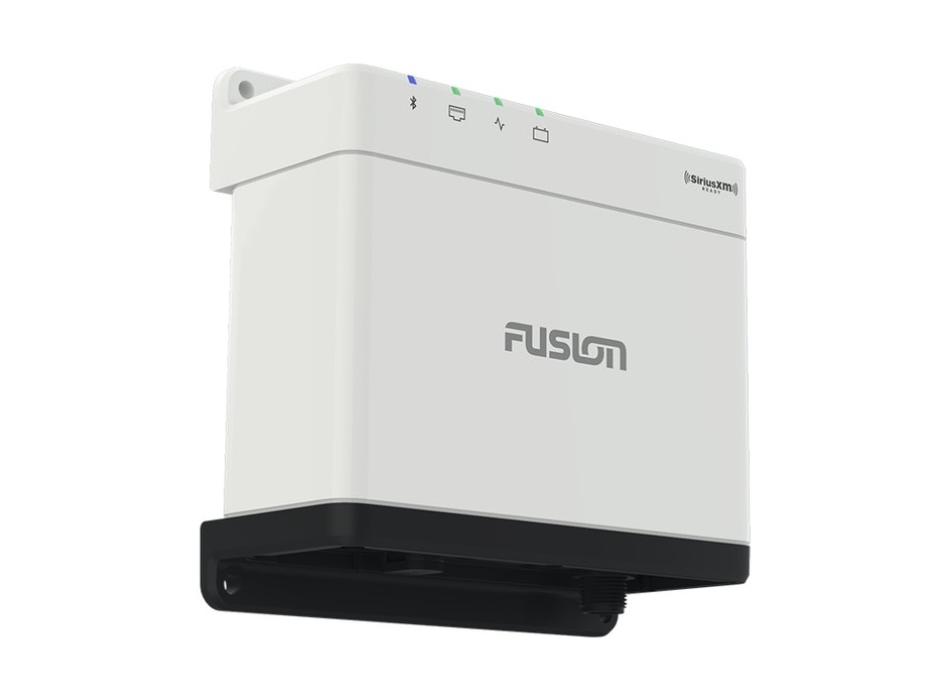

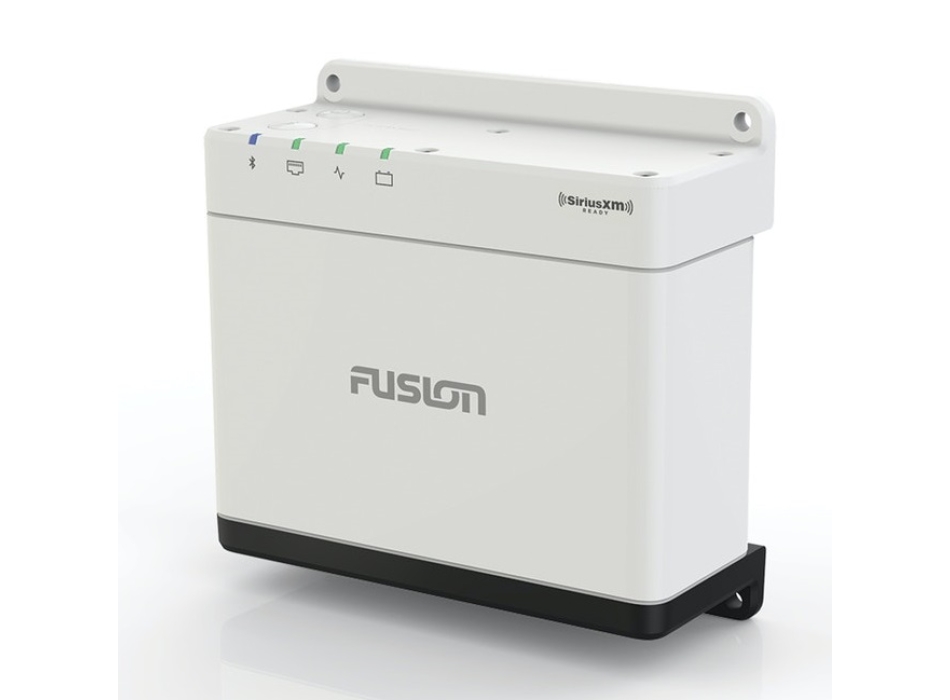

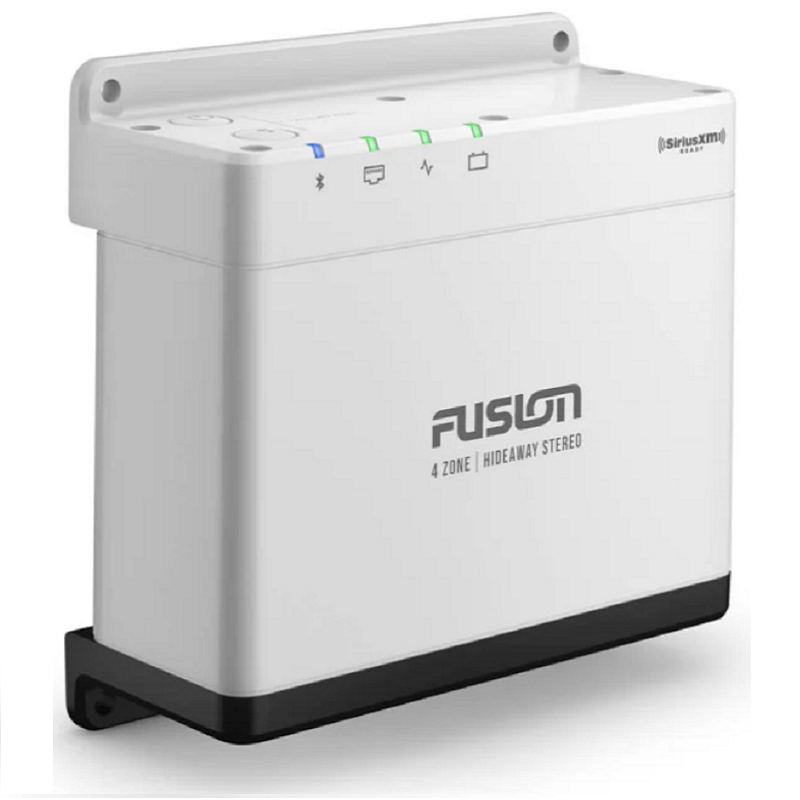

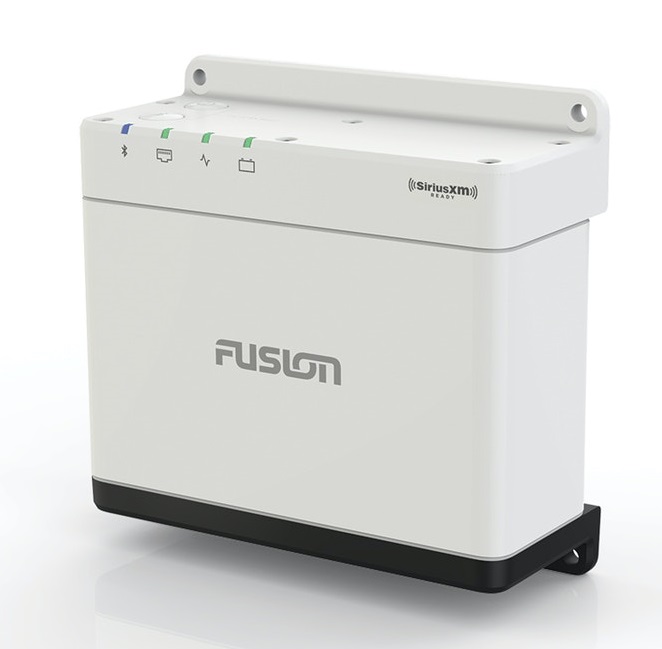

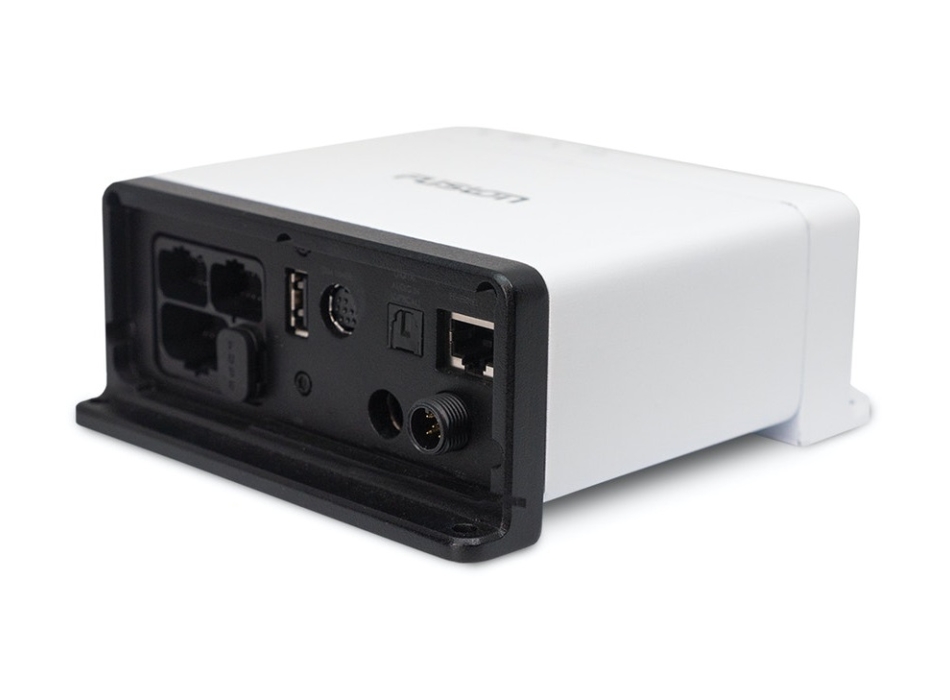

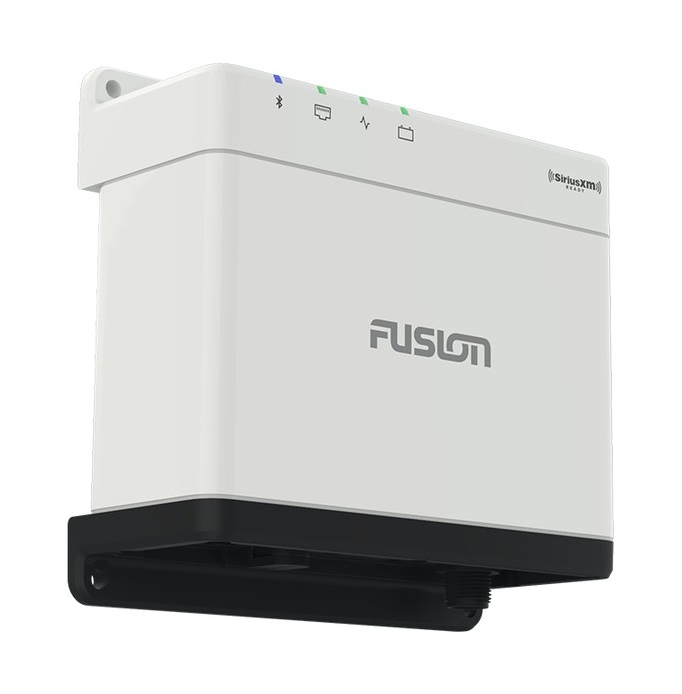

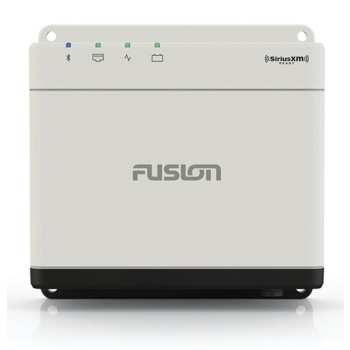

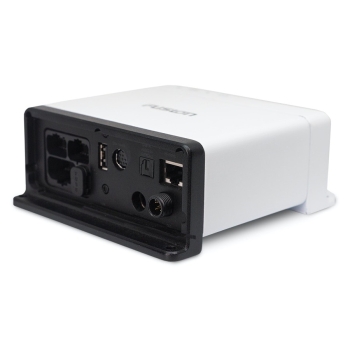

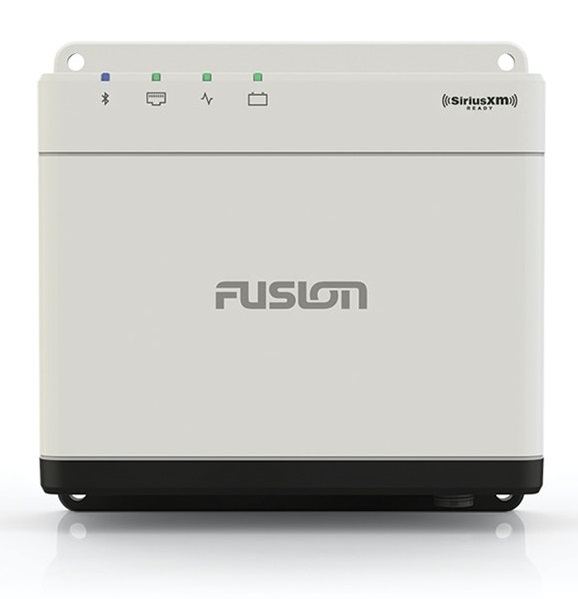

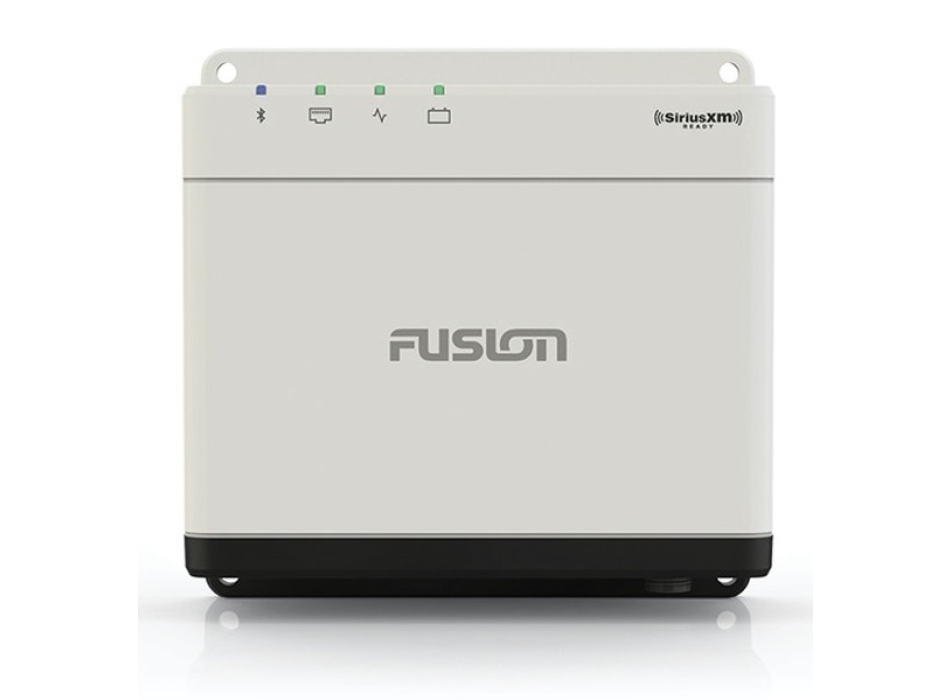

Fusion MS-WB670, white Apollo series box

  • Code: 010-02346-00
€ 466,55 € 549,00 -15%
FUSION MS-WB670, white Apollo series box - 3 zones
The Apollo WB670 is the embodiment of award-winning audio innovation in a discreet form factor.

Sources: AM / FM / Bluetooth / Apple AirPlay 2 * / Optical Audio In / USB / AUX / MTP / UPnP * / DAB + Ready (requires MS-DAB100A) / SiriusXM Ready (requires SiriusXM Connect Vehicle Tuner)

The new Apollo WB670 inherits key audio innovations and technological brilliance from the Apollo RA670, redesigned in a compact, space-saving form factor designed to simplify dashboard space at the helm. Key features include Fusion's digital signal processing technology, advanced PartyBus ™ networking capabilities *, Wi-Fi audio streaming with Apple AirPlay® 2 *, over-the-air * software updates and multiple source options including optical audio for connection to televisions. The Apollo WB670 also features advanced connectivity options that provide convenience and flexibility when controlling the entertainment system. An Apollo ERX400 wired remote control can be connected via Ethernet for the full Apollo user experience or, alternatively, for a leaner system, the WB670 can be controlled using just a Garmin MFD via NMEA 2000® or Ethernet. From the bass drum to your eardrum, Apollo has made it inherently simple to customize your audio entertainment for superior sound quality in any area of ​​your boat. The future of marine audio entertainment has arrived.

* Available when the Apollo WB670 is connected via an Ethernet cable to a wireless network router or to the Apollo series stereo network enabled with Wi-Fi ® technology.


Digital Signal Processing (DSP): A technically superior listening experience made simple, Fusion's DSP produces superior sound quality in any environment. Precisely calculated volume curves optimized for the human ear ensure quality, full-range audio at every volume level, while the feed-forward limiter anticipates a peak in the audio and adjusts the gain to make distortion a thing of the past . Using the ambient information and acoustically designed Fusion speaker profiles, you can now achieve customized and optimized audio for any area of ​​your boat, resulting in a perfectly tuned entertainment system for premium audio playback and programmed to protect your system season after season.

Setting up DSP profiles is made easy with the free Fusion-Link app. With just a few clicks, you can set up your pre-configured DSP profile once and get back to enjoying what you love on the water, listening to high-quality audio customized to your ears and surroundings.

PartyBus ™ -Network *: Enjoy the freedom of music choice with Fusion's Apollo and PartyBus ™ -Network series. We have introduced a new intuitive user experience that allows for easy navigation of the vessel's entire audio network, making controlling audio and sources a seamless experience. Key features include:

Stereo grouping , allows you to connect multiple Apollo series stereos connected to the same network and play the same synchronized audio source on all stereos. You can create multiple groups for a personalized audio entertainment experience. Note: Apollo SRX400 sources are not shared over the network.
Volume control , scroll through the available zones on your boat and enjoy independent volume control to customize your listening experience, or select ALL volume to adjust a group of stereos at the same time.
Power Options - Allows any Apollo series stereo connected on the PartyBus network to be turned on remotely from another Apollo series stereo.
Home Zone , is the physical zone on board your boat where the stereo is installed. After adjusting the audio in another zone, the stereo will default to Home Zone audio control after a period of inactivity.
Note: User experience may be subject to change without notice when a new software version is released.

Wi-Fi Audio Streaming with Apple AirPlay 2 * : Stream high-quality audio seamlessly via Apple AirPlay 2 over Wi-Fi * from your compatible Apple device to the Apollo WB670. Apple AirPlay 2 has the added functionality of being able to stream an audio source from your compatible Apple device to multiple Apollo series marine stereos connected to the same network, with individual and global volume control of the head units.

Over-the-Air Software Updates * : The Apollo series is intelligently simple and always up-to-date, thanks to over-the-air software updates available from your compatible smartphone or device via the free Fusion-Link app.

More Source Options: Apollo WB670 offers more source options, with Bluetooth, UPnP, optical audio, advanced SiriusXM features and DAB + radio available, AM / FM radio, AUX and USB connections ready at your fingertips.

Compact Design: Designed to save space at the helm, the Apollo WB670 can be mounted in out-of-the-way locations such as lockers, interior helm consoles and other hidden compartments.

True-Marine ™ Designed and Engineered: Built on Fusion's True-Marine design philosophy, the Apollo WB670 has been tested to a high standard for protection against salt spray, temperature, vibration and UV rays.

Fusion-Link ™ : The industry standard protocol for in-water audio integration and control, Fusion-Link enables entertainment control directly from partner marine multifunction displays, compatible Apple or Android devices via the Fusion app -Link and from Garmin watches via Fusion-Link Lite. With multiple control options, whatever you are doing on your boat, you can always be in control of your audio entertainment.

Multi-Zone Technology ™: Three independent audio zones are available for a personalized listening experience on the vessel, each with advanced localized menu controls including volume limits, zone naming, mute zones and more. Note: Subwoofer and full range line outputs require additional amplification.
  • Sources AM / FM / Bluetooth / Apple AirPlay 2 / optical digital input / USB audio / iPhone / iPod / AUX / UPnP / MTP / SiriusXM-Ready (US only, requires optional SiriusXM Connect vehicle tuner) / DAB + ready (available in Europe and Australia only) Note: SiriusXM and DAB + do not support traffic and weather.
  • Digital Signal Processing (DSP) yes
  • DSP pre-configured Fusion speaker, subwoofer and amplifier profiles yes
  • Fusion-Link control (wireless) yes
  • PartyBus network technology Yes (receive and transmit - wired or wireless * when Apollo WB670 is integrated with a wireless network router or an Apollo series stereo network enabled with Wi-Fi technology)
  • Bluetooth wireless technology Bluetooth audio streaming, music control (via devices compatible with Bluetooth A2DP / AVRCP 1.3 protocols)
  • Ready for SiriusXM yes
  • Wifi Yes * (* when integrated with a wireless network router or Apollo series stereo network enabled with Wi-Fi technology)
  • ANT technology yes
  • NMEA 2000 (control via MFD - Fusion-Link) yes
  • Works with ERX / NRX remotes Yes, NRX remote requires additional parts (refer to owner's manual for more details)
  • Optical input 1 x digital optical input (SPDIF)
  • Internal Class-D amplifier
  • Nominal Output Power (4 Ohm) 26W rms x 4 @ 14.4V input <10% THD
  • Rated Output Power (2 Ohm) 43W rms x 4 @ 14.4V input <10% THD
  • Peak power 280 W max
  • Auxiliary Inputs 1 x RCA (AUX) input
  • Ethernet One Ethernet port
  • USB 2.0 port One USB 2.0 port (for phone charging / media playback)
  • SiriusXM One SiriusXM port (requires optional SiriusXM Connect vehicle tuner, does not support traffic and weather conditions)
  • AM / FM radio One port for the Motorola antenna connector
  • Speaker channels 4 channels, 1 pair per zone (internal amplifier of zone 1 and 2 / zone 3 requires external amplification)
  • RCA pre-out (left, right and subwoofer) 3 zones (1 x L + R per zone, 1 x Sub per zone - All require external amplification)
  • Operating voltage +10.8 - 16V dc
  • DAB + ready The Fusion DAB + module (sold separately) is required. Only available where DAB or DAB + broadcast is supported
  • Software updates Software updates over the air * via the free Fusion-Link app or USB (* when Apollo WB670 is integrated with a wireless network router or an Apollo series stereo network enabled with Wi-Fi technology)
  • Physical dimensions: width x height x depth 130mm x 130mm x 55mm [5-1 / 8 "x 5-1 / 8" x 2-3 / 16 "]
