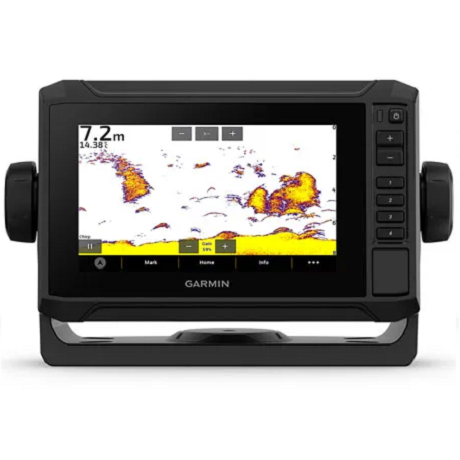

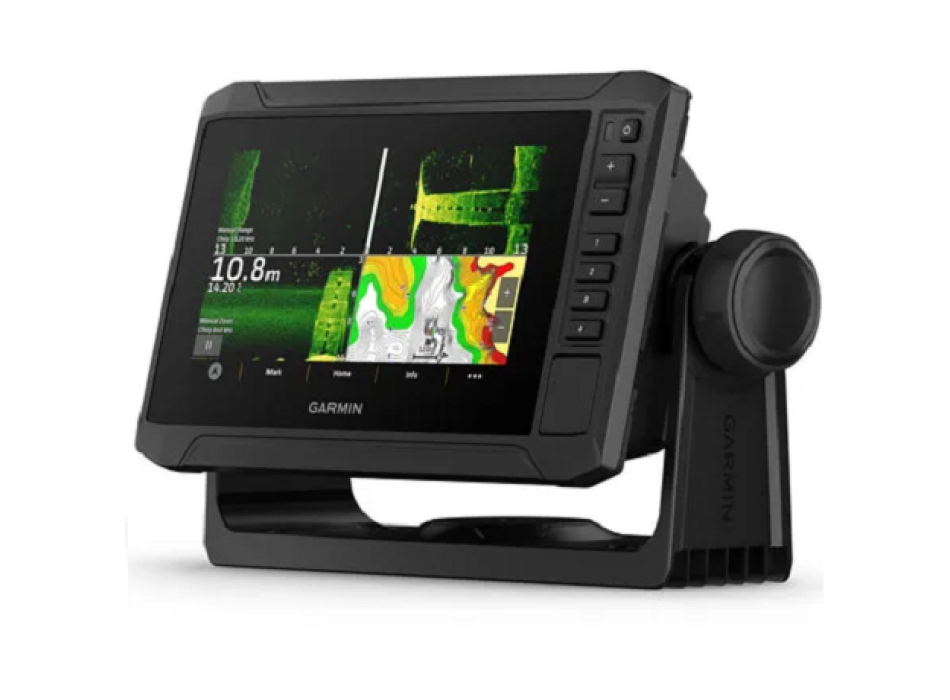

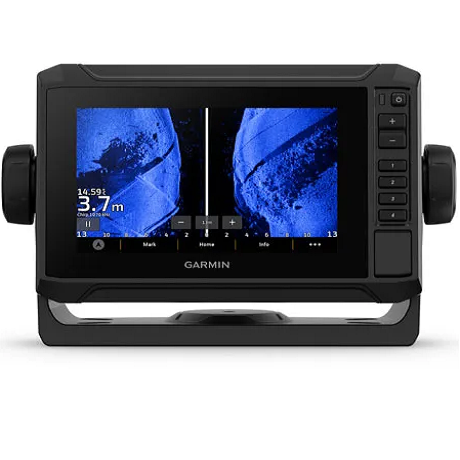

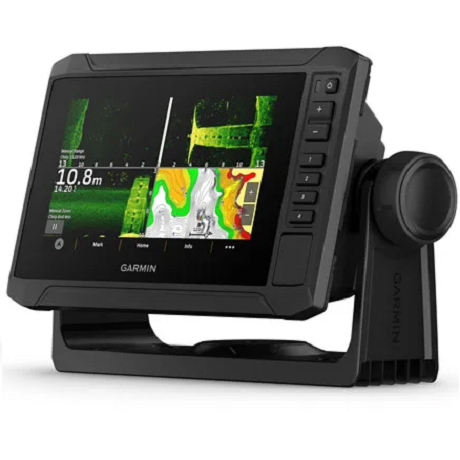

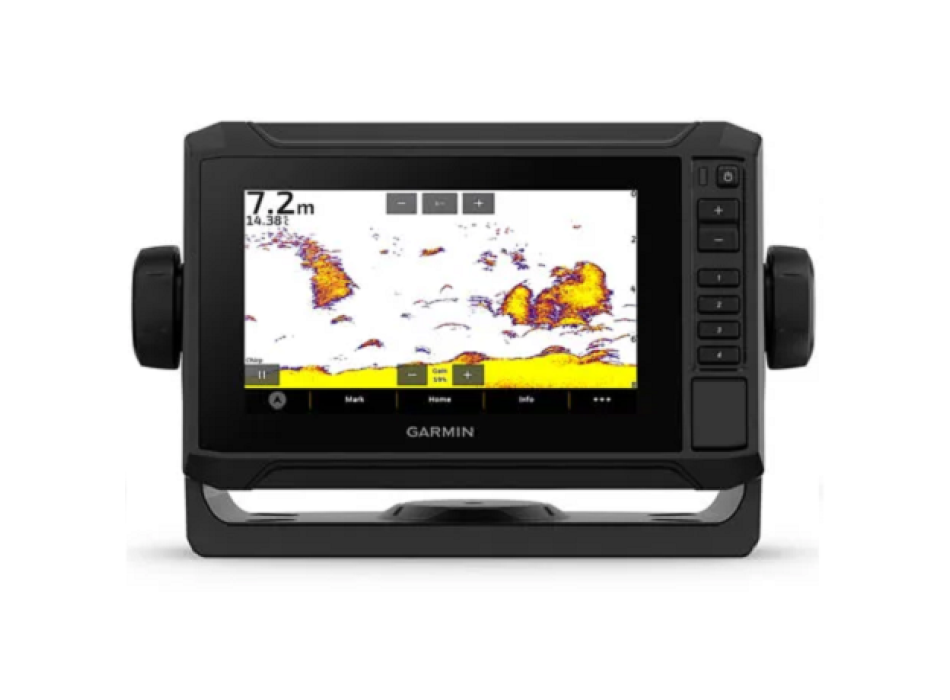

Garmin echoMAP UHD2 62SV fishfinder/plotter 6"

SELECT FROM DROP-DOWN MENU
THE VERSION WITH OR WITHOUT TRANSDUCER
  • Code: 010-02679-00
€ 809,00 € 899,00 -10%
CHOOSE THE TRANSDUCER
you chose:

Garmin echoMAP UHD 62SV eco/GPS 6"

FIND THE FISHING SPOTS IN A SIMPLE AND INTUITIVE WAY
With the ECHOMAP UHD2 chartplotter, featuring our best-in-class charting and sonar, and a premium touchscreen with quick-keys, you'll know the waters better than the locals.
The bright 6″, 7” or 9” touchscreen with quick keys is clear and intuitive.
Three types of sonar: traditional Garmin, ClearVü™ and SideVü™.
Vibrant, high-contrast color palettes.
Wireless sharing of: sonar, waypoints and routes with ECHOMAP UHD2 series chartplotters.
Compatibility with Garmin Navionics+™: the best of nautical cartography.

ECHO SOUNDER MODE
Using the fishfinder, ClearVü and SideVü functions, locate fish and structures on the sides and below the boat. Your ECHOMAP UHD2 also supports LiveScope™ sonar for real-time scanning.

BANDS OF BRIGHT COLORS
The scanning echosounder's high-contrast bands of vibrant color make it easier than ever to distinguish between targets and structures.

ADD THE TRANSDUCER
Your ECHOMAP UHD2 device supports a variety of Garmin transducers. The 6″ and 7″ chartplotters ship with a GT54 transducer, while the 9″ chartplotter ships with a GT56 transducer.

CARTOGRAPHY
Experience unprecedented coverage and detail with Garmin Navionics+ or Garmin Navionics Vision premium (optional) with high-resolution relief shading, satellite imagery, sonar imagery and more. They also include a one-year subscription for downloadable daily updates.

WIRELESS NETWORK SHARING
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, you can share information wirelessly, such as sonar1, waypoints and routes.

ACTIVECAPTAIN® APP
With built-in Wi-Fi® connectivity, you can pair with the free mobile app for access to OneChart™, Smart Notifications2, software updates, Garmin QuickDraw Community data, and more.

AUTO GUIDANCE+™ TECHNOLOGY
Chartplotters with Garmin Navionics+ charts include downloadable Auto Guidance+3 technology using the ActiveCaptain app.

TROLLING MOTOR FORCE®
Your ECHOMAP UHD2 connects wirelessly to your Trolling motor force to create and follow routes, navigate to waypoints, check speed, check battery life and much more.

MULTI-BAND GPS
Get greater location accuracy with multi-band GPS.

Packaging
ECHOMAP UHD2 62SV
GT54-TM Transducer (included only in variant with GT54)
Power cord
Tilt/swivel bracket with quick release base
Hardware
Documentation
General
DIMENSIONS 8.1″ x 5.2″ x 2.6″ (20.6 x 13.1 x 6.7cm)
KEY ASSISTANCE BUTTONS Touchscreen and keys
SCREEN DIMENSIONS, 5.4″ W x 3.1″, 6.2″ (13.8 x 7.8 cm, 15.7 cm)
SCREEN RESOLUTION, WXH 800 x 480 pixels
SCREEN TYPE WVGA, TN
WEIGHT 1.8 lbs (0.8 kg)
IPX7 WATERPROOF RATING
MOUNTING OPTIONS On bracket or recessed
Maps and memory
EXTERNAL MEMORY 1 microSD™ card; with maximum capacity of 32GB
WAYPOINTS 5,000
TRACK POINTS 50,000
TRACKS 50 saved tracks
ROUTES THAT CAN BE MEMORIZED 100
IT HAS AN INTEGRATED RECEIVER 10 Hz
NMEA 2000® COMPATIBLE
GPS: GLONASS , GALILEO ,BEIDOU ,SUPPORT WAAS , SUPPORT MULTI-BAND AND MULTI-CONSTELLATION GPS

Cartography
AUTO GUIDANCE+ INTEGRATED Yes ( downloadable via the ActiveCaptain app )
GARMIN NAVIONICS+: COMPATIBLE (not included in the package)
TIDE DATA Yes (see Other)

Chartplotter functions
COMPATIBLE WITH AIS FUNCTION
COMPATIBLE WITH DSC FUNCTION
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS
ACTIVECAPTAIN COMPATIBLE yes
SAILING FUNCTIONS

Sonar functions and specifications
VIEW ECHO SOUNDER
500W OUTPUT POWER
CONVENTIONAL SOUNDER (DUAL FREQUENCY/BEAM) Integrated (Single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
CLEARVÜ built-in 260/455/800/1000/1200kHz
SIDEVÜ built-in 260/455/800/1000/1200kHz
PANOPTIX™ SONAR
LIVESCOPE

Connections
NMEA 2000® PORTS yes
GARMIN MARINE NETWORK™ PORTS 1
12 PIN TRANSDUCER PORTS 1
BLUETOOTH® CALLING
ANT+™ (CONNECTIVITY)
GARMIN WI-FI® NETWORK (LOCAL CONNECTION)

Electrical characteristics
POWER SUPPLY From 9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12V DC 1.53A
MAXIMUM CURRENT DRAW AT 12V DC 3.2A
MAXIMUM POWER CONSUMPTION AT 10V DC 18.4W

Additional features
ADDITIONAL FEATURES
Garmin Navionics+ (inland and coastal): 65sv Canada, Australia and New Zealand
Garmin Navionics+ (coastal): 64sv US coastal, 65sv UK/Ireland
Garmin Navionics+ (inland): 63sv US lakes
Tide tables: 63sv, 64sv, 65sv

Caratteristiche

Sei interessato ad una offerta privata?
D. Salve, sarei interessato al seguente prodotto ma non riesco a capire se è usato .
R. 25-02-24<br /> Buonasera, no si tratta di assolutamente nuovo. <br /> Cordiali saluti. <br /> Luigi Bianchi
D. Buongiorno è installata la cartografia mondiale base come il modello uhd62cv? Come posso collegare su questo strumento la stazione del vento e l'autopilota che sono nmea 1083? Grazie mille per la risposta
R. 24-10-23 Buongiorno, sì, ha una cartografia mondiale precaricata, però a mio avviso poco utile ai fini della navigazione perchè non ha alcun dettaglio batimetrico e costiero. Per integrare questo dispositivo in NMEA 0183, necessaria un'interfaccia di conversione dati da NMEA 1083 a NMEA2000: https://www.painestore.it/actisense_ngw-1_nmea_converter Motivo per cui ancora consigliamo l'acquisto dei 62CV UHD in questi casi. Cordiali saluti. Luigi Bianchi
D. Buongiorno E possibile collegare il modello Garmin ECHOMAP UHD2 6” alla strumentazione di un Yamaha F100 ? Nel caso .. che cavo devo usare? grazie
R. 10-10-23 Buonasera, non direttamente, è necessaria una Gateway di conversione dati da Yamaha a NMEA 2000. Dovrà chiedere ad un meccanico Yamaha. Cordiali saluti. Luigi Bianchi
D. A quale profondità scandaglia?
R. 02-02-23 Buongiorno, indicativamente arriva fino ai ca 150mt in eco Standard e ca 50mt in Down e Side Vision. Cordiali saluti. Luigi Bianchi
