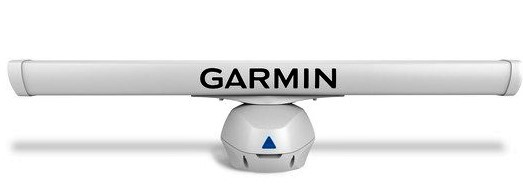

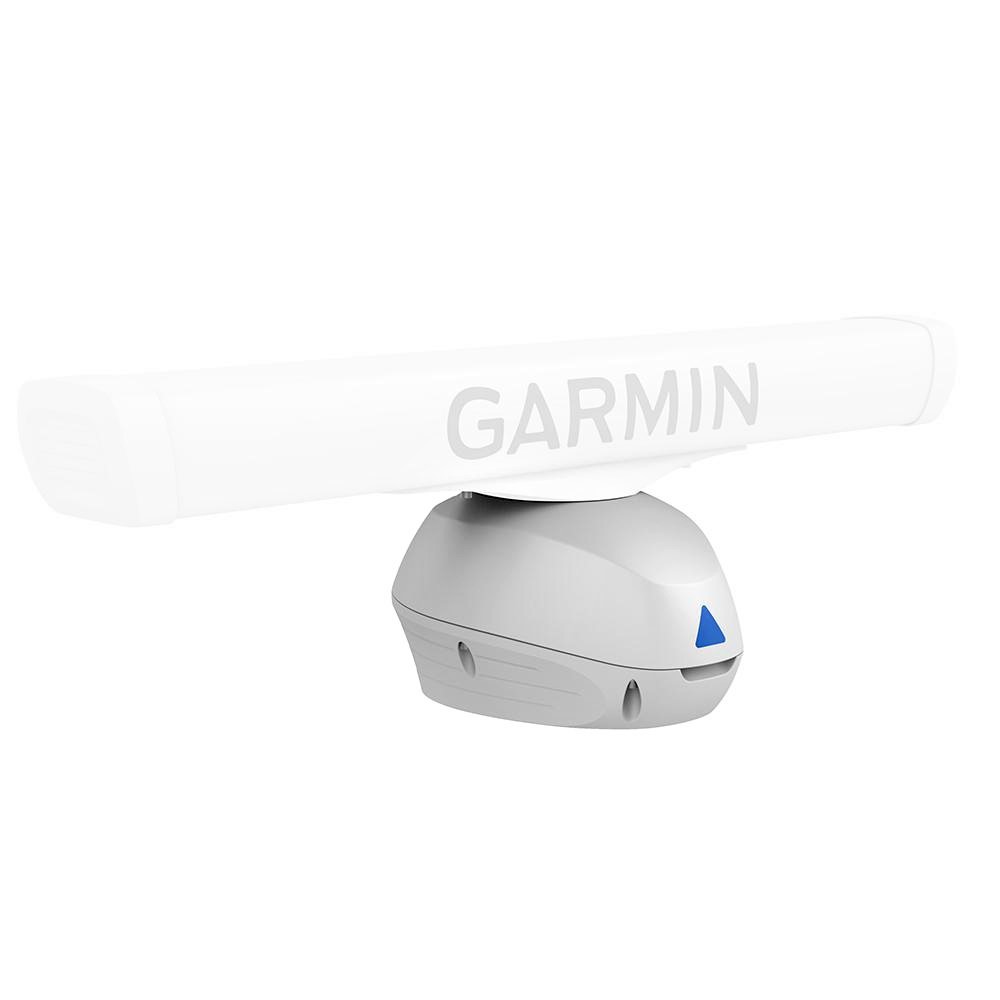

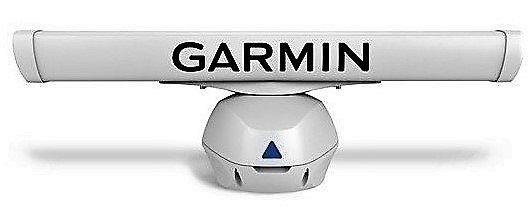

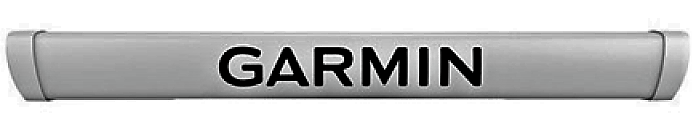

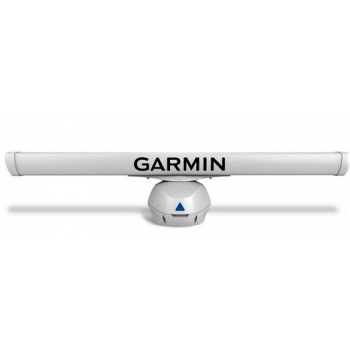

Garmin Fantom GMR 124/126 Open Array

HIGH POWER RADAR
The 120 Watt radar offers a range from a minimum of 6 meters to a maximum of 96 nautical miles (177 km).
All Fantom GMR radars maintain the same performance even in fog or rain. They are capable of providing rotation speeds of 24 rpm for reduced power consumption and 48 rpm for rapid screen updates.
The 1.8° horizontal beamwidth with 4' ft scanner and 1.25° with 6' ft scanner provides high-resolution imaging and high antenna gain to detect soft targets even at range.

MOTIONSCOPE TECHNOLOGY
MotionScope uses the Doppler effect to highlight moving targets in different colors so you can navigate around other vessels or in rough weather, or toward fishing spots where flocks are feeding at the surface.

INTUITIVE OPERATION
This radar has no complex user settings to manage and offers maximum ease of installation and use.
Adjust the size of objects on the radar image.
Locate flocks of birds on the water's surface, where bait is also likely to be found.

With ECHO TRAIL technology it allows you to leave a “trail” on the screen to allow quick and easy identification of moving targets and possible collision threats.
A single radar antenna can provide split screen images on the chartplotter for near and far ranges (dual range),
By using dual radar, data redundancy can be achieved, allowing each display on the vessel to draw data from one of two different radar sources.
Thanks to DYNAMIC AUTO GAIN that allows you to automatically adjust the optimal gain level settings for harbors, near shores and deep water offshore, you will have greater discrimination of details.

It also features DYNAMIC SEA FILTER technology that automatically adjusts sea clutter for calm sea conditions, with moderate and rough waves.

RADAR OVERLAY lets you overlay radar images on your chartplotter's map page. For best results, add an optional heading sensor or autopilot (sold separately).
The MARPA (Mini-automatic radar plotting aid) function allows you to detect up to 10 selected targets, to keep track of other vessels and avoid collisions.
You can set the safety zone and receive an alarm when an object enters the zone to increase the level of safety.

VRM and EBL
Variable range markers (VRM) and electronic bearing lines (EBL) enable rapid measurements of distance and direction to vessels and land.
