Garmin Compass 9 Axis Solid State NMEA 2000

  • Code: 010-11417-20
Garmin
(0)
€ 809,00 € 899,00 -10%
add to favorites

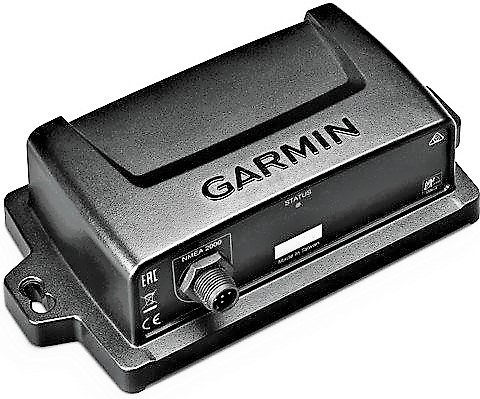

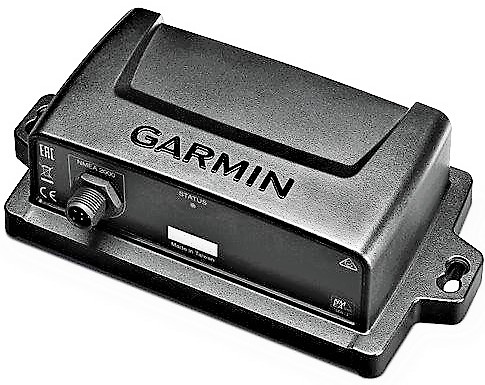

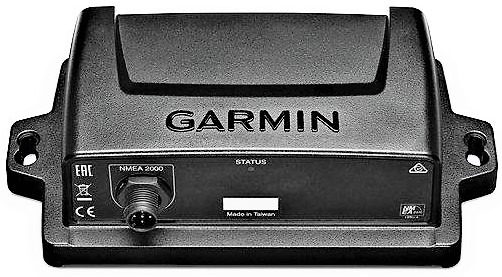

Garmin Compass 9 Axis Solid State NMEA 2000


Precise course tracking even at low speed
Innovative 9-axis solid-state compass that minimizes deviation and heading errors, thus limiting rudder movement and vessel power consumption. The 10Hz refresh rate and +/- 2 degree accuracy grade ensure reliable data even at low speeds.

9 axis and solid state
The advanced 9-axis technology provides precise and accurate information even in rough sea conditions, when the course data is easily subject to errors due to pitch and roll. Thanks to solid state technology it is possible to install the compass in any orientation and in any position, always paying attention to magnetic interference.

Enhance your radar presets
Using this compass together with a Garmin radar it is possible to obtain the maximum performance from the MARPA function, to monitor and detect the navigation status of the vessels around our position, and from the Radar Overlay function, which overlays the radar images on the cartography.

Calibration in two simple steps
Thanks to the NMEA 2000 connectivity and plug-and-play interface it is really easy to calibrate this compass, it only takes two simple steps to be ready to navigate.

In the box

9-axis solid state compass
NMEA 2000 T connector
NMEA 2000 cable (2 meters)
Documentation

TECHNICAL SPECIFICATIONS
  • Dimension (LxWxH): 50 x 171 x 88 mm
  • Weight: 180 g
  • Refresh rate: 10Hz
  • Accuracy degree: +/- 2 degrees
  • Waterproof classification: IPx7
  • LEN: 4
