Garmin GMR 18x Fantom Radar Antenna

(0)
  • Code: 010-02584-00
  • Brand : Garmin
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
starting from € 2.239,00 € 2.629,00 -15%
Garmin GMR 18 x Radar Antenna

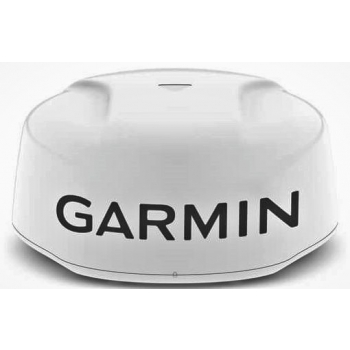

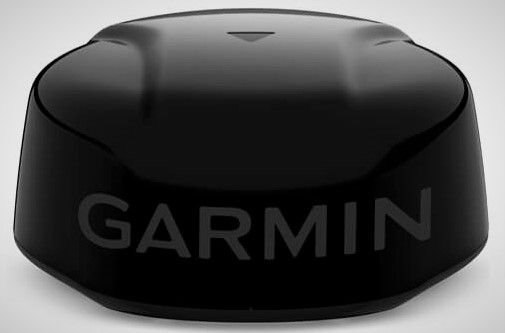

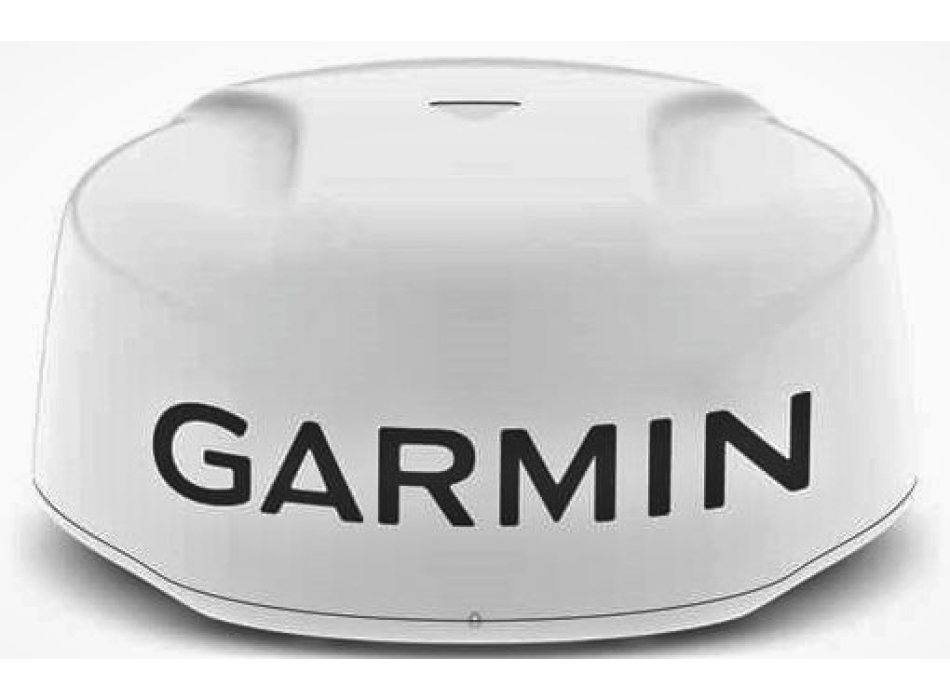

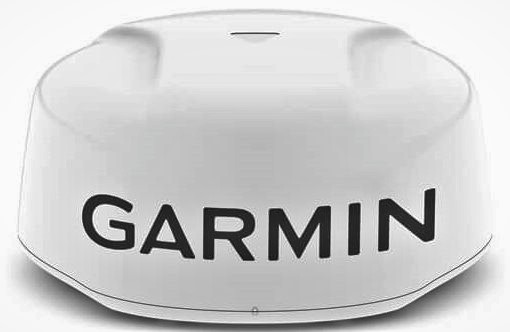

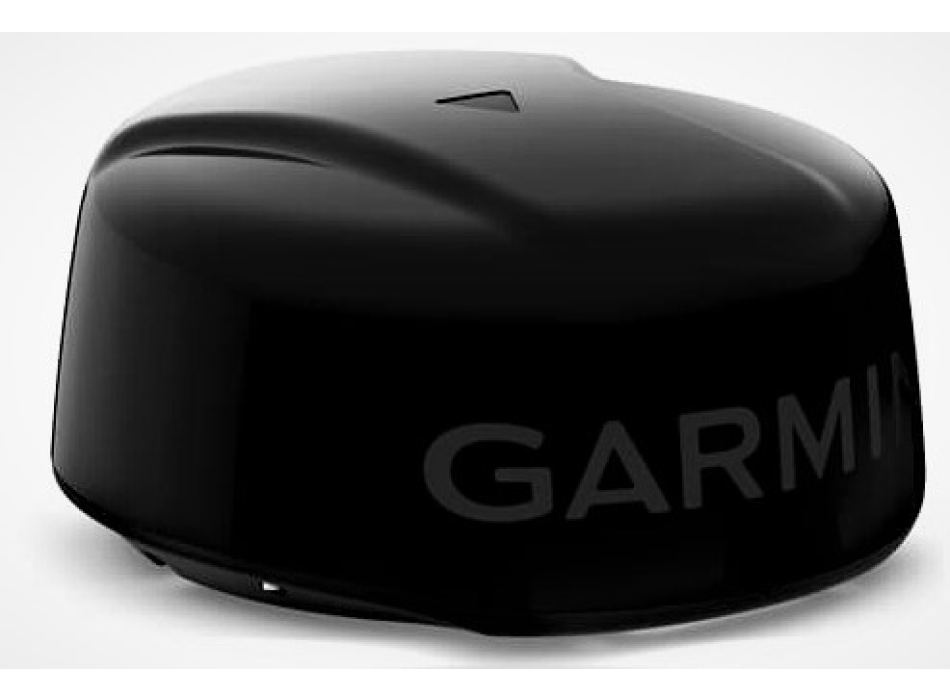

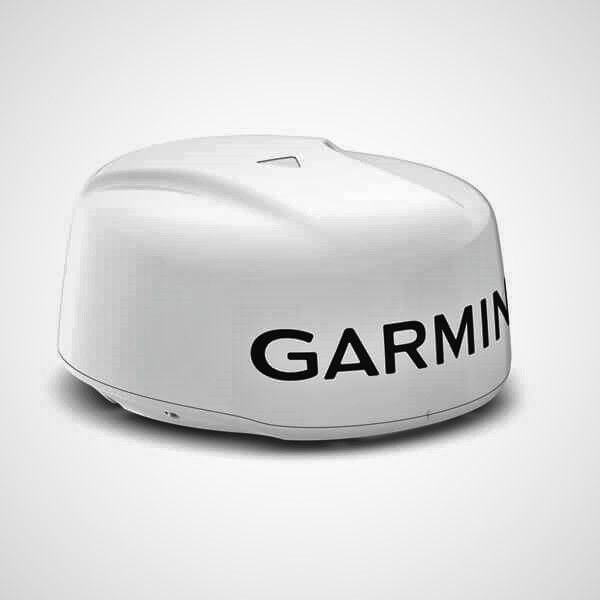

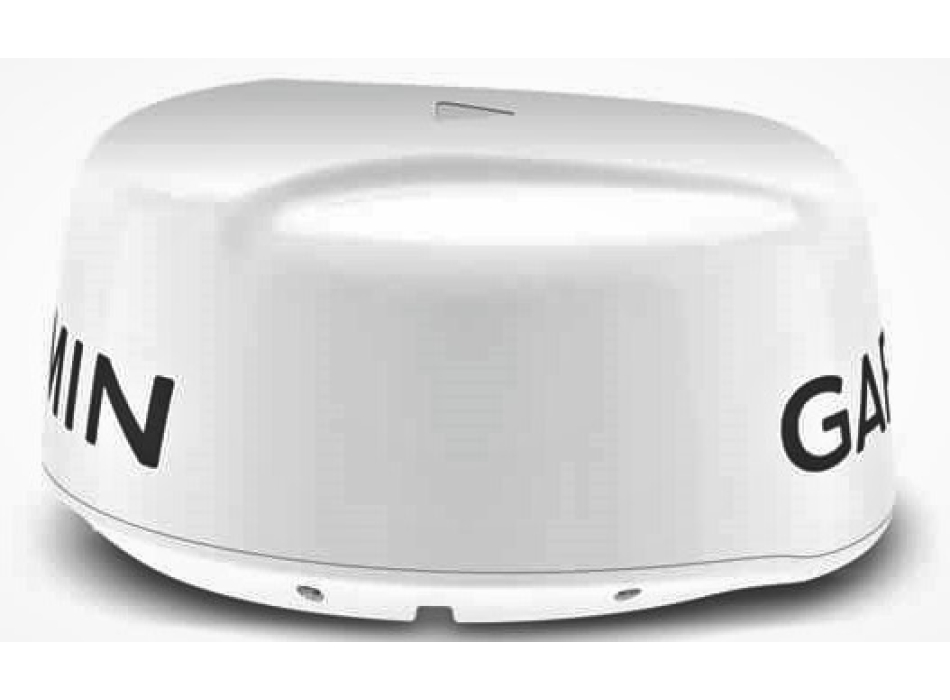

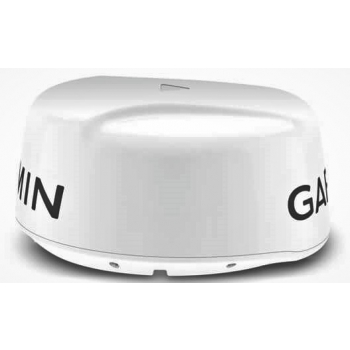

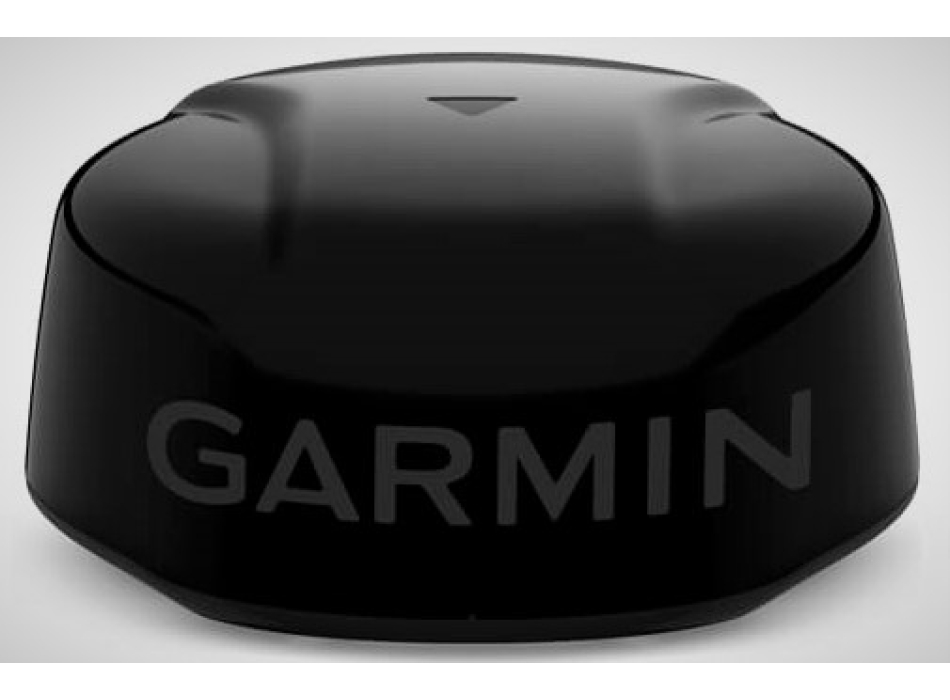

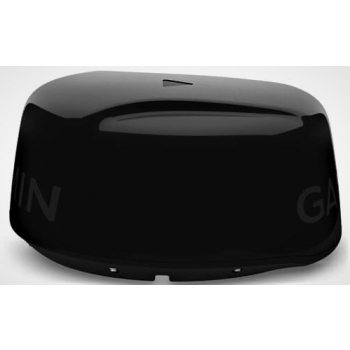

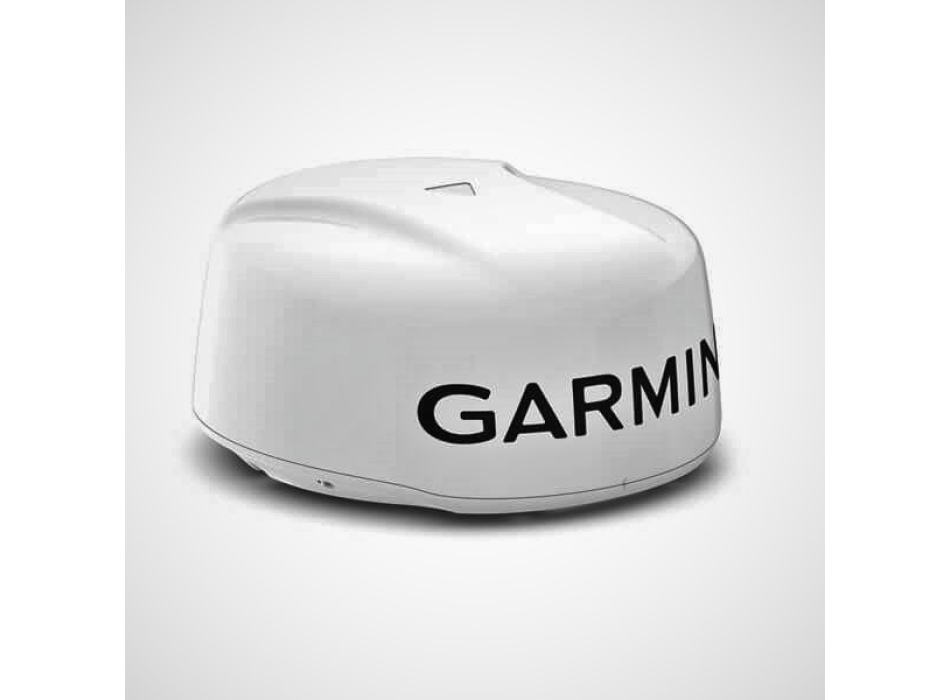

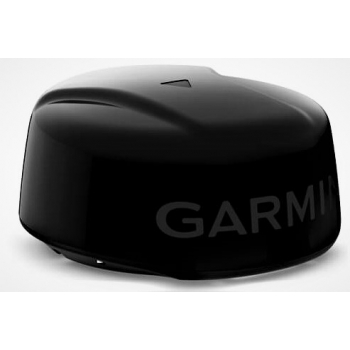

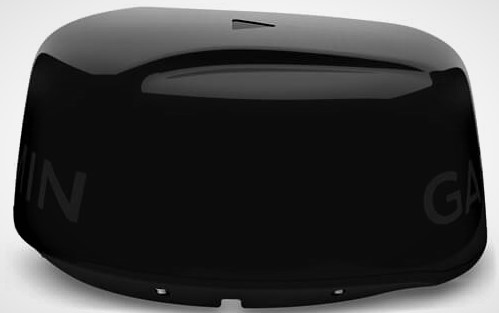

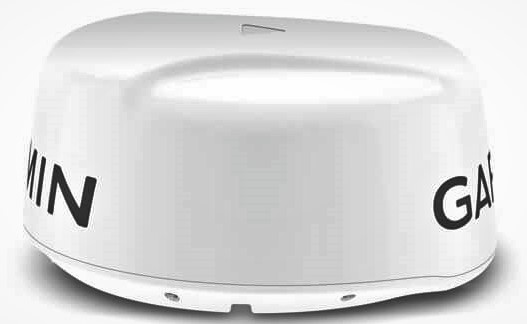

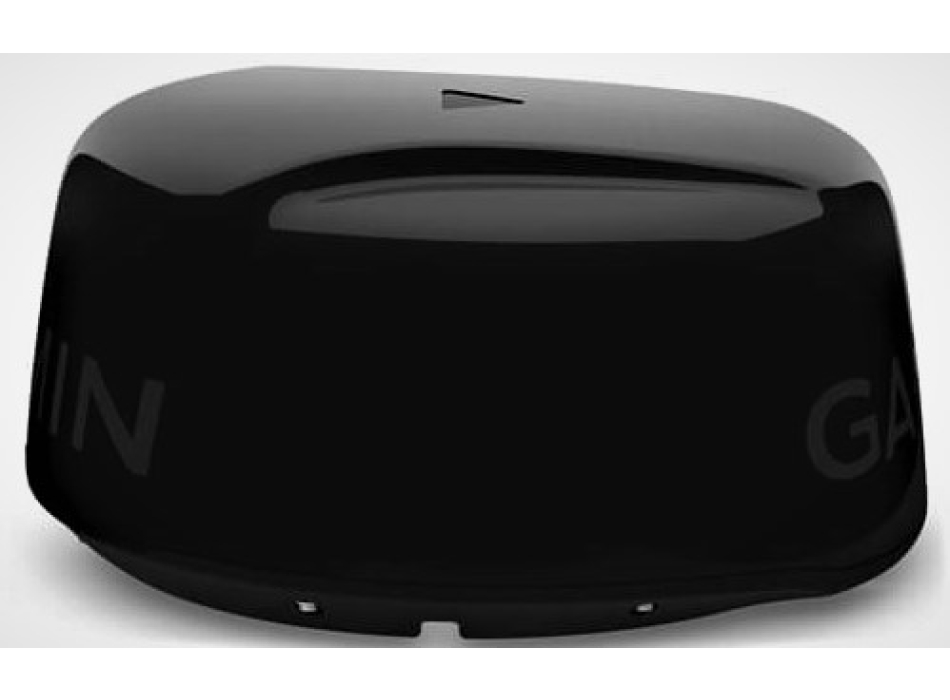

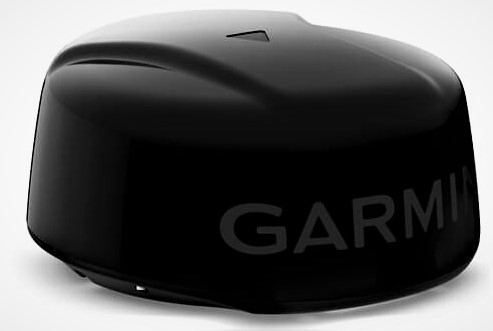

These 18″ high-performance radomes, available in a white or black color version and with 50 watts of output power, offer superlative performance in a sleek design.
Simple to use and install
New dynamic filters to provide optimal performance in different conditions
The GMR Fantom delivers all the power you need. Up to 50 watts, real.
View targets clearly and adjust size as needed.
Thanks to the energy saving mode, you can choose when to use maximum power and when to limit its use.
MotionScope™ technology shows targets in color as they approach or move away from your vessel.
Performance
These 50-watt solid-state radomes have a range of 20 to 48 nautical miles, even in fog or rain. They also offer a rotation speed of up to 60 rpm, ensuring a refresh rate that detects motion at any speed. This time, they're available in black or white, so you can match them to your vessel.
MotionScope uses the Doppler effect to highlight moving targets in different colors, allowing you to navigate around other vessels or in rough weather, or to fishing spots where birds feed on the surface.
By connecting the GMR 18 x antenna to a multifunction display and an optional heading sensor, you can take advantage of the MARPA function which allows you to obtain information on the navigation status of other vessels such as heading, course and speed, for up to 10 targets at the same time.
Connecting to the network
The GMR 18 x antenna can be connected to your existing Garmin Marine Network in a plug-and-play fashion. Once connected, your onboard multifunction displays can display the information from the antenna.
In the box
Radome 18x GMR Fantom
Power cord (15 m/49.21 ft)
Network cable (15 m/49.21 ft)
Installation instructions
Assembly components kit and jig
TECHNICAL SPECIFICATIONS

Dimensions 18x: 20″ x 9.80″ (50.80 x 24.90 cm)
Weight 18x: 14.0 lb
IPX7x waterproof rating
Power 50 W
18x antenna width: 17″ (43.18 cm)
Screen refresh rate up to 60 rpm, depending on settings
18x Horizontal Beam Angle: 5.20° Horizontal, 25° Vertical
Maximum power 48 NM
Minimum power 6 meters
Radome Type
Power supply 10-32 V DC
Power consumption (STANDBY) 4 W
Max power consumption (low power transmission) 24 W
Max power consumption (normal transmission) 33 W
Dual range
Radar overlay
Dynamic Autogain
Marpa (requires heading sensor, sold separately)
D Potresti mandarmi il radar con un cavo da 5 metri invece che da 10 metri?
R 07/03/2026 Buon pomeriggio, sì certo, me lo ricordi poi appena dopo aver inviato l'ordine, grazie. Cordiali saluti. Luigi Bianchi
D nella confezione e inclusa la staffa per il montaggio? grazie
R 17-08-24 Buonasera, staffa non inclusa, da acquistare a parte, oltretutto dipende se l'antenna deve essere installata su barca a vela o motore: https://www.painestore.it/scanstrut_pt2004_supporto_radar_power_tower_150mm https://www.painestore.it/scanstrut_sc20_supporto_radar_albero Cordiali saluti. Luigi Bianchi
Radar Antennas
Products that may be of interest to you
Garmin gpsmap 1022 multif display. 10" Painestore
- 24%
Garmin GPSMAP 1022XSV 10" multifunction display with depth sounder
€ 1.599,00 € 2.099,00
Garmin gpsmap 1222 multif display. 12" Painestore
- 25%
Garmin gpsmap 1222xsv multif display. 12" eco/GPS
€ 2.199,00 € 2.939,00
Garmin gpsmap 923xsv Radar Pack with GMR 18 HD3 Painestore
- 15%
Garmin gpsmap 923xsv Radar Pack with GMR 18 HD3
€ 3.099,00 € 3.650,00
Garmin GPSMAP 8410 10" Display Painestore
- 27%
Garmin GPSMAP 8410 10" Display
€ 2.149,00 € 2.939,00
Garmin GPSMAP 8412 12" Display Painestore
- 24%
Garmin GPSMAP 8412 12" Display
€ 3.499,00 € 4.619,00
Garmin GPSMAP 8416 16" Display Painestore
- 15%
Garmin GPSMAP 8416 16" Display
€ 5.799,00 € 6.829,00
Garmin gpsmap 1223xsv Radar Pack Painestore
- 15%
Garmin gpsmap 1223xsv Radar Pack
€ 4.335,00 € 5.100,00
Garmin gpsmap 723 multif display. 7" Painestore
- 15%
Garmin gpsmap 723 multif display. 7"
€ 889,00 € 1.049,00
Garmin gpsmap 923 multif display. 9" Painestore
- 15%
Garmin gpsmap 923 multif display. 9"
€ 1.339,00 € 1.579,00
Garmin gpsmap 1223 multif display. 12" Painestore
- 15%
Garmin gpsmap 1223 multif display. 12"
€ 2.589,00 € 3.049,00
Garmin gpsmap 723XSV eco/GPS multif display. 7" Painestore
- 15%
Garmin gpsmap 723XSV eco/GPS multif display. 7"
€ 1.069,00 € 1.259,00
Garmin gpsmap 923XSV eco/GPS multif display. 9" Painestore
- 16%
Garmin gpsmap 923XSV eco/GPS multif display. 9"
€ 1.499,00 € 1.789,00
Garmin gpsmap 1623XSV eco/GPS multif display. 16" Painestore
- 15%
Garmin gpsmap 1623XSV eco/GPS multif display. 16"
€ 4.845,00 € 5.700,00
Gamin Ethernet Cables Small Connector 6m Painestore
- 9%
Garmin Ethernet Cable Small Connector 6m
€ 50,00 € 55,00
Gamin Ethernet Cables Small Connector 15mt 90° Painestore
- 10%
Garmin Ethernet Cable Small Connector 15mt 90°
€ 63,01 € 70,00
Gamin Ethernet Adapter Small to Large Painestore
- 10%
Garmin Small to Large Ethernet Adapter
€ 27,00 € 30,00
Garmin 9-Axis Solid State NMEA 2000 Compass Painestore
- 10%
Garmin 9-Axis Solid State NMEA 2000 Compass
€ 809,00 € 899,00

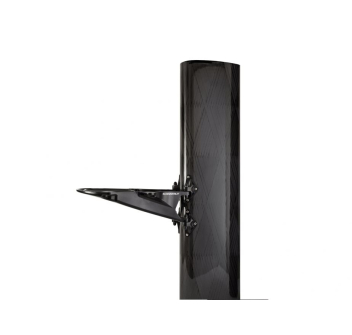

Scanstrut SC20 Black Radar Mast Support Painestore
- 18%
Scanstrut SC20 Black Radar Mast Support
€ 419,00 € 512,40
Scanstrut LMM-1 Self-Leveling Radar Mount Painestore
- 19%
Scanstrut LMM-1 Self-Leveling Radar Mount
€ 1.199,00 € 1.476,20

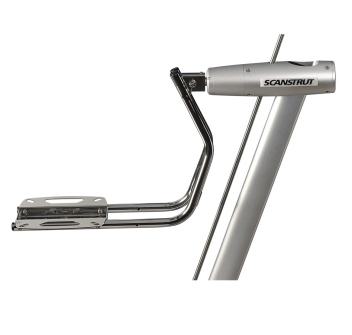

Scanstrut LMB-F1 Self-Leveling Radar Mount - Backstay Painestore
- 18%
Scanstrut LMB-F1 Self-Leveling Radar Mount - Backstay
€ 1.889,00 € 2.305,80

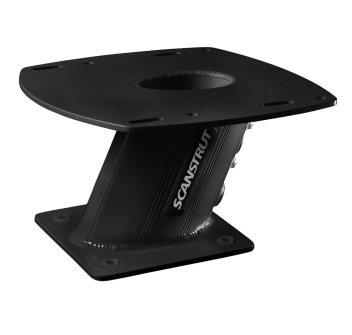

Scanstrut APT-150-BLK Black support Radar Power Tower 150mm Black Painestore
- 18%
Scanstrut APT-150-BLK Black support Radar Power Tower 150mm Black
€ 475,00 € 579,50

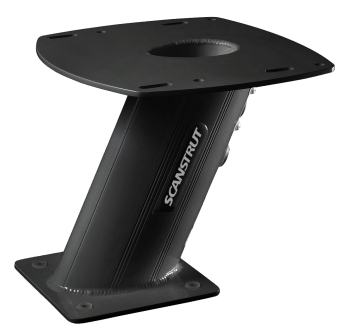

Scanstrut APT-250-BLK Black support Radar Power Tower 250mm Black Painestore
- 18%
Scanstrut APT-250-BLK Black support Radar Power Tower 250mm Black
€ 499,00 € 610,00
Scanstrut SC101 and SC102 Radar Pole Mount Painestore
- 18%
Scanstrut SC101 and SC102 Radar Pole Mount
starting from € 1.179,00 € 1.429,84

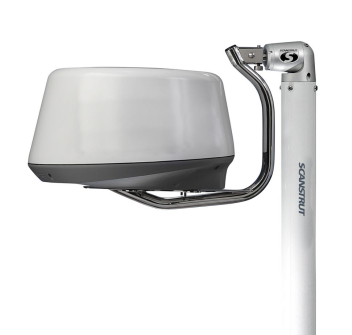

Scanstrut LMP-1 Tilting Radar Pole Mount Painestore
