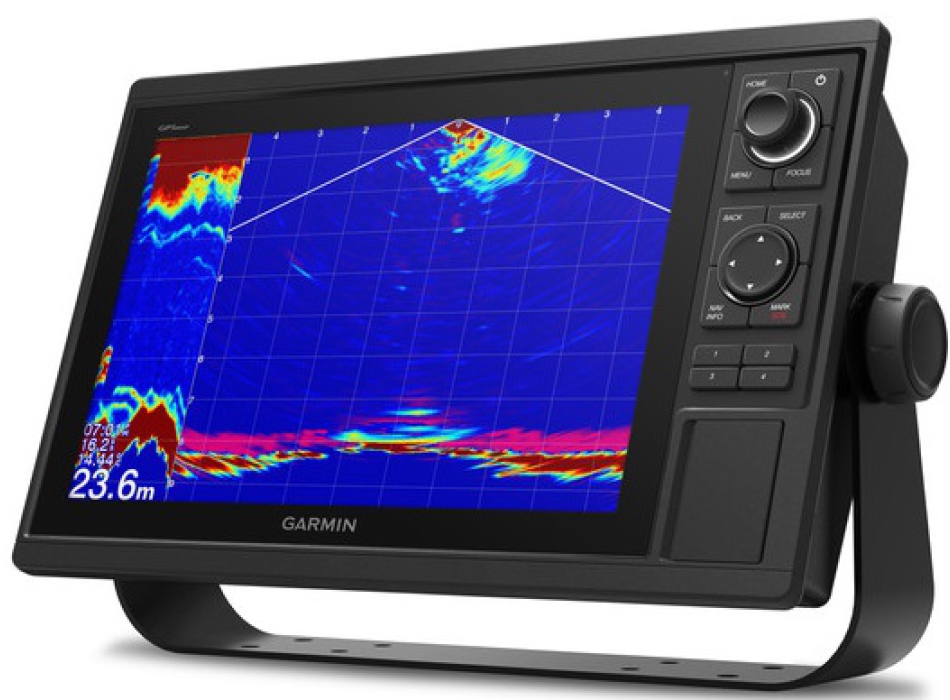

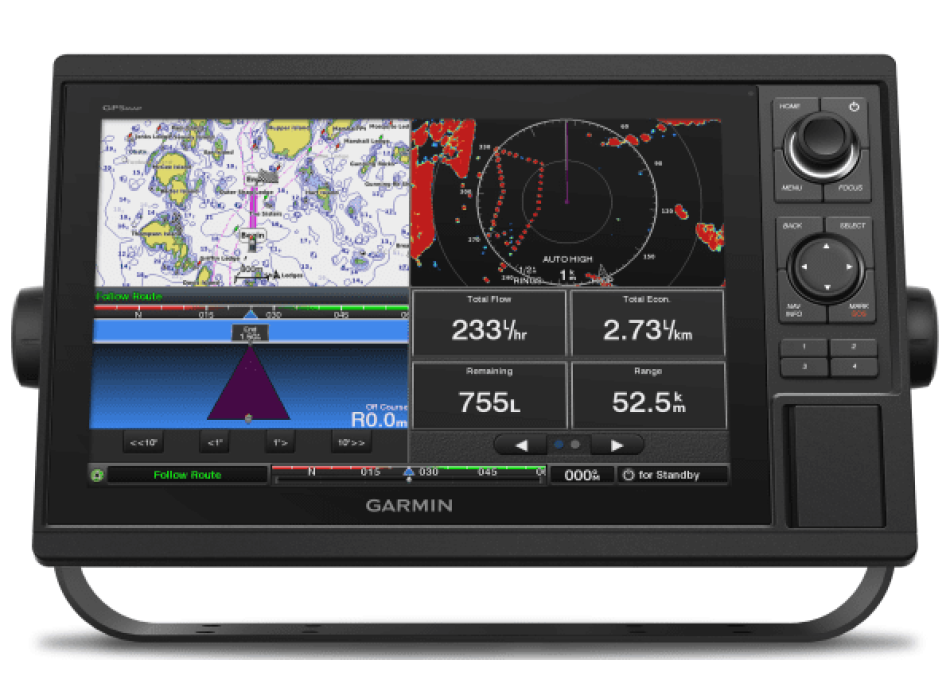

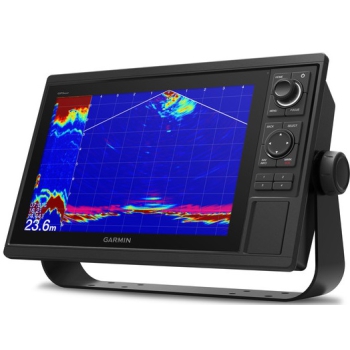

Garmin gpsmap 1222 multifunction display 12 "

  • Code: 010-01741-00
€ 2.455,00 € 2.729,00 -10%
CHOOSE 1222 GPS or 1222XSV GPS / ECO
you chose:
Garmin gpsmap 1222 Display 12 "
The eco functions are only available on the XSV version

High resolution 12 ”color display
Key interface and multifunction control knob
1 kW CHIRP sonar module
NMEA 2000® and NMEA 0183 network connectivity
Garmin Marine Network for sharing sonar data, including Panoptix ™, maps, user data, radar and IP cameras between the different units installed
Supports BlueChart® g2 Vision® HD cartography with Auto Guidance 3.0 technology for automatic route calculation
Functions dedicated to sailing: Race timer, Start Guidance, Laylines, Wind-rose, Heading & COG vectors and much more

The new key chartplotter is easy to read both day and night thanks to the large 12 "bright display and easy to use thanks to the comfortable and intuitive interface equipped with keyboard and knob with push button, in addition to the 4 programmable keys for quickly access your favorite functions.

It features wireless connectivity to use Garmin apps and interface with VIRB action cameras and a high-sensitivity 10Hz GPS / GLONASS receiver that updates heading and position 10 times per second allowing you to view boat movements smoothly.

Total compatibility with the Garmin Marine Network to share echo sounder images, maps, user data, radar images, camera recordings and images of the innovative Panoptix with the different units connected.

NMEA 2000 and NMEA 0183 connectivity allows you to interface with multiple systems including on-board autopilot, digital switching, VHF, AIS and many more.

The new GPSMAP 1222 also includes specific functions for sailing such as Laylines, Pre-race Guidance, Race Timer, Starting line and provides new data fields dedicated to the world of sailing such as Wind Rose, Vectors Heading and COG, Heading, speed of the wind and tide data.

They have an internal ANT + connection to communicate wirelessly with some Garmin instruments, including the quatix® 3 nautical smartwatch, the Garmin Nautix ™ wearable instrument, the gWind ™ Wireless 2 wind transducer and the GNX ™ Wind display.

The xs version is equipped with an integrated 1 kW CHIRP sonar module and CHIRP ClearVü function and CHIRP SideVü, the high frequency technology that returns extremely sharp and detailed images of objects, structures and fish below and to the sides of the boat .

Create your HD maps thanks to the Quickdraw function. Track your bathymetry in total autonomy; the result appears immediately on the chartplotter screen and can also be shared free of charge with other users.

It supports the latest generation Panoptix transducers, which allow you to scan and view in real time everything that happens in front of or under the boat, guaranteeing an exact and extremely realistic perception.
General
Dimensions 35.8 x 22.6 x 6.9 cm
Weight 2.34 kg
Display type WXGA display
Screen size, WxH 26.2 x 16.3 cm
Screen resolution, WxH 1280 x 800 pixels

Energy consumption
Maximum power consumption at 10VDC: 34.8W
Typical electrical consumption at 12 V DC: 2.2 A
Maximum electrical absorption at 12 V DC: 2.9 A
GPS antenna Internal_or_external_over_NMEA_2000
Mounting Options Bracket or Flush Mount
Receiver High sensitivity at 10 Hz
Garmin Marine Network ™ ports 2

Maps and memory
Preloaded cartography None
External Memory 2 SD ™ Cards
Waypoints 5,000
100 storable routes
Track log 50,000 points; 50 saved tracks

Functions of the chartplotter
Compatible with Garmin radars
Compatible with Garmin black-boxes Yes (integrated)
Garmin SmartMode compatible (customizable monitor presets)
Compatible with AIS function
Compatible with DSC function
Compatible with Garmin Meteor audio system
Fusion Lync
Compatible with GSD ™ black-box
Compatible with GCV ™ black-box
BlueChart® Mobile Yes
Garmin Helm Yes
GRID ™ (Garmin Remote Input Device)
Wireless connectivity

Echosounder features and specifications
Double frequency
Double cone
Frequencies supported Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü / SideVü (260/455/800 kHz) (depending on transducer)
Traditional 1 kW transmission power; 1 kW CHIRP
CHIRP Yes (integrated)
ClearVü Yes with CHIRP (integrated)
SideVü Yes with CHIRP (integrated)
Maximum depth 1500 m at 1kW (depth capacity depends on the type of bottom and other water conditions)
Zoom
Water temperature data and graph
Registration
Historical

Connections
NMEA 2000®
Number of transducer pins 12
NMEA 0183 input 1
NMEA 0183 output 1
Video input 1 BNC
Video output None
Wireless Connectivity Yes

D. Salve, ho un Garmin 1222xsv e volevo acquistare un trasduttore di poppa gt51, è compatibile con lo strumento? Grazie, Omar Mezzoli.
R. 06-11-24<br /> Buonasera, sì confermo la compatibilità. <br /> Le ricordo anche il Coupon 5Plus per lo sconto extra del 5%.<br /> Cordiali saluti. <br /> Luigi Bianchi
