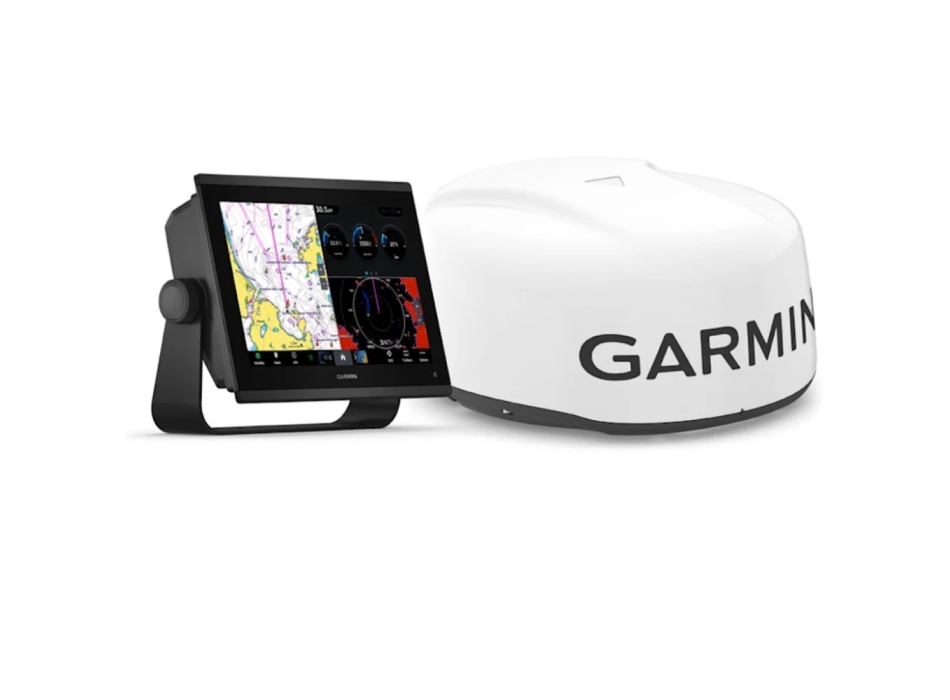

Garmin gpsmap 1223xsv Radar Pack

  • Code: 010-02367-50
€ 3.499,00 € 4.729,00 -26%

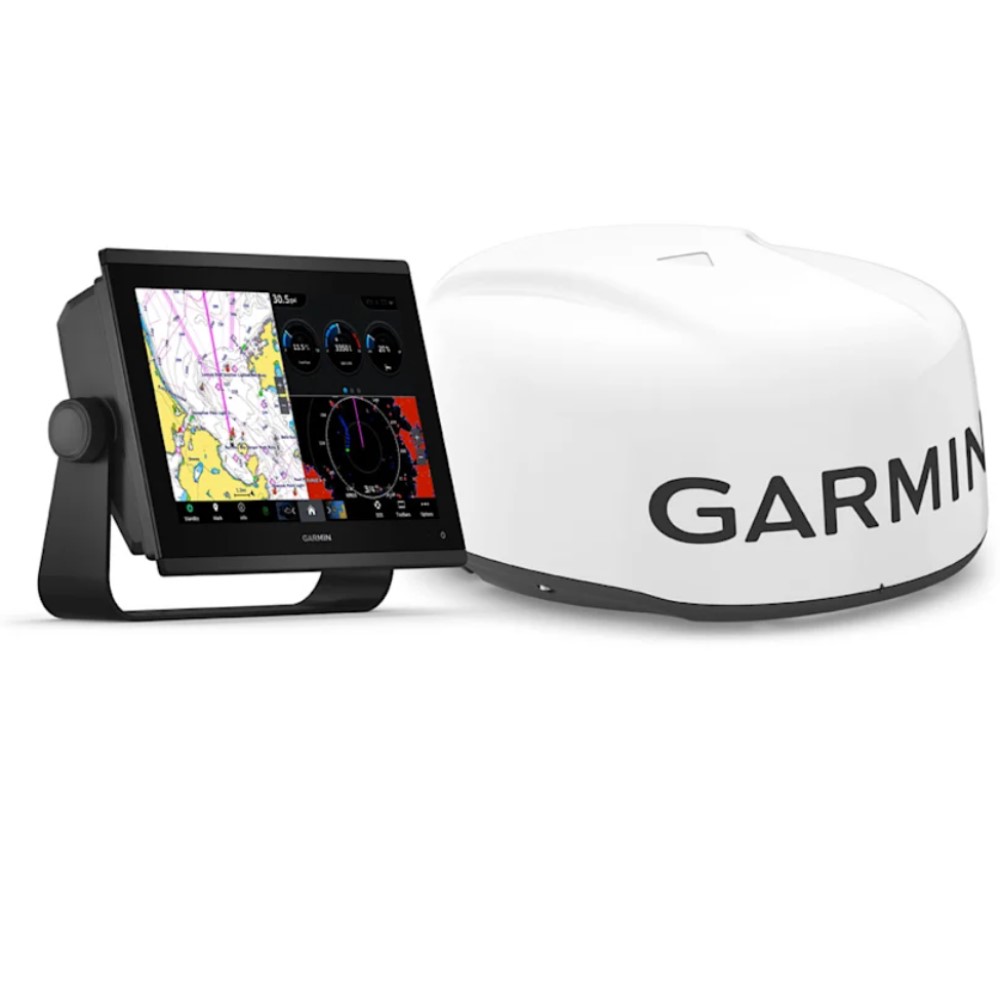

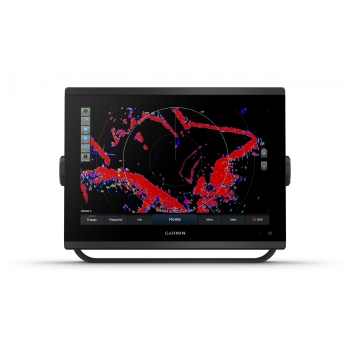

Garmin gpsmap 1223xsv Radar Pack Display 12 "
GMR 18HD + radar antenna included
9-inch touchscreen chartplotter / depth sounder combo

12 ”high resolution touchscreen display
1 kW CHIRP sonar module supports CHIRP ClearVù and SideVù transducers
NMEA 2000® and NMEA 0183 network connectivity
Garmin Marine Network for sharing sonar data, including Panoptix ™, maps, user data, radar and IP cameras between the different units installed
Supports BlueChart® g2 Vision® HD cartography with Auto Guidance 3.0 technology for automatic route calculation
Functions dedicated to sailing: Race timer, Start Guidance, Laylines, Wind-rose, Heading & COG vectors and much more

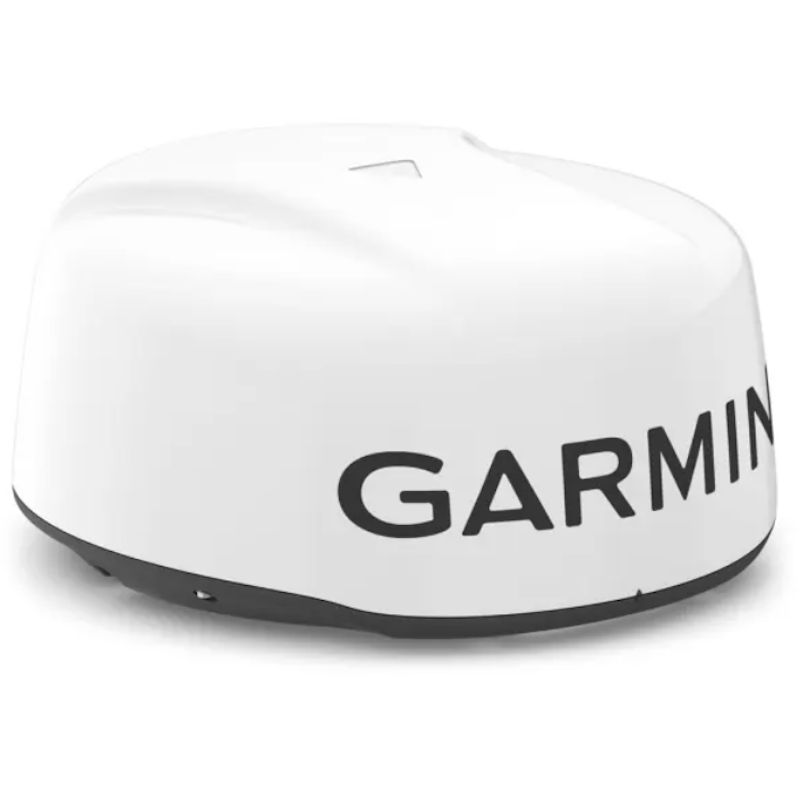

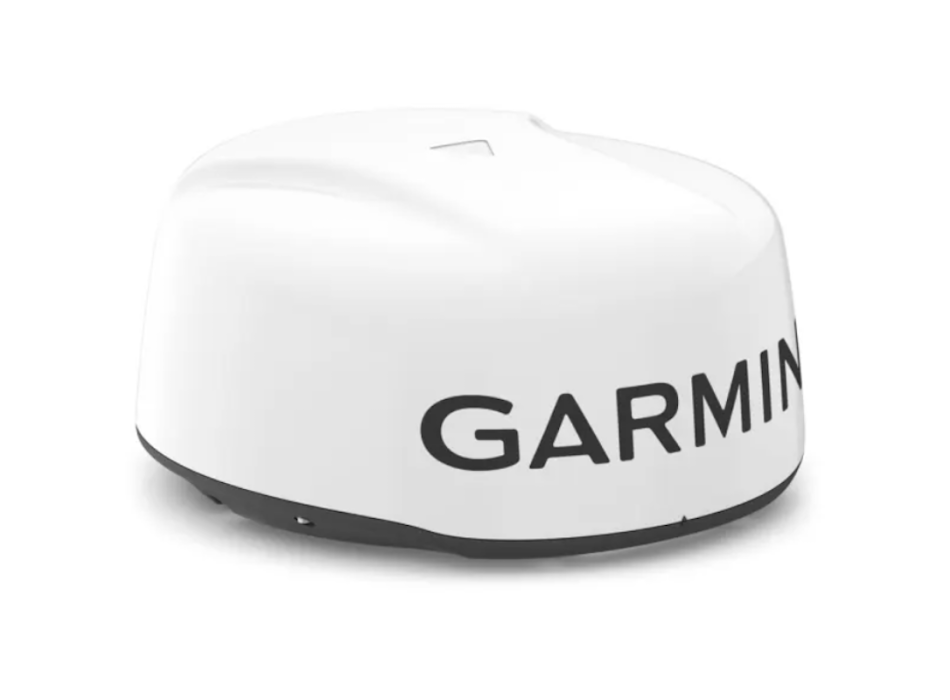

RADAR GMR 18HD +
18 "high definition xHD 4 kW radome
New design for a more attractive appearance
Simple to use and install
Dynamic Auto Gain automatically adjusts to the surrounding environment to optimize performance in all conditions
Dynamic Sea Filter automatically adjusts to sea conditions

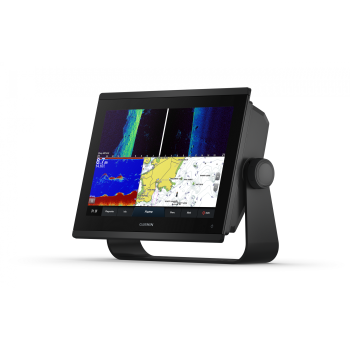

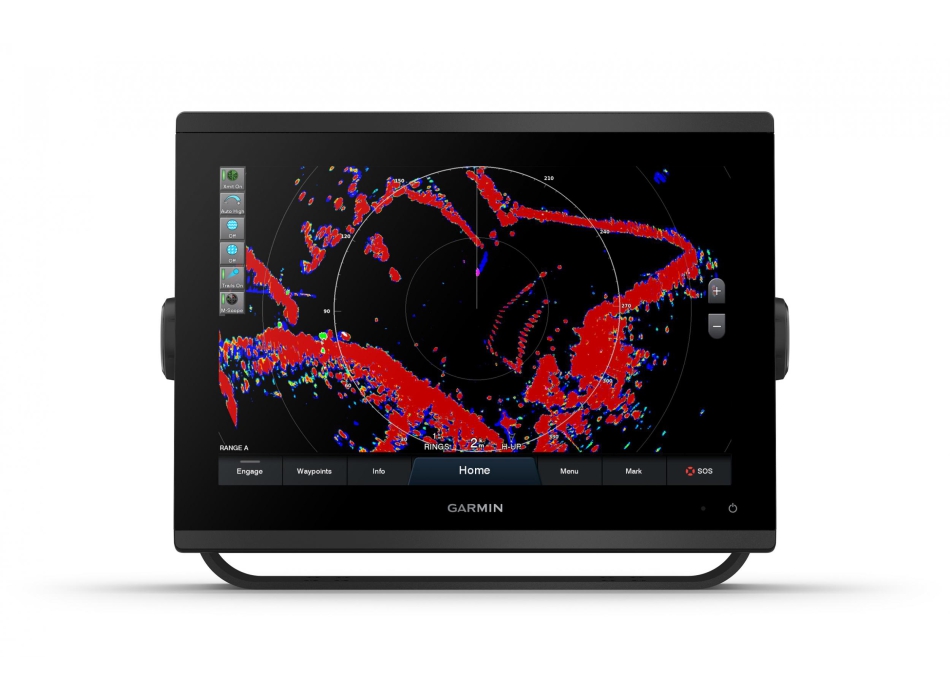

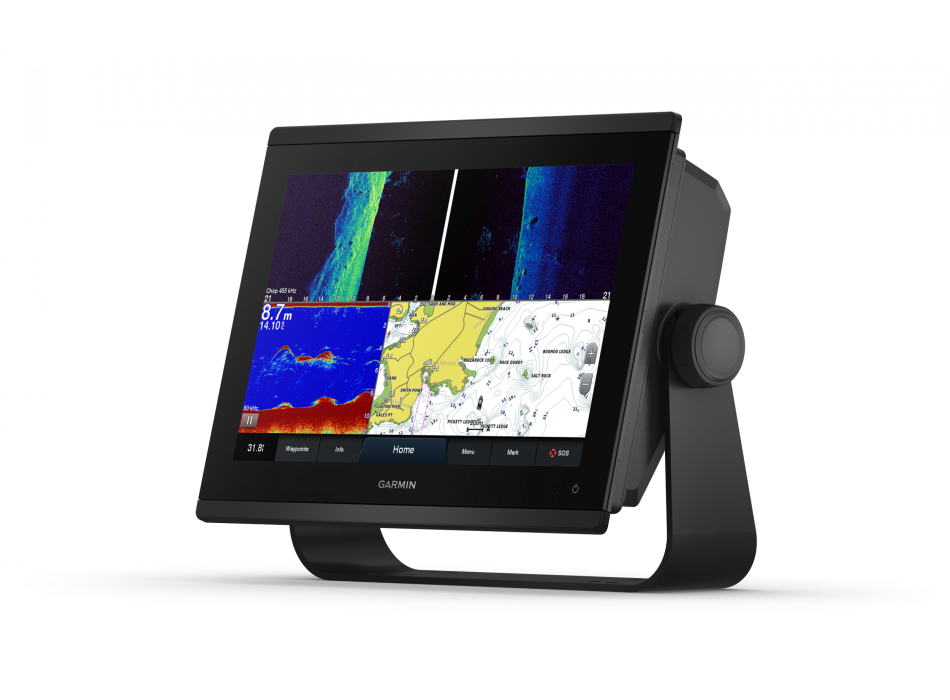

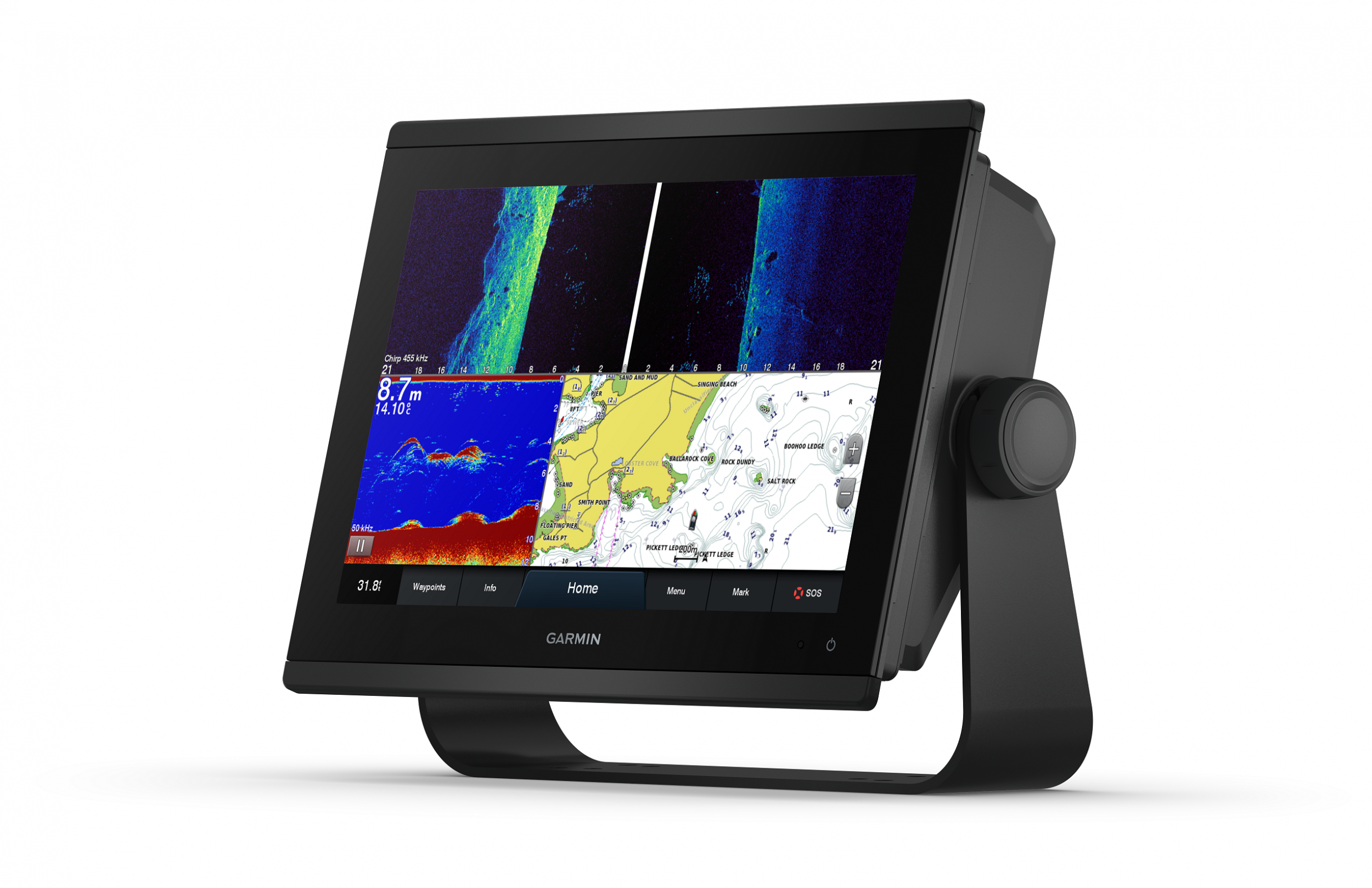

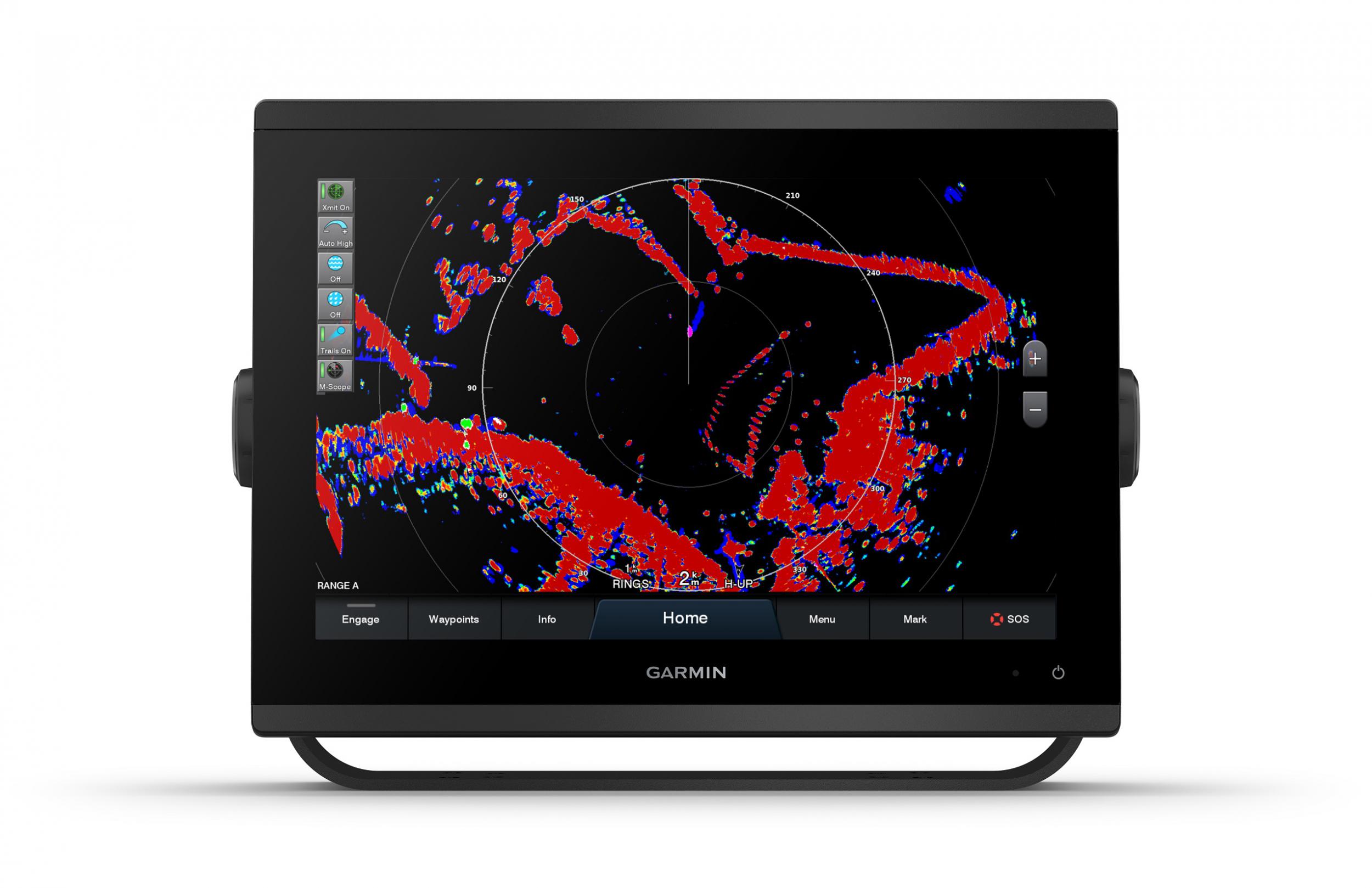

The new touchscreen chartplotter is easy to read both day and night thanks to the large 12 ”bright display.
It features wireless connectivity to use Garmin apps and interface with VIRB action cameras and a high-sensitivity 10Hz GPS / GLONASS receiver that updates heading and position 10 times per second allowing you to view boat movements smoothly.
Total compatibility with the Garmin Marine Network to share echo sounder images, maps, user data, radar images, camera recordings and images of the innovative Panoptix with the different units connected.
NMEA 2000 and NMEA 0183 connectivity allows you to interface with multiple systems including on-board autopilot, digital switching, VHF, AIS and many more.
The new GPSMAP 1223xsv also includes specific functions for sailing such as Laylines, Pre-race Guidance, Race Timer, Starting line and provides new data fields dedicated to the world of sailing such as Rose of the winds, Vectors Heading and COG, Direction, speed of the wind and tide data.

They have an internal ANT + connection to communicate wirelessly with some Garmin instruments, including the quatix® 6 nautical smartwatch, the Garmin Nautix ™ wearable instrument, the gWind ™ Wireless 2 wind transducer and the GNX ™ Wind display.

The xsv version is equipped with an integrated 1 kW CHIRP sonar module, CHIRP ClearVü function and SideVù, the high frequency technology that returns extremely sharp and detailed images of the objects, structures and fish below the boat.

It supports the latest generation Panoptix transducers, which allow you to scan and view in real time everything that happens in front of or under the boat, guaranteeing an exact and extremely realistic perception.

Package contents:
GPSMAP 1223xsv chartplotter
Power cord
Bracket mounting kit with knobs
Flush mounting kit with gasket
Protective cover
Interlocking protections for dashboard finishing
GMR 18 HD + (radome antenna)
Assembly kit
Power cable (15 meters)
Network cable (15 meters)
Documentation

General

DIMENSIONS 12.1 "x 8.9" x 3.2 "(30.8 x 22.8 x 8.2 cm)
SCREEN SIZE, WXH

10.3 "x 6.4"; 12.1 "diagonal

(26.2 x 16.3 cm; 30.7 cm diagonal)

SCREEN RESOLUTION, LXH 1280 x 800 pixels
TYPE OF SCREEN WXGA display
WEIGHT 6.6 lbs. (3.0 kg)
WATERPROOF CLASSIFICATION IPX7
POLARIZED SUPPORT
ENERGY CONSUMPTION

Max power usage at 10 Vdc: 26.5 W

Typical current draw at 12 Vdc: 1.7 A

Max current draw at 12 Vdc: 2.2 A

GPS ANTENNA Internal or external on the NMEA 2000 network
MOUNTING OPTIONS Bail or flush
RECEIVER 10 Hz high sensitivity
GARMIN MARINE NETWORK ™ DOORS 2
TRANSMISSION POWER 1 kW traditional; 1 kW CHIRP

Maps and memory

EXTERNAL MEMORY 2 microSD ™ cards (back of unit)
WAYPOINTS 5,000
TRACK LOG 50,000 points; 50 saved tracks
ROUTES THAT CAN BE STORED 100

Functions for outdoor activities

TIDAL DATA

Functions of the chartplotter

COMPATIBLE WITH GARMIN RADARS
COMPATIBLE WITH GARMIN BLACK-BOXES Yes (built-in)
GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR DEFAULTS)
COMPATIBLE WITH AIS FUNCTION
COMPATIBLE WITH DSC FUNCTION
SUPPORTS FUSION-LINK COMPATIBLE RADIO
BLACK BOX GSD SOUNDER SUPPORT
BLACK BOX GCV SOUNDER SUPPORT
ACTIVECAPTAIN COMPATIBLE
GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE
WIRELESS CONNECTIVITY
SAILING FUNCTIONS

Echosounder features and specifications

DOUBLE FREQUENCY
DOUBLE CONE
FREQUENCIES SUPPORTED Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü / SideVü (260/455/800 kHz)
(dependent on transducer)
CHIRP Yes (integrated)
CLEARVÜ Yes with CHIRP (built-in)
SIDEVÜ Yes with CHIRP (built-in)
MAXIMUM DEPTH 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)
ZOOM
DATA AND WATER TEMPERATURE GRAPH
REGISTRATION
HISTORICAL

Connections

NMEA 2000 ® COMPATIBLE
NUMBER OF TRANSDUCER PINS 12-pin (orange)
NMEA 0183 INPUT PORTS 1
NMEA 0183 OUTPUT PORTS 1
VIDEO INPUT PORTS 1 BNC
VIDEO OUTPUT 1 HDMI
WIRELESS CONNECTIVITY
J1939 COMPATIBLE
