-17%

B&G Zeus³S 9 Radar Pack with Halo 20+

  • Code: 000-15563-001
  • Brand : B&G
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 4.589,00 € 5.497,88 -17%

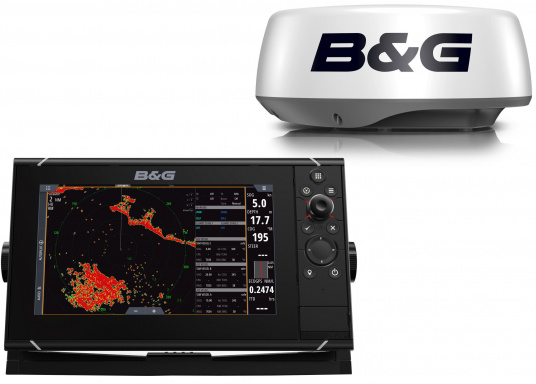

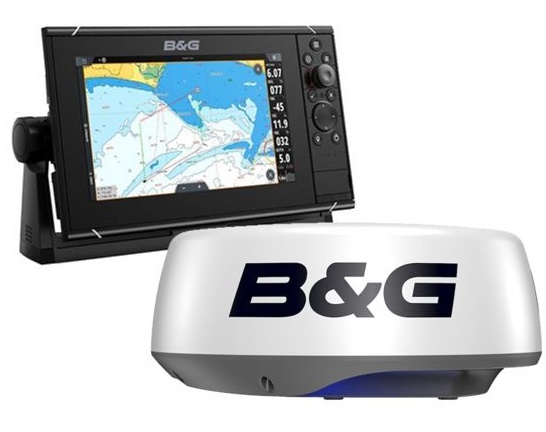

B&G Zeus³S 9 Radar Pack with Halo 20+ Radar Antenna
Specially designed for sailing

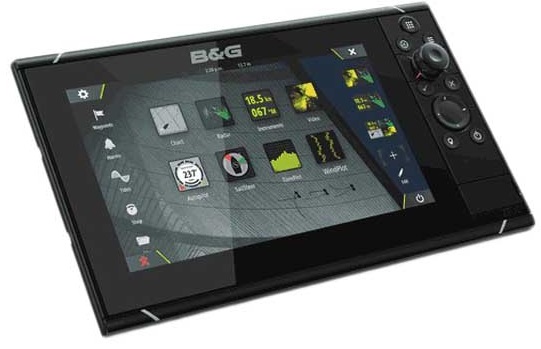

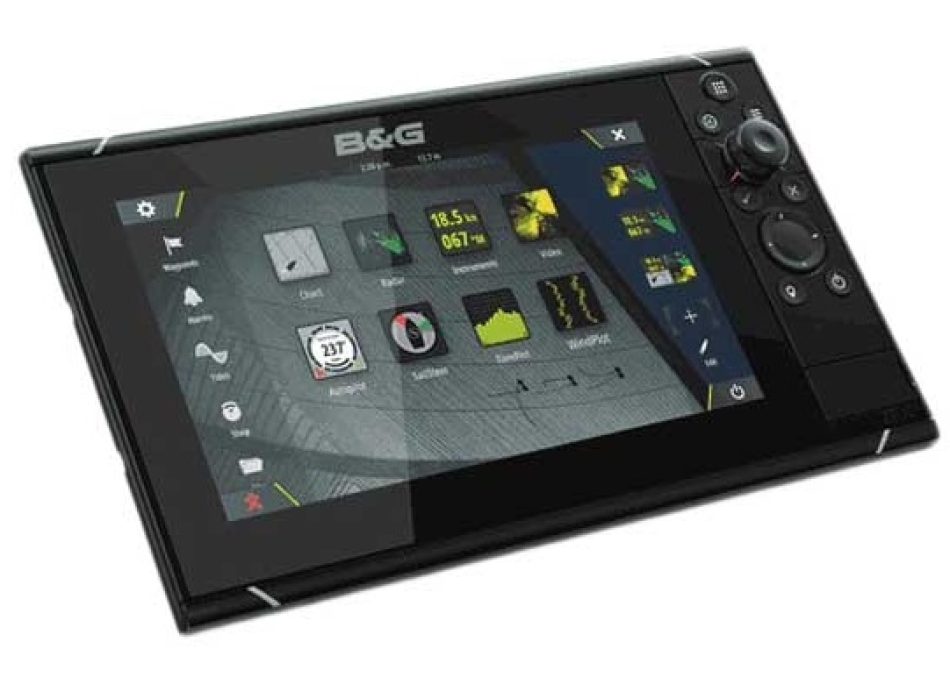

The new Zeus 3S chartplotters offer ultra-fast response times, so you'll have all the information you need, when you need it. Easy to use, the Zeus 3S features B&G's unique built-in navigation features, simplifying navigation, calculating routes, adding waypoints, and displaying sailing and racing data at the touch of a button or screen.

Super-fast processor for instant response
Enhance your situational awareness like never before with the Zeus 3S's high-performance processor. This chartplotter's powerful processor allows it to simultaneously manage charts, radar, ForwardScan, and autopilot controls without compromising performance, providing all the tools you need for confident navigation, knowing you can monitor your surroundings.

Navigate with confidence with B&G’s award-winning navigation features for cruising and racing, including;
SailSteer, RacePanel, StartLine, Laylines, SailingTime, Advanced Windplot and Weather Routing with PredictWind integration.

Unbeatable clarity and control
A multi-touch screen and dedicated keyboard combined with our ultra-bright SolarMax IPS HD display, which supports multiple gestures and wide viewing angles in direct sunlight, provides maximum control and visibility from any angle, light or weather.

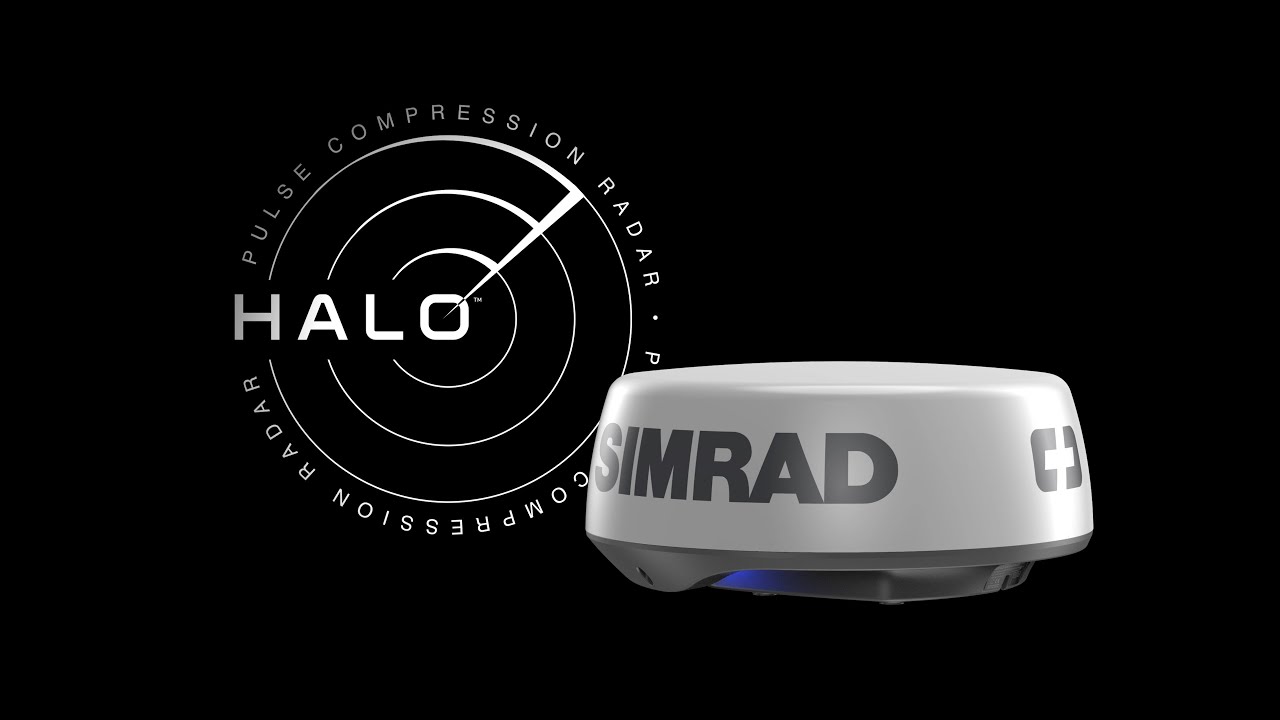

Halo 20 Radar

The HALO20 radar is an economical solution for boaters to increase situational awareness and avoid
collisions, detecting collision risks and other targets nearby and up to 24 nautical miles away. With
Its small footprint and low profile make HALO20 the perfect radar solution for the most discerning buyers.
budget with sport fishing boats and smaller pleasure boats. With its small footprint and profile
Low profile, HALO20 is the perfect radar solution for budget-conscious buyers with sportfishing vessels
and smaller recreational boats. The HALO20 radar also offers a full range of features to enhance
Situational awareness and safety on the water. Boaters can monitor selected collision risks.
with MARPA target tracking, monitoring up to 10 targets. Whether navigating through waterways
crowded or contending with poor visibility, HALO20 radar cuts through the clutter to give boaters a clear,
current of their surroundings.




Excellent performance in short and medium distances

Extend your view from the bow of your vessel up to 24 nautical miles with pulse compression radar technology that not only provides a powerful mix of short- and long-range detection, but offers
also precise target definition with minimal disturbance.

Short and long range vision with a single compact antenna
Ideal for a wide range of small powerboats, the HALO20 comes with a compact dome antenna that delivers high-quality short to medium range detection.
HALO20 radar's pulse compression technology compromises no detection range at any selected range, while beam sharpening provides improved separation between small or distant targets.
Halo 20+ Technical Specifications

Supply voltage 10.5 - 31.2 VDC (12/24V systems)
Maximum wind speed 100 knots (51 m/s)
Typical power consumption 18W
Warranty period 2 Years
Maximum power consumption 20W
Maximum range, scale 24 NM
Rotation speed 24 RPM
Operating temperature range -25° to + 55°C (-13° to +130°F)
Beam width 4.9° H x 25° V
Weight 5.9 kg (13 lbs) without cable
Minimum range, scale 50 m / 200 ft / 50 yd
Dimensions (Height x Width x Depth) 510mm dia x 223mm H. (20" dia x 8.8" H)
Recommended fuse rating 5A
Humidity 95% RH at 35°C (95°F)
B&G MFD Interface
Compliance with FCC approvals, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
Radar modes Harbour, Offshore, Weather, North Up, Course Up, Relative motion, True Motion
Pulse Compression radar technology
D Buongiorno, vorrei incrementare la strumentazione di bordo della mia imbarcazione, 40 piedi a vela, montando il sistema B&G Zeus 9 Radar + PackSIMRAD B&G FORWARDSCAN™ TRANSDUCER. Premesso che ho installato strumentazione Raimarine ST60+ collegata con nmea 0183. Cosa mi occorre altre a quanto gia detto? staffa per albero? dorsale nmea 2000 adattori vari. Vorrei avere un quadro completo dei componenti da acquistare ed i loro costo complessivo. PS ci sono controindicazione per montare il cartografico fuori vicino la timoneria? Grazie
R Buongiorno, dipende dalla distanza fra il display Zeus che intende installare ed il primo display ST60 che trova nelle vicinanze. Nessuna controindicazione in merito all'installazione del Display sulla timoneria esterna. A breve riceverà la nostra offerta. Cordiali saluti. Luigi Bianchi
