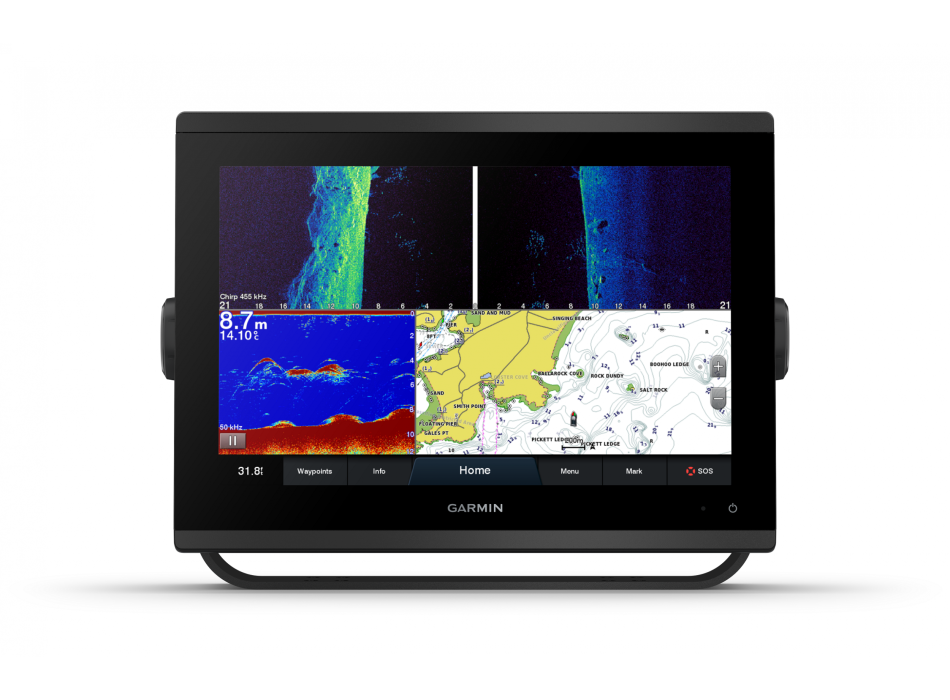

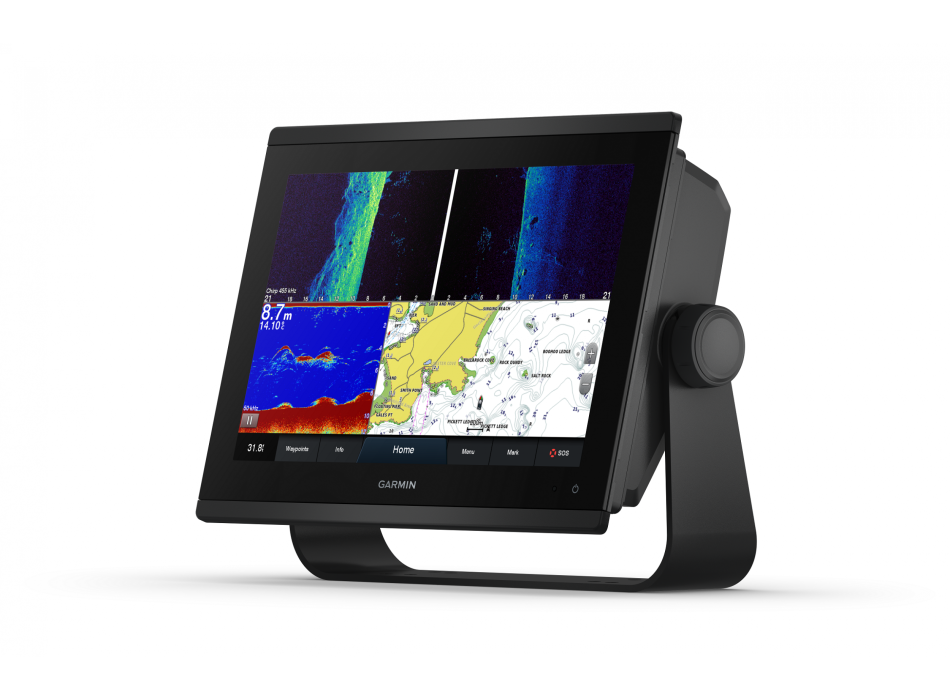

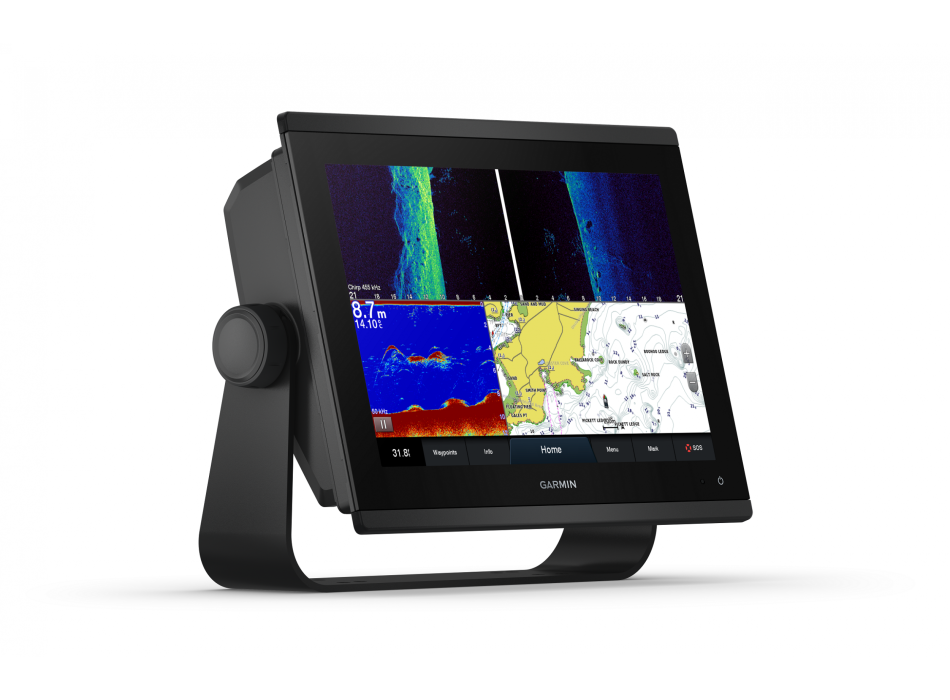

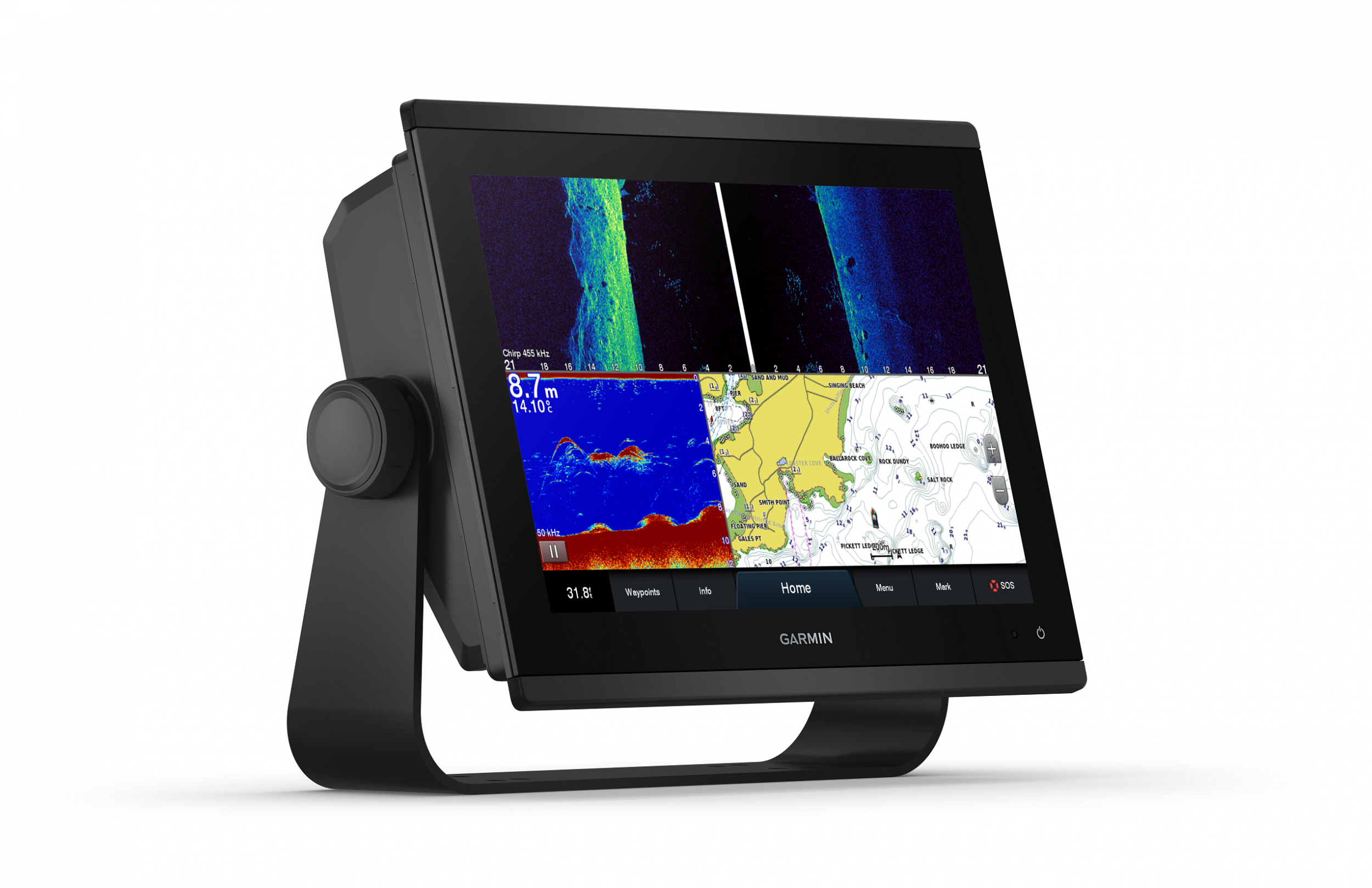

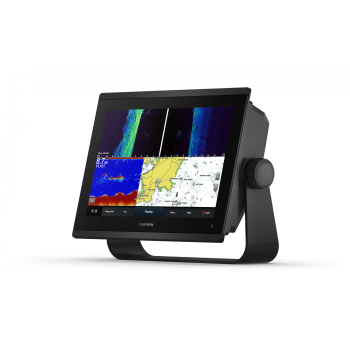

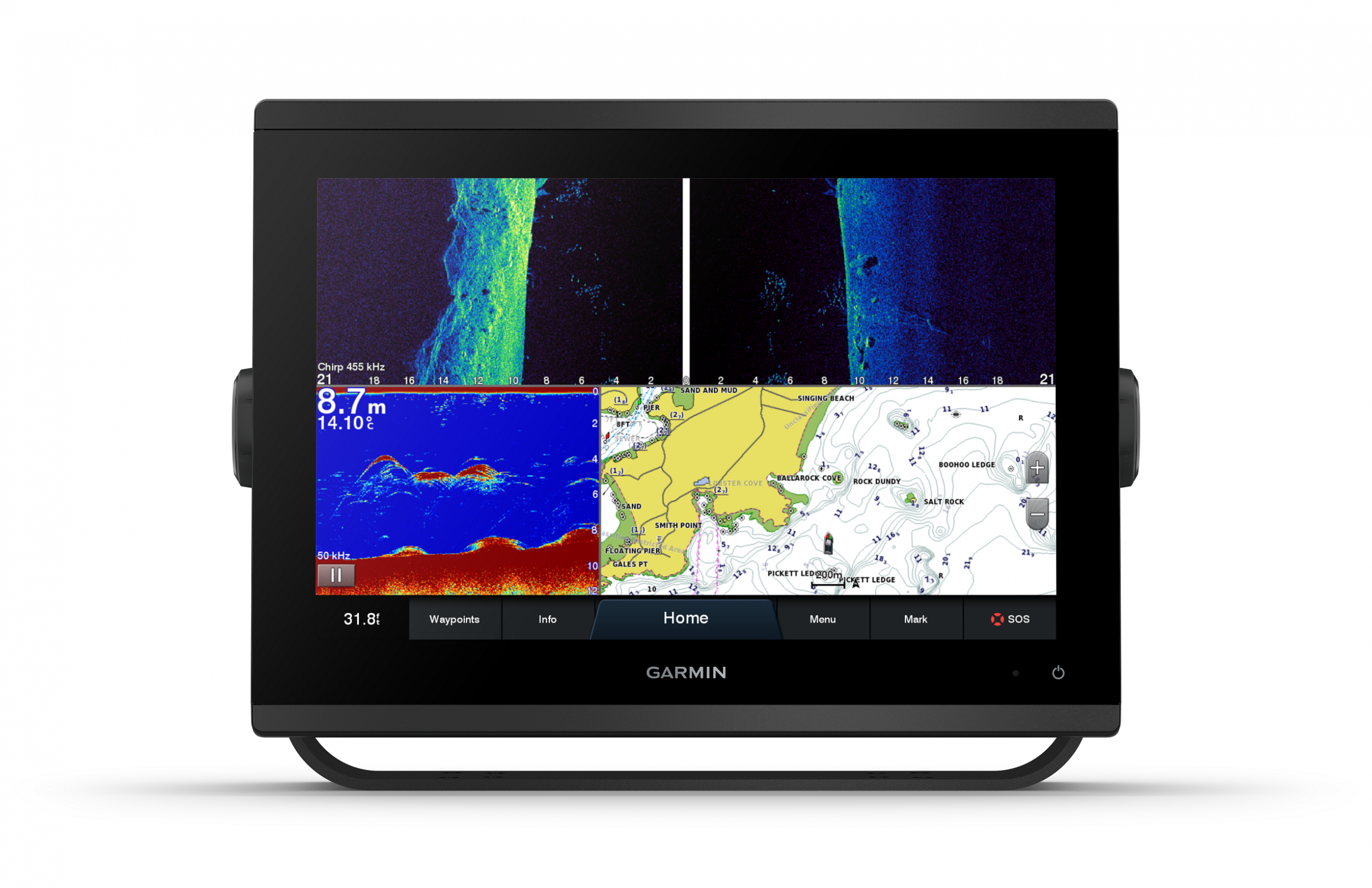

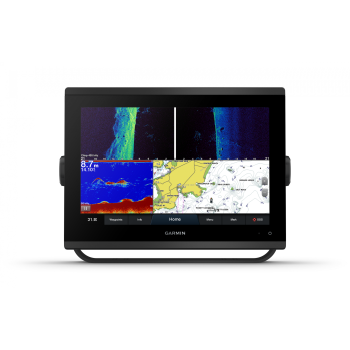

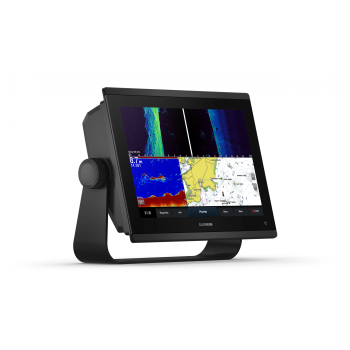

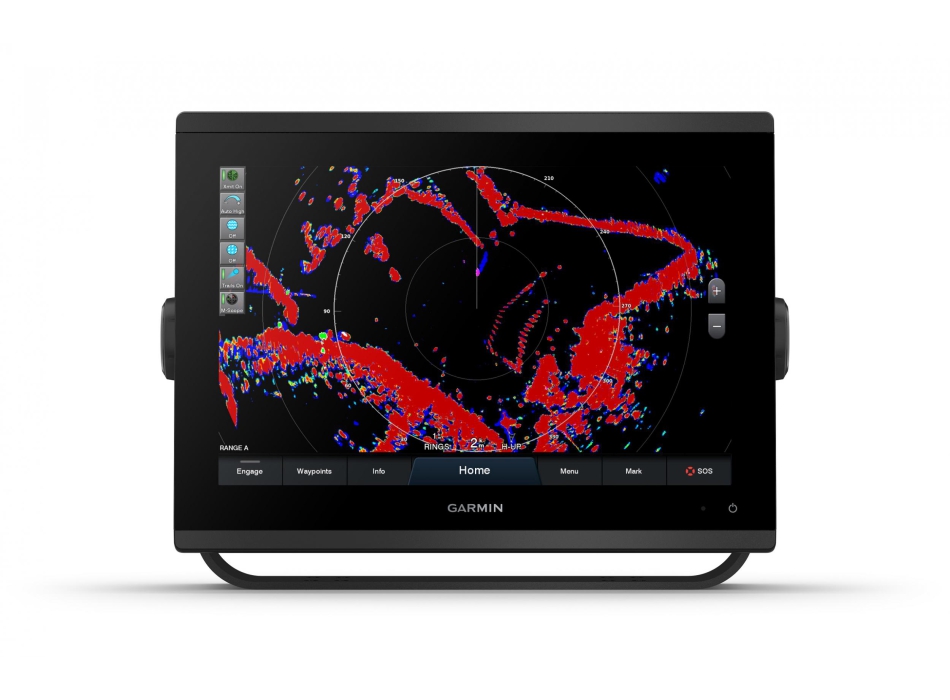

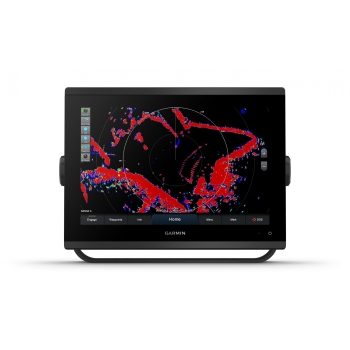

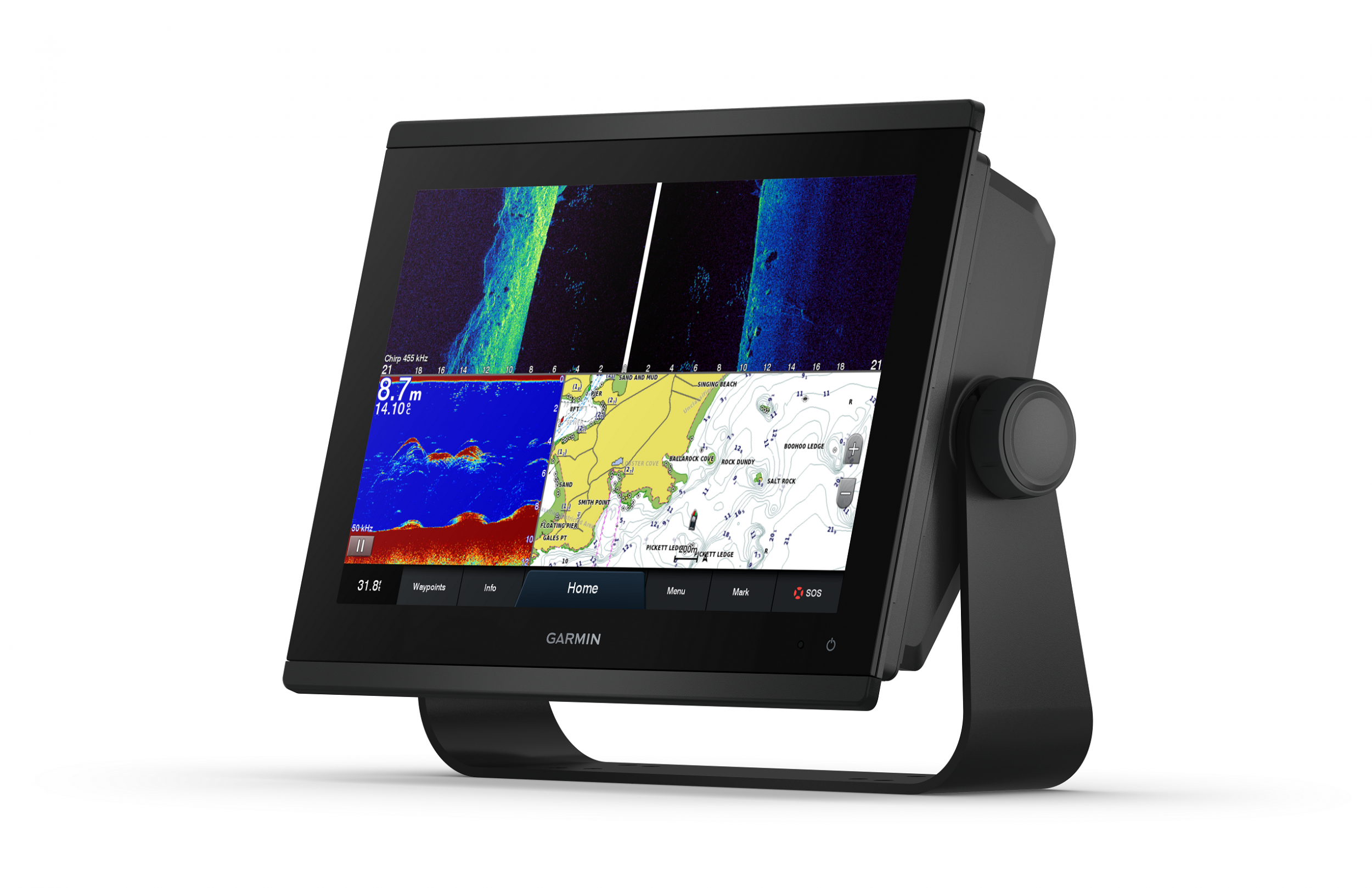

TOTAL INTEGRATION DURING NAVIGATION
With 60% more display pixels and nearly double the processing power of previous generation 12-inch GPSMAP devices, this crisp, high-resolution chartplotter integrates seamlessly into your Garmin marine system.
Easily integrates with multiple engines.
Connect to third party devices compatible with OneHelm ™ digital switching .
Easily build your marine system using the best of network connectivity.
Compatible with 1 premium maps and charts for the best in Garmin navigation.
Sailboat management with clear laylines and more, right on the screen.
Manage your boating experience from anywhere. 2
FASTER, MORE ATTRACTIVE, MORE INTELLIGENT
With its additional processing power and new slim all-glass design and a small unit footprint, it's easy to upgrade this 12-inch plotter to a wider range of dashboard configurations.
IMPROVED DISPLAY OPTICS
The new, higher resolution 12-inch displays offer better sunlight readability with 60% more pixels than previous generation 12-inch GPSMAP devices.
GARMIN SAILASSIST ™ SAILING FEATURES
View laylines, race start line guidance, improved wind rose, course and heading lines, true wind data fields and tide / current / time cursor, wind angle, setting and drift, wind speed and more.
OPTIONAL BLUECHART ® G3 VISION ® SHAFT
These optional maps offer the best of Garmin and Navionics® data, Auto Guidance 4 technology and other premium navigation features.
NMEA 2000 ® AND NMEA 0183 NETWORKS
Connect to compatible autopilots, digital switching, weather, Fusion-Link ™ audio system, media, VHF, AIS and more from a single screen.
ACTIVECAPTAIN ® APP
Built-in Wi-Fi ® connectivity pairs with the free all-in-one mobile app for access to the OneChart ™ feature, smart notifications, software updates, Garmin Helm ™ digital switching, Garmin Quickdraw ™ community data and more. 5
INTEGRATED ANT ® TECHNOLOGY
Connect with some of your favorite devices, such as quatix ® marine watches, gWind ™ Wireless 2 transducers, GNX ™ Wind marine instruments and wireless remote controls.
You can now connect your chartplotter to various types of engines, including select Yamaha engines.
ONEHELM ™ FUNCTION This unique feature brings together all the operations and capabilities of selected third party devices, such as EmpirBus ™ digital switching, on a single screen.
|DIMENSIONS||12.1 "x 8.9" x 3.2 "(30.8 x 22.8 x 8.2 cm)|
|SCREEN SIZE, WXH|
10.3 "x 6.4"; 12.1 "diagonal
(26.2 x 16.3 cm; 30.7 cm diagonal)
|SCREEN RESOLUTION, LXH||1280 x 800 pixels|
|TYPE OF SCREEN||WXGA display|
|WEIGHT||6.6 lbs. (3.0 kg)|
Max power usage at 10 Vdc: 26.5 W
Typical current draw at 12 Vdc: 1.7 A
Max current draw at 12 Vdc: 2.2 A
|GPS ANTENNA||Internal or external on the NMEA 2000 network|
|MOUNTING OPTIONS||Bail or flush|
|RECEIVER||10 Hz high sensitivity|
|GARMIN MARINE NETWORK ™ DOORS||2|
Maps and memory
|EXTERNAL MEMORY||2 microSD ™ cards (back of unit)|
|TRACK LOG||50,000 points; 50 saved tracks|
|ROUTES THAT CAN BE STORED||100|
Functions for outdoor activities
Functions of the chartplotter

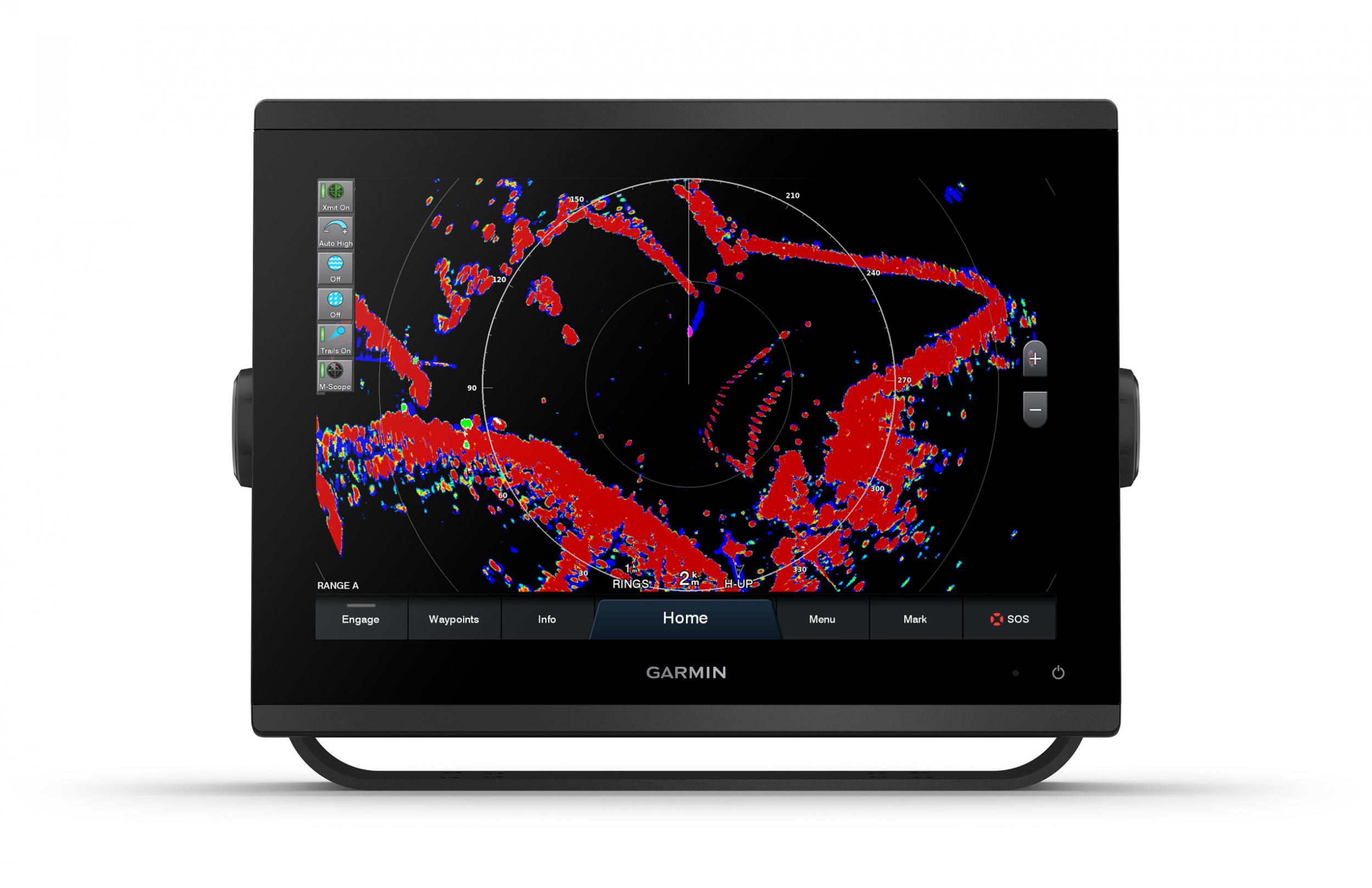

|COMPATIBLE WITH GARMIN RADARS|
|COMPATIBLE WITH GARMIN BLACK-BOXES||Yes (with external black box, sold separately)|
|GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR DEFAULTS)|
|COMPATIBLE WITH AIS FUNCTION|
|COMPATIBLE WITH DSC FUNCTION|
|SUPPORTS FUSION-LINK ™ COMPATIBLE RADIO|
|BLACK BOX GSD ™ SOUNDER SUPPORT|
|BLACK BOX GCV ™ SOUNDER SUPPORT|
|GRID ™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE|
Echosounder features and specifications
|DOUBLE FREQUENCY||Yes (with compatible black box)|
|DOUBLE CONE||Yes (with compatible black box)|
|CHIRP||Yes (with external black box)|
|CLEARVÜ||Yes (with external black box, sold separately)|
|SIDEVÜ||Yes (with external black box, sold separately)|
|NMEA 2000 ® COMPATIBLE|
|NMEA 0183 INPUT PORTS||1|
|NMEA 0183 OUTPUT PORTS||1|
|VIDEO INPUT PORTS||1 BNC|
|VIDEO OUTPUT||1 HDMI|
