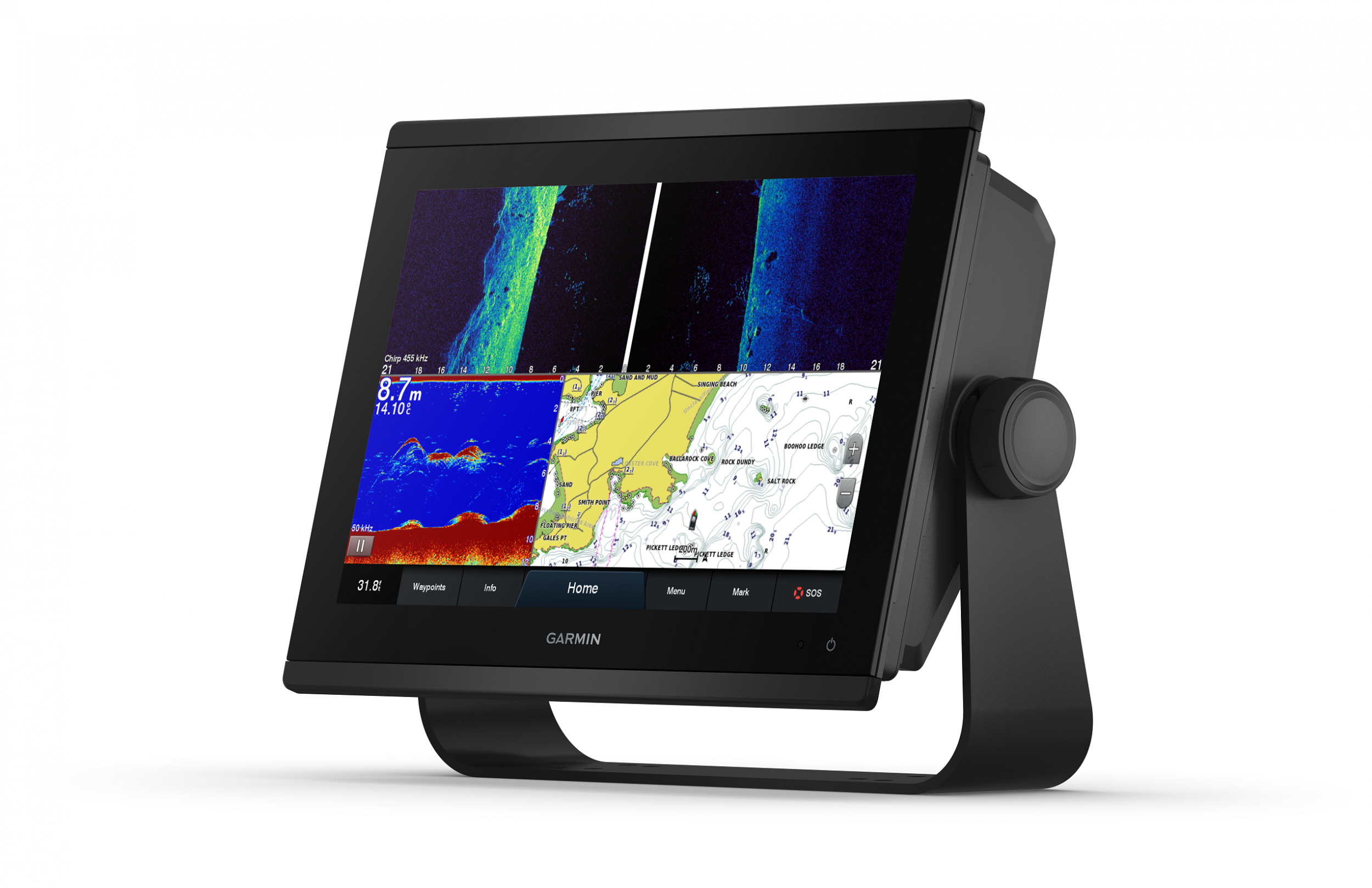

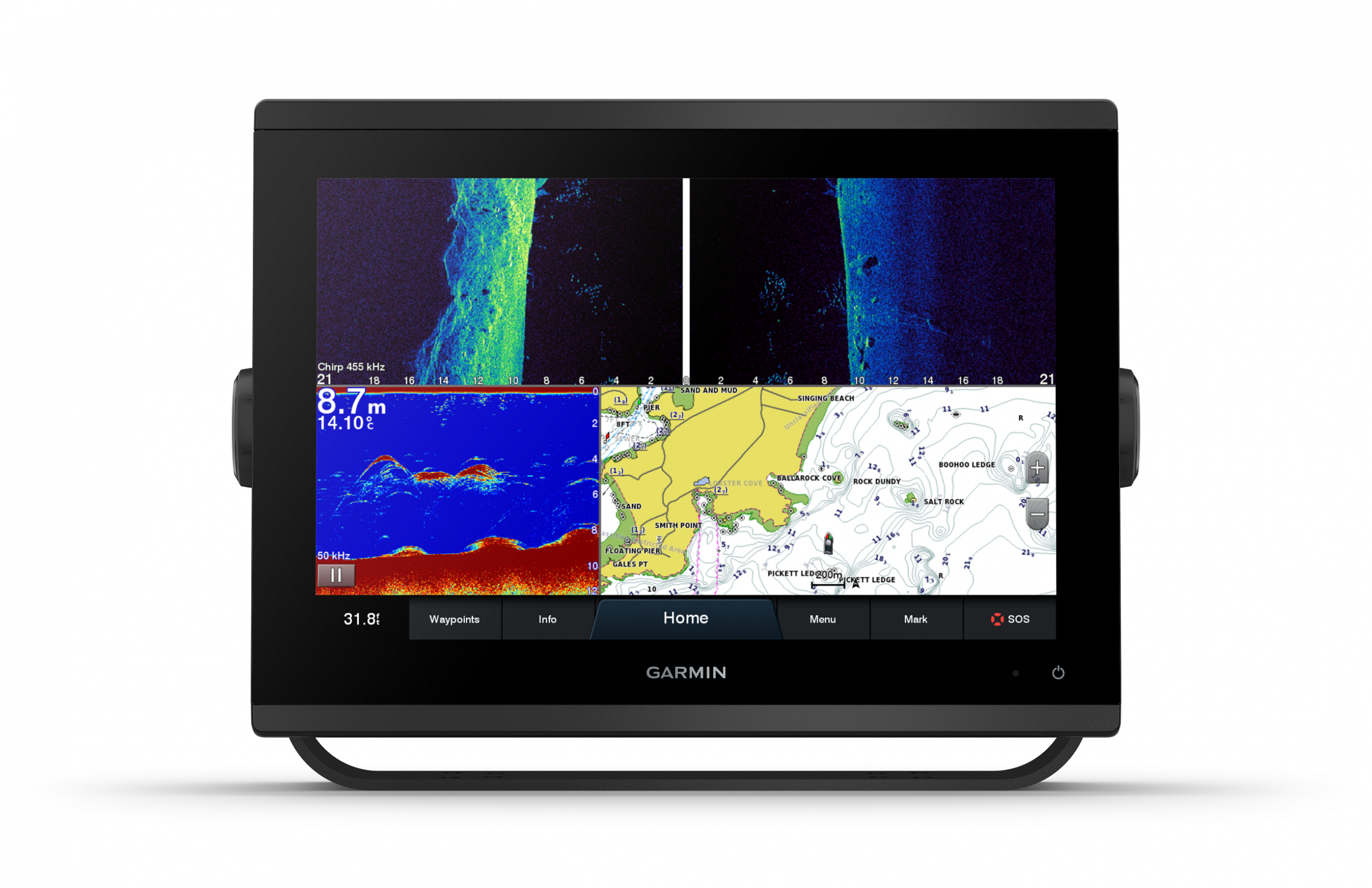

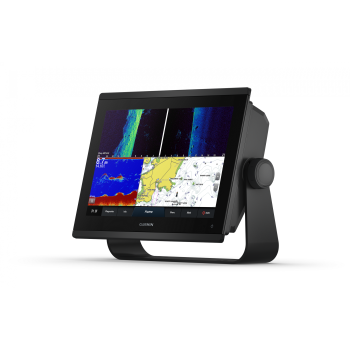

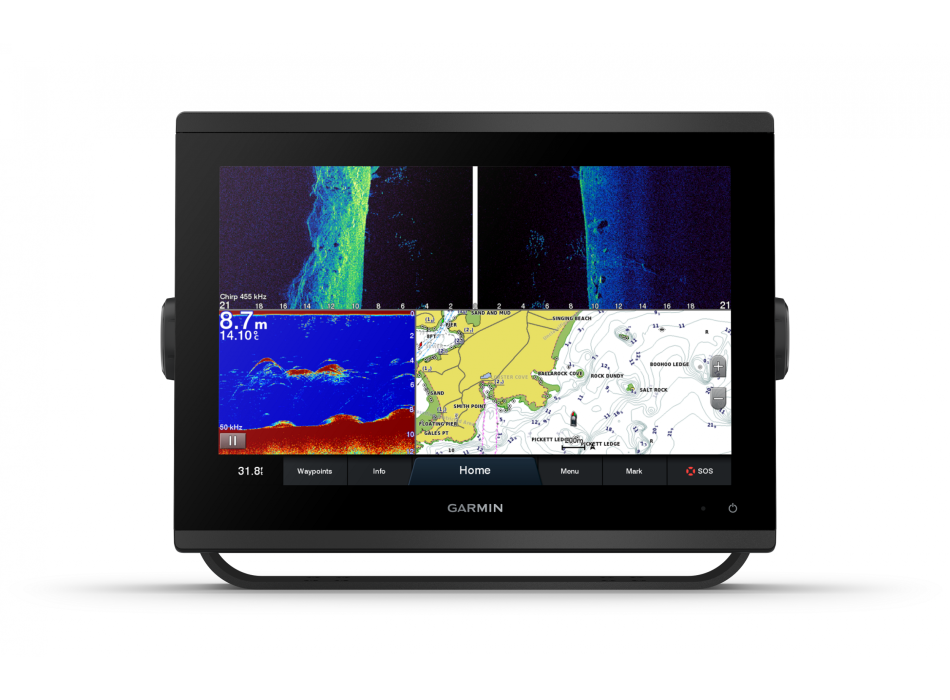

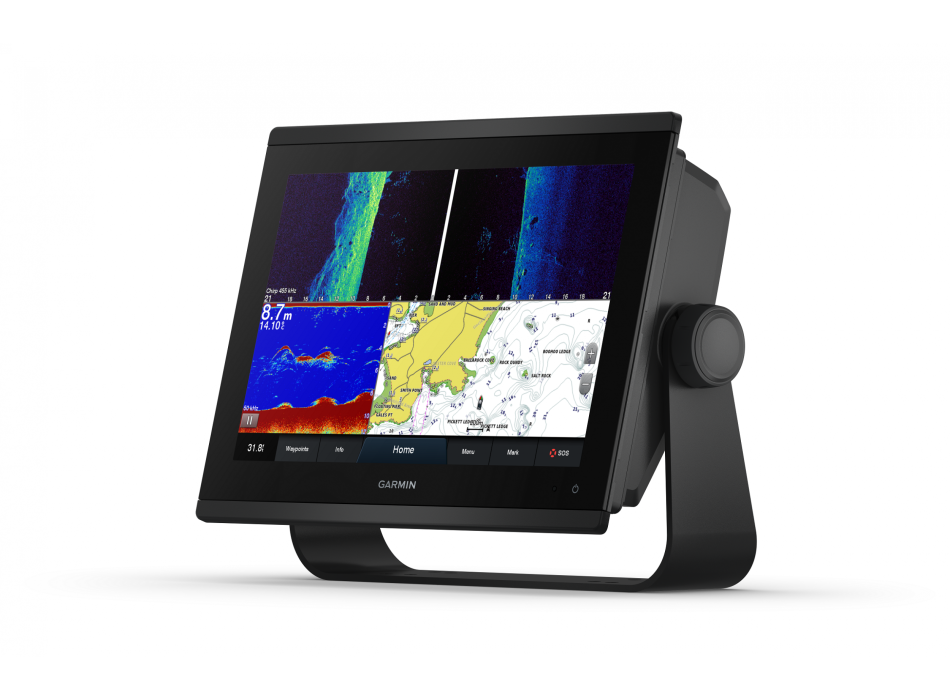

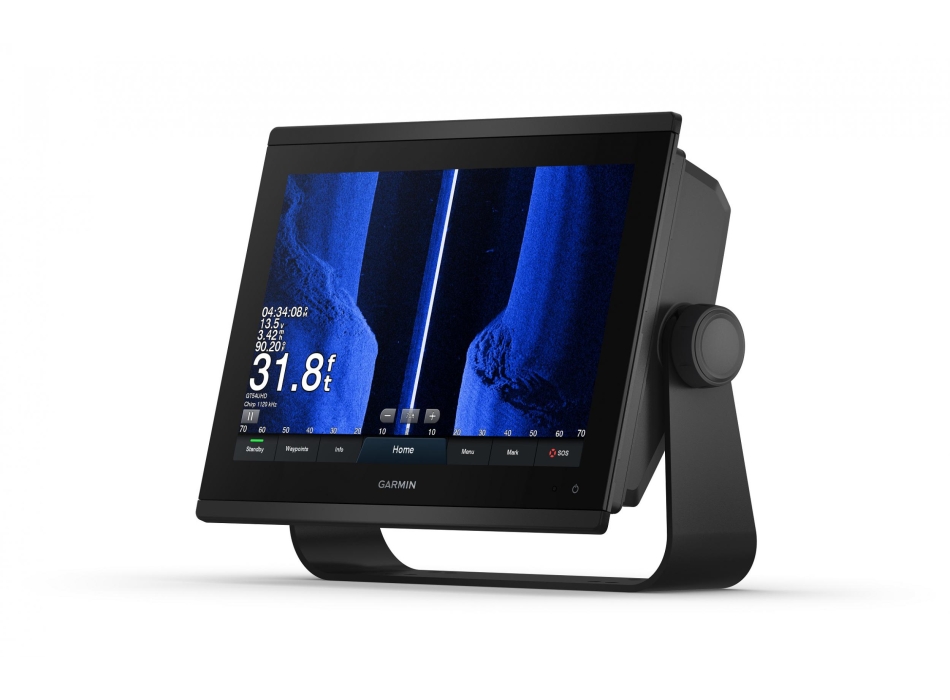

Garmin gpsmap 1223XSV eco/GPS multif display. 12"

  • Code: 010-02367-02
€ 2.536,05 € 3.259,00 -22%

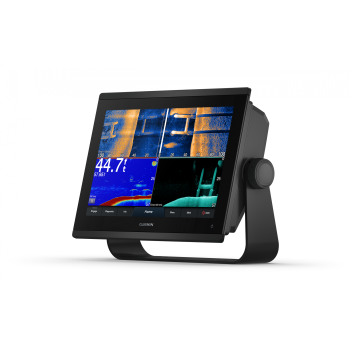

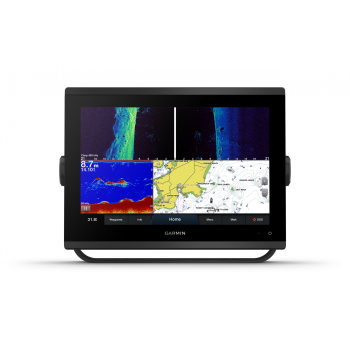

Garmin gpsmap 1223xsv 12" display
  Multifunction eco/GPS display with 12-inch touchscreen, built-in CHIRP fishfinder.



TOTAL INTEGRATION DURING NAVIGATION

With 60% more display pixels and nearly double the processing power of previous generation 12-inch GPSMAP devices, this crisp, high-resolution chartplotter integrates seamlessly into your Garmin marine system.



See underneath your boat with built-in sonar capabilities.
Easily integrates with multiple engines.
Connect to compatible third-party devices with OneHelm digital switching .
Easily build your own marine system using the best of network connectivity.
Compatible with premium 1 maps and charts for the best in Garmin navigation.
Sailing management with clear laylines and more, right on the screen.
Manage your nautical experience from anywhere. 2

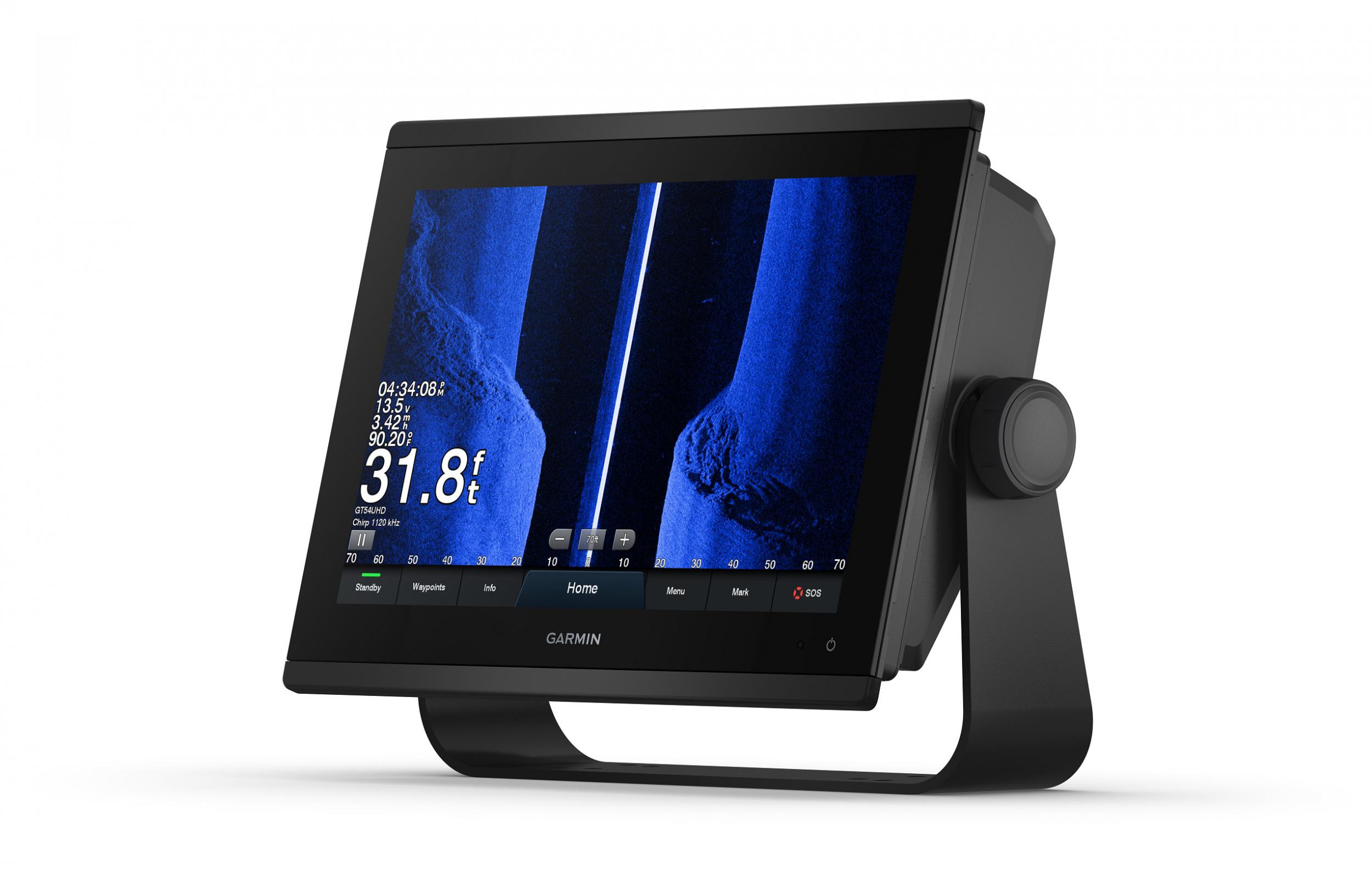

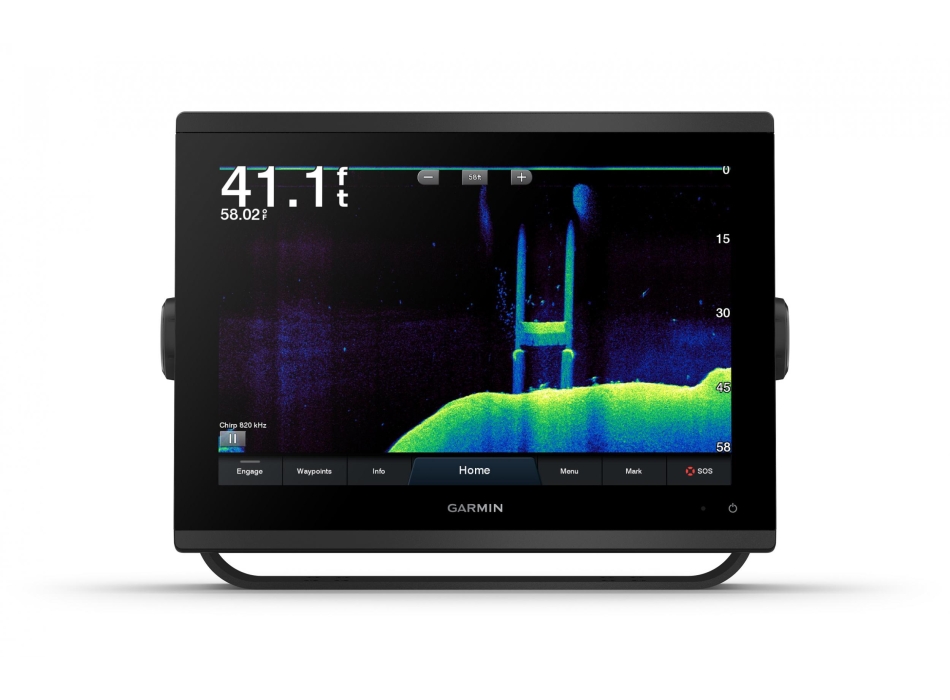

HIGH DEFINITION SCANNING ECHO SOUNDER

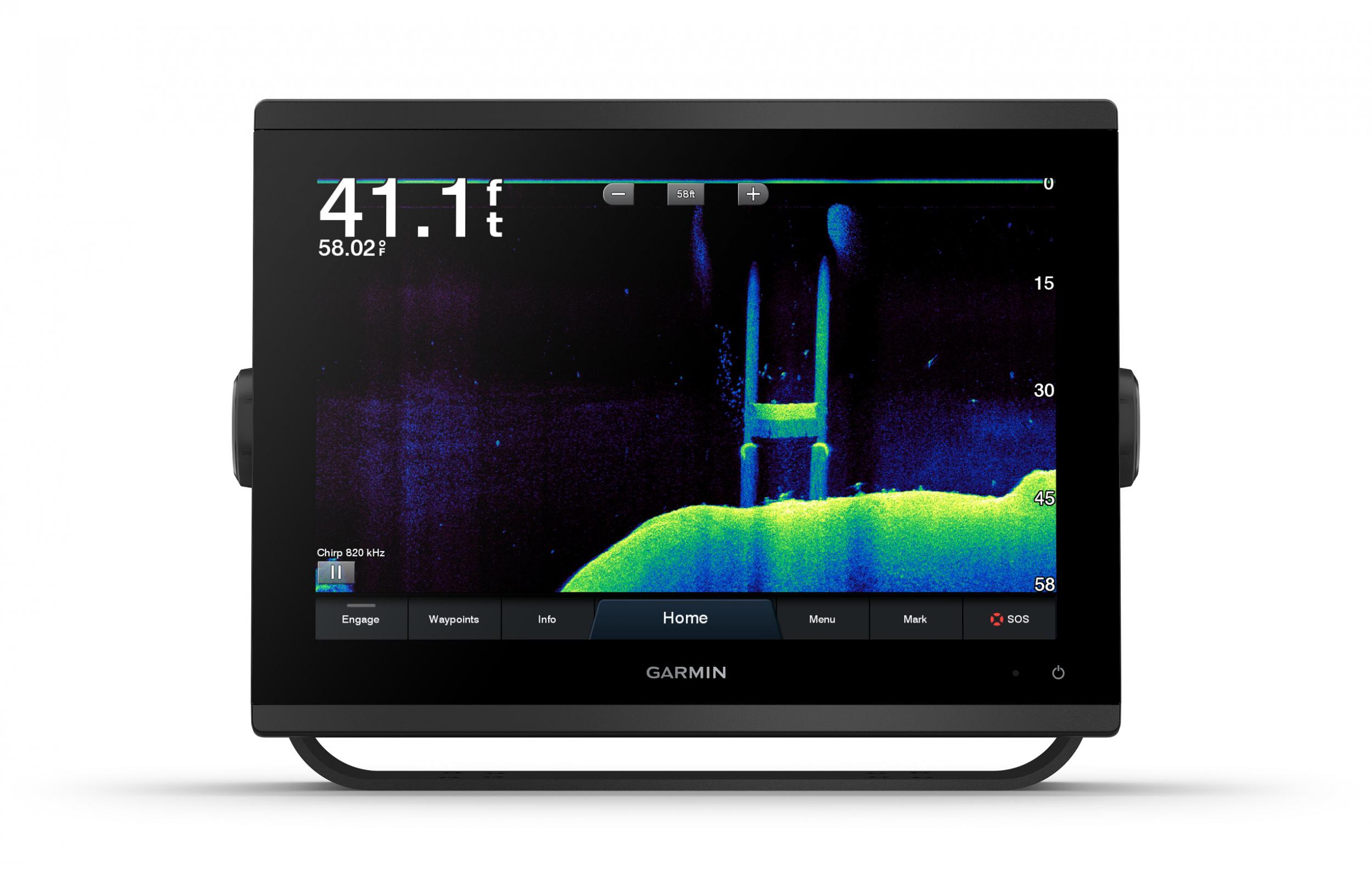

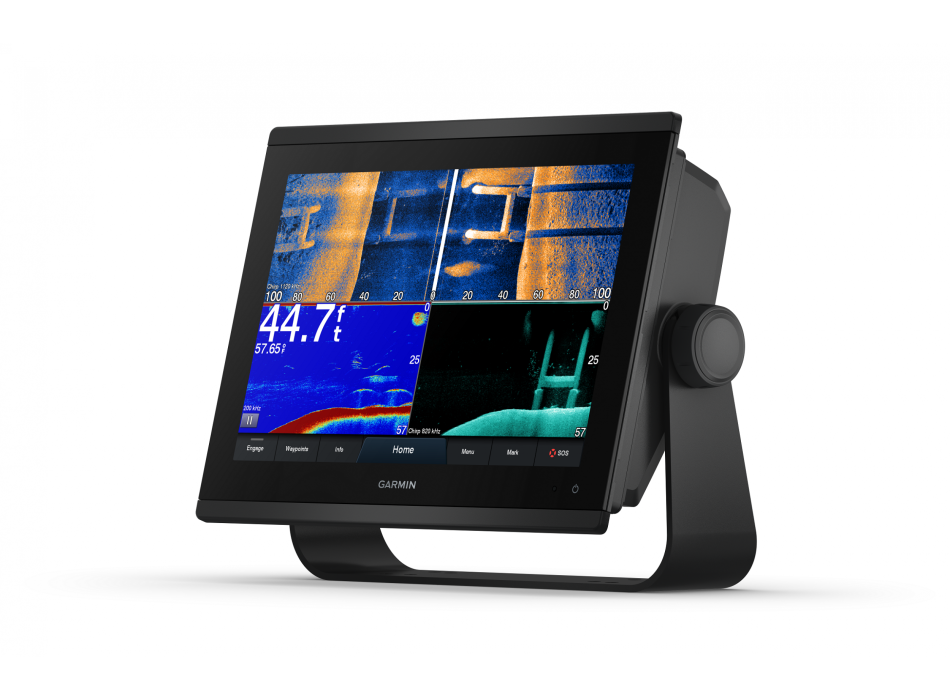

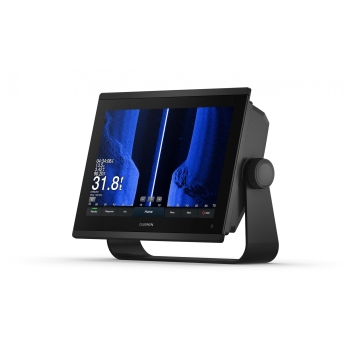

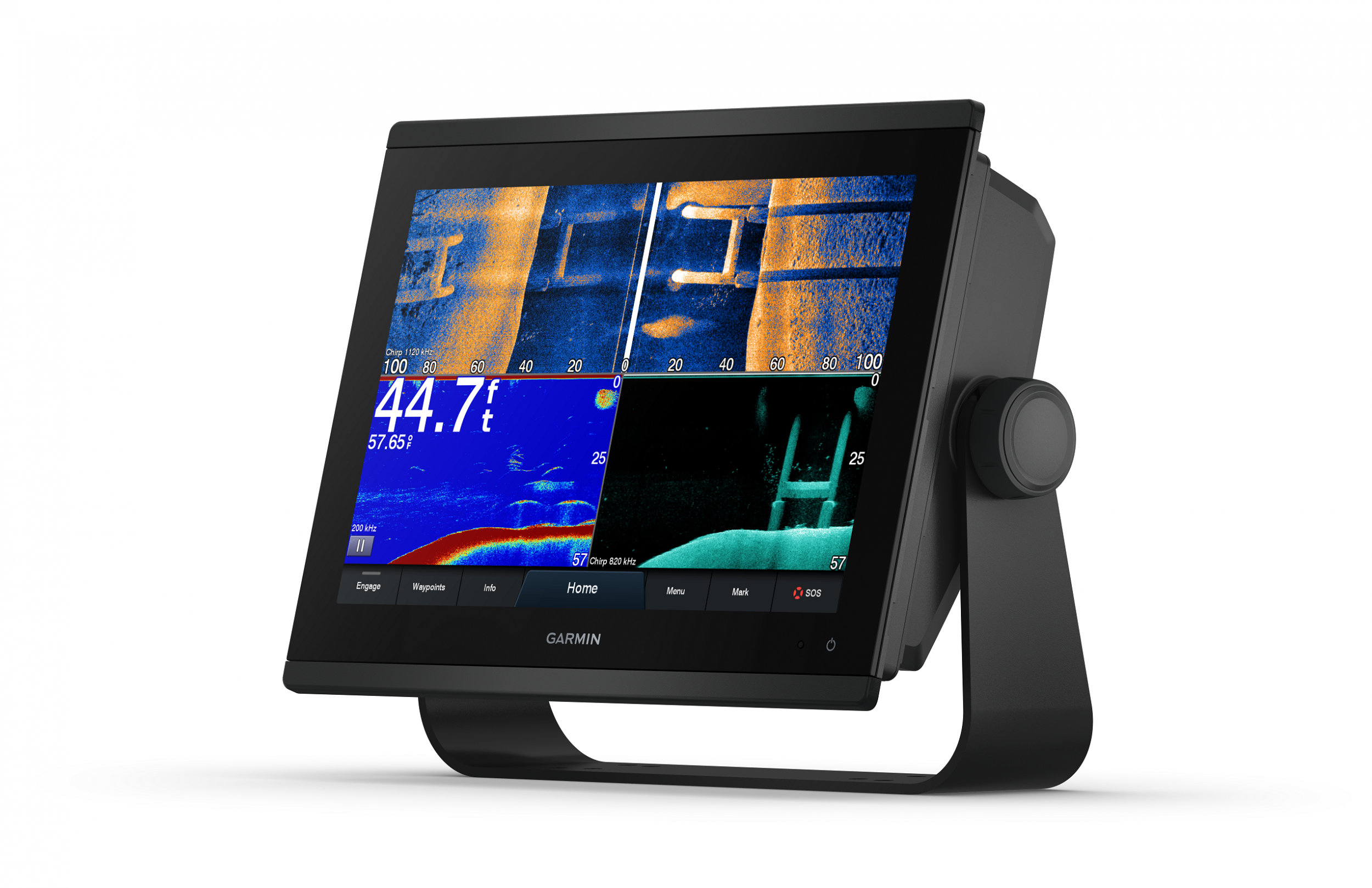

You get built-in ultra-high-definition SideVü and ClearVü scanning sonar with vibrant, high-contrast color palettes to distinguish fish from structure. The GPSMAP® 1223xsv also supports traditional 1 kW CHIRP sonar capabilities.



FASTER, MORE ATTRACTING, MORE INTELLIGENT
With its added processing power and new slim all-glass design and smaller unit footprint, it's easy to upgrade this 12-inch plotter into a wider range of dashboard configurations.

IMPROVED DISPLAY OPTICS
The new, higher-resolution 12-inch displays offer improved sunlight readability with 60 percent more pixels than previous generation 12-inch GPSMAP devices.

GARMIN SAILASSIST™ SAILING FEATURES
View laylines, race start line guide, enhanced wind rose, heading and heading lines, true wind data fields and tide/current/time cursor, wind angle, setting and drift, wind speed and more.

OPTIONAL BLUECHART ® G3 VISION ® TREES
These optional maps offer the best of Garmin and Navionics® data, Auto Guidance 4 technology and other premium navigation features.



GARMIN MARINE NETWORK

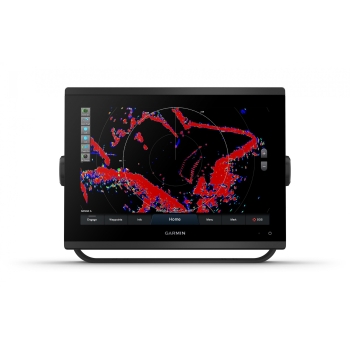

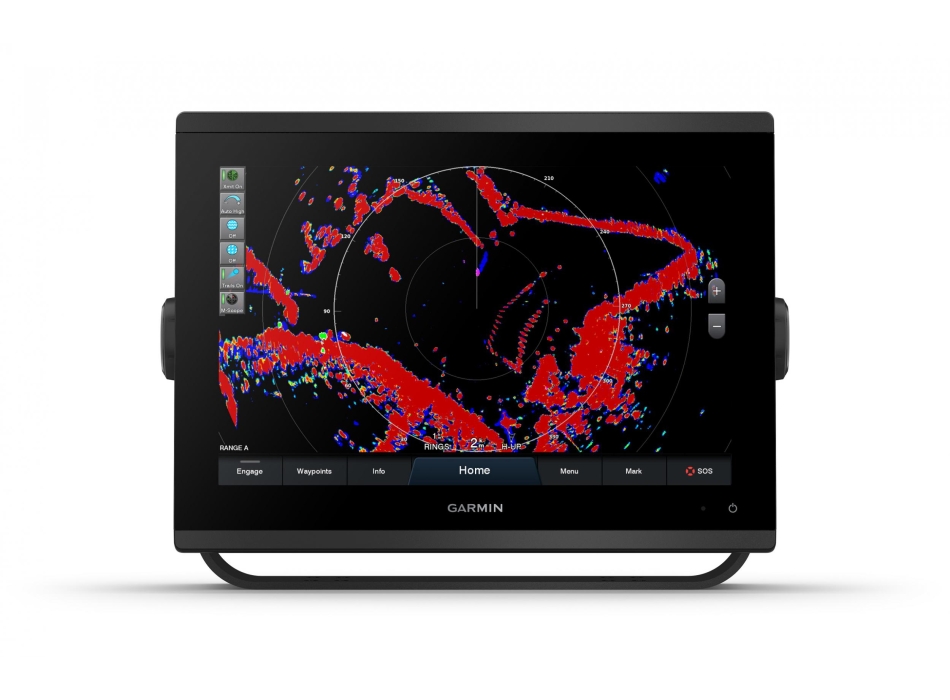

If you have multiple compatible Garmin devices on your boat, you can share information with each other, such as maps, user data, radar, and IP camera video.



NMEA 2000 ® AND NMEA 0183 NETWORKS
Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from a single screen.

ACTIVECAPTAIN ® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ community data and more. 5

INTEGRATED ANT ® TECHNOLOGY
Connect with some of your favorite devices, like quatix ® marine watches, gWind ™ Wireless 2 transducers, GNX ™ Wind marine instruments and wireless remote controls.

J1939 CONNECTIVITY
You can now connect your chartplotter to several types of engines, including select Yamaha engines.

ONEHELM™ FUNCTION

This unique feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on a single screen.



Package contents:
GPSMAP 1223xsv Chartplotter
Power cord
Bracket mounting kit with knobs
Flush mounting kit with gasket
Protective cover
Interlocking protectors for dashboard finishing
Documentation


General

DIMENSIONS 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)
SCREEN DIMENSIONS, WXH

10.3" x 6.4"; 12.1" diagonal

(26.2 x 16.3 cm; 30.7 cm diagonal)

SCREEN RESOLUTION, WXH 1280 x 800 pixels
SCREEN TYPE WXGA display
WEIGHT 6.6 lbs. (3.0kg)
WATERPROOF CLASSIFICATION IPX7
POLARIZED SUPPORT
ENERGY CONSUMPTION

Max power usage at 10 Vdc: 26.5 W

Typical current draw at 12 Vdc: 1.7 A

Max current draw at 12 Vdc: 2.2 A

GPS ANTENNA Internal or external on the NMEA 2000 network
MOUNTING OPTIONS Bail or flush
RECEIVER 10Hz high sensitivity
GARMIN MARINE NETWORK™ PORTS 2
TRANSMISSION POWER 1 kW traditional; 1 kW CHIRP

Maps and memory

EXTERNAL MEMORY 2 microSD™ cards (back of unit)
WAYPOINTS 5,000
TRACK LOG 50,000 points; 50 saved tracks
MEMORIZABLE ROUTES 100

Functions for outdoor activities

TIDE DATA

Chartplotter functions

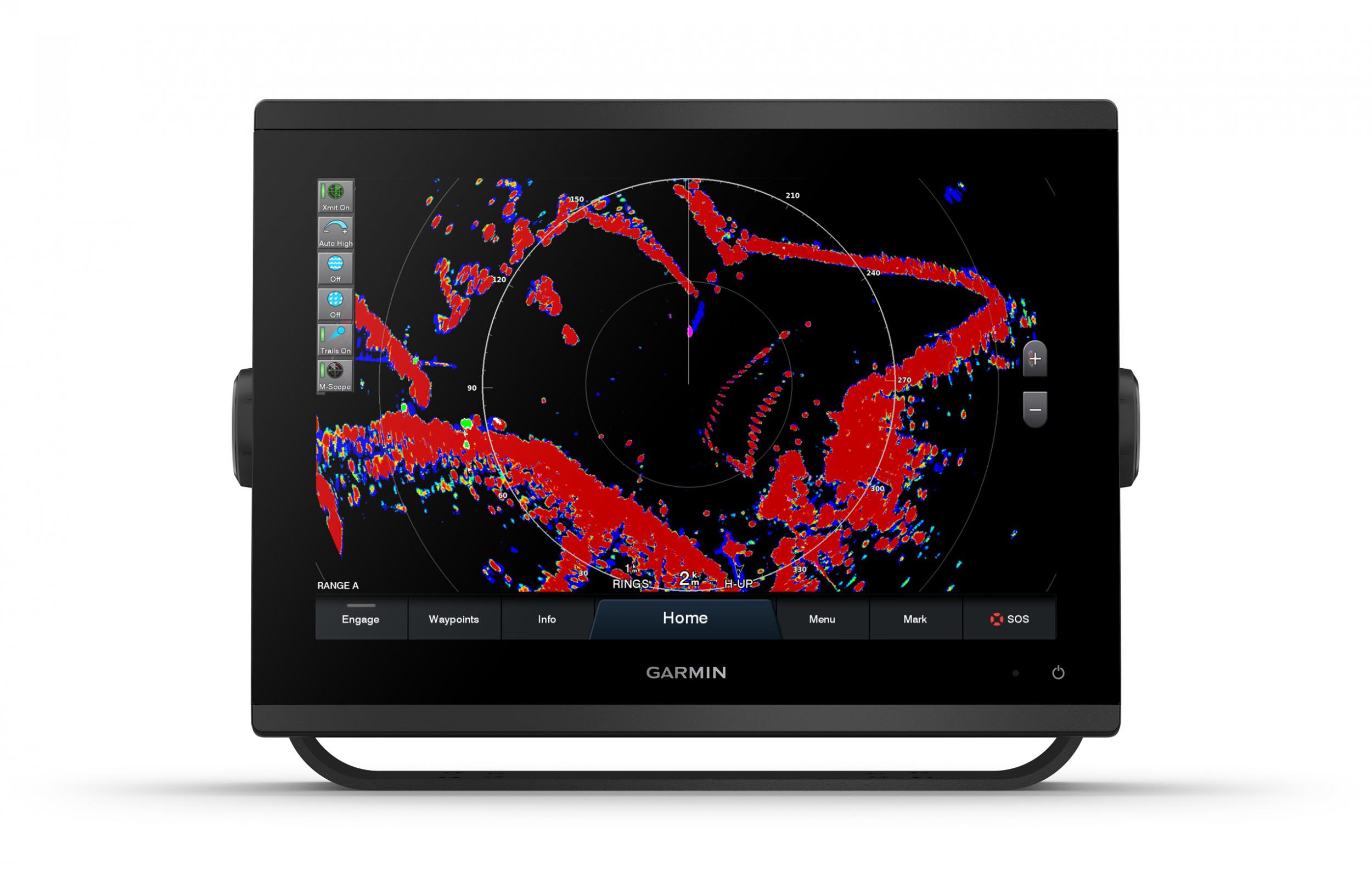

COMPATIBLE WITH GARMIN RADAR
COMPATIBLE WITH GARMIN BLACK-BOXES Yes (built-in)
GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS)
COMPATIBLE WITH AIS FUNCTION
COMPATIBLE WITH DSC FUNCTION
SUPPORTS FUSION-LINK COMPATIBLE RADIO
BLACK BOX GSD DEPTH SOUNDER SUPPORT
BLACK BOX GCV DEPTH SOUNDER SUPPORT
ACTIVECAPTAIN COMPATIBLE
GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE
WIRELESS CONNECTIVITY
SAILING FUNCTIONS

Depth sounder functions and specifications

DOUBLE FREQUENCY
DOUBLE CONE
FREQUENCIES SUPPORTED Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü/SideVü (260/455/800 kHz)
(dependent on transducer)
CHIRP Yes (built-in)
CLEARVÜ Yes with CHIRP (built-in)
SIDEVÜ Yes with CHIRP (built-in)
MAXIMUM DEPTH 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)
ZOOM
WATER TEMPERATURE DATA AND GRAPH
REGISTRATION
HISTORICAL

Connections

NMEA 2000 ® COMPATIBLE
NUMBER OF TRANSDUCER PINS 12-pin (orange)
NMEA 0183 INPUT PORTS 1
NMEA 0183 OUTPUT PORTS 1
VIDEO INPUT PORTS 1 BNC
VIDEO OUTPUT 1 HDMI
WIRELESS CONNECTIVITY
J1939 COMPATIBLE

Caratteristiche

Sei interessato ad una offerta privata?
D. Salve e compatibile con il mio radar S/N 3CP034676 Garmin antenna Radar GMR 18 xHD
R. 06-07-24<br /> Buongiorno, sì confermo, aggiunga anche il Coupon 5Plus per avere lo sconto extra del 5%, vale la pena approfittare in questo fine settimana.<br /> Cordiali saluti.<br /> Luigi Bianchi
