TOTAL INTEGRATION DURING NAVIGATION
With 60% more display pixels and nearly double the processing power of previous generation 12-inch GPSMAP devices, this crisp, high-resolution chartplotter integrates seamlessly into your Garmin marine system.
See below your boat with built-in sonar capabilities.
Easily integrates with multiple engines.
Connect to third party devices compatible with OneHelm ™ digital switching .
Easily build your marine system using the best of network connectivity.
Compatible with 1 premium maps and charts for the best in Garmin navigation.
Sailboat management with clear laylines and more, right on the screen.
Manage your boating experience from anywhere. 2
HIGH DEFINITION SCANNING SOUNDER
Get built-in ultra-high definition SideVü and ClearVü scan sonars with vibrant, high-contrast color palettes to distinguish fish from tree. GPSMAP® 1223xsv also supports traditional 1 kW CHIRP sonar capabilities.
FASTER, MORE ATTRACTIVE, MORE INTELLIGENT
With its additional processing power and new slim all-glass design and a small unit footprint, it's easy to upgrade this 12-inch plotter to a wider range of dashboard configurations.
IMPROVED DISPLAY OPTICS
The new, higher resolution 12-inch displays offer better sunlight readability with 60% more pixels than previous generation 12-inch GPSMAP devices.
GARMIN SAILASSIST ™ SAILING FEATURES
View laylines, race start line guidance, improved wind rose, course and heading lines, true wind data fields and tide / current / time cursor, wind angle, setting and drift, wind speed and more.
OPTIONAL BLUECHART ® G3 VISION ® SHAFT
These optional maps offer the best of Garmin and Navionics® data, Auto Guidance 4 technology and other premium navigation features.
GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information with each other, such as maps, user data, radar, and IP camera video.
NMEA 2000 ® AND NMEA 0183 NETWORKS
Connect to compatible autopilots, digital switching, weather, Fusion-Link ™ audio system, media, VHF, AIS and more from a single screen.
ACTIVECAPTAIN ® APP
Built-in Wi-Fi ® connectivity pairs with the free all-in-one mobile app for access to the OneChart ™ feature, smart notifications, software updates, Garmin Helm ™ digital switching, Garmin Quickdraw ™ community data and more. 5
INTEGRATED ANT ® TECHNOLOGY
Connect with some of your favorite devices, such as quatix ® marine watches, gWind ™ Wireless 2 transducers, GNX ™ Wind marine instruments and wireless remote controls.
You can now connect your chartplotter to various types of engines, including select Yamaha engines.
ONEHELM ™ FUNCTION
This unique feature brings together all the operations and capabilities of selected third party devices, such as EmpirBus ™ digital switching, on a single screen.

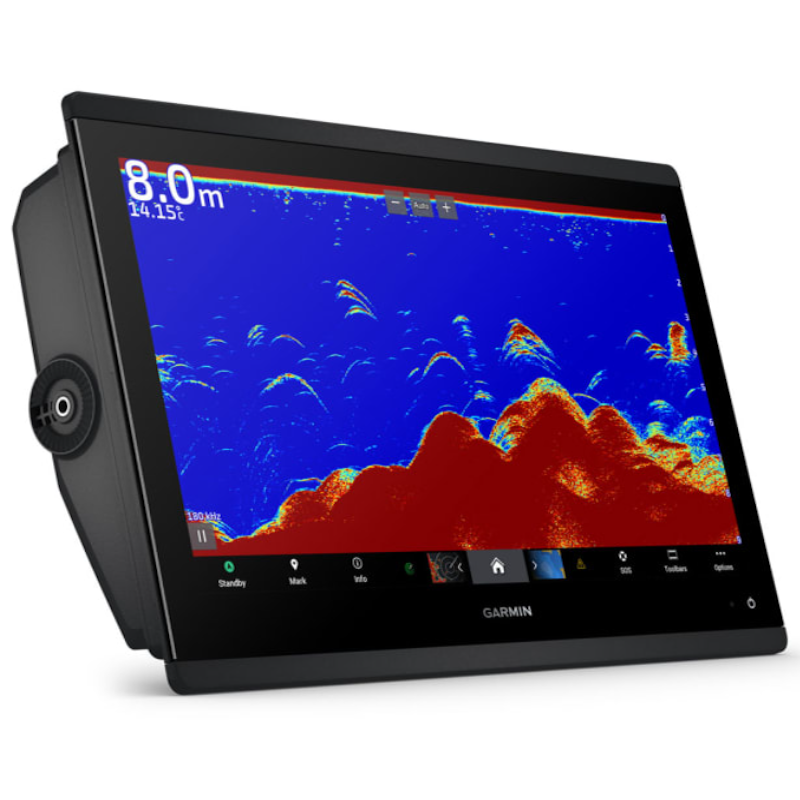

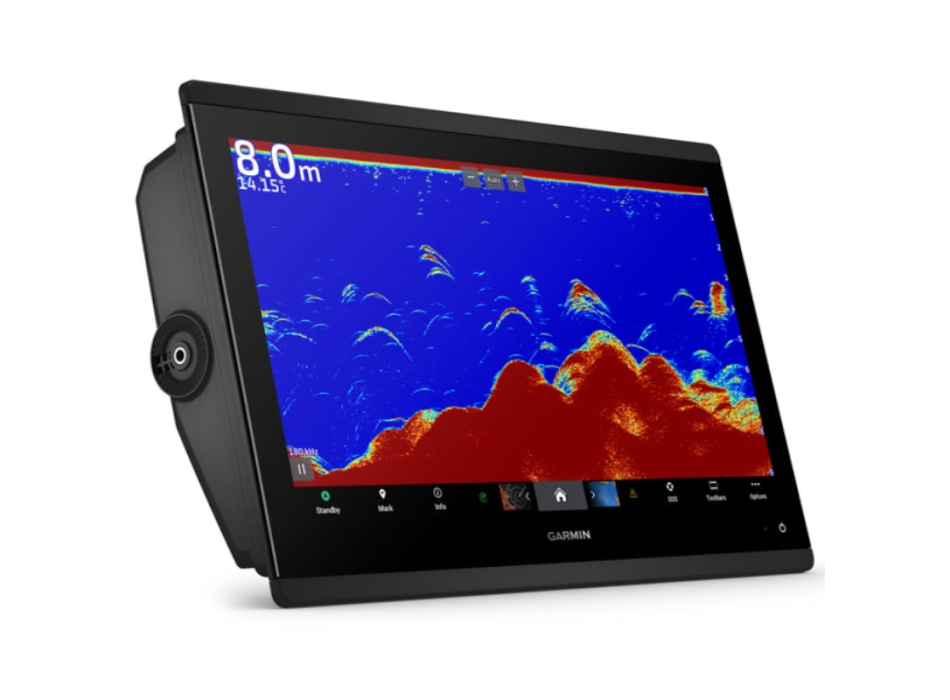

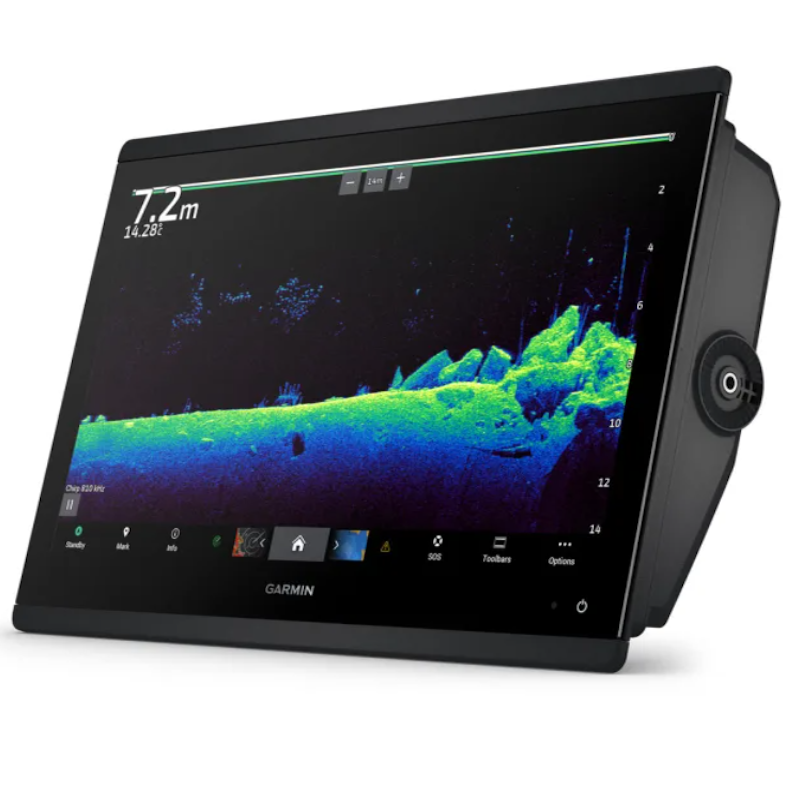

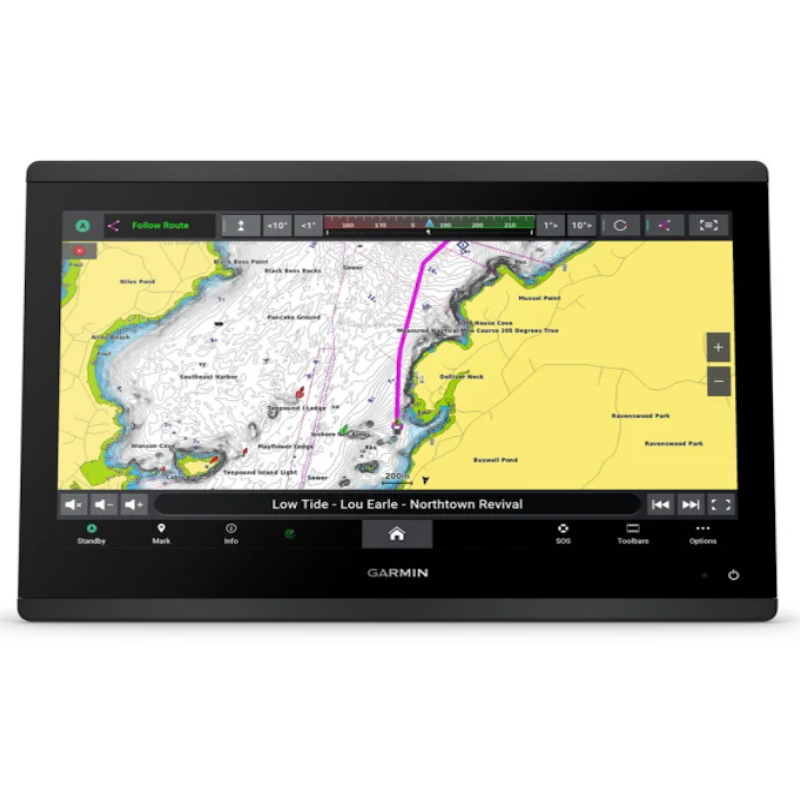

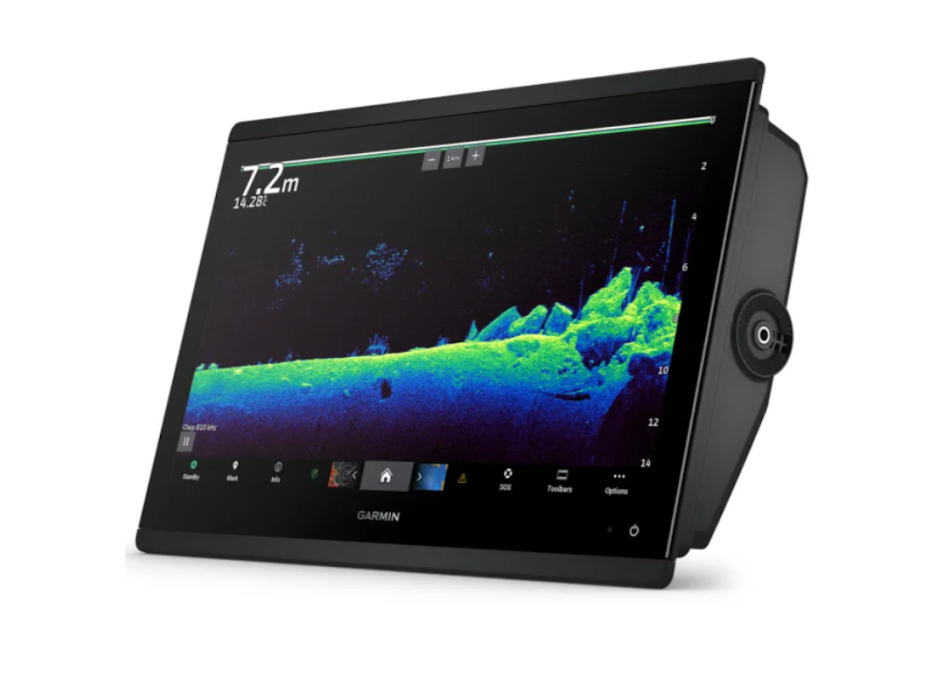

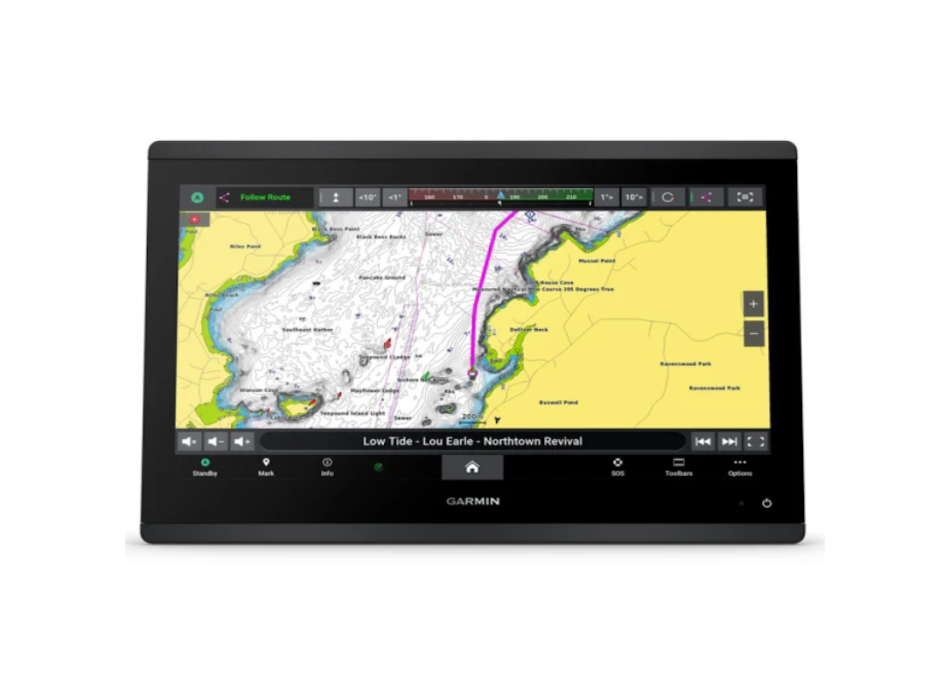

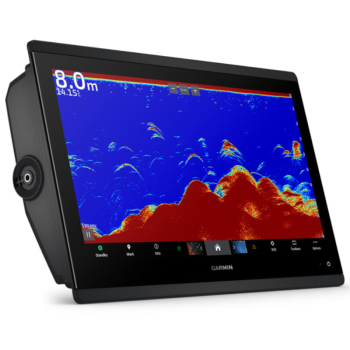

GPSMAP 1223xsv chartplotter
Bracket mounting kit with knobs
Flush mounting kit with gasket
Interlocking protections for dashboard finishing
|DIMENSIONS||12.1 "x 8.9" x 3.2 "(30.8 x 22.8 x 8.2 cm)|
|SCREEN SIZE, WXH||
10.3 "x 6.4"; 12.1 "diagonal
(26.2 x 16.3 cm; 30.7 cm diagonal)
|SCREEN RESOLUTION, LXH||1280 x 800 pixels|
|TYPE OF SCREEN||WXGA display|
|WEIGHT||6.6 lbs. (3.0 kg)|
Max power usage at 10 Vdc: 26.5 W
Typical current draw at 12 Vdc: 1.7 A
Max current draw at 12 Vdc: 2.2 A
|GPS ANTENNA||Internal or external on the NMEA 2000 network|
|MOUNTING OPTIONS||Bail or flush|
|RECEIVER||10 Hz high sensitivity|
|GARMIN MARINE NETWORK ™ DOORS||2|
|TRANSMISSION POWER||1 kW traditional; 1 kW CHIRP|
Maps and memory
|EXTERNAL MEMORY||2 microSD ™ cards (back of unit)|
|TRACK LOG||50,000 points; 50 saved tracks|
|ROUTES THAT CAN BE STORED||100|
Functions for outdoor activities
Functions of the chartplotter
|COMPATIBLE WITH GARMIN RADARS|
|COMPATIBLE WITH GARMIN BLACK-BOXES||Yes (built-in)|
|GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR DEFAULTS)|
|COMPATIBLE WITH AIS FUNCTION|
|COMPATIBLE WITH DSC FUNCTION|
|SUPPORTS FUSION-LINK ™ COMPATIBLE RADIO|
|BLACK BOX GSD ™ SOUNDER SUPPORT|
|BLACK BOX GCV ™ SOUNDER SUPPORT|
|GRID ™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE|
Echosounder features and specifications
|FREQUENCIES SUPPORTED||Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü / SideVü (260/455/800 kHz)
(dependent on transducer)
|CLEARVÜ||Yes with CHIRP (built-in)|
|SIDEVÜ||Yes with CHIRP (built-in)|
|MAXIMUM DEPTH||5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)|
|DATA AND WATER TEMPERATURE GRAPH|
|NMEA 2000 ® COMPATIBLE|
|NUMBER OF TRANSDUCER PINS||12-pin (orange)|
|NMEA 0183 INPUT PORTS||1|
|NMEA 0183 OUTPUT PORTS||1|
|VIDEO INPUT PORTS||1 BNC|
|VIDEO OUTPUT||1 HDMI|
