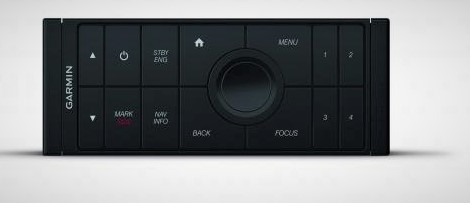

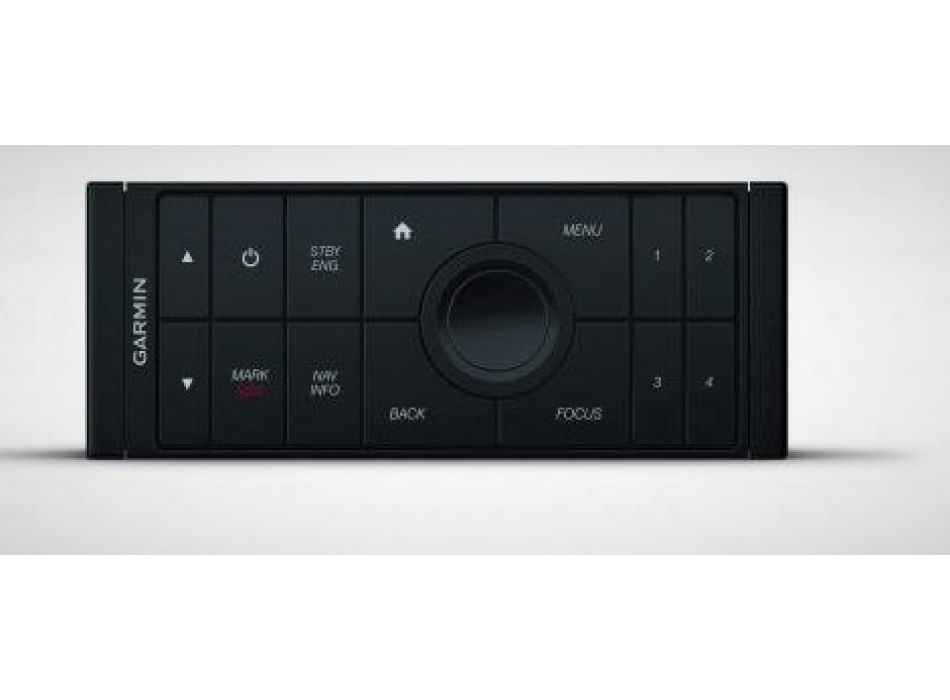

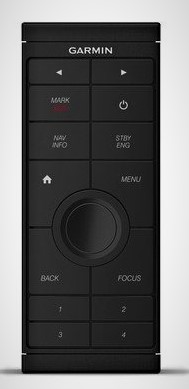

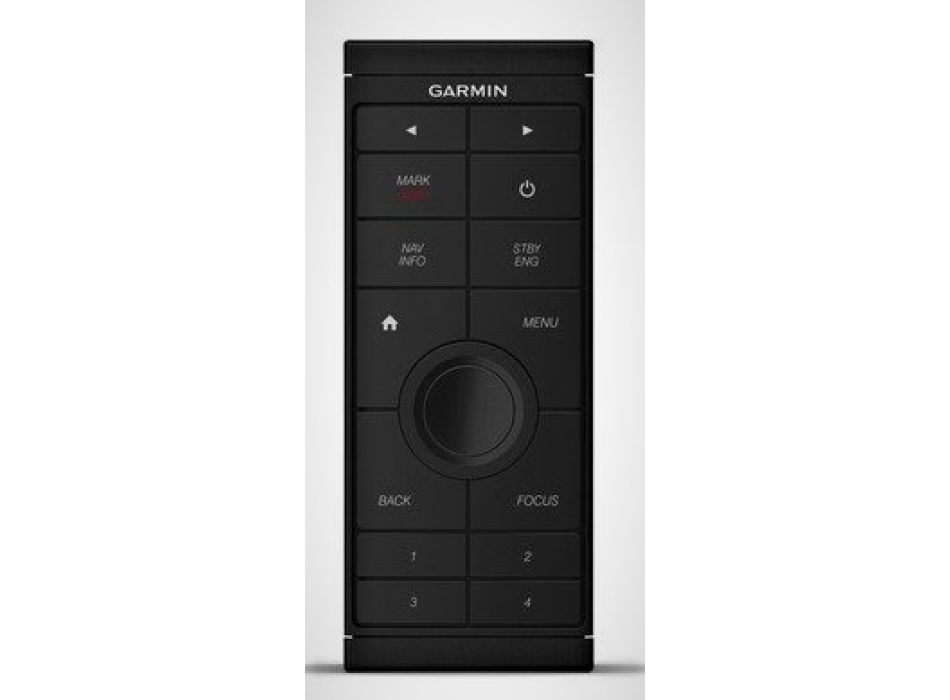

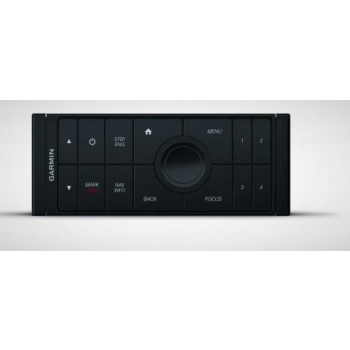

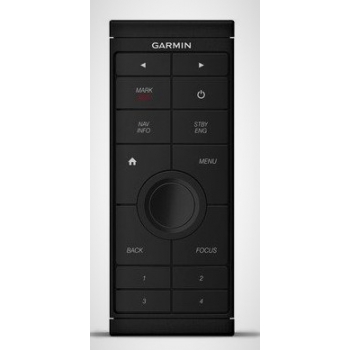

Garmin Grid 20 Keyboard

  • Code: 010-02011-00
€ 287,00 € 319,00 -10%
you chose:
Garmin Grid 20 Keyboard

Total control

  • Access remotely and intuitively and easily control your entire Garmin system
  • Multifunction control with rotary knob and push-to-select button
  • Allows for easy navigation and precise control of chartplotter menus and settings, even in rough sea conditions
  • Possibility to customize the 4 configurable keys
  • Possibility of installation via cable or wireless
  • Possibility to buy it in horizontal or vertical version

The intuitive GRID 20 remote control keyboard provides access and maximum control over your entire Garmin system installed on board. Includes a 360-degree rotating joystick, rotary knob and push-to-select button for easy navigation and precise control of chartplotter menus and settings, even in rough sea conditions. You can customize the keys to configure the 4 functions and screens you use the most. A dedicated SOS button is also available for your peace of mind. Wired or wireless and vertical or horizontal installation options allow you to have a plug-and-play solution custom designed for your system.

Dimensions (W x H x D): 14.1 x 5.6 x 6.8 cm
Weight: 179 g
Operating temperature: -15 ° C to 70 ° C
Material: completely watertight, high strength plastic
Waterproof classification: IPX7
Compass safety distance: 114 mm
Power input: NMEA 2000, or, wired power supply (with power cable included)
Input power: 9-32V DC
Fuse: 1.0 Amp, Fast Blow
Maximum power consumption at 9VDC: 1.5W
Typical power consumption at 12 V DC: 40 mA
Maximum power consumption at 12 V DC: 120 mA
2 x AA batteries (not included)
