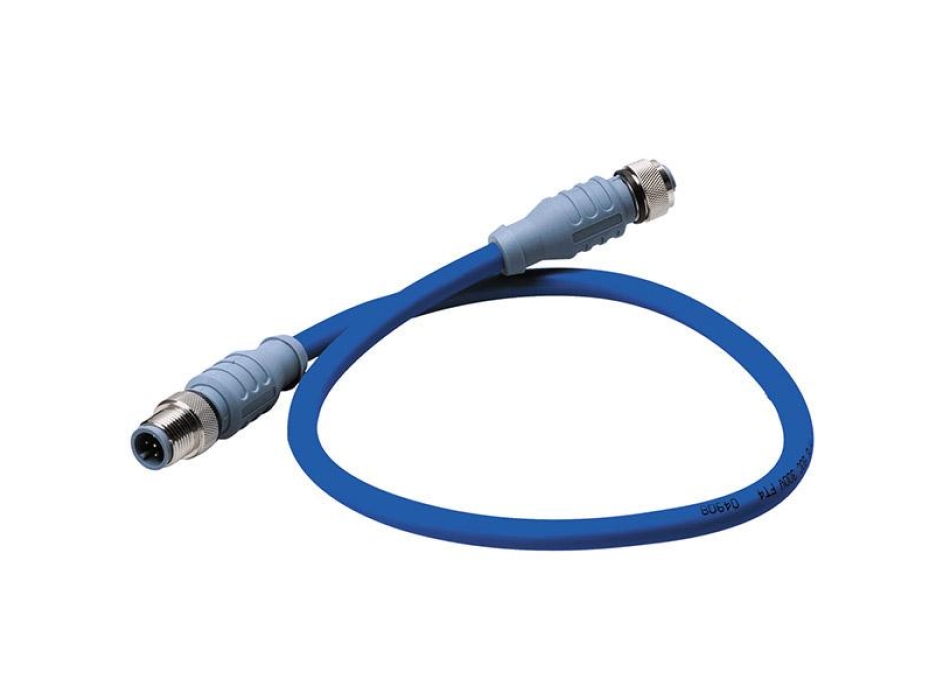

Maretron Mid Size NMEA2000 Cable Length 1m

(0)
€ 48,75 € 55,00 -11%
MARETRON MID SIZE NMEA2000 CABLE
Length 1m Male Female Connector (Blue)


Mid Double-Ended Cordset M to F
High performance NMEA2000 cable with die-cast male-female connector.
Double shielding suitable for NMEA 2000 backbones.
Maretron mid size blue cable.
Code DM-DB1-DF-01
TECHNICAL CHARACTERISTICS
  • Mat Coating/Color: PVC/Grey – DG1 PVC/Blue – DB1
  • Insulation material: PE (data cables), PVC (power cables)
  • Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG,
  • Shield Wire 20 (0.81 mm) AWG
  • Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)
  • Power supply pair Cable: 2x16 (1.29 mm) AWG
  • Resistance/Conductor: 4.1 Ohm/1000 ft max
  • Maximum amperage: 14 Amperes
  • Power Color Code: Red/Black
  • Data Pair Cable: 2x20 (0.81 mm) (AWG)
  • Characteristic impedance: 120 Ohm ± 10%
  • Capacitance: 10.75 pF/ft
  • Color Code Data: White/Blue
  • APPROVALS: PLTC 75°C sunlight resistant E90625, AWM 80°C 300V CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000® Approved
  • IEC: IEC-61162-3
