Garmin GPSMAP 8416 and 8416xsv
New 16" Touch Display version

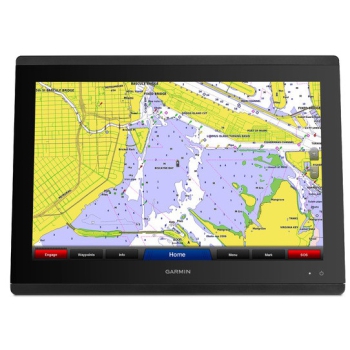

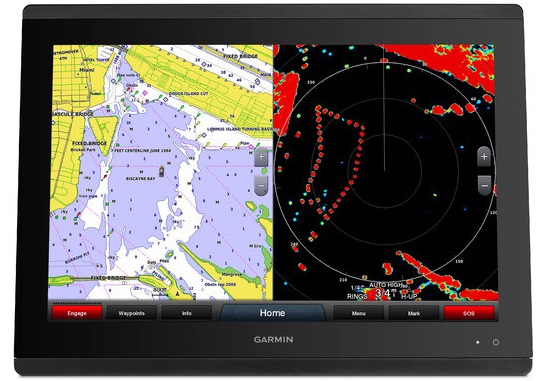

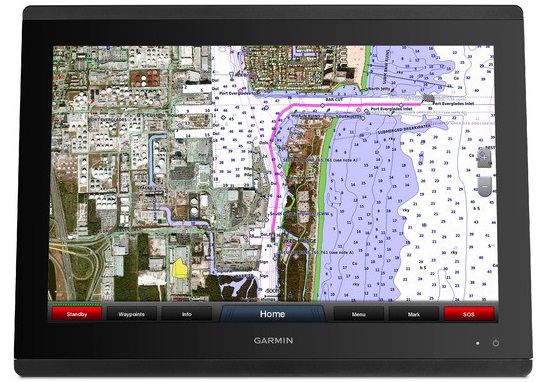

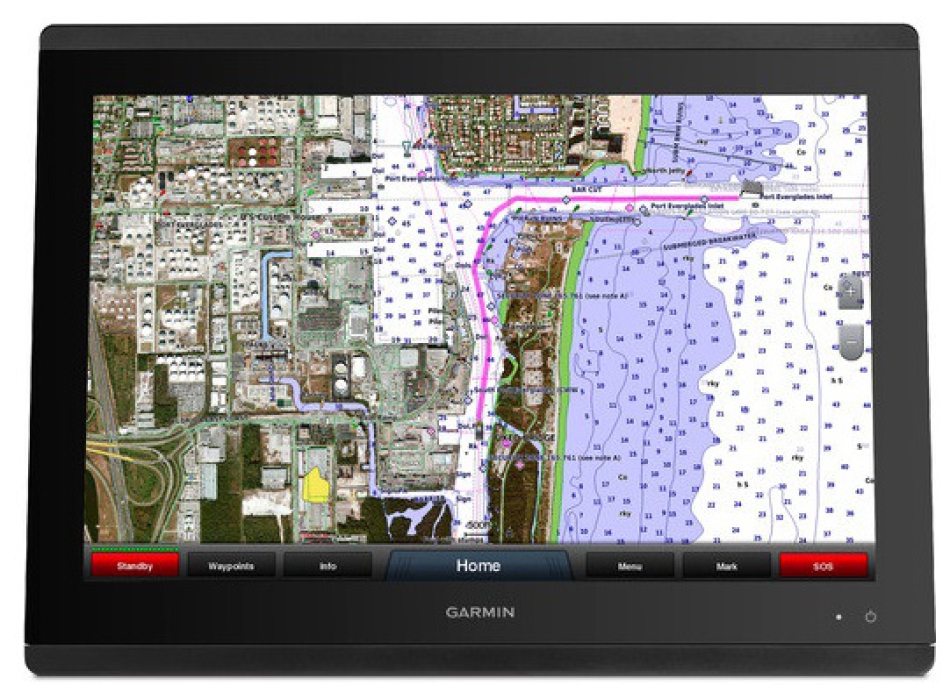

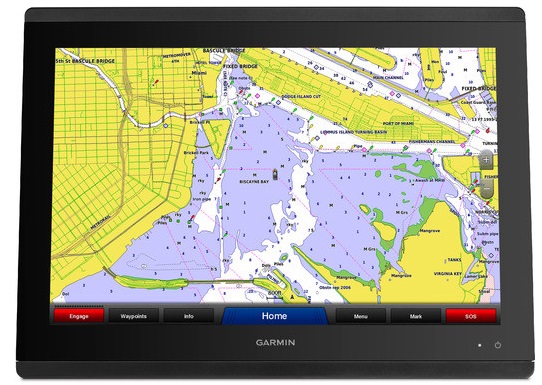

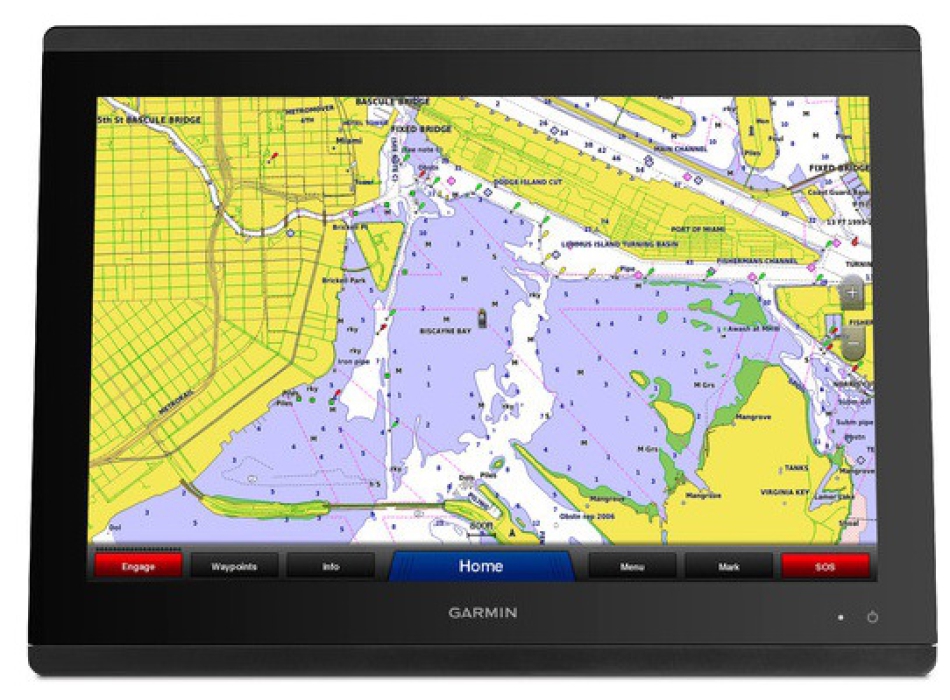

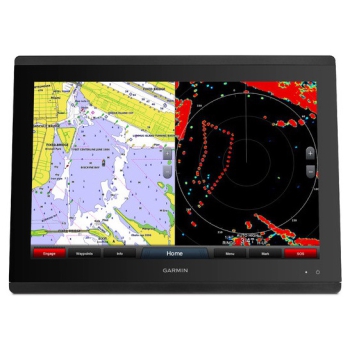

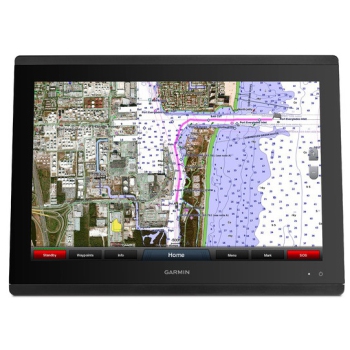

GPSMAP 8416 Chartplotter with 16" touchscreen and Full HD IPS (In-plane Switching) screen
Premium 16" Full HD widescreen multitouch display
Possibility of built-in or flush installation, for a wonderful super-technological crystal console
Built-in Wi-Fi® and ANT™ connectivity, 4 Ethernet ports, NMEA 2000® port, HDMI and USB port for total integration
Advanced Garmin SailAssist™ features for sailing
With SmartMode™ you can simultaneously change all the screens of the GPSMAP displays interfaced with each other to docking, cruising, fishing, anchoring and much more
A wonderfully powerful instrument, integrated 360°, enclosed in an ultra-clear 16" full HD touchscreen. You've never seen a display like this among onboard instruments. GPSMAP® 8416 is equipped with a high-performance processor to process cartography with unprecedented speed and allows you to customize screens, data and indicators. Everything is designed to allow the user to quickly access, with a single gesture, all the information they need in the most stressful situations, such as docking.
GPSMAP 8416XSV 16-inch touchscreen chartplotter/sonar combo with full HD in-plane switching (IPS) display
Premium 16" Full HD widescreen multitouch display
Integrated 1kW dual-channel CHIRP sonar module
Possibility of built-in or flush installation, for a wonderful super-technological crystal console
Built-in Wi-Fi® and ANT™ connectivity, 4 Ethernet ports, NMEA 2000® port, HDMI and USB port for total integration
Advanced Garmin SailAssist™ features for sailing
With SmartMode™ you can simultaneously change all the screens of the GPSMAP displays interfaced with each other to docking, cruising, fishing, anchoring and much more
A wonderfully powerful instrument, integrated 360°, enclosed in an ultra-clear 16" full HD touchscreen: you've never seen a display like this among onboard instruments. GPSMAP® 8416xsv is equipped with a high-performance processor to process cartography with unprecedented speed and allows you to customize screens, data and indicators. Everything is designed to allow the user to quickly access, with a single gesture, all the information they need in the most stressful situations, such as docking.
GPSMAP® 8416xsv integrates the most advanced sonar features available on the market, thanks to the integrated dual-channel CHIRP module with ClearVü-SideVü functions.
The complete CHIRP fishfinder
GPSMAP® 8416xsv combines three distinct sonar technologies—CHIRP, ClearVü CHIRP, and SideVü CHIRP—in a single instrument. These three sonar modes, when combined, provide the highest performance for identifying everything below and to the sides of your boat. It also supports the entire family of Panoptix™ sonar systems (transducers sold separately).
Create your own integrated system
By connecting the GPSMAP® 8416 to the Garmin Marine Network, you can view data from onboard instruments such as radar, autopilots, sonar modules, multimedia devices (FUSION-Link), thermal imaging, GRID and much more on your display. GPSMAP® 8416 also allows you to share information with other compatible GPSMAP units, such as maps and user data, including waypoints, routes and tracks. This means that user data entered can be automatically synchronized with other chartplotters on the network.
Connectivity without limits
The new GPSMAP® 8416 chartplotter integrates seamlessly with a variety of onboard instruments thanks to built-in Wi-Fi® and ANT+ connectivity, 4 Ethernet ports, NMEA 2000 networking, HDMI port, USB port and much more. It is also compatible with FLIR video cameras. Built-in Wi-Fi technology lets you use the free ActiveCaptain® app for access to OneChart™, Smart Notifications1, Garmin Quickdraw™ community data and much more. You can also control streaming video playback from the GC™ 100 wireless video camera and VIRB® action cameras. Plus, built-in ANT wireless technology lets you directly connect to the quatix® watch, gWind™ Wireless 2 transducer and wireless remotes.
Digital Switching
A completely new interface for managing MasterBus and Czone onboard networks. You can start engines, activate pumps, turn on underwater lights, and monitor warning lights directly from the chartplotter screen, all thanks to an intuitive and easy-to-use graphical interface.
The best of Garmin and the best of Navionics®
The new GPSMAP® 8416 display is compatible with the latest
Garmin BlueChart® g3 and BlueChart® g3 Vision cartography, which integrates BlueChart data with Navionics data to offer the best cartography ever. This new cartography also includes Auto Guidance technology, which helps you avoid hazards and obstacles by planning safe routes to destinations you set based on your vessel’s characteristics 2.
Take control from the comfort of your seat
No more standing at the helm for hours. The optional, intuitive GRID™ 20 remote control provides remote access and ultimate control of your entire onboard Garmin system. It includes a 360-degree joystick, rotary dial and push-to-select button for easy navigation and precise control of chartplotter menus and settings, even in rough seas.
Regatta functions
The new GPSMAP® 8416 chartplotter has a useful feature dedicated to sailors and regatta competitors. Thanks to SailAssist™, you can see the right moment to tack or gybe on the screen, simultaneously view apparent and true wind angle, monitor tides and currents, view your heading and course simultaneously, activate pre-race guidance to cross the starting line at the right time and with maximum speed, and keep an eye on the wind with intuitive graphs.
Make your boat smart
Use the new ActiveCaptain™ app to connect your Garmin Marine chartplotter to your mobile network and make your boat smart. ActiveCaptain™ is free and will allow you to get the most out of your onboard instruments.
