Garmin gWind Racing Masthead Transducer

(0)
  • Code: 010-01228-00
  • Brand : Garmin
€ 1.229,00 € 1.369,00 -10%

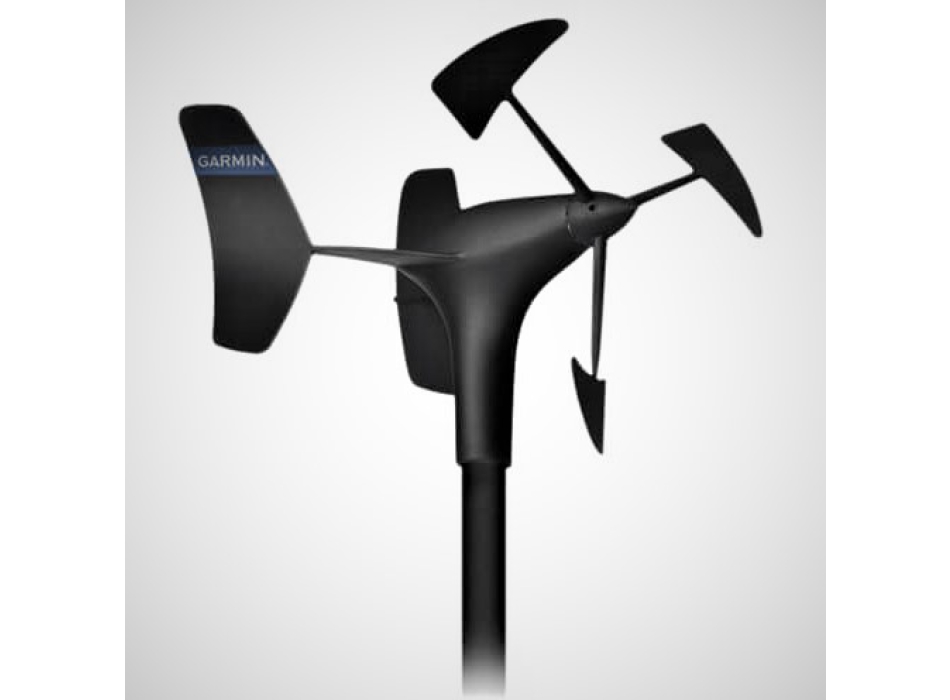

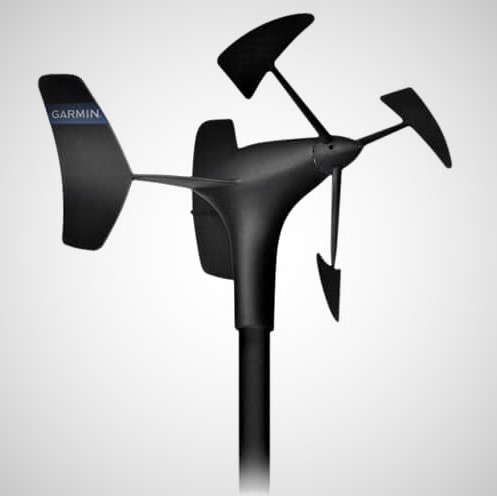

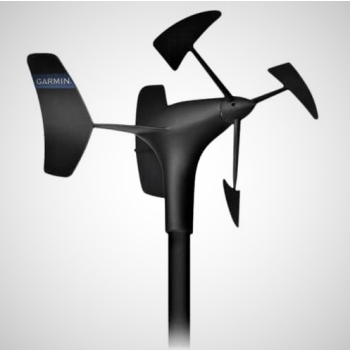

GWind Masthead Transducer
From Regatta

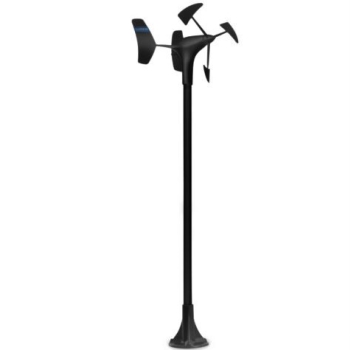

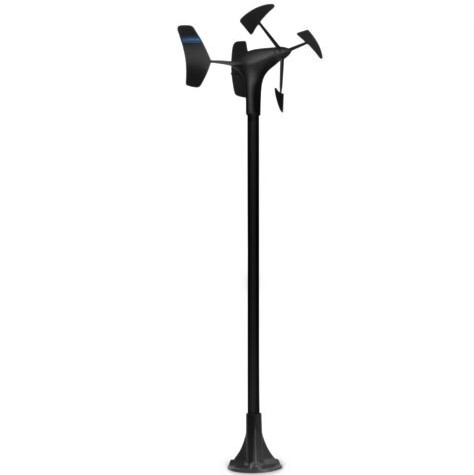

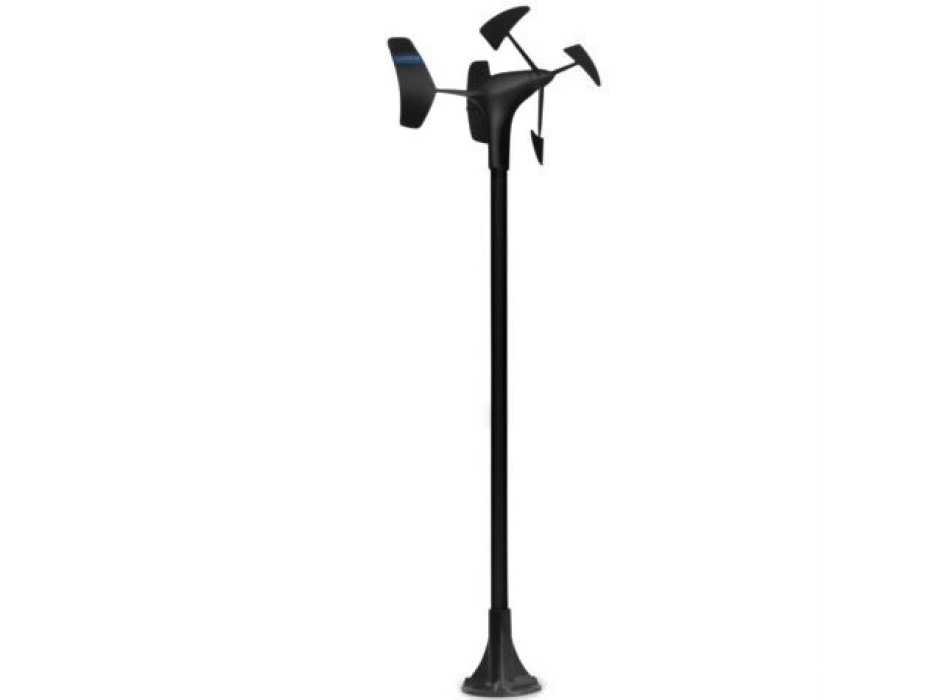

Designed for racing boats, gWind Regata includes a 1 meter rod to position the transducer above the mast and remove errors caused by turbulence. Thanks to the front wind detection for more accurate data in light wind conditions, it offers more reliable data. This type of transducer, unlike the cup transducer, guarantees greater efficiency.

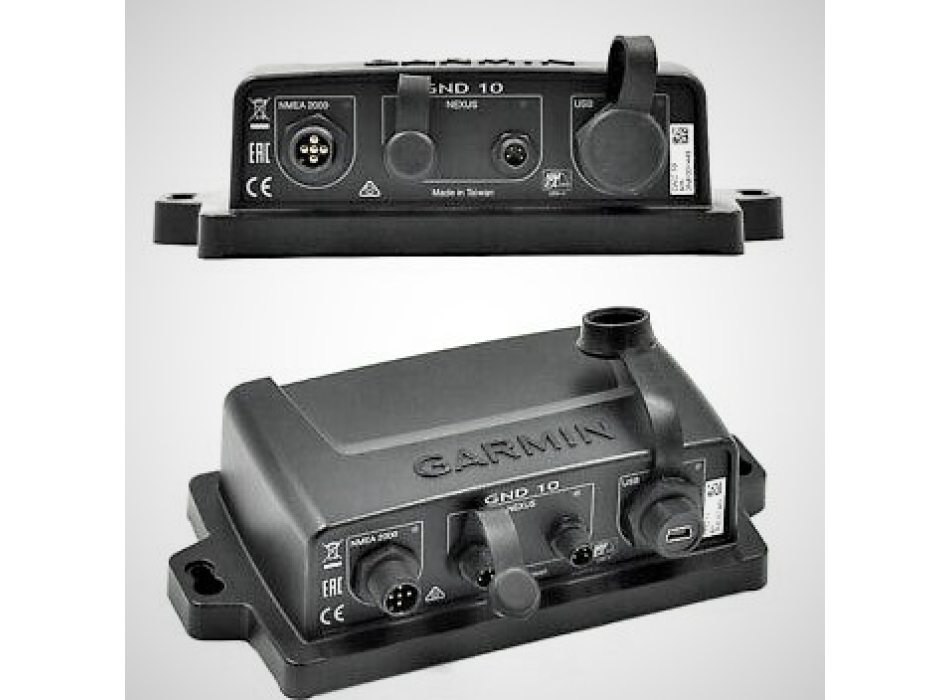

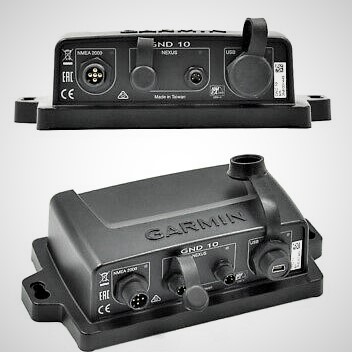

Combined with optical reading, this transducer offers superior accuracy at low wind speeds. All units are connected using our lightest cable. An integral part of the system is the GHD 10, a plug-and-play black box that converts Nexus Network data into NMEA 2000, thus allowing Garmin users to use Nexus instrumentation and vice versa.

IN THE BOX
  • GWind Race transducer
  • GND 10
  • Mini-B USB cable
  • NMEA 2000 drop cable (2 m)
  • NMEA 2000 T connector
  • Shaft cable with female connector (25 m)
  • Nexus network cable (5 meters; straight connector)
  • Female connector (Nexus)
  • Bracket for mast
  • Installation kit
  • Documentation
TECHNICAL SPECIFICATIONS
  • Unit size, A: H = 1.18m
  • Weight: 320 grams
  • Cable length: 25m
  • Waterproof: (IPX6)
  • Temperature range: -15 ° C to 70 ° C (5 ° F to 158 ° F)
  • Voltage: 9-16V
  • Power Consumption: 0.33W
  • Accuracy angle: better than ± 1.5 °
  • Speed: better than ± 3%
  • NMEA 2000® Load Equivalency Number (LEN): N / A
  • Wireless connectivity: no
Transducers, Sensors
Products that may be of interest to you

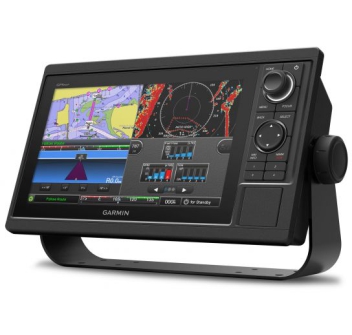

Garmin gpsmap 1022 multifunction display 10 " Painestore
- 10%
Garmin gpsmap 1022 multifunction display 10 "
starting from € 1.699,00 € 1.889,00

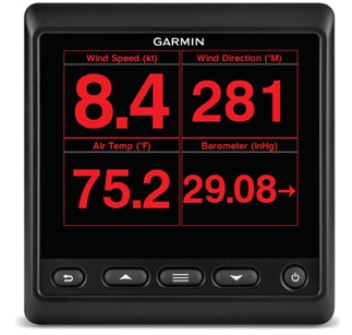

Garmin Display GMI 20 4 " Painestore
- 10%
Garmin Display GMI 20 4 "
€ 539,00 € 599,00

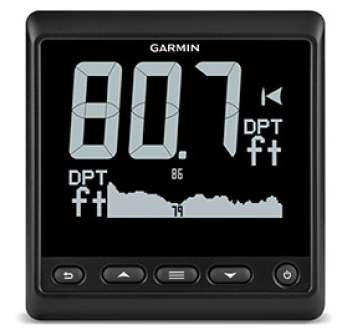

Garmin Display GNX 21 Reverse B / W 4 " Painestore
- 10%
Garmin Display GNX 21 Reverse B / W 4 "
€ 429,00 € 479,00
Garmin Display GNX 120 Display Maxi 7 " Painestore
- 10%
Garmin Display GNX 120 Display Maxi 7 "
€ 854,00 € 949,00

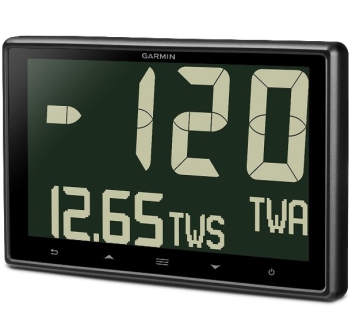

Garmin Display GNX 130 Display Maxi 10 " Painestore
- 10%
Garmin Display GNX 130 Display Maxi 10 "
€ 1.419,00 € 1.579,00

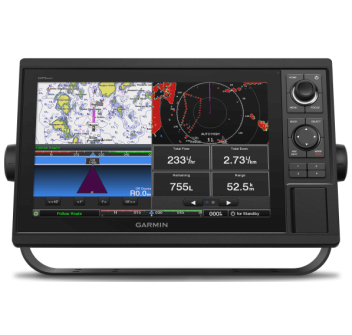

Garmin gpsmap 1222 multifunction display 12 " Painestore
- 10%
Garmin gpsmap 1222 multifunction display 12 "
starting from € 2.455,00 € 2.729,00

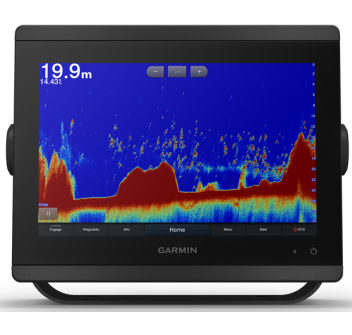

Garmin GPSMAP 8410 Display 10 " Painestore
- 10%
Garmin GPSMAP 8410 Display 10 "
starting from € 2.645,00 € 2.939,00
Garmin GPSMAP 8412 Display 12 " Painestore
- 10%
Garmin GPSMAP 8412 Display 12 "
starting from € 3.679,00 € 4.099,00
Garmin GPSMAP 8416 Display 16 " Painestore
- 10%
Garmin GPSMAP 8416 Display 16 "
starting from € 5.669,00 € 6.299,00

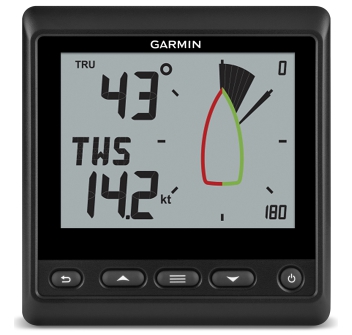

Garmin GNX Wind Display Painestore
- 10%
Garmin GNX Wind Display
€ 519,00 € 579,00
Garmin echoMAP UHD 72CV eco / plotter 7 " Painestore
- 26%
Garmin echoMAP UHD 72CV 7" eco/plotter
starting from € 699,00 € 949,00
Garmin gpsmap 1223xsv Radar Pack Painestore
- 10%
Garmin gpsmap 1223xsv Radar Pack
€ 4.589,00 € 5.100,00

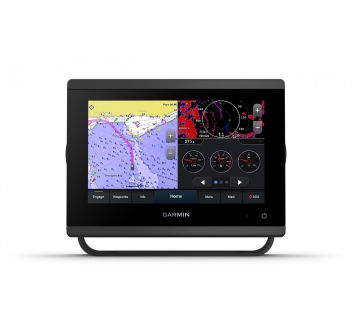

Garmin gpsmap 723 multifunction display 7 " Painestore
- 10%
Garmin gpsmap 723 multifunction display 7 "
€ 939,00 € 1.049,00

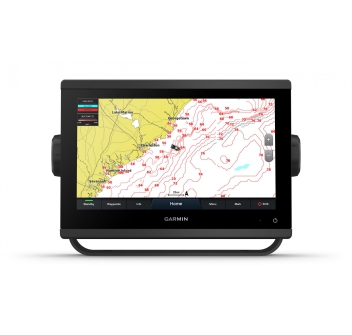

Garmin gpsmap 923 multifunction display 9 " Painestore
- 10%
Garmin gpsmap 923 multifunction display 9 "
€ 1.419,00 € 1.579,00
Garmin gpsmap 1223 multifunction display 12 " Painestore
- 10%
Garmin gpsmap 1223 multifunction display 12 "
€ 2.744,00 € 3.049,00

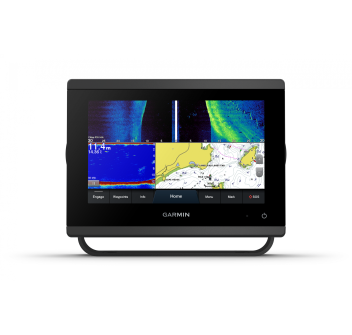

Garmin gpsmap 723XSV eco / GPS multifunction display 7 " Painestore
- 10%
Garmin gpsmap 723XSV eco / GPS multifunction display 7 "
€ 1.129,00 € 1.259,00

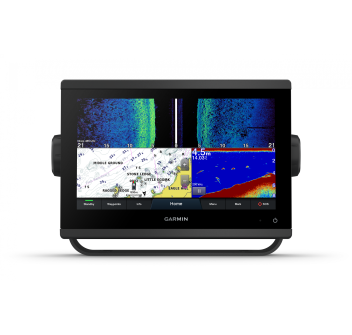

Garmin gpsmap 923XSV eco / GPS multifunction display. 9 " Painestore
- 10%
Garmin gpsmap 923XSV eco / GPS multifunction display. 9 "
€ 1.609,00 € 1.789,00

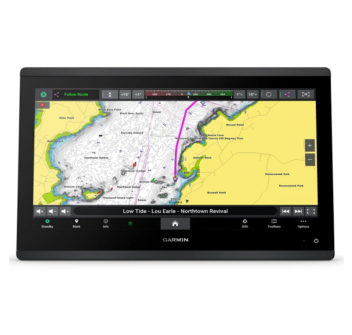

Garmin gpsmap 1223XSV eco / GPS multifunction display. 12 " Painestore
- 10%
Garmin gpsmap 1623XSV eco/GPS multif display. 16"
€ 5.130,00 € 5.700,00

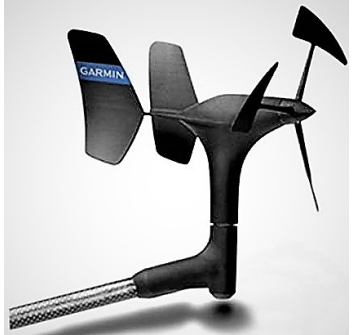

Garmin Replacement Wind Transducer Only gWind Painestore
- 10%
Garmin Masthead gWind without cable
€ 413,00 € 457,85

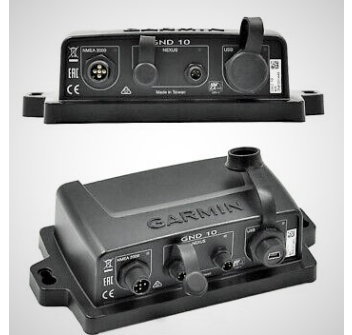

Garmin GND 10 Black Box For Vento gWind Painestore
- 10%
Garmin GND 10 Black Box For Vento gWind
€ 161,00 € 179,00
Garmin Wind cables gWind 25/40 mt Painestore
- 9%
Garmin Wind cables gWind 25/40 mt
starting from € 63,00 € 69,00

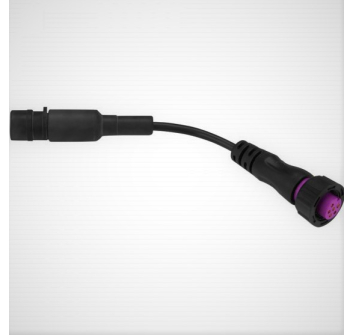

Garmin gWind Nexus Connector Adapter Painestore
