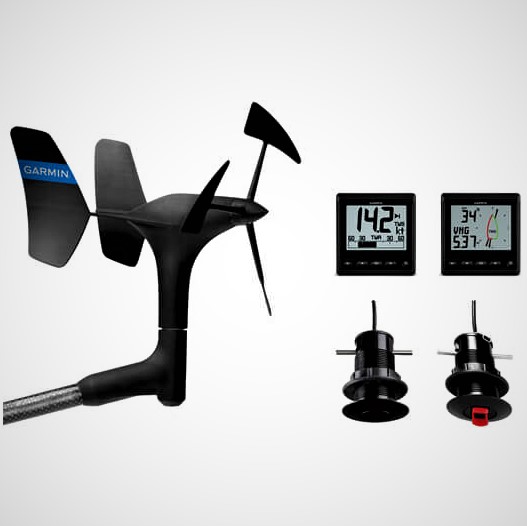

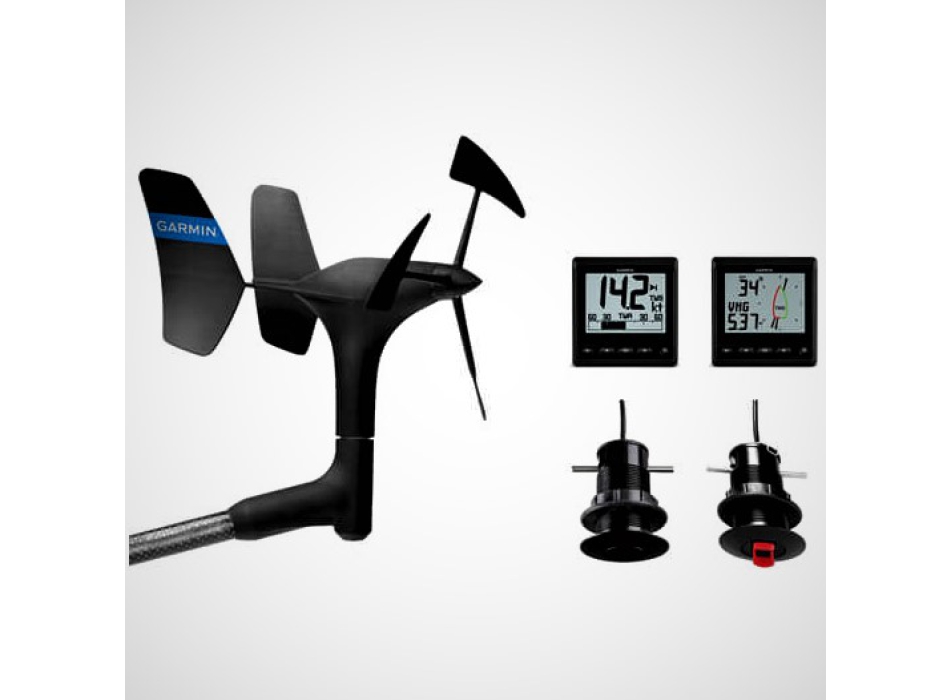

Garmin gWind GNX Pack 43

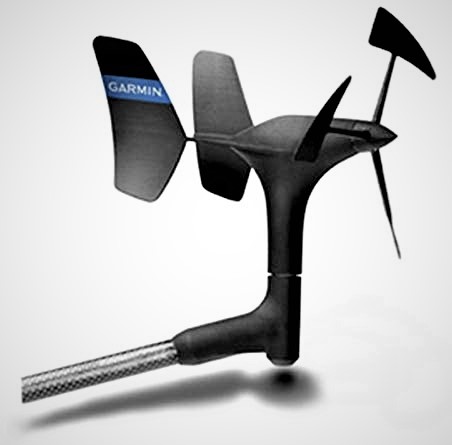

GWind transducer (with 25mt cable)
The gWind transducer, thanks to the front wind detection, provides more precise data in light wind conditions, while the dual direction stabilizer offers more reliable data. This type of transducer, unlike traditional models, guarantees greater efficiency. Combined with optical reading, this transducer offers superior accuracy at low wind speeds.

• GWind transducer with 25 meters of cable
• GNX ™ 20 display
• GNX Wind display

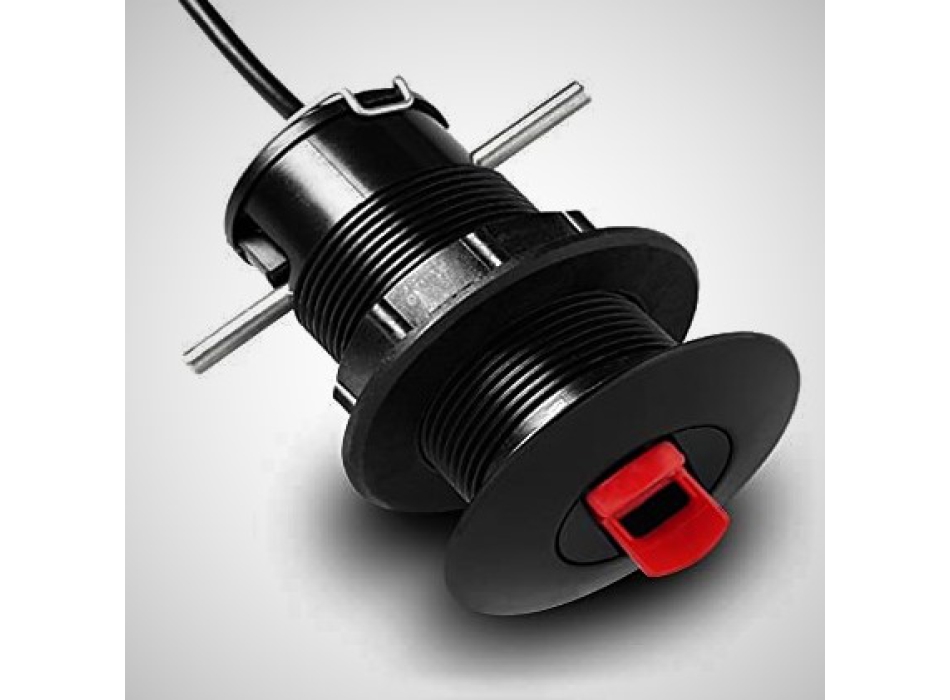

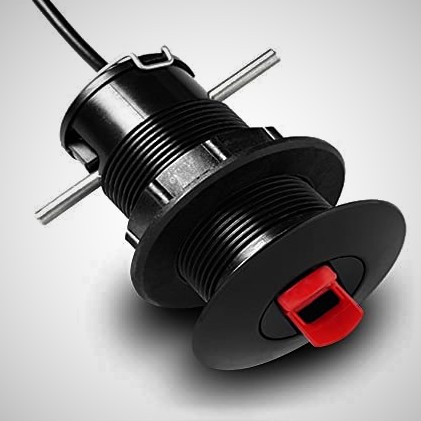

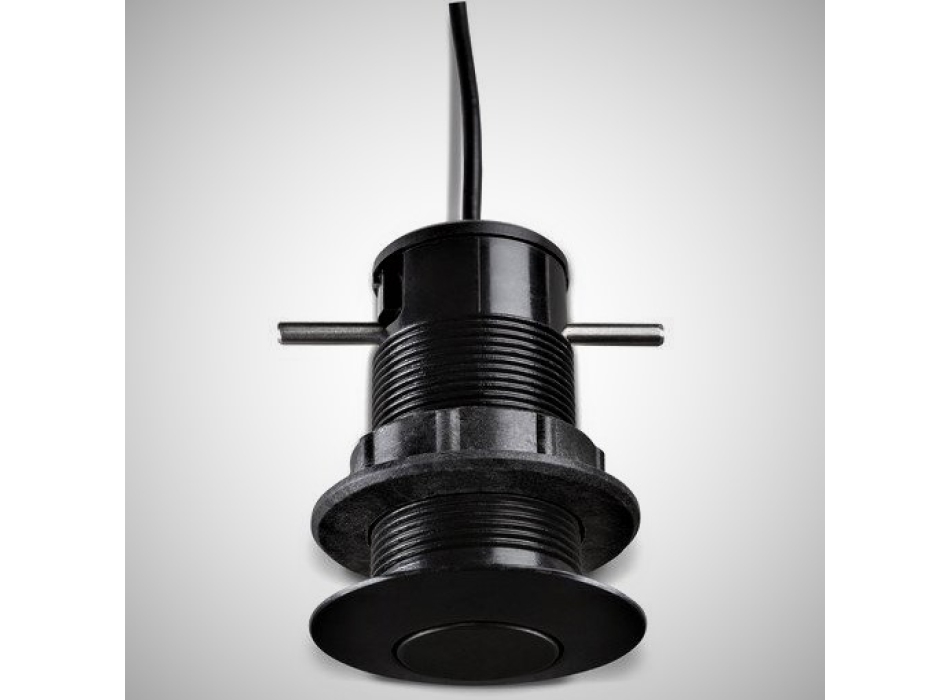

• GDT ™ 43 with NMEA 2000® adapter

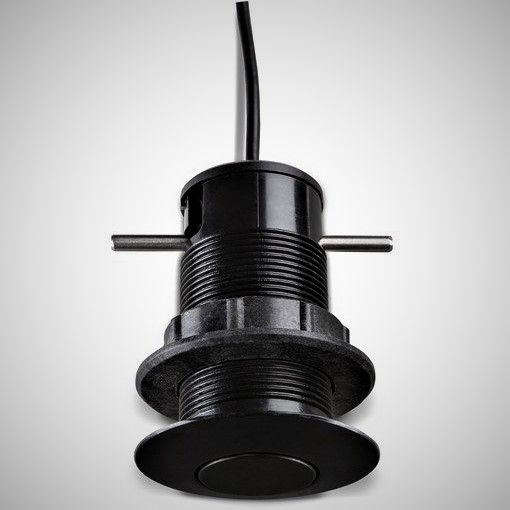

• GST ™ 43 with GST 10
• NMEA 2000 cable (2 meters)
• NMEA 2000 T connector
• Female connector that can be installed on Nexus
• Bracket for mast
• Mounting components
• Documentation

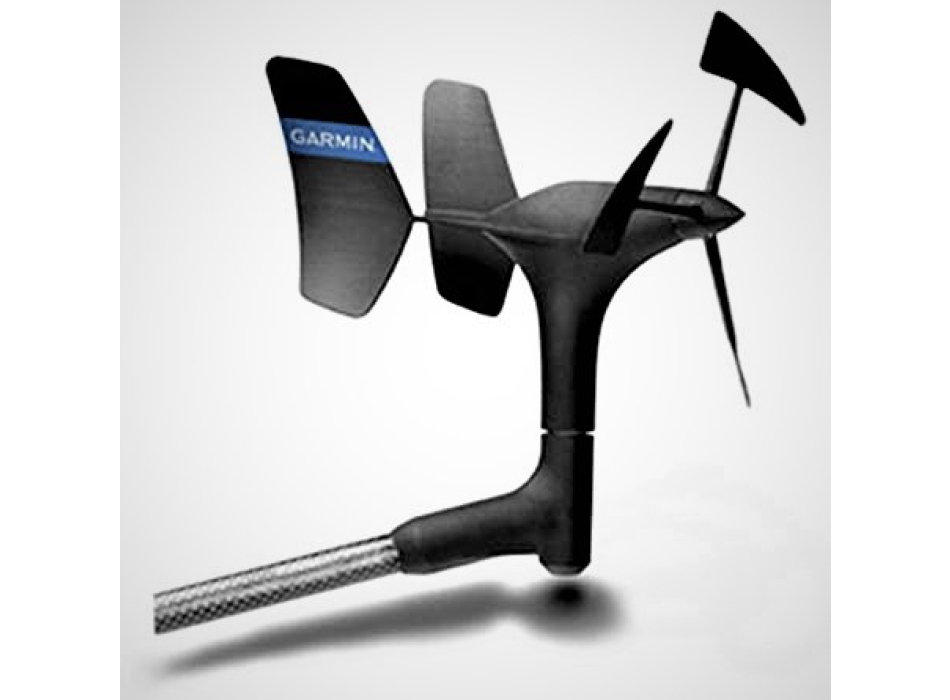

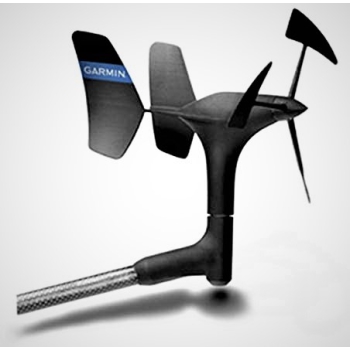

GWind transducer

• Unit size, WxH: 345mm x 610mm
• Weight: 260 g
• Cable length: 25m
• Waterproof: (IPX6¹)
• Temperature: -15 ° C to 70 ° C
• Storage temperature: -20 ° C to 80 ° C
• Voltage: 9-16V
• Power Consumption: 0.33W
• Typical power consumption at 12 V DC: 28 mA
• Accuracy angle: more than ± 1.5 °
• Speed: more than ± 3%
• Wind speed range: 0, 8-90 knots (0, 4-50 m / s)
• NMEA 2000® Load Equivalency Number (LEN): N / A
• Wireless connectivity: no

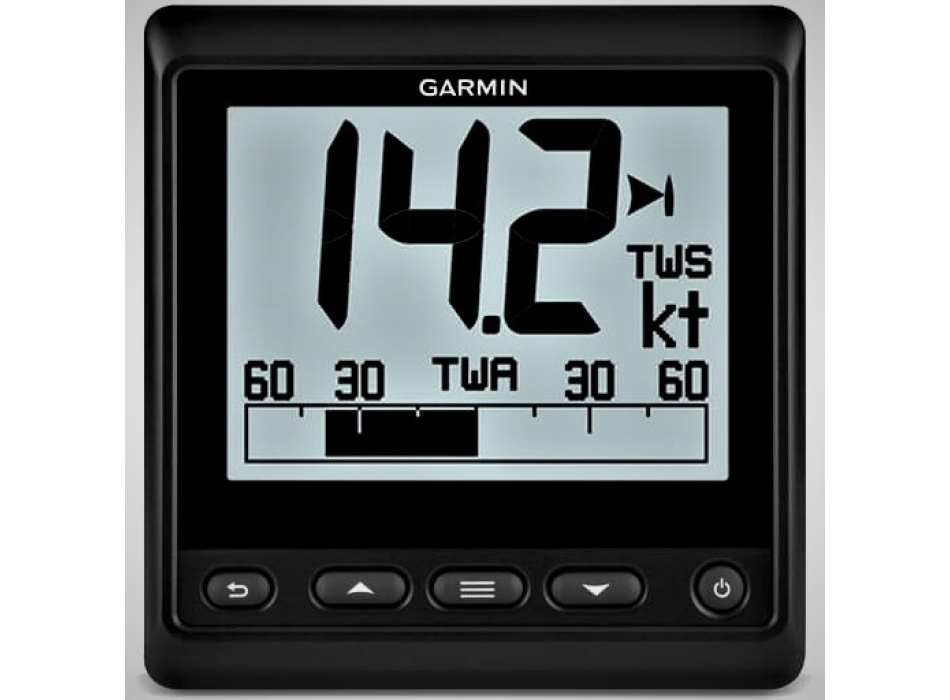

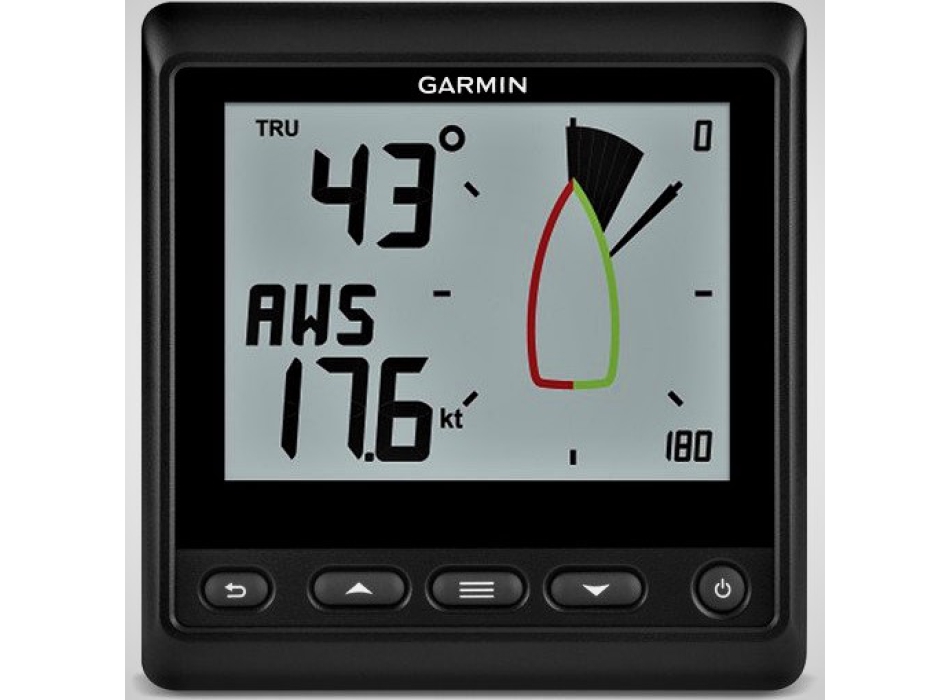

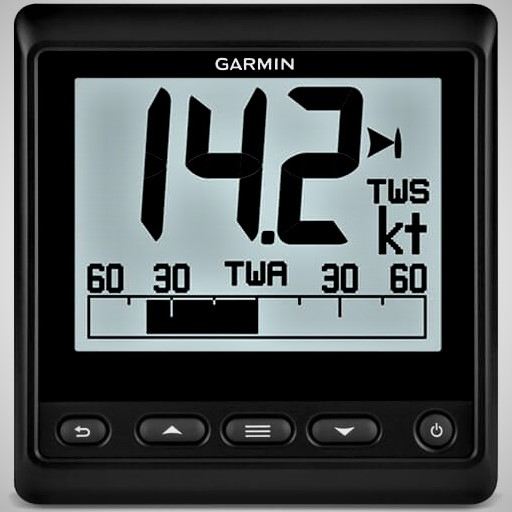

GNX Wind display:

• Physical dimensions: 110 x 115 x 30 mm
• Screen size, WxH: 83 x 60 mm; 101.6 mm diagonal
• Weight: 230 g
• Waterproof classification: IPX7
• NMEA 2000 certification
• Power Consumption: 0.35W (day); 0.4 W (night)
• Voltage: 9-16V (from NMEA 2000)
• Mounting options: recessed or flush
• Operating temperature: -15 ° to 70 ° C (5 ° to 158 ° F)
• Compass safety distance: 209 mm

GNX 20 display:

• Physical dimensions: 110 x 115 x 30 mm
• Screen size, WxH: 83 x 60 mm; 101.6 mm diagonal
• Screen resolution: 320 x 240 pixels
• Weight: 247 g
• Waterproof classification: IPX7
• NMEA 2000 Certification: Yes
• Power Consumption: Maximum 2.5W
• Voltage: 9-16V (from NMEA 2000)
• Mounting options: recessed or flush
• Operating temperature: -15 ° to 70 ° C (5 ° to 158 ° F)
• Compass safe distance: 209 m m

• GNX INSTALLATION MANUAL ENG (891,28 KB)
• INSTALLATION MANUAL gWIND ING. (4,89 MB)
• GTS43 INSTALLATION MANUAL (714,02 KB)
• GND 10 INSTALLATION MANUAL ENG. (297,62 KB)
• INSTALLATION MANUAL GNX 20/21 ENG (1,35 MB)
