Garmin gWind Wireless Pack with GNX20 and GNX Wind

The information you need to surf safely

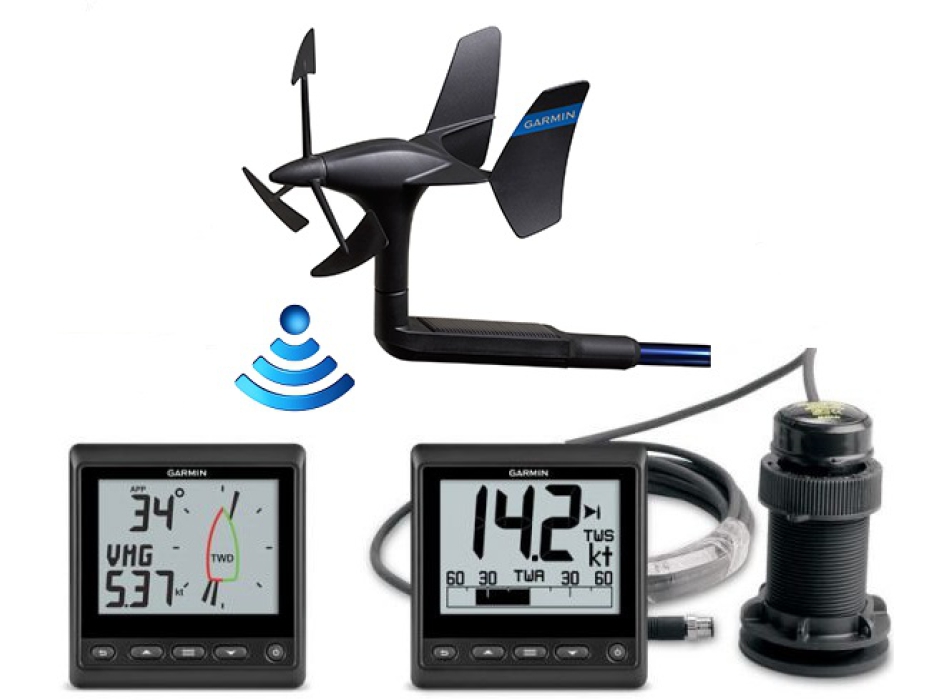

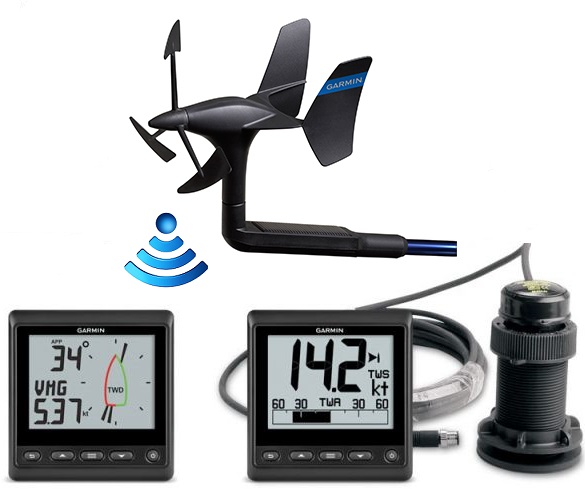

Includes GNX™ Wind Display, GNX™ 20 Display, gWind™ Wireless 2 Transducer, and DST810 Smart Transducer
The glass-bonded screen prevents condensation and increases contrast.
The gWind Wireless 2 transducer is easy to install and eliminates the need for cables inside the mast
The DST800 transducer provides depth, speed and water temperature data
Quick and easy plug-and-play installation

GNX™ Wind Display
Multifunction instrument dedicated to sailing boats that allows you to simultaneously display 4 data fields, including true wind, apparent wind, Steer Pilot, boat speed, depth and many other essential information for navigation.
This multifunction instrument features a 4” monochrome display with black digits on a white background and a glass-bonded screen, which prevents condensation and increases contrast, improving visibility in any lighting conditions.



gWind™ Wireless 2 Transducer
The gWind Wireless 2 transducer offers an easy-to-install solution and eliminates the need for cables inside the mast. Dedicated radio signals are sent via an ANT® connection directly to a GNX™ Wind display or compatible Garmin GPSMAP® 8400 or GPSMAP 7400 series chartplotters.
The gWind Wireless 2 transducer, thanks to its forward-facing wind sensing, provides more accurate data in light wind conditions, while the double directional stabilizer offers more reliable data. This type of transducer, unlike cup-shaped transducers, guarantees greater efficiency. Combined with optical reading, this transducer offers superior accuracy at low wind speeds. The integrated solar panel recharges the internal batteries for up to 3 years and is easy to replace.



GNX™ 20 Display
This 4" monochrome display with black digits provides high contrast for clear visibility in any lighting conditions and at any reading angle. The GNX 20 is the first glass-bonded LCD display with three different data fields. Fully customizable profiles allow you to view the layout of over 50 data pages. The auto-scroll function allows you to view only the data you're interested in.



Packaging
gWind Wireless 2 Transducer
GNX™ Wind Display
GNX™ 20 Display
DST810 Transducer
2m NMEA 2000 cable
NMEA 2000 T-Connectors and Terminators
Installation kit
NiMH battery
Instructions

gWind Wireless 2 Transducer
Unit size, WxH: 345 mm x 610 mm
Weight: 350 g
Waterproof: Yes (IPX6¹)
Operating Temperature: -15° to 70°C (5° to 158°F)
Power consumption: battery (rechargeable via solar panel)
Angle accuracy: better than ±1.5°
Speed: better than ±3%
Wind speed range: 0.8-90 knots (0.4-50 m/s)
Wireless connectivity: yes
¹Protection in very rough seas

GNX Wind Display:
Physical dimensions: 110 x 115 x 30 mm
Screen size, WxH: 83 x 60 mm; 101.6 mm diagonal
Weight: 230 g
Waterproof rating: IPX7
NMEA 2000 certification: yes
Power consumption: 0.35W (day); 0.4W (night)
Voltage: 9-16V (from NMEA 2000)
Mounting options: flush or recessed
Operating temperature: 5° to 158°F (-15° to 70°C)
Compass safety distance: 209 mm

GNX 20 Display:
Physical dimensions: 110 x 115 x 30 mm
Screen size, WxH: 83 x 60 mm; 101.6 mm diagonal
Screen resolution: 320 x 240 pixels
Weight: 247 g
Waterproof rating: IPX7
NMEA 2000 certification: yes
Power consumption: maximum 2.5W
Voltage: 9-16V (from NMEA 2000)
Mounting options: flush or recessed
Operating temperature: -15° to 70°C (5° to 158°F)
Compass safety distance: 209 mm
