Garmin gWind Pack with GNX 20 and GNX Wind

The information you need to make decisions with complete confidence

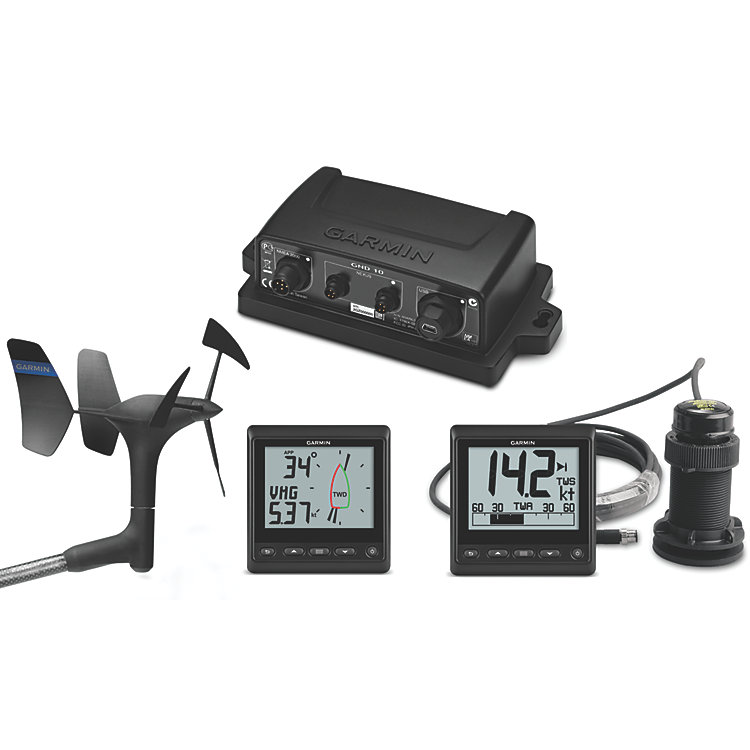

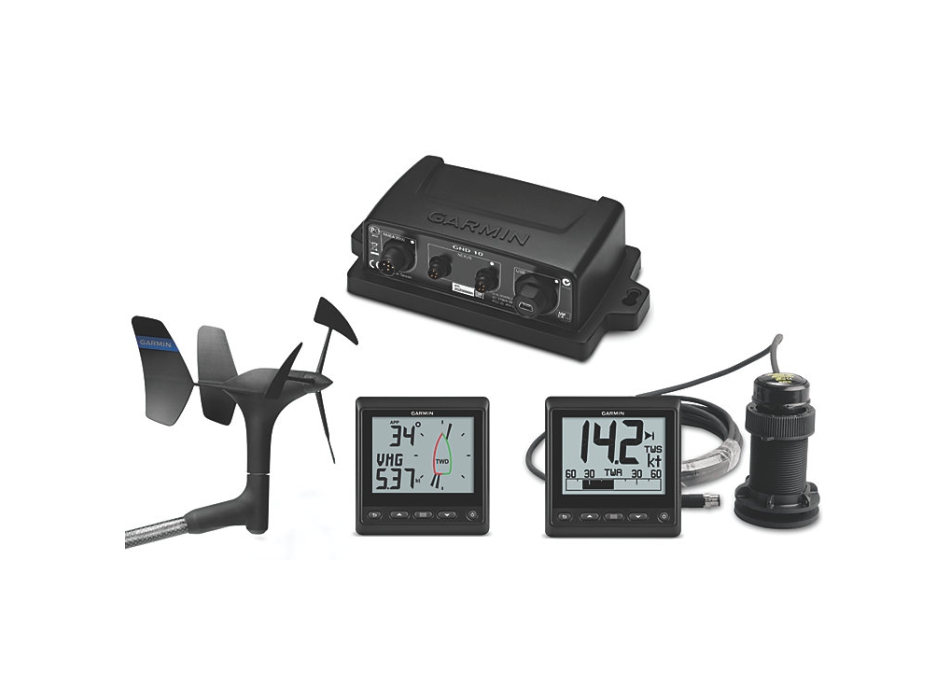

Includes GNX Wind multifunction display, gWind™ wired transducer, GNX™ 20, and Airmar® DST810 transducer
GNX Wind and GNX 20 are monochrome LCD displays that offer maximum visibility
The wired gWind transducer includes twin-fin technology with a 3-blade propeller
The intuitive DST810 thru-hull transducer provides depth, speed and water temperature data, plus a trim/stall and roll/pitch sensor
Wireless connectivity with Bluetooth® enabled devices allows calibration of the DST810 transducer directly through the Airmar Cast app
Simplified plug-and-play installation between Nexus®, Garmin chartplotters, NMEA 2000® and USB

Acquire wind and water data
With a GNX Wind Wired Sail Pack, you have all the tools you need to understand wind and water data.

GNX Wind Nautical Display
GNX Wind provides wind data that helps you make confident decisions. It features a monochrome, backlit glass LCD display for maximum visibility and customizable backlight colors. It also interfaces via NMEA 2000 to simultaneously display two data fields and a digital compass rose to show true and apparent wind data, steering instructions, boat speed, and more. Low power consumption of 350 mW during the day (without backlighting) and 400 mW at night (with medium-level backlighting) is ideal for use on sailboats. Fully customizable user profiles allow you to configure the screen layout just the way you want. Display configurations include more than 15 key marine parameters for wind, speed, and navigation. You can also connect wirelessly to a quatix® 3 marine GPS smartwatch via ANT technology to view wind data right on your wrist.

gWind Wired Transducer
The gWind transducer features twin-fin technology with a 3-blade propeller for more accurate TWS data in light winds, while the twin-fin design provides more reliable TWA data. The three-blade propeller, unlike cup-type propellers, is always efficient. Combined with optical readout, this transducer offers superior accuracy at low wind speeds and excellent linearity.

GNX 20 Marine Display
The easy-to-read GNX 20 marine display with black data on a white or color background clearly shows water depth, boat speed, water temperature and over 50 nautical and vessel-related parameters. The bonded glass display with anti-reflective lens coating offers excellent readability day or night, with high-contrast digits modular up to 36 mm.

Airmar DST810 Smart Thru-Hull Transducer
The DST810 combines precise depth, speed, and temperature data with a trim/stall and roll/pitch sensor, which it then delivers to the NMEA 2000® network and GNX 20 display. This multi-sensor transducer can read depths up to 330 feet (100 meters), offers fast 5 Hz water speed output, and boasts a 235 kHz operating frequency with a 10 x 44-degree fan beamwidth. Additionally, wireless connectivity with BLUETOOTH®-enabled devices allows calibration of the DST810 transducer directly through the Airmar Cast app. Advanced speed calibration allows calibration at multiple speeds and heel angles.


Packaging
GNX Wind Transducer
GNX 20 Display
GNX Wind
GND 10
DST800 Transducer
GNX Wind Display
2m NMEA 2000 cable
NMEA 2000 T-Connectors and Terminators
Installation kit
NiMH battery
Documentation

Specifications

Unit size, WxH: 345 mm x 610 mm
Weight: 350 g
Cable length: N/A
Waterproof: Yes (IPX6¹)
Operating temperature: -15°C to 70°C
Storage temperature: -20°C to 80°C
Voltage: N/A
Energy consumption: solar energy
Typical power consumption at 12 VDC: N/A
Compass safe distance: N/A
Angle accuracy: better than ±1.5°
Speed: greater than ±3%
Wind speed range: 0.8-90 knots (0.4-50 m/s)
NMEA 2000® Load Equivalency Number (LEN) Number: N/A
Wireless connectivity: yes
