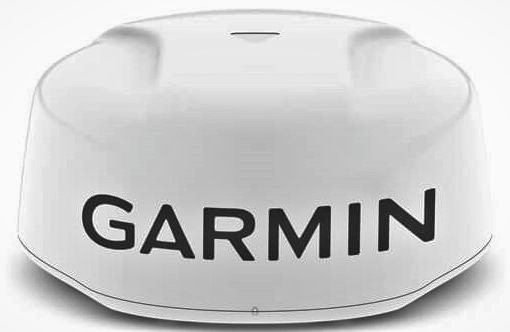

Garmin GMR 24x Fantom Radar Antenna

(0)
  • Code: 010-02585-00
  • Brand : Garmin
starting from € 2.679,00 € 3.149,00 -15%

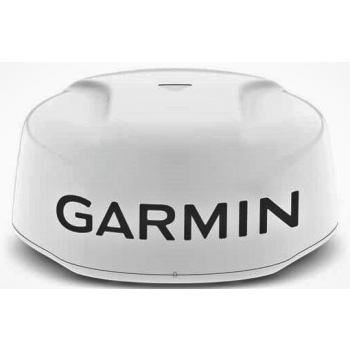

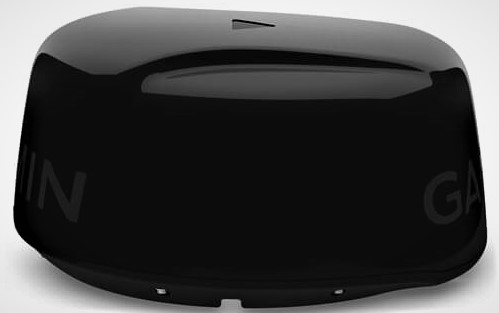

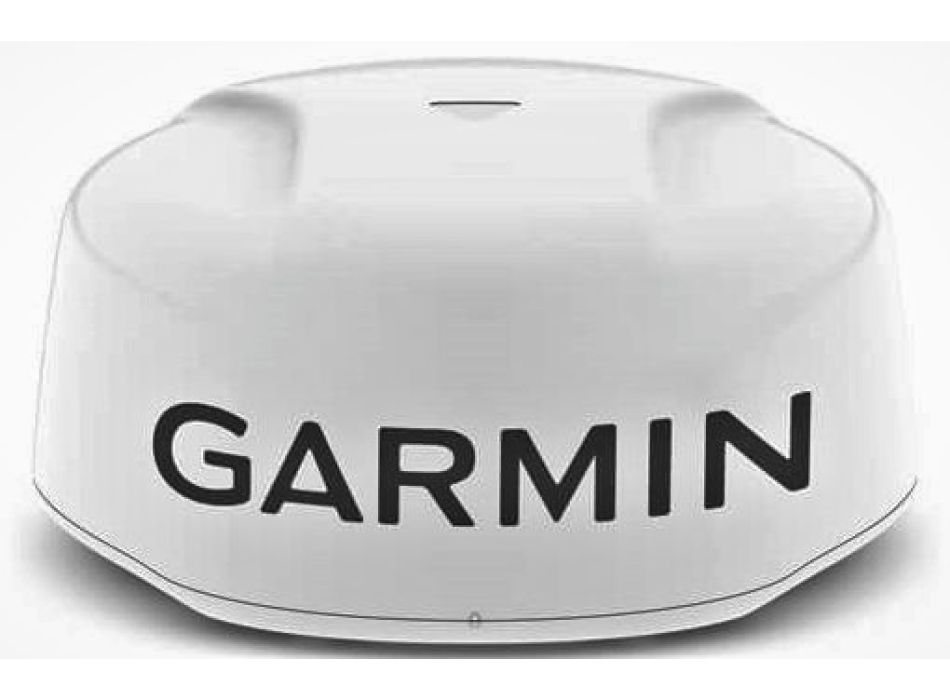

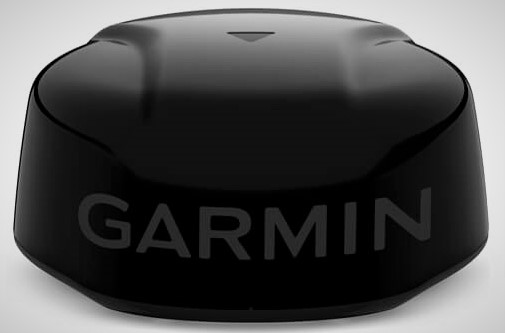

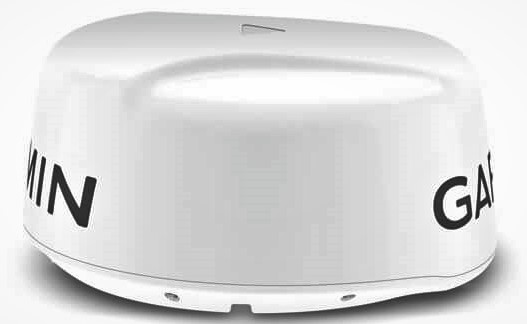

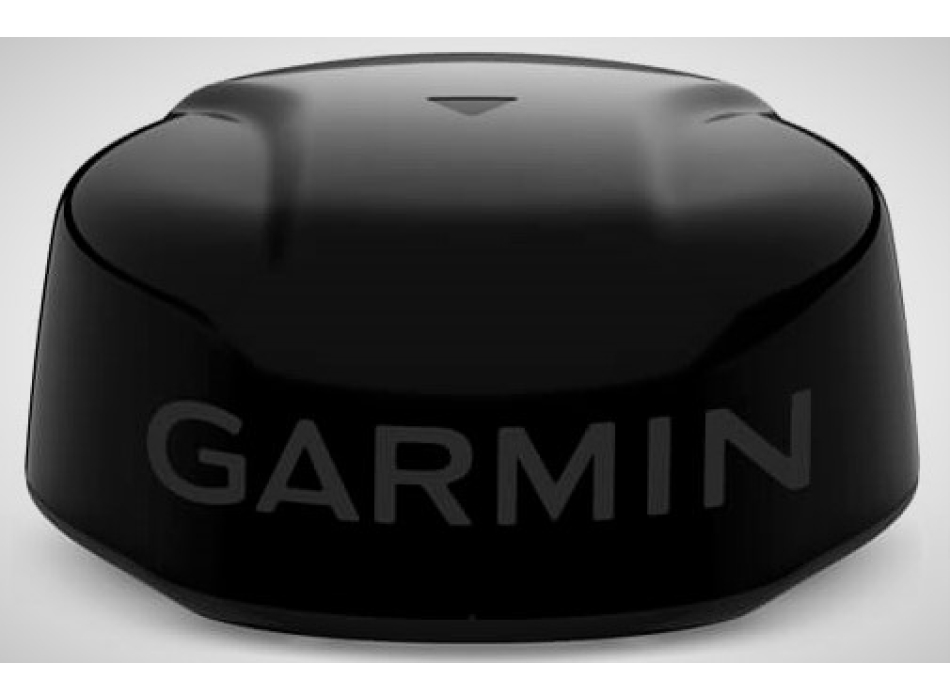

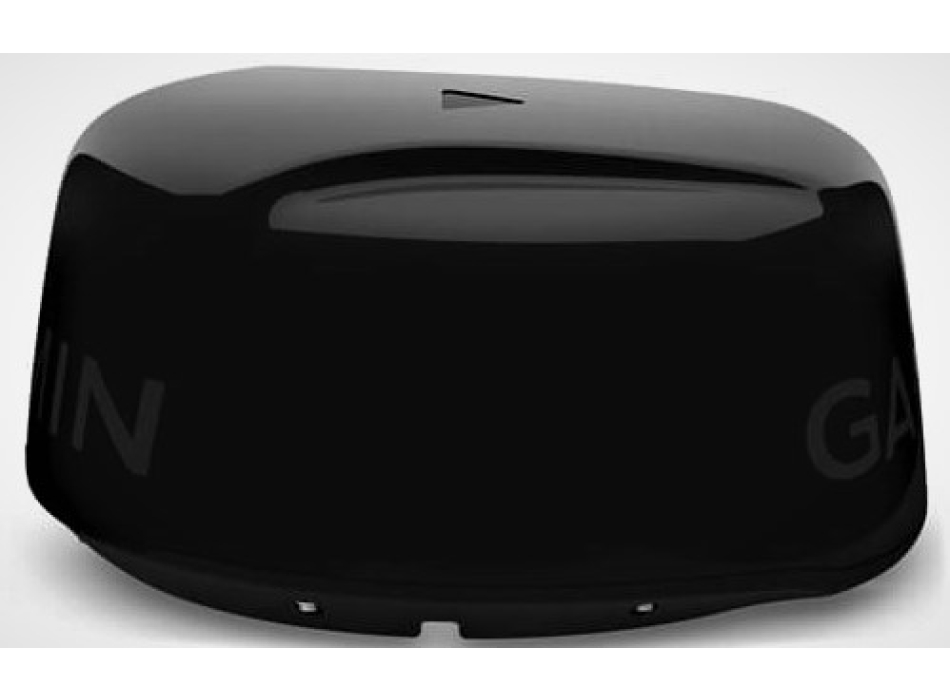

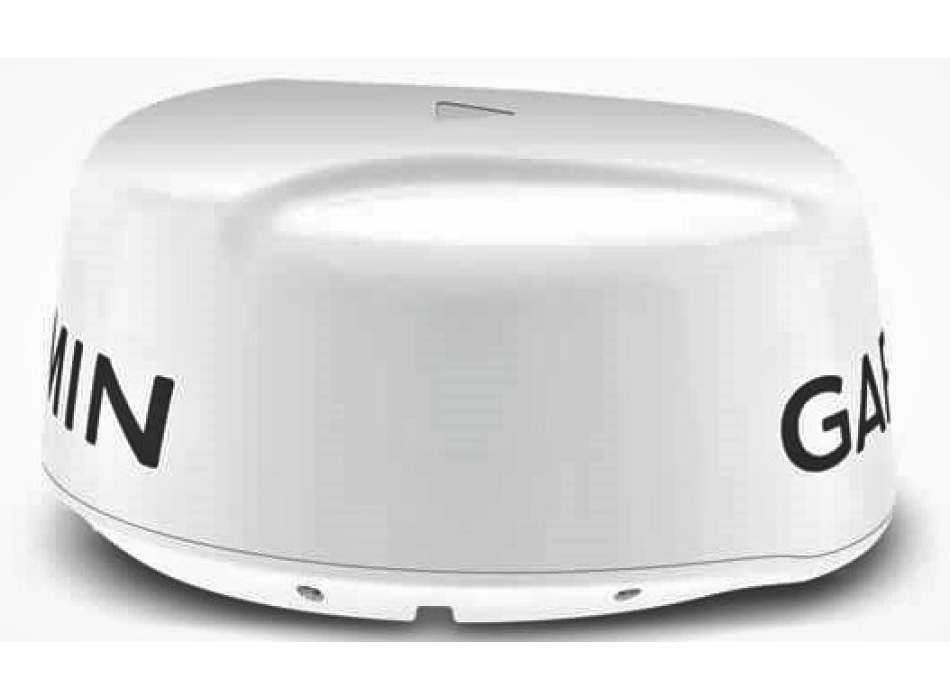

Garmin GMR 24 x Radar Antenna

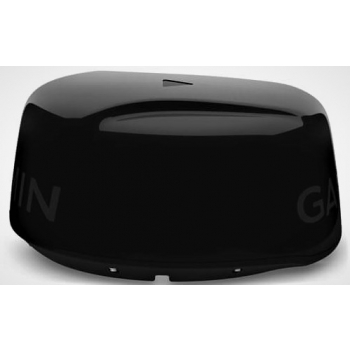

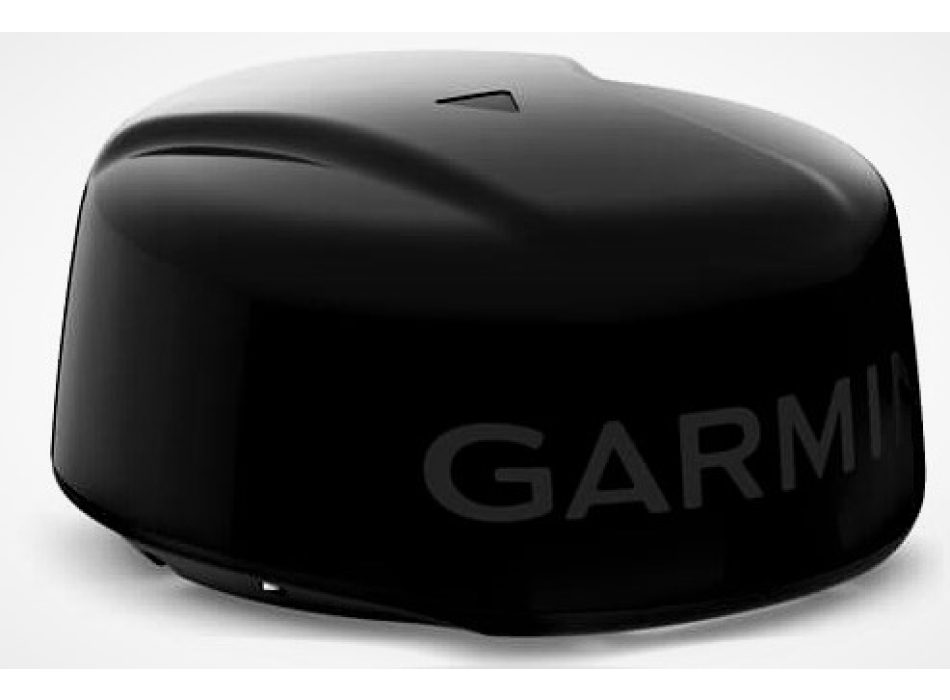

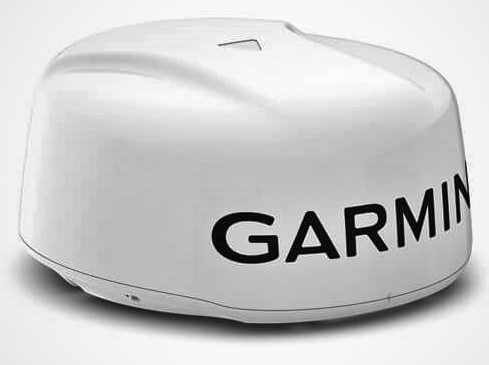

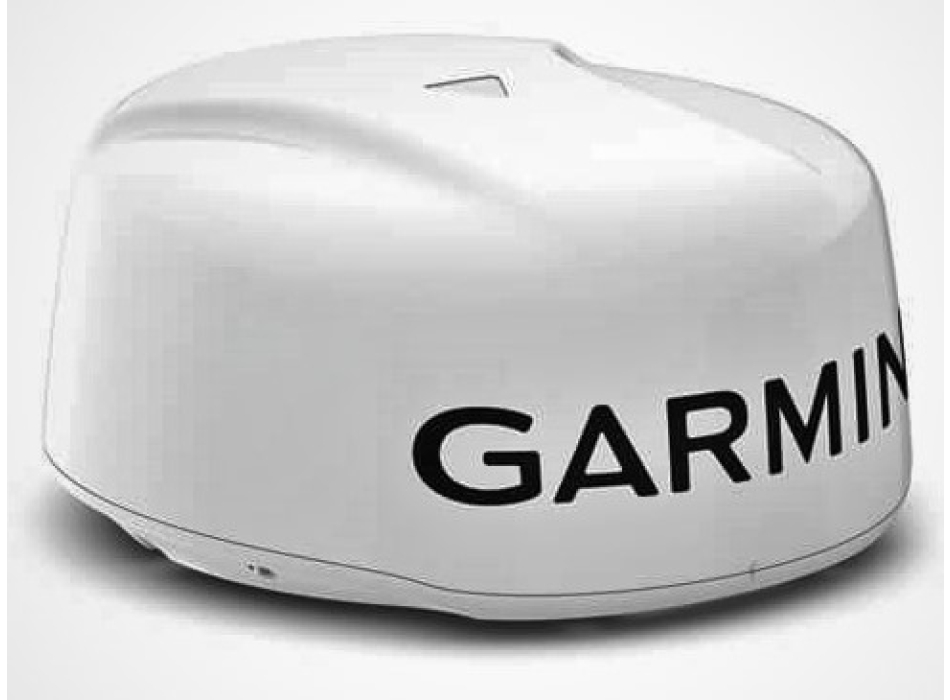

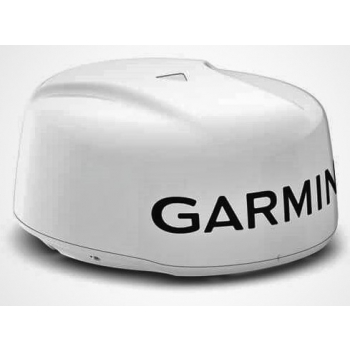

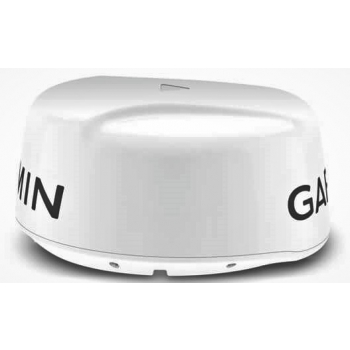

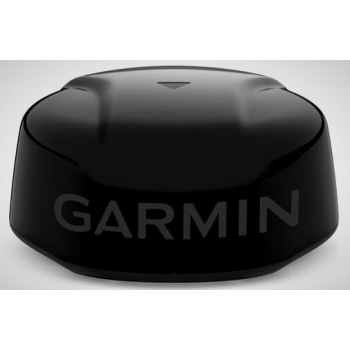

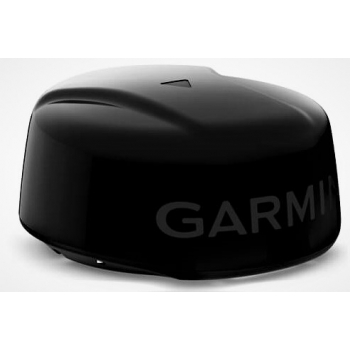

These 24″ high-performance radomes, available in a black or white color version and with 50 watts of output power, offer superlative performance in a sleek design.
Simple to use and install
New dynamic filters to provide optimal performance in different conditions
The GMR Fantom delivers all the power you need. Up to 50 watts, real.
View targets clearly and adjust size as needed.
Thanks to the energy saving mode, you can choose when to use maximum power and when to limit its use.
MotionScope™ technology shows targets in color as they approach or move away from your vessel.
Performance
These 50-watt solid-state radomes have a range of 20 to 48 nautical miles, even in fog or rain. They also offer a rotation speed of up to 60 rpm, ensuring a refresh rate that detects motion at any speed. This time, they're available in black or white, so you can match them to your vessel.
MotionScope uses the Doppler effect to highlight moving targets in different colors, allowing you to navigate around other vessels or in rough weather, or to fishing spots where birds feed on the surface.
By connecting the GMR 24 x antenna to a multifunction display and an optional heading sensor, you can take advantage of the MARPA function which allows you to obtain information on the navigation status of other vessels such as heading, course and speed, for up to 10 targets at the same time.
Connecting to the network
The GMR 24 x antenna can be connected to your existing Garmin Marine Network in a plug-and-play fashion. Once connected, your onboard multifunction displays can display the information from the antenna.
In the box
Radome 24x GMR Fantom
Power cord (15 m/49.21 ft)
Network cable (15 m/49.21 ft)

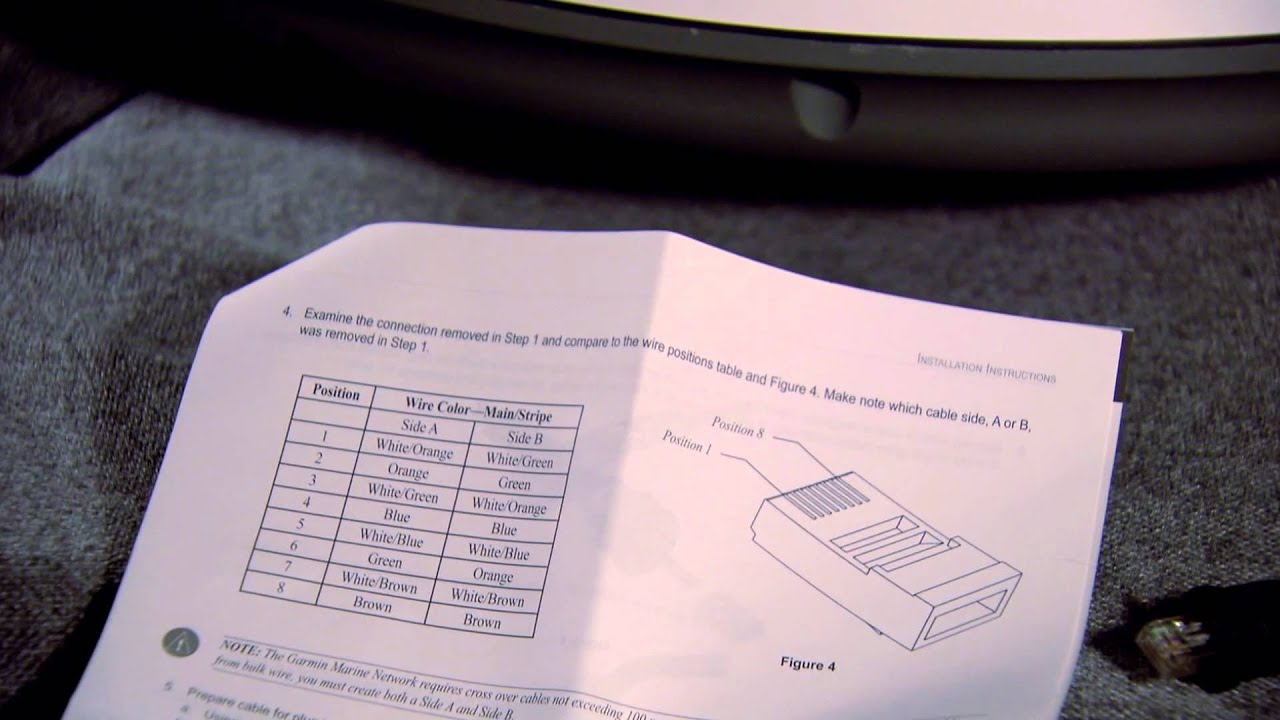

Installation instructions
Assembly components kit and jig
TECHNICAL SPECIFICATIONS

24x Dimensions: 25.40″ x 9.80″ (64.50 cm x 24.90 cm)
Weight 24x: 17.40 lb
IPX7 waterproof rating
Power 50 W
24x antenna width: 23″ (58.42 cm)
Screen refresh rate up to 60 rpm, depending on settings
24x horizontal beam angle: 3.70° horizontal, 25° vertical
Maximum power 48 NM
Minimum power 6 meters
Radome Type
Power supply 10-32 V DC
Power consumption (STANDBY) 4 W
Max power consumption (low power transmission) 24 W
Max power consumption (normal transmission) 33 W
Dual range
Radar overlay
Dynamic Autogain
Marpa (requires heading sensor, sold separately)
