-15%

Garmin GPSMAP 8412 Display 12 "

  • Code: 010-02092-00
€ 3.474,05 € 4.099,00 -15%
CHOOSE THE MODEL
you chose:
Garmin GPSMAP 8412 and 8412xsv
New Dsiplay 12 "Touch version

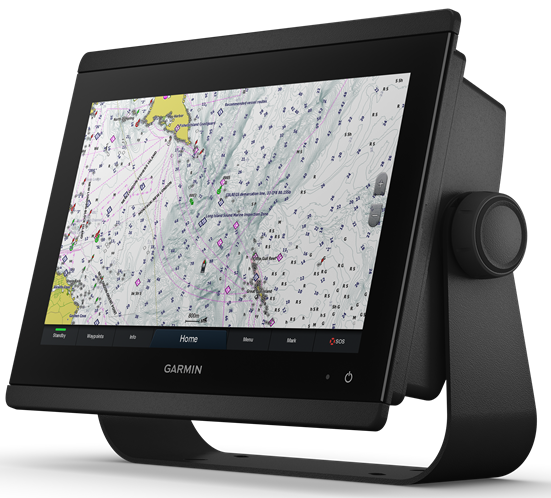

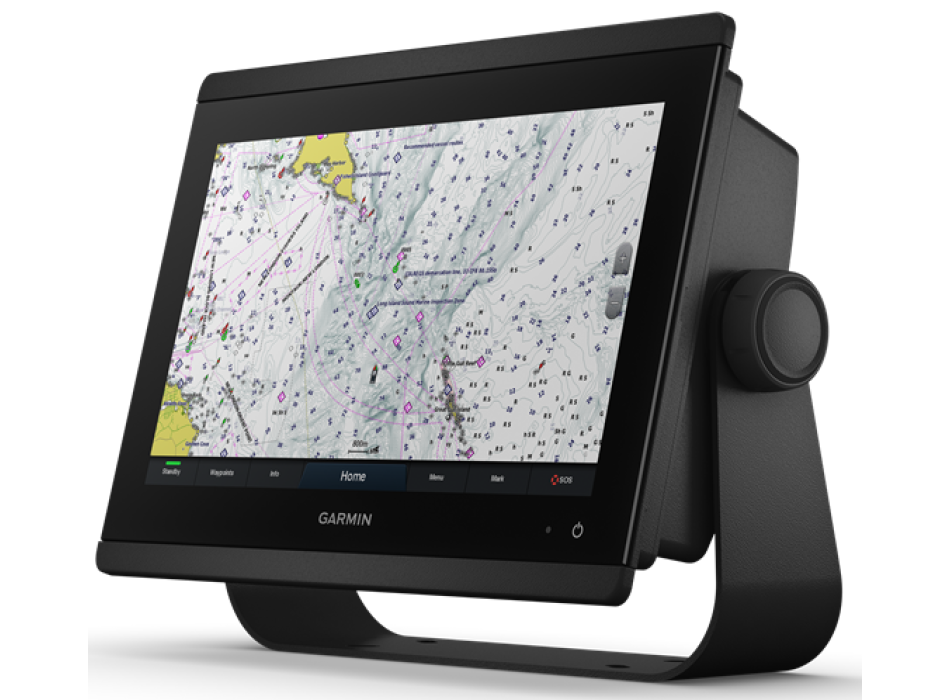

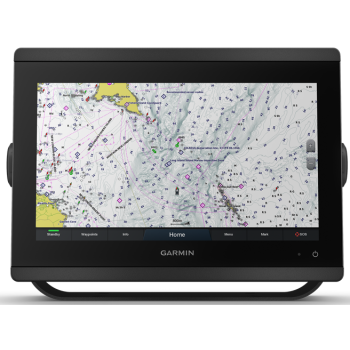

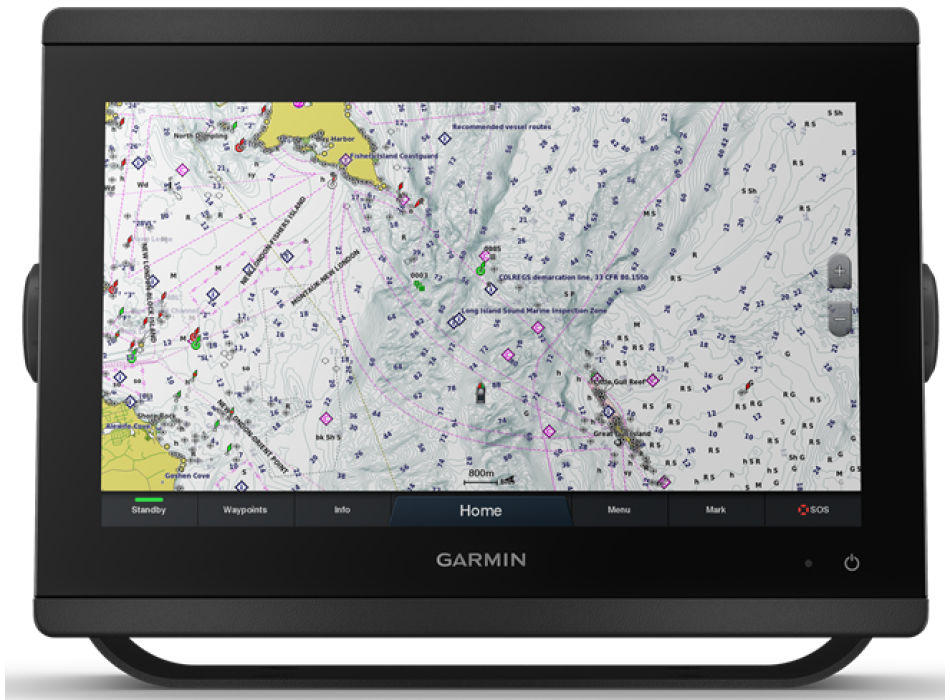

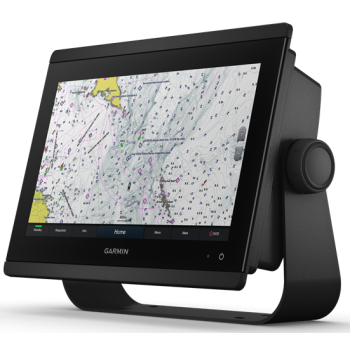

GPSMAP 8412 Chartplotter with 12 "touchscreen and Full HD IPS (In-plane Switching) screen
12 "Full HD widescreen premium multitouch display
Possibility of recessed or flush installation, for a wonderful super-technological crystal console
Integrated Wi-Fi® and ANT ™ connectivity, 4 Ethernet ports, NMEA 2000® port, HDMI and USB port for total integration
Garmin SailAssist ™ advanced features for sailing
With SmartMode ™ you can simultaneously change all the screens of the GPSMAP displays interfaced with each other at mooring, cruising, fishing, anchoring and much more

A marvelously powerful instrument, integrated at 360 °, enclosed in an ultra-sharp 12 "full HD touch screen: among the on-board instruments such a display has never been seen. GPSMAP® 8412 is equipped with a high-performance processor to process the cartography with unprecedented speed and allows you to customize screens, data and indicators. Everything is designed to allow the user to quickly access, with a single gesture, all the information needed in the most stressful situations, such as mooring.

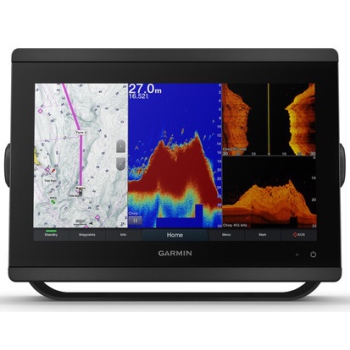

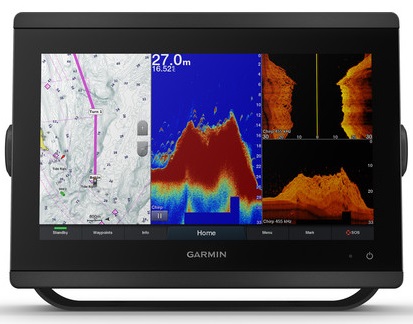

GPSMAP 8412XSV Chartplotter / Sonar Combo with 12 "Touchscreen and Full HD In-plane Switching (IPS) display
12 "Full HD widescreen premium multitouch display
Integrated 1 kW dual channel CHIRP sonar module
Possibility of recessed or flush installation, for a wonderful super-technological crystal console
Integrated Wi-Fi® and ANT ™ connectivity, 4 Ethernet ports, NMEA 2000® port, HDMI and USB port for total integration
Garmin SailAssist ™ advanced features for sailing
With SmartMode ™ you can simultaneously change all the screens of the GPSMAP displays interfaced with each other at mooring, cruising, fishing, anchoring and much more

A marvelously powerful instrument, integrated at 360 °, enclosed in an ultra-sharp 12 "full HD touch screen: among the on-board instruments such a display has never been seen. GPSMAP® 8412xsv is equipped with a high-performance processor to process the cartography with unprecedented speed and allows you to customize screens, data and indicators. Everything is designed to allow the user to quickly access, with a single gesture, all the information needed in the most stressful situations, such as mooring.
GPSMAP® 8412xsv integrates the most advanced sonar functions available on the market, thanks to the integrated two-channel CHIRP module with ClearVü-SideVü functions.

The complete CHIRP sonar

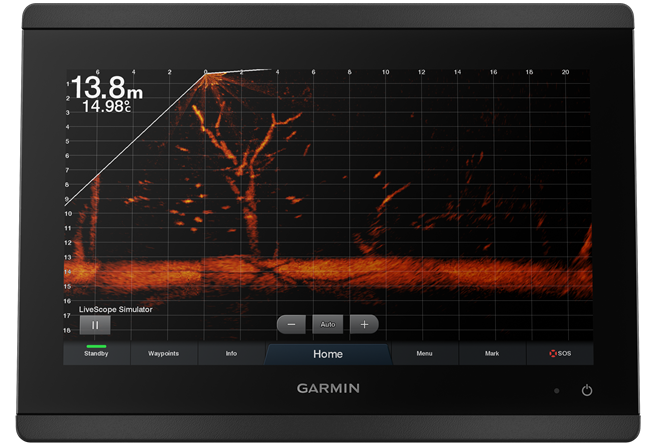

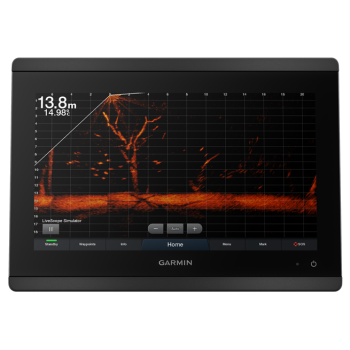

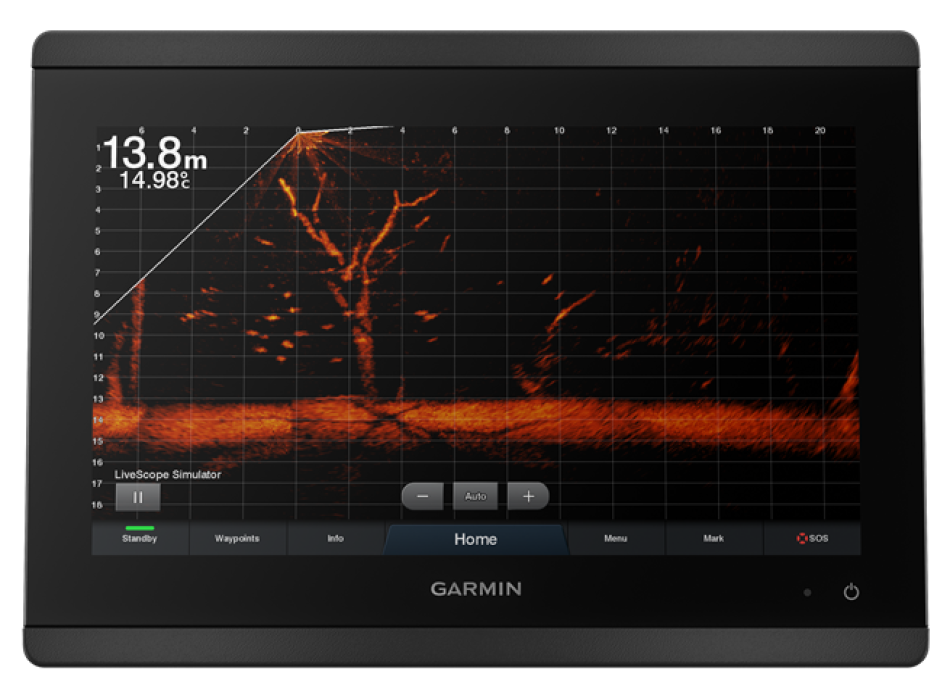

GPSMAP® 8412xsv combines in a single instrument three different technologies for viewing and scanning the bottom: CHIRP sonar, ClearVü CHIRP and SideVü CHIRP. These three different modes, combined together, guarantee maximum performance for the identification of any element present under and on the sides of the boat. It also supports the entire Panoptix ™ family of fishfinders (transducers sold separately).

Create your integrated system
By connecting the GPSMAP® 8412 to the Garmin Marine Network, it is possible to view the data processed by the on-board instrumentation such as radar, autopilots, depth sounder modules, multimedia devices (FUSION-Link), thermal imaging cameras, GRIDs and much more on the display. GPSMAP® 8412 also allows you to share information with other compatible GPSMAP units, such as maps and user data, including waypoints, routes and tracks. This means that user data entered can be automatically synchronized with other chartplotters on the network.

Limitless connectivity
The new GPSMAP® 8412 chartplotter integrates seamlessly with a variety of on-board instruments thanks to integrated Wi-Fi® and ANT + connectivity, 4 Ethernet ports, NMEA 2000 network, HDMI port, USB port and many more. It is also compatible with FLIR cameras. Built-in Wi-Fi technology allows you to use the free ActiveCaptain® app to access OneChart ™, Smart Notification1, Garmin Quickdraw ™ community data, and more. You can also control streaming video playback from the GC ™ 100 wireless camera and VIRB® action cameras. In addition, the built-in ANT wireless technology allows you to directly connect your quatix® watch, gWind ™ Wireless 2 transducer and wireless remote controls.

Digital Switching
Completely new interface for the management of the MasterBus and Czone on-board networks. You will be able to turn on the motors, activate the pumps, turn on the underwater lights and monitor the lights directly from the chartplotter screen, all thanks to an intuitive and easy to use graphics.

The best of Garmin and the best of Navionics®
The new GPSMAP® 8412 display is compatible with the latest Garmin BlueChart® g3 and BlueChart® g3 Vision cartography, which integrates BlueChart data with Navionics data to deliver the best cartography ever. This new cartography also includes Auto Guidance technology, which allows you to avoid dangers and obstacles, developing safe routes to destinations set according to the characteristics of the boat 2.

Take control while sitting comfortably
It is no longer necessary to stand at the helm for hours. The intuitive optional GRID ™ 20 remote control provides remote access and maximum control over the entire Garmin onboard system. Includes a 360-degree rotating joystick, rotary knob and push-to-select button for easy navigation and precise control of chartplotter menus and settings, even in rough sea conditions.

Regatta functions
The new GPSMAP® 8412 chartplotter has a useful function dedicated to those who sail or compete in regattas. Thanks to SailAssist ™ it is possible to visualize on the screen the right moment in which to tack or jibe, to visualize at the same time the apparent and real wind angle, to keep under control the tides and the currents, to visualize at the same time the direction and the heading line, activate the Pre-race guidance function to cut the starting line at the right time and with maximum speed and keep the wind under control thanks to the intuitive graphics.


Make your boat smart
Use the new ActiveCaptain ™ application to connect your Garmin Marine chartplotter to the mobile network and make your boat smart. ActiveCaptain ™ is free and will allow you to make the most of your onboard equipment.
General
Dimensions 30.3cm x 21.6cm x 7.6cm
Screen size, WxH 25.7cm x 14.5cm
Screen resolution, LxA FHD; 1920 x 1200 px
Screen type IPS touchscreen display (anti-glare finish)
Weight 2.7 kg
IPX7 waterproof rating
Polarized Support J1939 Compatible
Energy consumption 3.1 A
Internal or external GPS antenna on the NMEA 2000 network
Mounting options Bracket, flush, or flush (Garmin does not offer flush installation hardware or accessories; professional skills and tools required).
10 Hz GPS / GLONASS / Galileo receiver
Garmin Marine Network ™ ports 2

Maps and memory
External memory 2 SD ™ cards (on the back of the unit)
Waypoints 5,000 Storable routes 100 (250 waypoints each)
Track log 50,000 points; 50 saved tracks
Functions for outdoor activities Tide data

Functions of the chartplotter
Compatible with Garmin radars
Compatible with Garmin black boxes yes
Garmin SmartMode compatible (customizable monitor presets)
Compatible with AIS function
Compatible with DSC function
Fusion Lync
Compatible with GSD ™ black-box
Compatible with GCV ™ black-box
BlueChart® Mobile yes
Garmin Helm ™ yes
GRID ™ (Garmin Remote Input Device)
Wireless connectivity
Sailing Features

Echosounder features and specifications
Double frequency
Double cone
Frequencies supported
Traditional: 50/200, 77/200, 83/200
Single channel CHIRP: 40-250
Dual channel CHIRP: 40-250
SideVü / ClearVü: CHIRP 260/455/800
ClearVü UHD: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
SideVü UHD: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz (depending on the transducer)
Transmission power 1 kW traditional; 1 kW CHIRP
CHIRP Yes (integrated)
ClearVü yes
SideVü yes
Maximum depth 1,500 meters at 1kW (depth depends on the type of seabed and water conditions)

Connections
NMEA 2000®
Number of Transducer Pins 1 x 12-PIN Sonar, 1 x 8-PIN Sonar, 1 x LVS Sonar
NMEA 0183 differential input 1
NMEA 0183 differential output 1
Video input
1 - composite BNC
1 - HDMI (HDCP compliance)
Video output
1 HDMI
Wireless connectivity yes

Additional features
Supports spoken audio alerts

Caratteristiche

Sei interessato ad una offerta privata?
D. Ho il gpsmap 8412 xsv, vorrei sapere se la G2 è compatibile col mio strumento. Grazie
R. 28-04-23 Buonasera, vista la qualità dell'articolo in oggetto, meglio se acquista una nuova cartografia Garmin Navionics: https://www.painestore.it/garmin_navionics_regular Cordiali saluti. Luigi Bianchi
D. Ringrazio per il rapido riscontro e la vostra professionalità. Ultima domanda in merito all'8412 ed all'8412xvs come mi ha riferito lei, portano 2 porte eco. Eventualmente sarebbe possibile utilizzarne solo 1 con il trasduttore da lei proposto 50-200khz ed eventualmente un domani cambiare ed implementare con il doppio trasduttore? Grazie ancora per i vostri preziosi consigli Cordiali saluti
R. 29-06-22 Buonasera, certo, può occupare al momento una sola porta eco collegando il solo trasduttore 50-200khz. Cordialità. Luigi Bianchi
D. Buongiorno, approfitto della vostra competenza e gentilezza per chiedervi alcune delucidazioni s questo modello. Quale trasduttore consigliate per un utilizzo prettamente diportistico da abbinare a questo prodotto? Considerando che ho già un vecchio foro all'inizio della sala motori (3/4 di una imbarcazione 34 piedi) a poppavia e volendo utilizzare lo stesso senza doverne fare altri (anche se a prua sarebbe meglio)? Successivamente sarebbe possibile implementare il sistema con un antenna radar GMR 18 HD+/GMR 18 xHD/GMR Fantom 24? Grazie
R. 29-06-22 Buonasera, dato l'utilizzo prettamente uso diporto, consiglierei nel Suo caso un 1223xsv, stesse caratteristiche del 8412xsv, salvo che il 8412 ha due porte eco, solitamente una utilizzata per bassi fondali e l'altra per alti fondali, quindi due trasduttori differenti. Compatibili entrambi con tutte le antenne Radar GMR. https://www.painestore.it/garmin_gpsmap_1223xsv_eco/gps_display_multif_12_ Come trasduttore per uso diporto, sufficiente anche normale 50-200khz: https://www.painestore.it/garmin_trasduttore_biducer_poppa Cordiali saluti. Luigi Bianchi
D. buongiorno con il gps map 8412 xdv è compatibile l'antenna radar grr 18/24 Garmin?grazie
R. 22-04-22 Buongiorno, certamente sì, compatibile con tutte le antenne Radar GMR 18/24. Cordiali saluti. Luigi Bianchi
D. Buonasera è presente anche la sonda nell'8412xsv?
R. 31-10-2021 Buonasera, assolutamente no, perchè le possibilità di abbinamento sono diverse, tutto dipende dal tipo di pesca e dalle prestazioni eco, che per Lei siano necessarie. Cordiali saluti. Luigi Bianchi
D. Con il Garmin GPSMAP 8412 Display 12"sono compatibili: - filtro GSD 26. - trasduttore B265 LH
R. 12-03-2021 Buonasera, sì certo, confermo la compatibilità dei tre componenti. Cordiali saluti. Luigi Bianchi
