-10%

Simrad NSS evo3S 12 Display Multif. 12 "

  • Code: 000-15406-001
€ 4.609,00 € 5.121,56 -10%

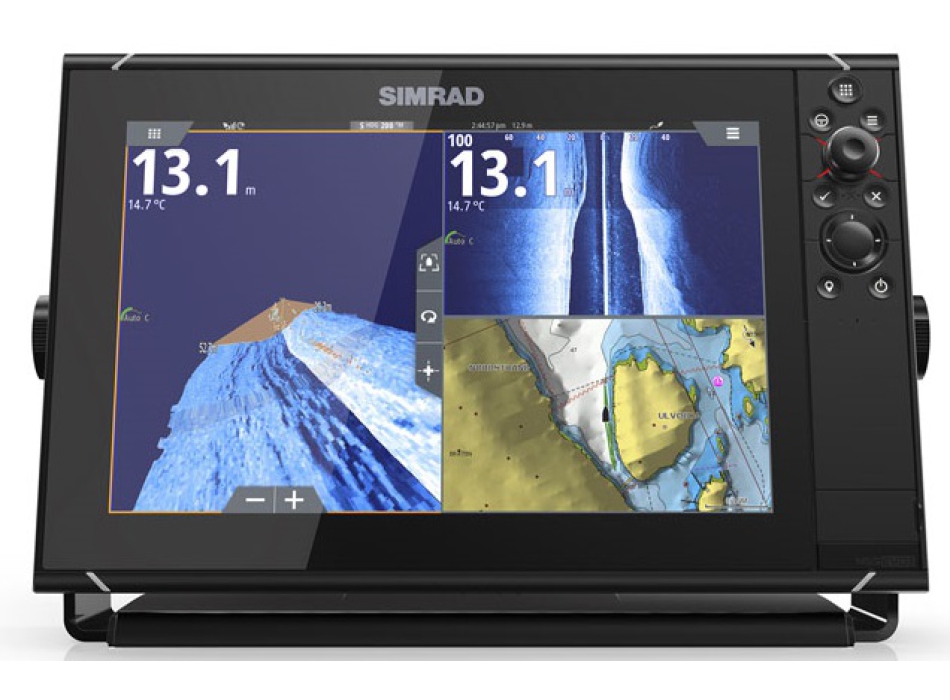

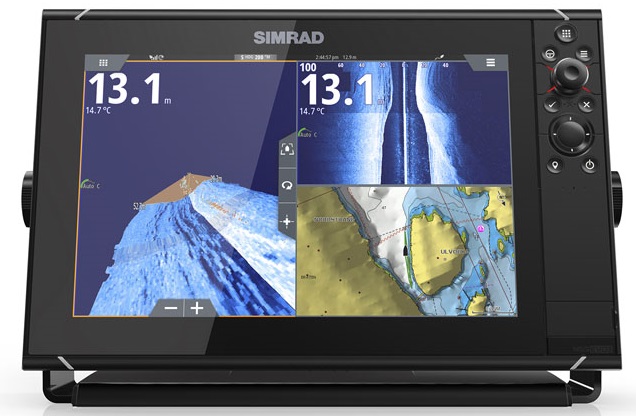

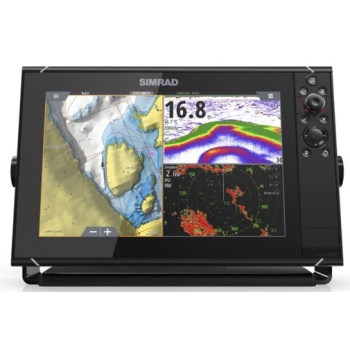

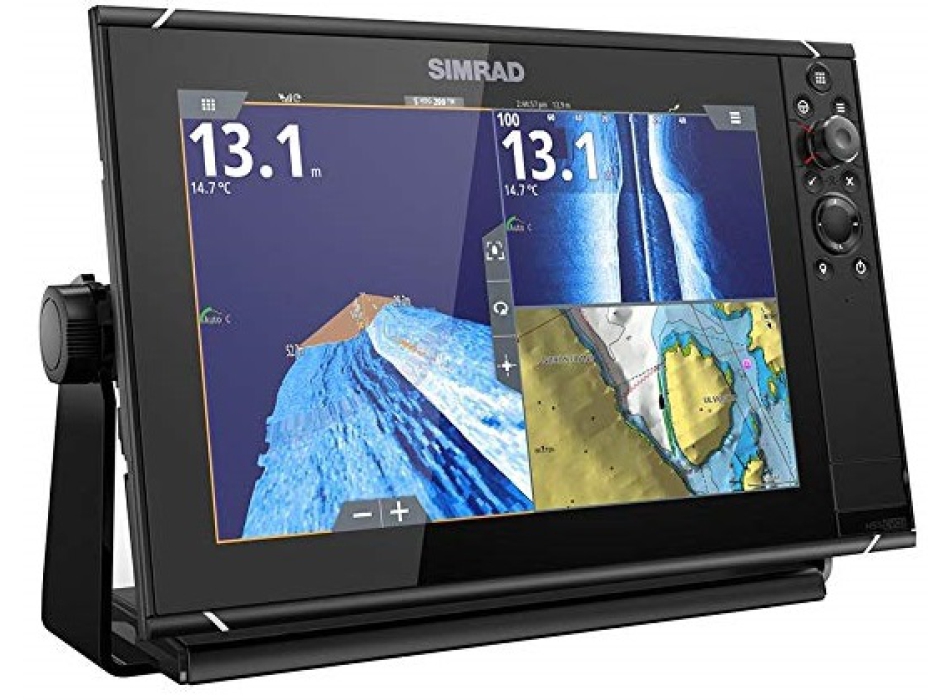

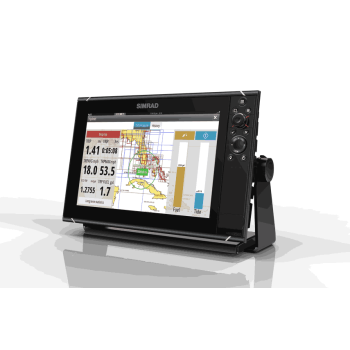

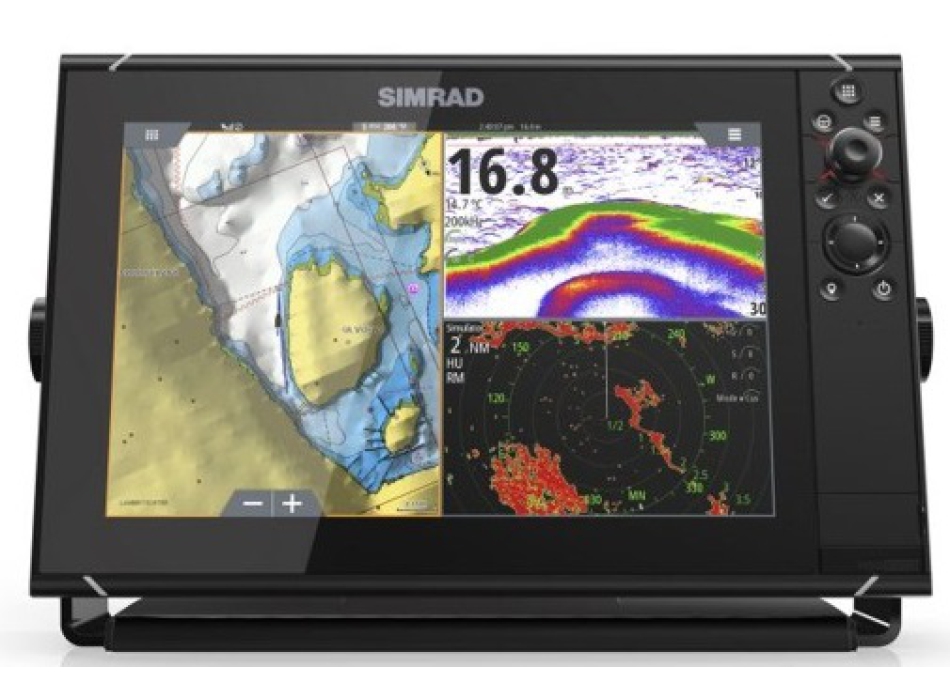

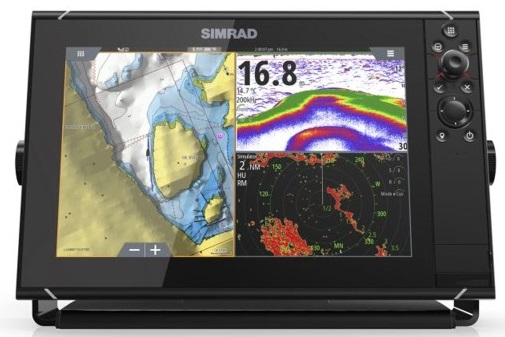

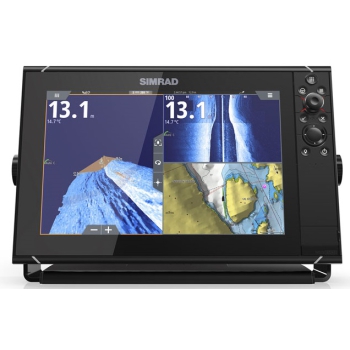

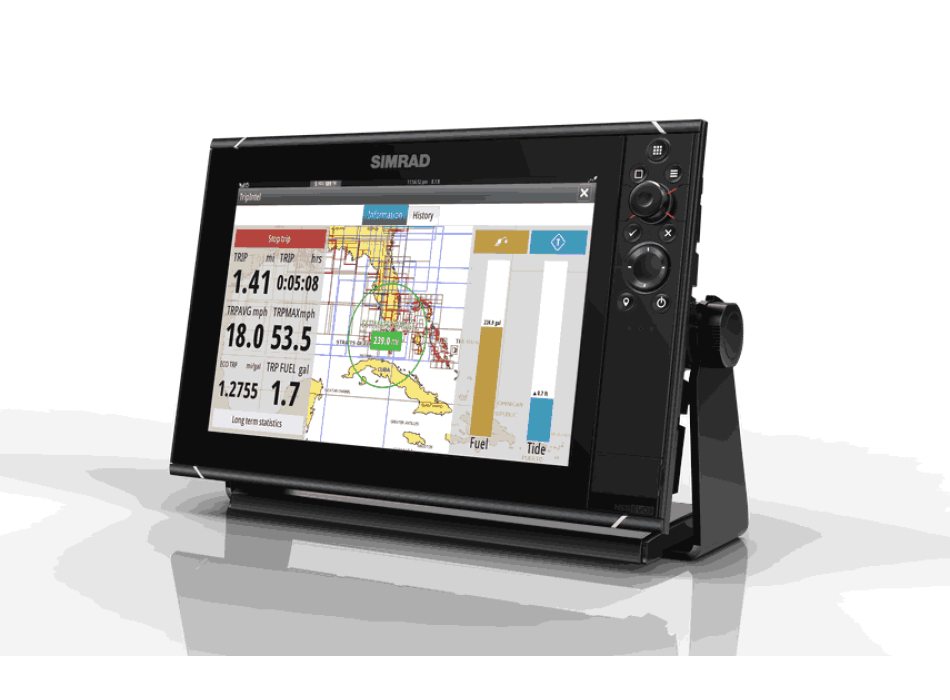

Simrad NSS evo3s 12 Display 12 "
New version S
THE MAXIMUM IS IMPROVED EVEN
Make the most of your browsing experience

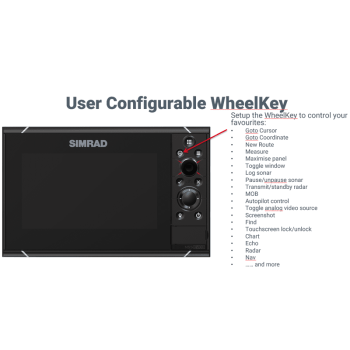

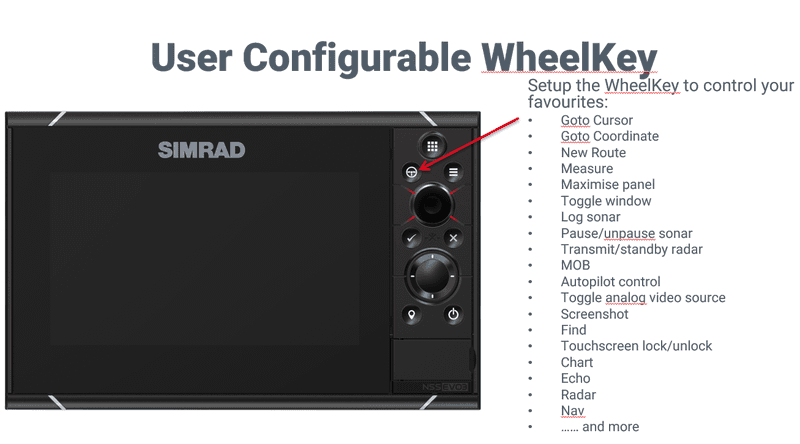

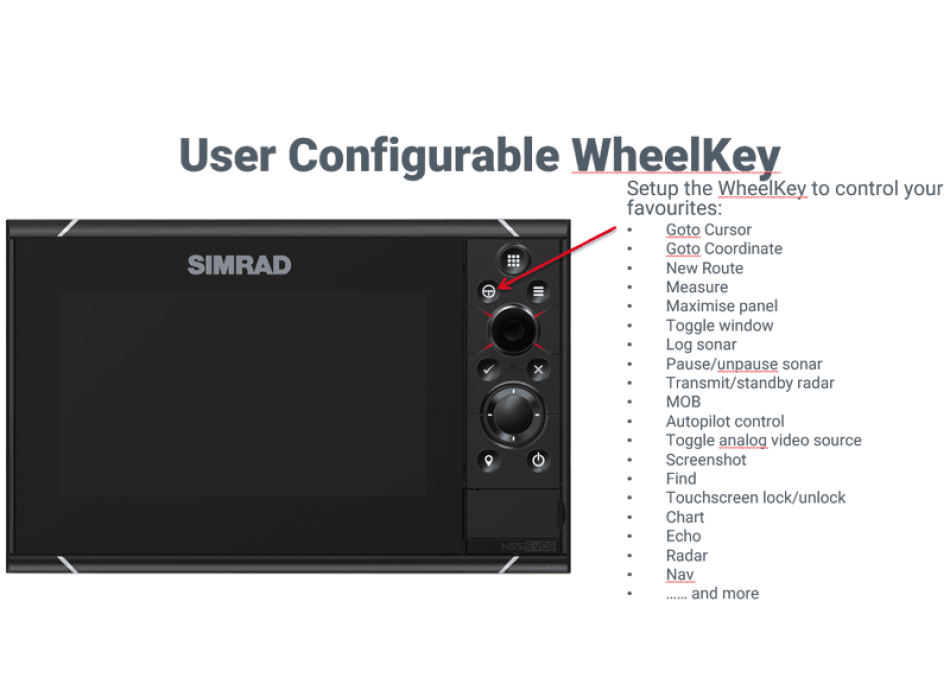

Take total control of your experience at sea. SolarMAX® IPS displays deliver exceptional clarity and ultra-wide viewing angles in all light conditions, while the new high-performance IMX 8 processor delivers super-fast response times for seamless screen transitions. Choose from weatherproof touchscreen technology or rotary dial keypad for control that adapts to any situation. It's easy to monitor and control all onboard electronics with simple menus, customizable split-screen layouts, and a programmable function key for one-button access to the features you use most.

MAPPING PERFORMANCE - BETTER FUNCTIONALITY
With half loading times, the choice of any combination of split screen with 3D views or Navigation perspective, functionality has been enhanced to levels never before seen.


POWERFUL USER INTERFACE - BETTER USER EXPERIENCE
Greater monitoring and control within the existing page: the orientation of the chart changes immediately with the push of a button, the audio sidebar becomes expandable and a tide graph in the toolbar helps to monitor the changes in the tides.

HIGH DEFINITION DISPLAY - IMPROVED ANTI-GLARE
Get clear vision in all lighting conditions thanks to the IPS SolarMAX ™ technology, which allows you to keep everything under control thanks to the ultra-wide viewing angles, even when wearing polarized sunglasses. These all weatherproof screens have been designed to withstand the heat of the summer sun and feature an optical coating that prevents condensation or vapor from forming inside the display. It's super easy to instantly access and control all of your onboard equipment with simple menus and customizable split screen layouts.

ALL WEATHER SCREENS - MORE CONTROL
SolarMax ™ IPS displays combine touchscreen and keyboard for all weather conditions for total control in all conditions.

FAST AND SIMPLE NETWORK CONNECTIVITY - BETTER CONNECTIVITY
Industry-standard connectivity makes it easy to configure multi-display systems and connect displays to any onboard electronics, while the new high-performance iMX 8 processor ensures real-time engine and fuel monitoring as well as systems control on-board audio and much more. Expand your system with Simrad modules and accessories; fish smarter with the revolutionary S5100 or StructureScan® 3D technology; look further with the legendary HALO ™ impulse compression radar and entrust the rudder to a fully integrated Simrad autopilot.
ADVANCED SONAR - BEST FISHFINDING
Integrated high-performance sonar with 1 kW CHIRP-enabled sonar, delivering exceptional detection performance
of the seabed and fish. SideScan and DownScan Imaging ™ enhanced by StructureScan 3D, ActiveImaging ™ for photographic images of the
fish facility, clear seabed views forward with ForwardScan® sonar or sport fishing performance with sonar
S5100 for deep water.

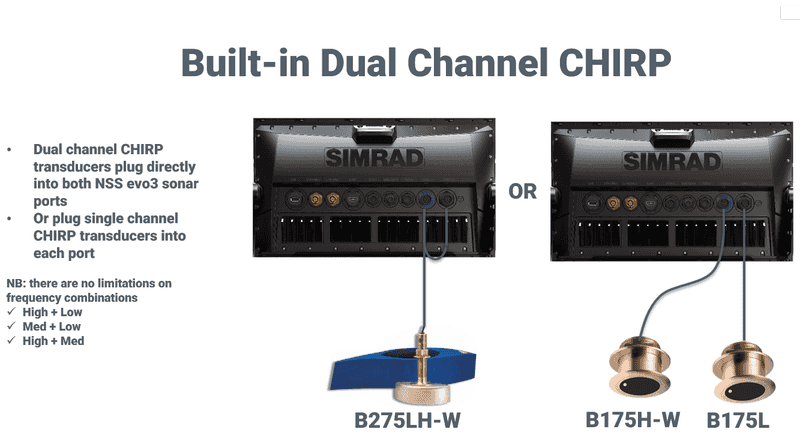

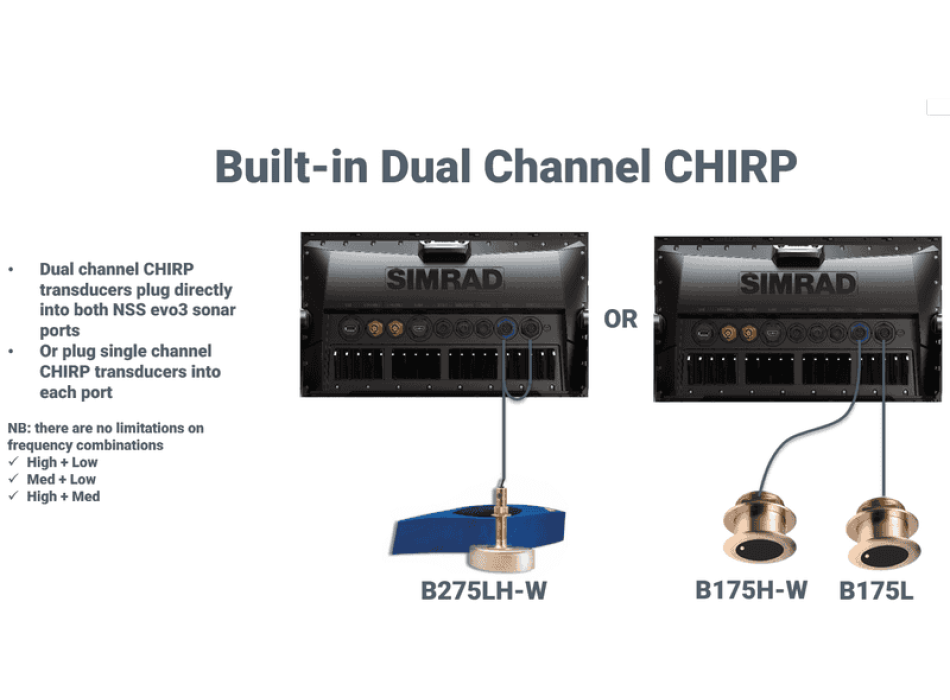

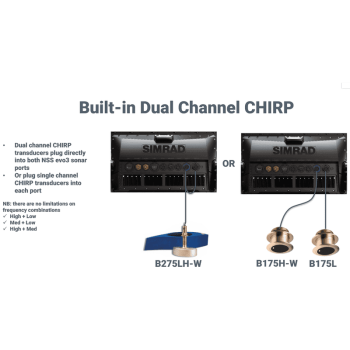

You simply need to add your choice of transducer. The 1 kW CHIRP compatible sonar offers exceptional performance of
bottom monitoring and fish detection, including support for dual channel CHIRP transducers, which provide coverage of

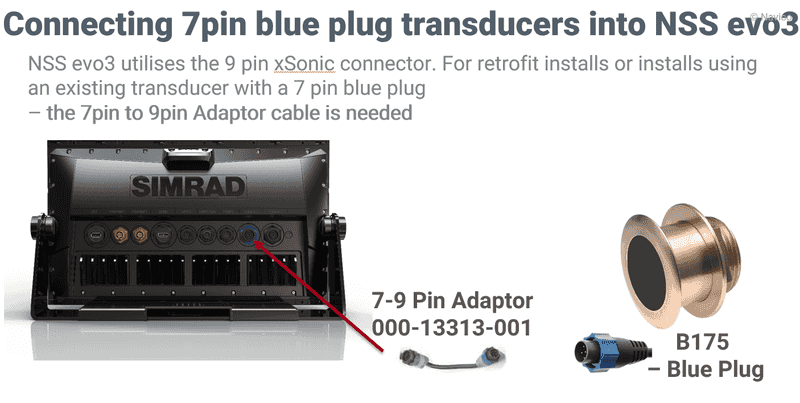

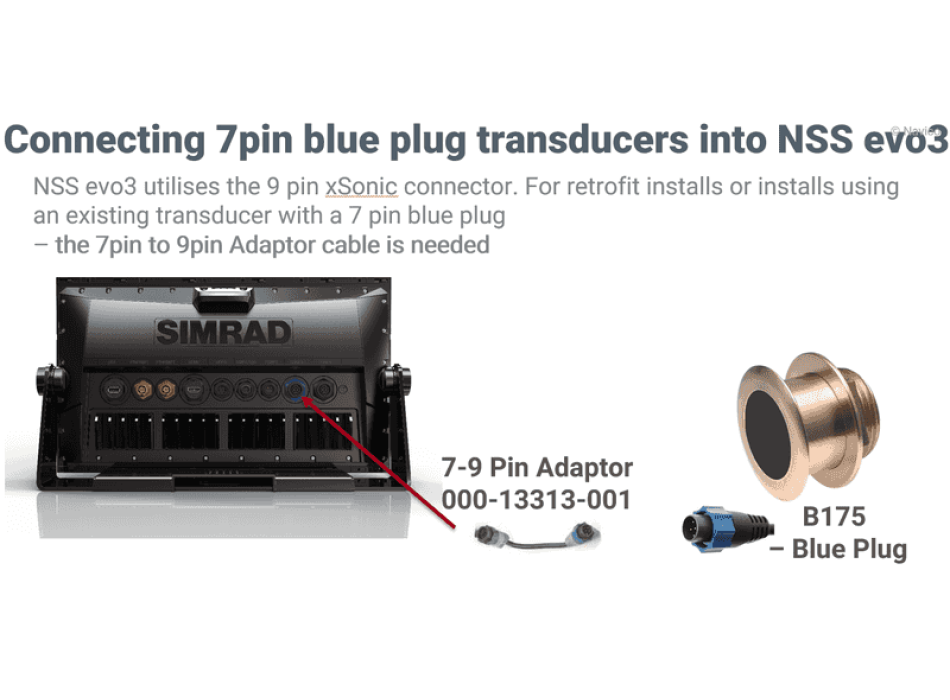

multiple depth ranges in a single unit. The two transducer ports offer the convenience of connecting multiple transducers to a single display.
Unmatched data processing power allows you to easily activate Active Imaging ™ technology, which delivers images to
very high resolution of fish holding structures, but also ForwardScan® sonar, which is able to offer the experience in
safer sea than ever thanks to clear views of the seabed in front of the boat.



EASY APP INTEGRATION
You can mirror your display with compatible iOS and Android devices and access charts, radar, sonar, engine data and more from anywhere on board the boat. Wireless connectivity also allows you to easily update software online via any Internet hotspot, giving you access to the latest features and support for accessories. Alternatively, you can download the Simrad app for an even richer experience - from device registration and manual downloads to the ability to save your favorite waypoints and fishing spots, which will be accessible both on board and ashore.


General

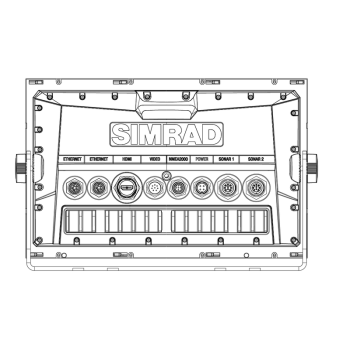

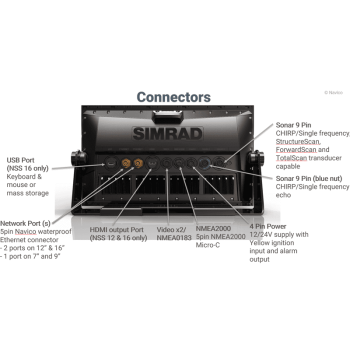

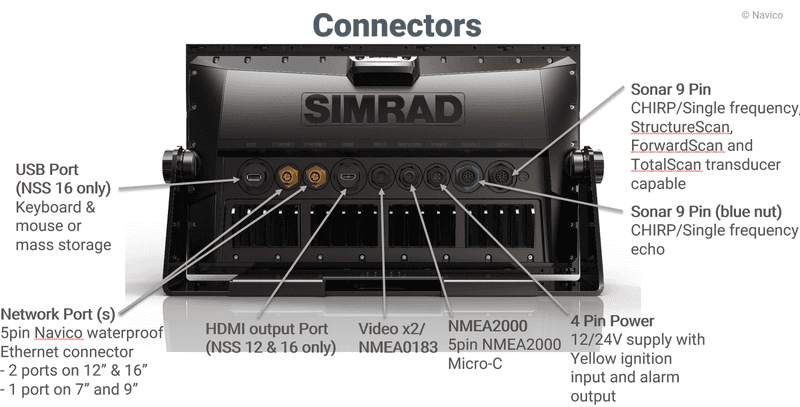

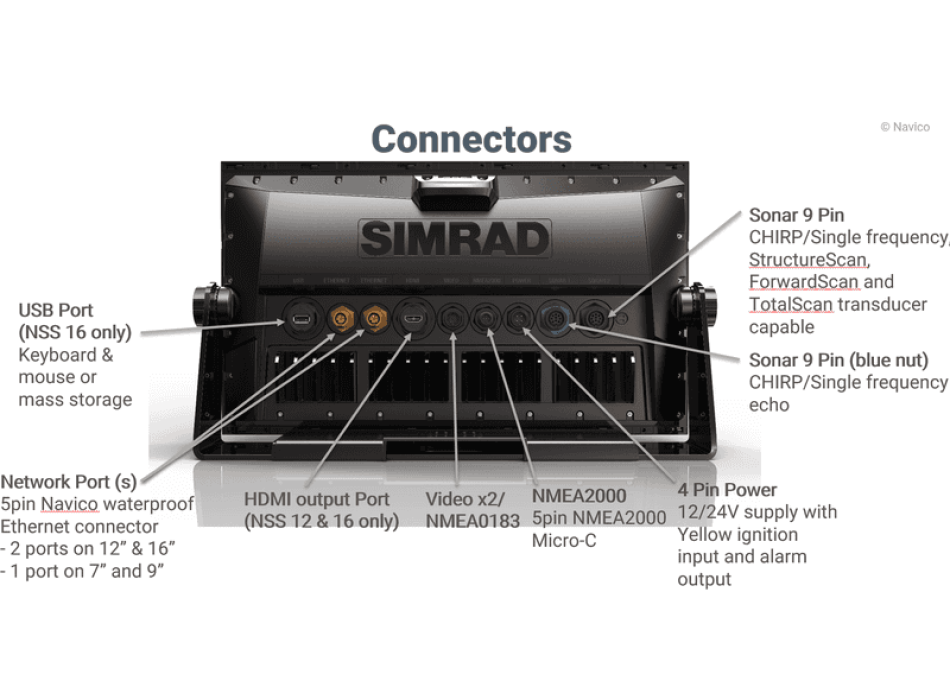

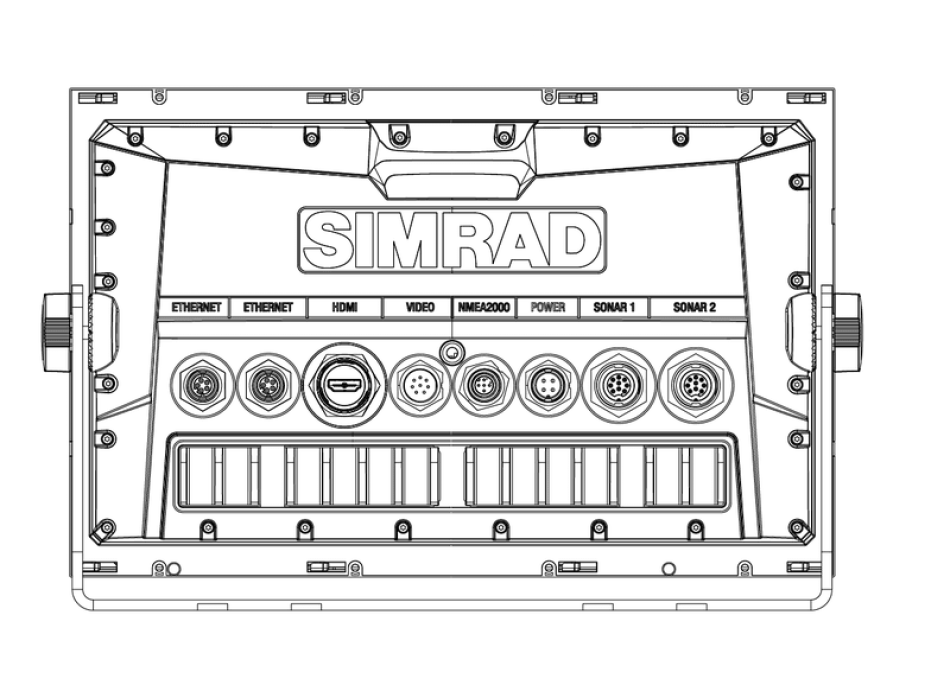

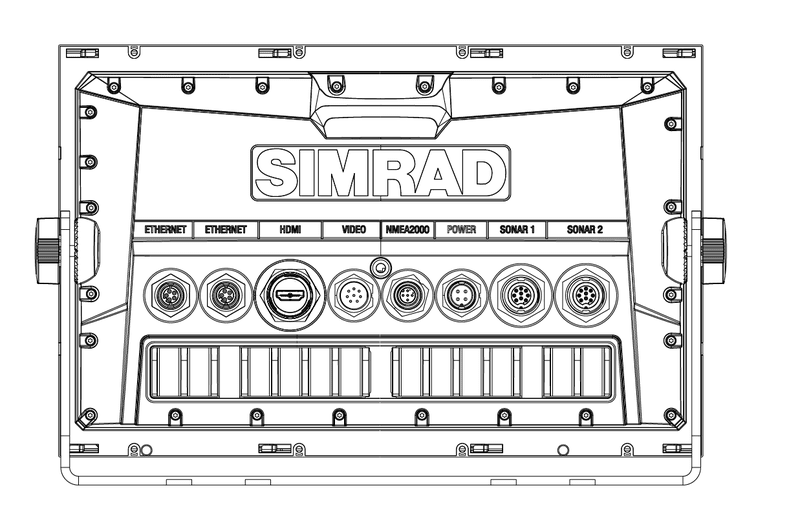

Ethernet ports 2 x 5 pin yellow connector x 10/100 Mbit
NMEA 2000 connectivity 1 x NMEA 2000 Micro-C port, 1 LEN
Weight 3.1 kg (6.83lbs.)
Supply voltage 10 - 31.2 V DC
Refresh rate 10 Hz
Vibration shocks 100 000 cycles of 20 G
1200 nits screen brightness
Display resolution 800 x 1280
Operating temperature range -15 ° C to + 55 ° C (5 ° F to 131 ° F)
Internal memory 16 GB
SD card memory 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
Video 2 x composite (RCA connectors) video inputs. Optional video / data cable required (P / N 000-00129-001).
Warranty period 2 Years
Storage temperature range -20 ° C to + 60 ° C (4 ° F to 140 ° F)
Maximum power consumption 28W
Dimensions 352 x 225 x 98 mm (13.84 x 8.87 x 3.82 ") with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71)
GPS Receiver Channels 34 Channels
Compass safety 50 cm (1.7 ft)
Recommended fuse rating 5A
Waypoints, routes, tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Viewing angles 80 ° top / bottom, 80 ° left / right
Steering Modes Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, * Wind, * Wind NAV. (* Boat type set to Sail)
Mount Type Bracket (Supplied) or panel mount
GPS Built-in 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS.SBAS (WAAS, EGNOS, MSAS, GAGAN)
Approval compliance CE, C-Tick, HDMI, EN 60950-1: 2006, EN 60945: 2002 EN 300 440-2, V1.4.2
Cold start first repair time 50 sec, Satellite Reacquisition 5 sec
C-Zone digital switching, Naviop
Autopilot Full auto pilot control and commissioning
Full touch screen interface (multi-touch) and full keypad control, OP50 remote controllers
Radar compatibility Halo Pulse Compression Radars, Broadband Radars, HD Pulse Radar
Position Accuracy Horizontal Accuracy 3 m (9.8 ft)
Humidity IEC 60945 Damp heat 66 ° C (150 ° F) at 95% relative (48 hr)
Supported Charts Insight, Navionics (Gold, NAV + Platinum +), C-MAP (MAX N, MAX N +, Reveal) NV Digital (Raster US Charts)
Internal element Wi-Fi connectivity
Bluetooth Internal
Waterproof level IPX6 and 7
PC connectivity No
AIS Receive AIS data over NMEA 2000 or * NMEA 0183 (* NMEA 0183 has to be wired to all NSS processors)
SiriusXM Weather via WM-3 / WM-4 (USA only), GRIB

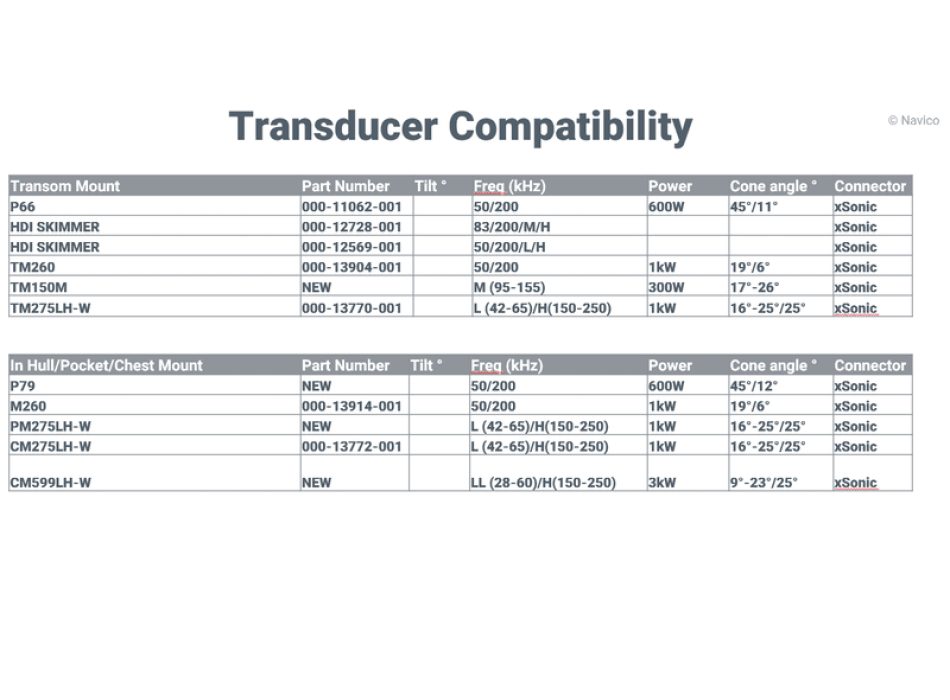

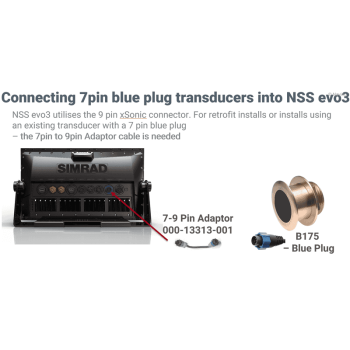

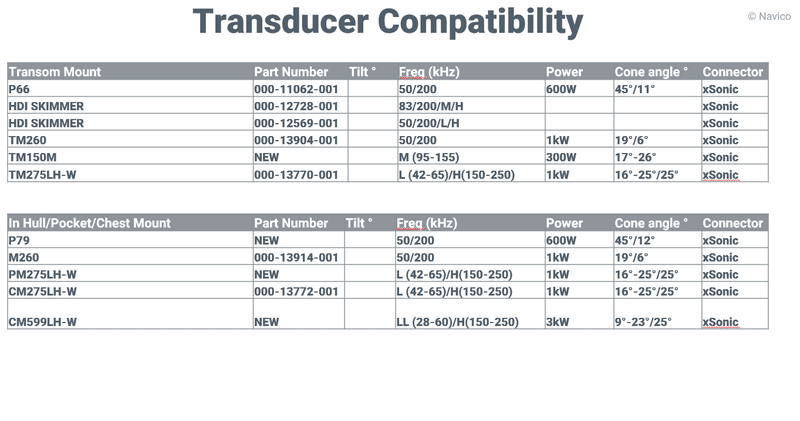

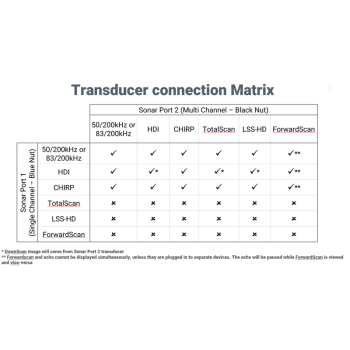

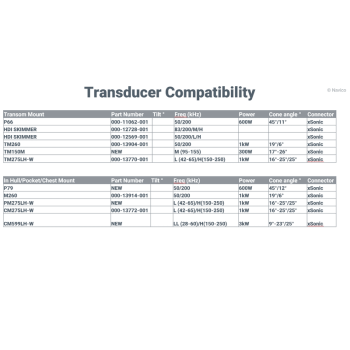

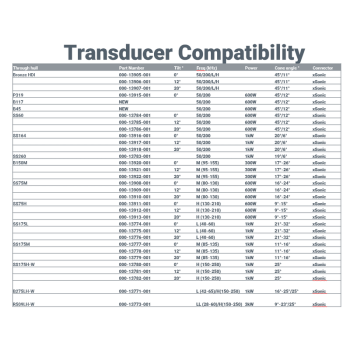

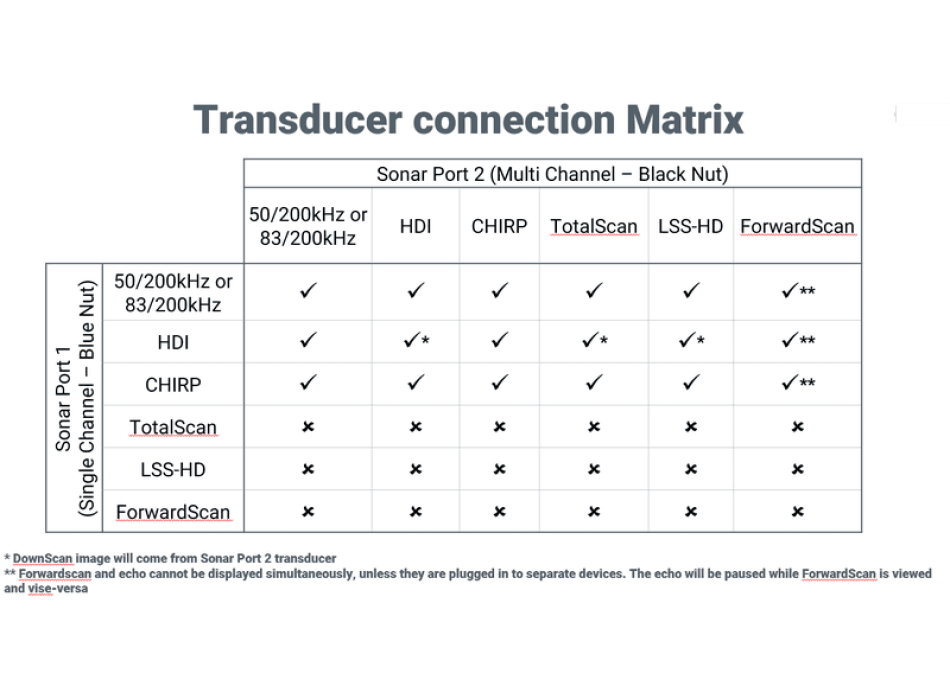

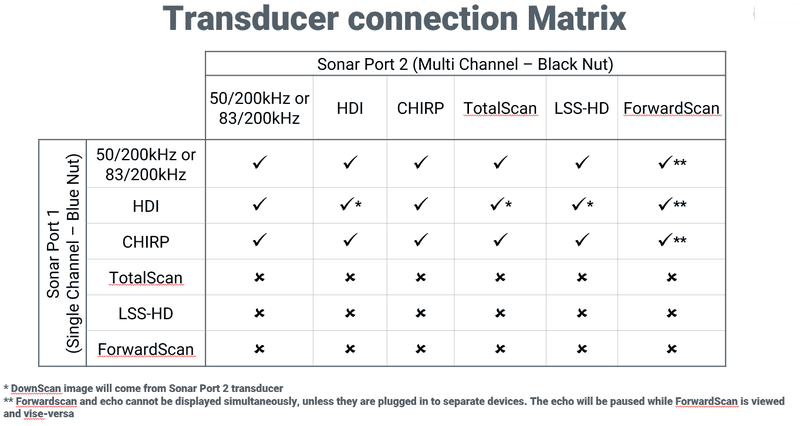

Sonar compatibility Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders
Turn patterns U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Multimedia via SonicHub2, FusionLink, * Sirius, ** JL Audio. * USA only, ** AUST. & NZ only)
WASS, MSAS, EGNOS, GLONASS correction Galileo, Beidou, QZSS.SBAS
Backlight color White
Cartography including World basemap
D. Ho uno strumento acquistato nel 2001, un SIMRAD CE40 con trasduttore passante COMBI 50/200 montato sulla chiglia di un gommone NOVAMARINE HDONE (lunghezza 4,80), quindi con stretto margine di posizionamento per dimensioni del trasduttore. Vorrei aggiornare la strumentazione per avere maggior definizione nell'identificazione del pesce. Utilizzo lo strumento sia per pesca su basso fondale 40/60 metri per traina che per bolentino di fondale su battimetriche oltre i 600 metri. Ho visto i nuovi strumenti con le nuove tecnologia e mi chiedevo cosa potevo montare sul mio scafo, se il Simrad NSS evo3S 12 Display Multif. 12" è compatibile con il trasduttore che monto e eventualmente quale strumento e trasduttore dovrei montare che ci stia nell'alloggiamento che ha lo scafo, magari compatibile con il trasduttore che già monto per evitare troppe modifiche. Attendo cortese riscontro. Cordialmente Antonello Puggioni
R. 11-10-22 Buon pomeriggio, direi che il Simrad NSS 12, sia assolutamente indicato. Vorrei però avere possibilità di sapere con precisione il modello del trasduttore installato a bordo. Dovrebbe trovare un'etichetta nelle vicinanze del connettore, potrebbe inviarmi una foto? Anche del connettore, grazie. Cordiali saluti. Luigi Bianchi
D. Buongiorno, avendo appena cambiato imbarcazione ho bisogno di un sistema di navigazione molto efficiente (non sono interessato alla pesca). Potrei essere interessato al Lowrance in offerta, avrei peró bisogno delle misure per verificare l’applicazione a pannello (per la profondità servirebbero gli ingombri comprensivi dei cavi da attaccare dietro. Infine, ho letto che Lowrance ha uno scanforward e mi piacerebbe capire come funziona Resto in attesa di in cortese riscontro. Cordiali saluti Mauro Guarnaccia
R. 07-10-22 Buon pomeriggio, ma vuole un Lowrance o Simrad? Grazie. Cordiali saluti. Luigi Bianchi
