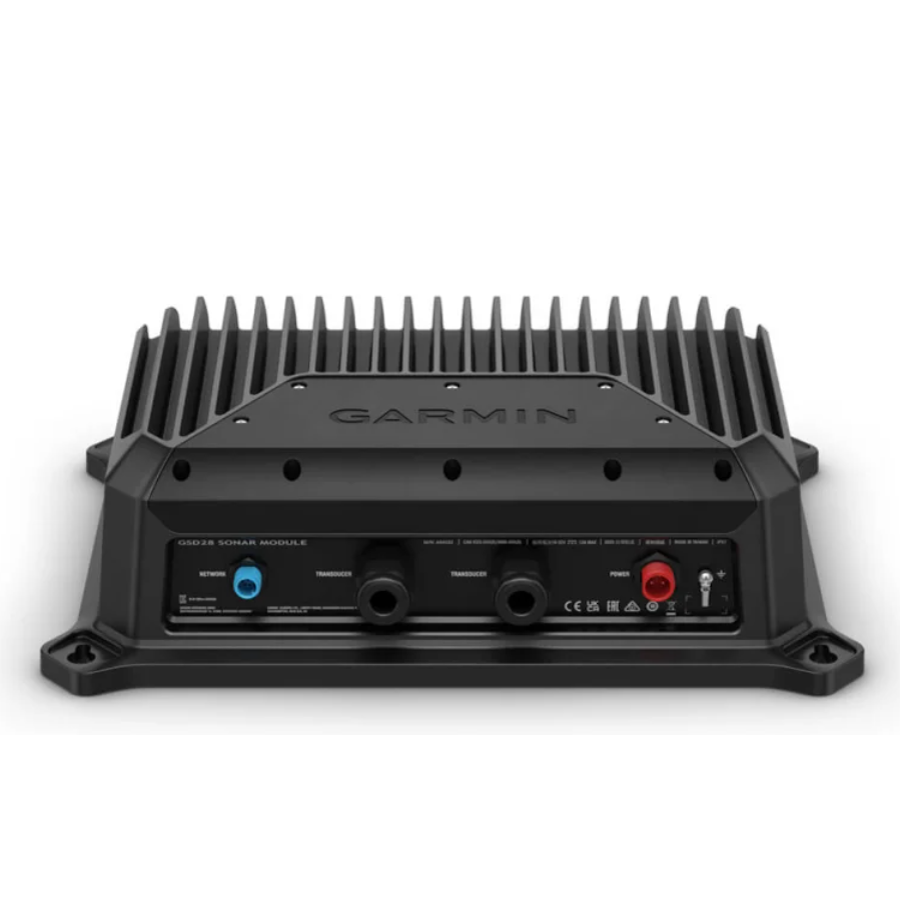

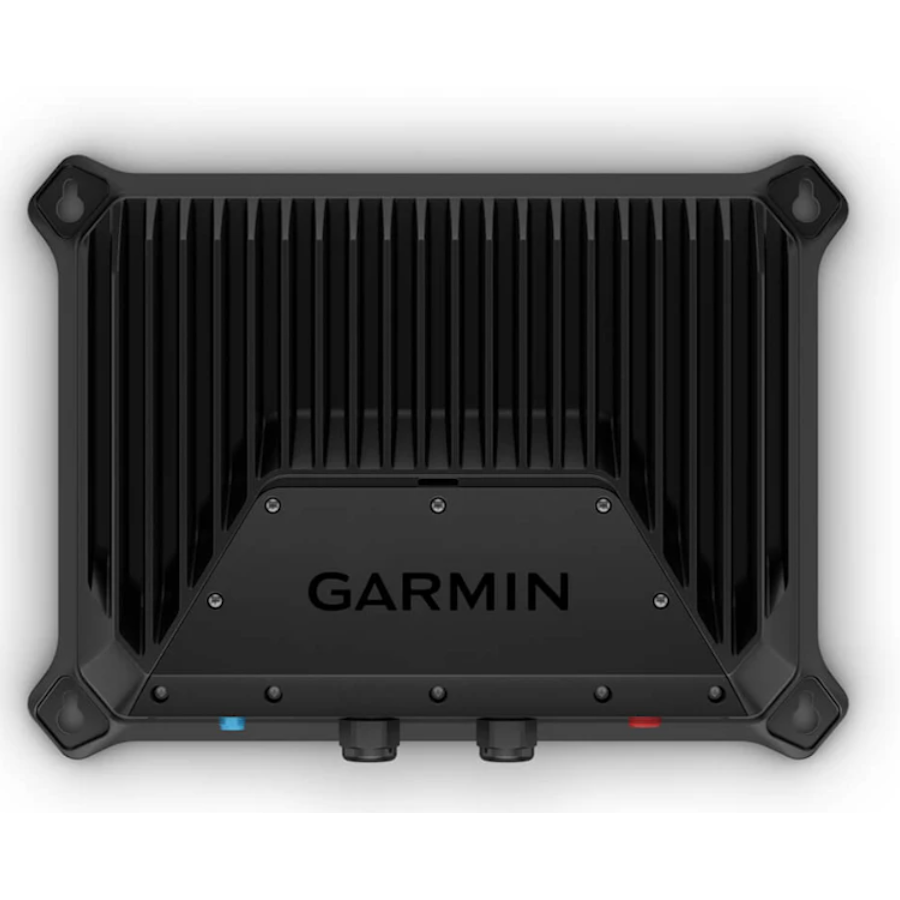

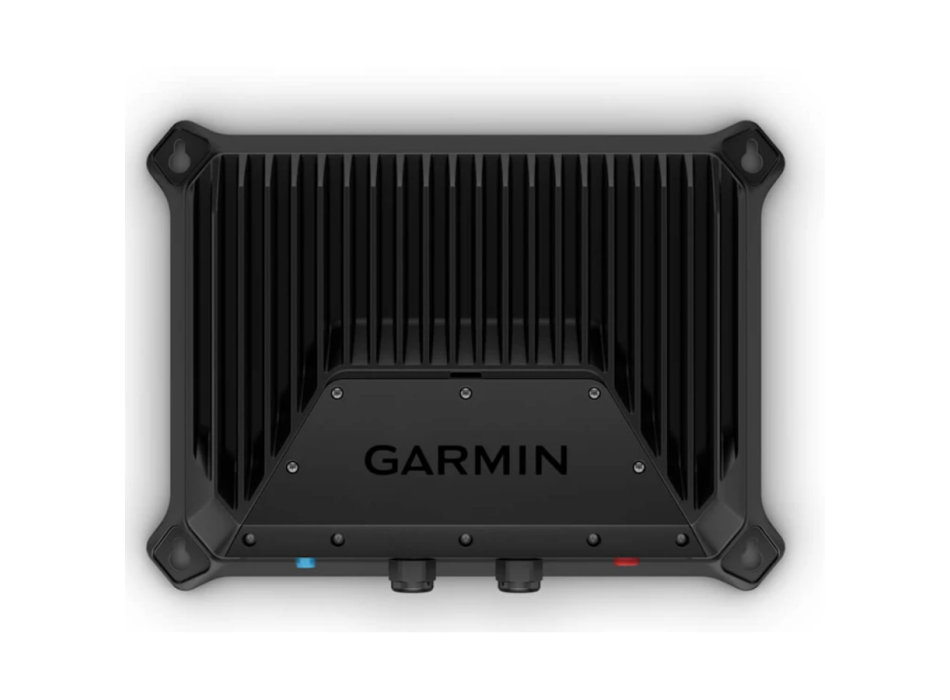

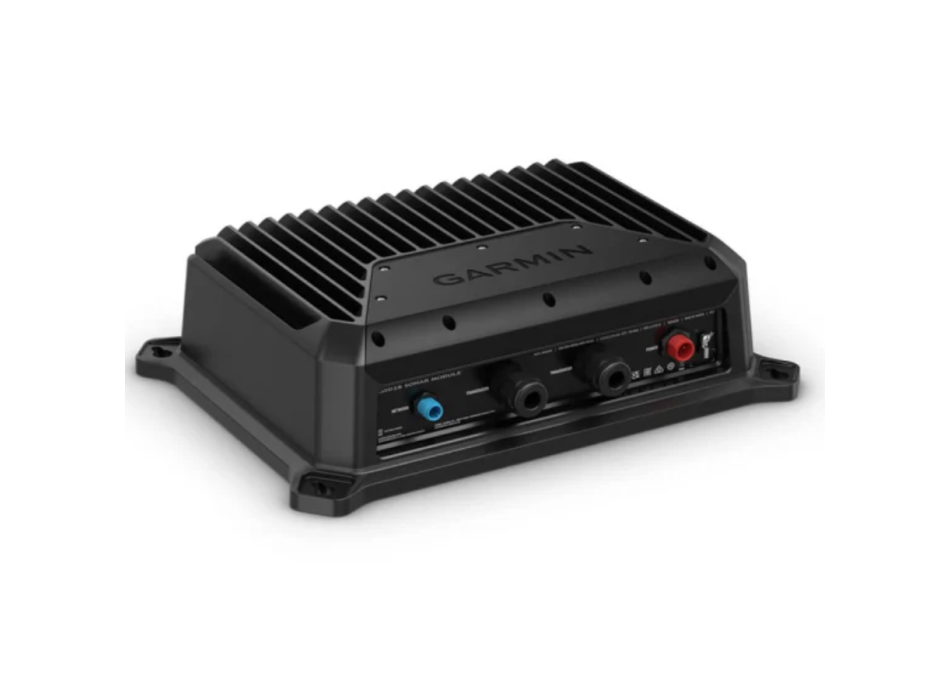

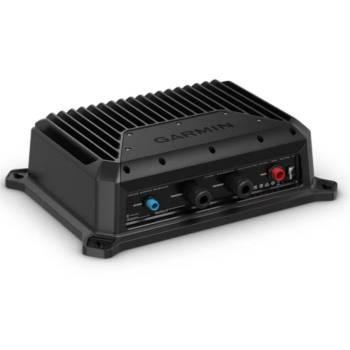

Garmin GSD 26 Eco Chirp module

  • Code: 010-00958-00
€ 1.419,00 € 1.579,00 -10%
Previous price: € 1.579,00
Garmin echo module GSD 26 Chirp

The GSD 26 digital sonar module is a highly innovative device that ushers in a new era in professional fishing. In fact, this module ensures unparalleled identification of the bottom and fish compared to traditional fishfinders thanks to the military-derived CHIRP technology.

The GSD26, compatible with CHIRP transducers with transmission power up to 3 kW, working on multiple frequencies at the same time, and with a variable reading cone, guarantees maximum data reading accuracy even at great depths¹, with a significant reduction in noise bottom.

Connection to the Garmin network
Thanks to its 'plug and play' connectivity, the GSD 26 module quickly integrates with the Garmin Marine Network system and allows you to share all information with the GPSMAP series while ensuring a rapid data update.



"Before interpreting the photo, I would like to make you understand the total clarity and cleanliness of the screen. As we can see, the machine is working with the low chirp, so it is performing a scan ranging from 42-65 kHz, obviously this frequency could change based on the transducer we are going to assemble. Let's start with the two white arrows: they represent the two weights that go down to the bottom, in fact, one of them fell right into the wonderful markings of amberjacks, fish weighing about 25 kg, indicated by the red arrow. The perfect adjustment of the GPSMAP 8015 combined with the technology contained in the CHIRP GSD 26 module allows us to distinguish the fish one by one, what can I say ... Superb! "

Antonello Salvi
Big Game Fishing World Champion


Appearance and performance
Physical Dimensions 10.8 "× 14.7" × 3.9 "(274mm × 373mm × 100mm)
Weight 11.37 lbs (5.16 kg)
IPX7 waterproof rating
Operating temperature From 5 ° F to 158 ° F (from -15 ° C to 70 ° C)
Shell material Fully gasketed, aluminum and steel housing with plastic access panel
Garmin Marine Network ™ Ports 1

Electrical characteristics
Power source 10-35V
Power consumption 100 W maximum
10 A fuse
Compass Safe Distance 23.6 in. (60 cm)
Echosounder features and specifications
Transmission power 25-3,000 W rms
Supported frequencies 25-210 kHz (dependent on transducer)
Maximum depth 10,000 ft (3,048 m)
Traditional CHIRP functionality Yes
DownVü ™ No
SideVü ™ No

Packaging
GSD 26
Ethernet cable
Power cord
Installation kit
Installation manual
NOTE: The package of this product does not include the transducer.
D. Buongiorno, mi chiamo Adalberto Campani. In barca ho il plotter 923 xsv collegato al trasduttore acquistato da voi GT15M IH che vorrei cambiare perchè nonostante sia dato per 1900 piedi..... dopo i 150\200 metri inizia a non segnalare piu' il fondale... detto questo.... Garmin mi dice che il 923 xsv supporta trasduttori fino ad 1kw e che per aumentare la portata dovrei acquistare appunto il GSD 26 e collegarlo ad un trasduttore adeguato e a tal proposito, non volendo forare lo scafo, avrei individuato il trasduttore da interno Airmar M422 (non credo voi l'abbiate in catalogo). Cio' che vorrei sapere è se il mio plotter dialoga correttamente con i due componenti che intendo acquistare. In attesa saluto cordialmente
R. 20-04-23 Buonasera, onestamente il M522 è un trasduttore che non conosco, quindi non ho feedback in merito. personalmente avrei consigliato un M265LH che ritengo faccia molto bene ancora il suo dovere, secondo me in abbinamento con la GSD26, arriviamo abbastanza bene fino a circa 500/600mt. Comunque confermo la compatibilità della box GSD26 con il 923xsv. Cordiali saluti. Luigi Bianchi
D. Salve, Posseggo un 8410xsv un 7410xsv e tre trasduttori b175L , gt23m-th , p66 (tutto acquistato da voi). Il mio problema è che non sono contentissimo delle prestazione che offre il b175L quando supero i 10nodi e/o i 60/70 metri di fondale. Mi sporca lo schermo e a volte perde il segnale. Vorrei capire se la box gsd26 mi aiuterebbe a migliorare in modo considerevole le prestazioni del trasduttore in termini di pulizia e definizione dei bersagli. Altra domanda: posso comunque mantenere i 3 trasduttori contemporaneamente collegati sugli strumenti? Grazie Alessandro Filippone
R. 29-10-2021 Buonasera, in tutta sincerità secondo me non trae nessun vantaggio collegando il trasduttore alla box. Purtroppo le problematiche date dal fatto che a 10 nodi "sporchi" lo schermo, sono date da probabili turbolenze. Il fatto poi della massima profondità sui 70mt, chiedo questo capita anche con barca ferma o in navigazione? È possibile che il trasduttore sia sporco? È stata data antivegetativa? Grazie. Cordiali saluti. Luigi Bianchi
D. salve vorrei sapere se il modulo e combbatibile con il 7408xsv e un trasduttore b265 lh kw1
R. 24-01-2021 Buongiorno, certamente sì, compatibile con entrambi. Cordiali saluti. Luigi Bianchi
