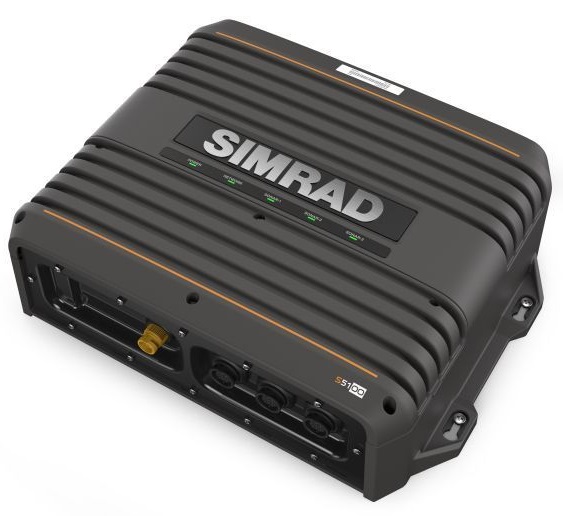

Simrad Chirp S5100 Sonar Module
Main Features Three fully independent sonar channels provide high-resolution coverage
Absolute sharpness at all depth ranges
Ability to combine three frequency ranges to scan more depths, including ultra low, low, medium and high CHIRP
Compatible with wide-angle CHIRP transducers for increased water column coverage
Simultaneous split-screen views of multiple depth ranges directly on the display
Maximum depth of 3,000 meters/10,000 feet (transducer dependent)
Easy to install with three 9-pin transducer connectors with "plug-and-play" functionality
Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems, and S2000 series fishfinders
Three independent channels The S5100 is our first sounder with three fully independent sonar channels, providing simultaneous coverage of up to three different depth ranges with consistent performance at each range. You can choose to connect three single-channel transducers or combine one dual-channel transducer and one single-channel transducer to create the perfect sonar coverage for your fishing spots and target species.
Absolute clarity CHIRP sonar uses rapid bursts of pulses to provide improved target resolution and noise rejection compared to traditional single-frequency sonar solutions. With the S5100's advanced CHIRP technology, you get a crystal-clear view all the way to the bottom, without any mid-water clutter or clutter.
Support for wide-angle transducers The Simrad S5100 is compatible with Airmar's wide-angle CHIRP transducer series. These transducers are ideal for fishing for pelagic species, offering optimized coverage of the upper water column. Wide-angle transducers are also useful in shallow water, where traditional narrow beam angles can provide only limited bottom coverage. Increased coverage not only speeds up search times but also makes it easier to locate individual targets.
Simultaneous split-screen views You can view multiple depth ranges simultaneously with the customizable split-screen display configuration. Because all three sonar channels are completely independent of each other, you can view different frequency ranges in real time simultaneously on a single display.
Plug-and-play multifunction display compatibility The S5100 module connects to Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 glass bridge systems, and S2000 series fish finders. High-speed Ethernet connectivity allows for easy installation virtually anywhere onboard. The S5100 module can be used to add sonar functionality to a modular NSO evo2 system or to provide additional sonar functionality on integrated displays that incorporate sounder technology.
