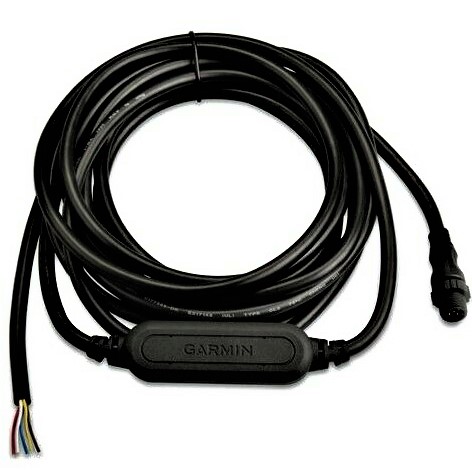

Garmin GET 10 NMEA 2000 Motor Tilt Adapter

With Garmin's NMEA 2000 Analog Engine Tilt / Trim Adapter aboard your boat, you can refresh your old gauges with the analog-to-digital transition. The adapter, which is simple to install, captures data generated by traditional analog gauges and converts it into a NMEA 2000 signal in order to create or expand the network without replacing all the equipment on the boat.
With the Garmin GET 10 adapter, you can convert the analog information provided by the engine tilt sensor (not included) about the vessel into the NMEA 2000 network. The GET 10 adapter allows you to observe the engine tilt information on devices compatible Garmin displays connected to the NMEA 2000 network. Garmin's line of analog NMEA 2000 adapters are easy to add to any existing marine network. Once installed, data from the adapters can be viewed via the Garmin GMI 10 digital navigation display and other compatible Garmin devices. The simple configuration will allow you to bring the old control panel into the digital age.

• Unit dimensions, W x H x W: 24.7 x 17 x 78.6 mm (31/32 x 43/64 x 3 3/32 in.)
• Weight: 365g (12.85oz)
• Total cable length: 4.9m (16ft)
• Temperature range: -15 ° C to 70 ° C (5 ° F to 158 ° F)
• Compass safe distance: 5 cm (2 inches)
• Input power: 9 - 16 V DC from the NMEA 2000 bus
• NMEA 2000 power consumption: 1 W maximum NMEA 2000 Load Equivalency Number (LEN): 2 (100 mA)

• QUICK GUIDE MULTIL INSTRUCTIONS. (363,87 KB)
• MULTIL CONFIGURATION GUIDE. (398,31 KB)
• MULTIL INSTALLATION MANUAL. (2,61 MB)
