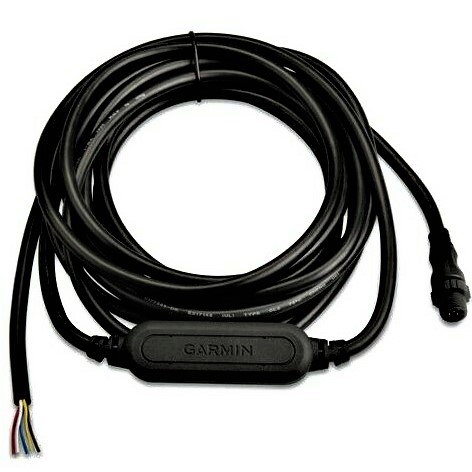

Garmin GRA 10 NMEA 2000 Rudder Angle Adapter

With the Garmin NMEA 2000 Analog Rudder Angle Adapter on your boat, you can upgrade your old gauges by making the transition from analog to digital. The easy-to-install adapter takes the data generated by traditional analog gauges and converts it to a NMEA 2000 signal, allowing you to create or expand your network without replacing all the equipment on your boat.

With the Garmin GRA 10 adapter, you can convert the analog information provided by the rudder angle sensor (not included) on your boat to your NMEA 2000 network. The GRA 10 adapter allows you to view rudder angle information on compatible Garmin display devices connected to your NMEA 2000 network.

Garmin's line of NMEA 2000 analog adapters are easy to add to any existing marine network. Once installed, data from the adapters can be viewed on the Garmin GMI 10 digital navigation display and other compatible Garmin devices. The simple setup will bring your old instrument panel into the digital age.

• Unit dimensions, W x H x D: 24.7 x 17 x 78.6 mm (31/32 x 43/64 x 3 3/32 in.)
• Total cable length: 4.9 m (16 ft)
• Temperature range: -15°C to 70°C (5°F to 158°F)
• Safe distance from compass: 5 cm (2 inches)
• Input power: 9 - 16 V DC from NMEA 2000 bus
• NMEA 2000 Power Consumption: 1.1 W max.
• NMEA 2000 Load Equivalency Number (LEN): 2 (100 mA)
