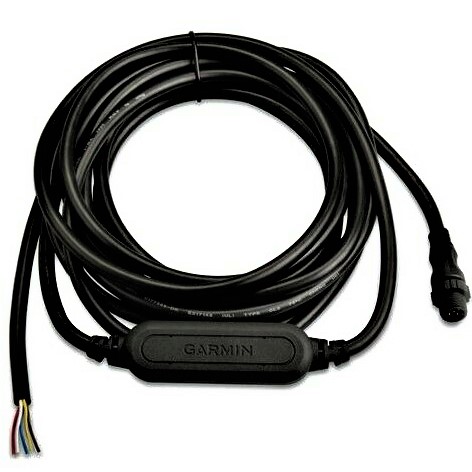

Garmin GFL 10 NMEA 2000 Liquid Level Adapter

With Garmin's NMEA 2000 Analog Fluid Level Adapter aboard your vessel, you can refresh your old gauges by transitioning from analog to digital. The adapter, which is simple to install, captures data generated by traditional analog gauges and converts it into a NMEA 2000 signal in order to create or expand the network without replacing all the equipment on the boat.
With the Garmin GFL 10 adapter, you can convert the analog information provided by the fluid level sensor (not included) on your vessel into the NMEA 2000 network. GFL 10 allows you to view the fluid level information on compatible Garmin display devices connected to the NMEA 2000 network.
Garmin's line of analog NMEA 2000 adapters are easy to add to any existing marine network. Once installed, data from the adapters can be viewed via the Garmin GMI 10 digital navigation display and other compatible Garmin devices. The simple configuration will allow you to bring the old control panel into the digital age.

• Unit dimensions, W x H x W: 24.7 x 17 x 78.6 mm (31/32 x 43/64 x 3 3/32 in.)
• Weight: 365g (12.85oz)
• Total cable length: 4.9m (16ft)
• Temperature range: -15 ° C to 70 ° C (5 ° F to 158 ° F)
• Compass safe distance: 5 cm (2 inches)
• Input power: 9 - 16 V DC from the NMEA 2000 bus
• NMEA 2000 power consumption: 1 W max.
• NMEA 2000 Load Equivalency Number (LEN): 2 (100 mA)
