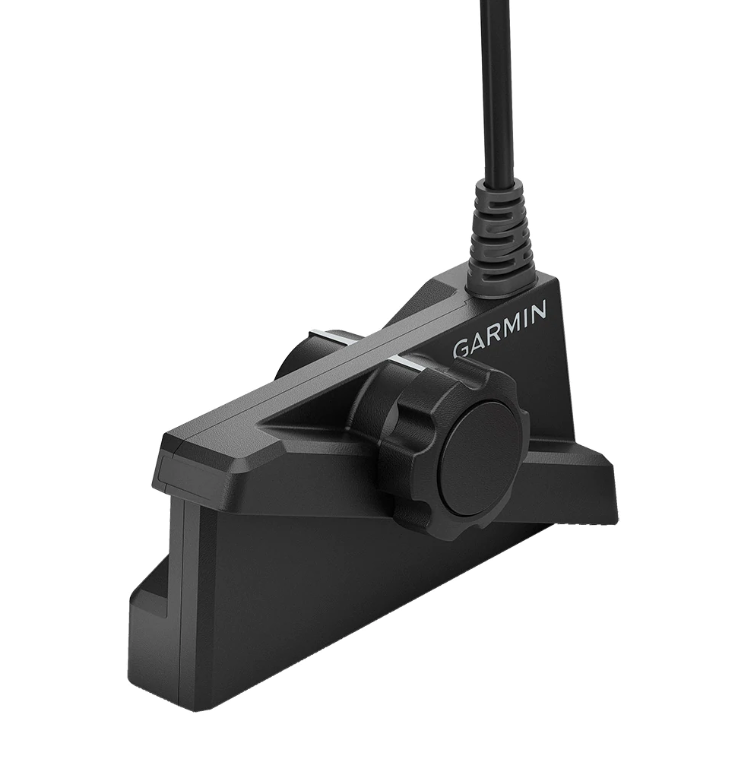

Garmin Panoptix LiveScope LVS34 Transducer

The high definition Panoptix™ just got even sharper with the new LVS34!
View structure and fish beneath or around your boat in real time, even when your boat is stationary with high-definition technology
View razor-sharp, real-time images of the bottom, structure and fish beneath and around your vessel in unprecedented detail.
The integrated AHRS sensor allows to compensate for the movement of the vessel ensuring a stable image and offering a clear and precise visual result.
Simple plug-and-play connector allows for quick and easy installation with compatible Garmin chartplotter1

The latest-generation Panoptix LiveScope transducer represents the ultimate innovation for saltwater and freshwater fishing, an indispensable aid for the most demanding anglers. It allows you to scan and display everything below and in front of your boat in real time, ensuring an exact and extremely realistic perception thanks to the integration of high-definition technology.
Thanks to this new level of definition it will even be possible to distinguish different species of fish!

Thanks to improved screen resolution, transducer sensitivity and target separation, images are sharper.


The new Panoptix LiveScope fishfinder consists of the GLS 10 black-box sonar module and the LVS34 transducer.
Thanks to the plug-and-play connector, it allows for easy installation and seamless integration with your compatible Garmin chartplotter1. You can pair the new Panoptix LiveScope technology with a Garmin All-in-one transducer to get the most out of your fishing trips: CHIRP, ClearVü, SideVü and Panoptix LiveScope.

1 Compatible with GPSMAP® 8400, GPSMAP 7400, GPSMAP 1222/1022, GPSMAP 1222 Touch, GPSMAP 722/922, and 7- and 9-inch ECHOMAP™ Plus multifunction displays.

PACKAGING
Panoptix LVS34 Transducer
Mounting support for Perspective mode

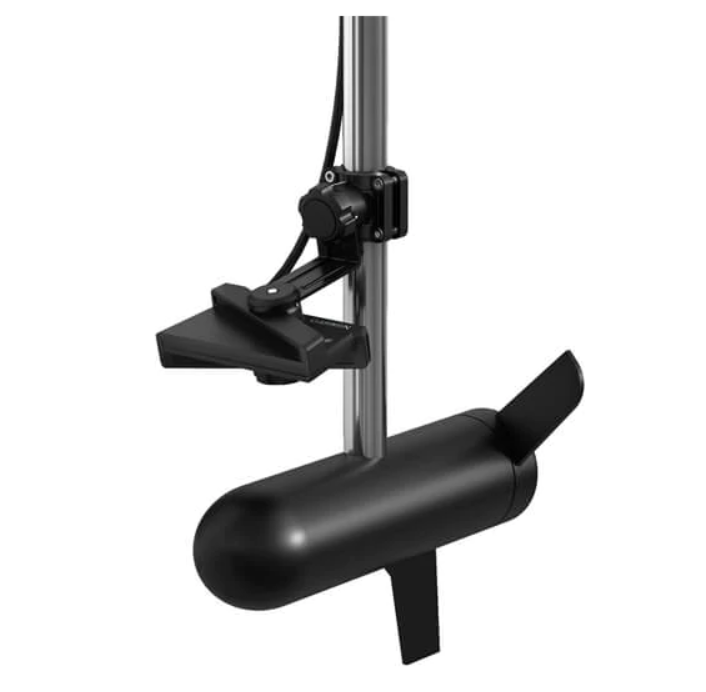

Support for mounting on the trolling motor bar
Tree Mount Support
Documentation

General
DIMENSIONS Black-box GLS 10: 24.5 x 14.9 x 6.5 cm, LVS32 transducer: 13.7 x 9.7 x 4.6 cm
WEIGHT Black-box GLS 10: 2.0 kg, LVS32 transducer: 0.9 kg
IPX7 WATERPROOF CLASSIFICATION
GARMIN MARINE NETWORK 1 PORTS (small connector)
OPERATING TEMPERATURE Operating: from -15 ° C to 70 ° C; Non-operating: -40 ° C to 85 ° C
TRANSMISSION POWER 500 W

Echosounder features and specifications
SUPPORTED FREQUENCIES 530 - 1,100 kHz
MAXIMUM DEPTH 60 meters

Electrical characteristics
POWER INPUT 10-32 V
POWER CONSUMPTION 21 W typical; 58 W maximum
FUSE 7.5 A

• LVS34 INSTALLATION MANUAL (3,17 MB)
• LVS34 SUPPORT INSTALLATION MANUAL (1,43 MB)
