Garmin transducer GT56UHD-TM Chirp 150/240 and SDV

  • Code: 010-13073-00
€ 429,00 € 479,00 -10%

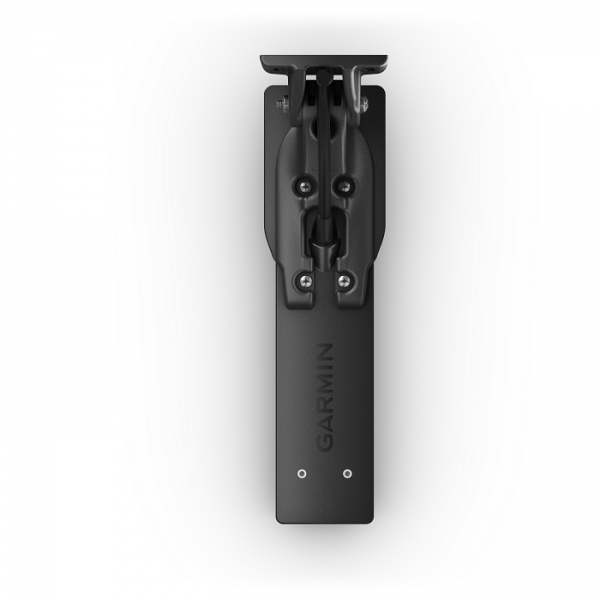

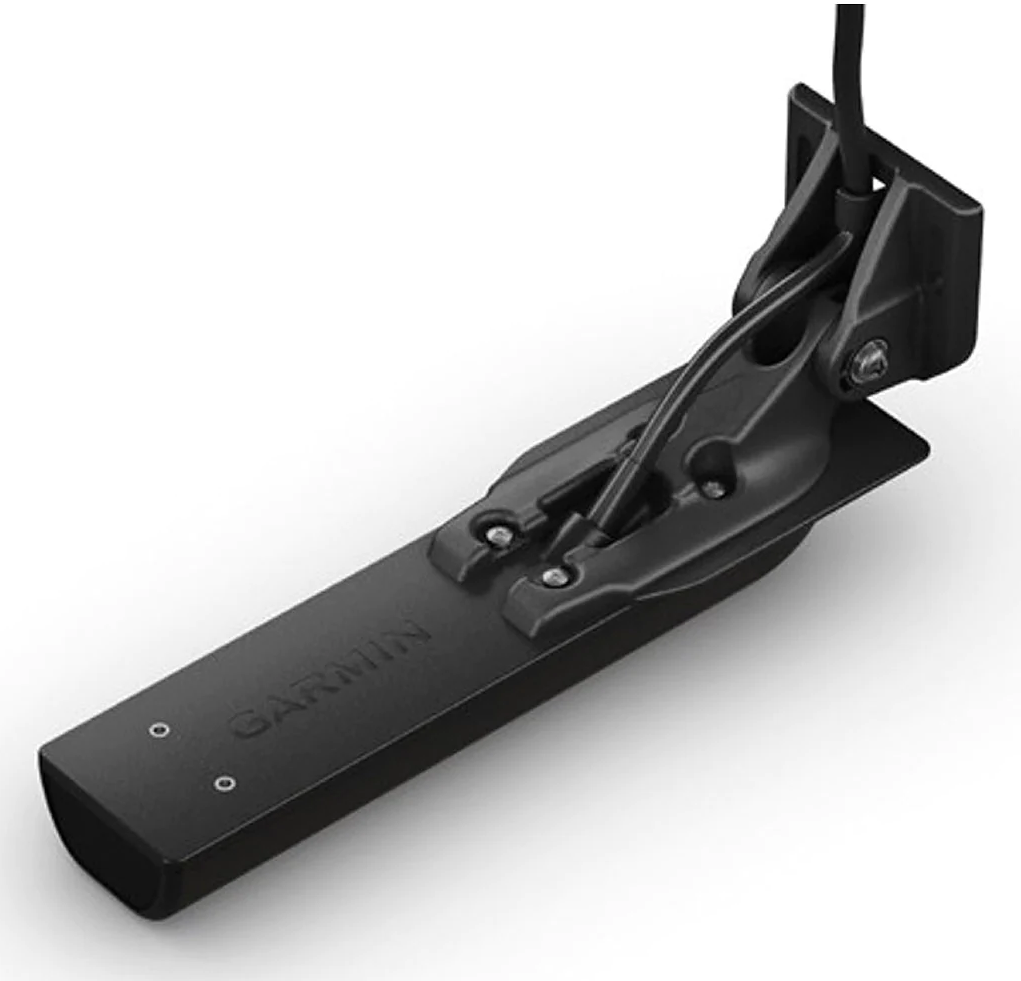

Garmin Full Chirp Transducer GT56UHD-TM stern
Freq. Chirp 150 / 240khz, ClearVü / SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)

All-in-one transducer

A single transducer with ultra-high definition ClearVü and SideVü UHD technology and traditional CHIRP sonar function
Extraordinarily detailed and easy to read target separation
View images of fish and structures thanks to ClearVü technology
Compact and easy to install, also thanks to the double stern support and trolling motor

LESS SEARCHING TIME. MORE TIME FOR FISHING
This multifunctional transducer offers maximum versatility with Ultra High-Definition ClearVü and SideVü scanning sonar, traditional wide-range CHIRP sonar and more, to spend more time catching fish.

ULTRA HIGH-DEFINITION CLEARVÜ SCANNING SOUNDER
Get stunningly clear images of structures and fish at greater depths than other high-frequency scanning sonars. Thanks to the downward-facing head, it focuses more on the targets.

ULTRA HIGH-DEFINITION SIDEVÜ SCANNING SOUNDER
See everything for the first time with extraordinarily clear images of structures and fish on the sides of the boat The SideVü sonar now offers 20% more range at 1,000 kHz, so you can see even further than before.

TRADITIONAL WIDE RANGE CHIRP SOUNDER
Discover extremely sharp target distinction and definition up to 244m below the waterline.

MULTIPLE FREQUENCIES OF THE SCANNING ECHO SOUNDER
Use the right frequency for the waters you are fishing in. This transducer offers 455kHz, 800kHz and 1,000kHz for top performance in all depths.

BANDS OF VIVID COLORS
The high-contrast, vivid color bands of the scanning sonar make it easier than ever to distinguish between targets and structures.

MOUNTING OPTIONS
Everyone's setup is different. That's why we have included the stern mount and electric motor components.
General
Traditional wide range CHIRP FREQUENCY (150-240 kHz); ClearVü / SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
FREQUENCY Traditional at 350 W; ClearVü / SideVü 500 W
BEAMWIDTH Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
MAXIMUM DEPTH Traditional: 244 m in fresh water; ClearVü: 122 m; SideVü: 152 m
DEPTH / SPEED / TEMPERATURE Depth and temperature
NUMBER OF PIN 12
CABLE LENGTH 7.62 m
SUPPORTED TILT / AFT ANGLES 0 ° to 70 ° aft angles
Dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm
D. Buongiorno, questo trasduttore e compatibile con Garmin Striker Vivie 9 SV? altrimenti qual è il massimo utilizzabile con questo modello?
R. 29-01-24<br /> Buongiorno, non compatibile con Striker, solo con echoMAP UHD e UHD2 e GPSMAP XSV che trova sul nostro sito.<br /> Cordiali saluti.<br /> Luigi Bianchi
D. Buongiorno, volevo sapere se il trasduttore gt56 è compatibile con la serie striker vivid 7/9 sv
R. 20-10-23 Buongiorno, mi spiace purtroppo non compatibile. Sono compatibili con la serie Striker SV, solo i GT52 e GT51. Cordiali saluti. Luigi Bianchi
D. Buona sera vorrei sapere se l ecomap 92 sv uhd con sonda gt 54 può andare bene anche per la pesca al tonno ( se visualizza i tonni) essendo sv? Oppure bisogna avere un altro trasduttore??se bisogna cambiare il trasduttore quale per il drifting? Grazie .
R. 14-09-23 Buongiorno, certamente indicato anche per la pesca al tonno su fondali fino a circa 120/150mt. Cordiali saluti. Luigi Bianchi
D. Salve, vorrei sapere se posso installare un trasduttore gt 56uhd-tm ad uno strike vivid 7sv?.
R. 17-05-23 Buonasera, purtroppo non compatibili gli Striker con trasduttori UHD, sia GT56 che GT54. Cordiali saluti. Luigi Bianchi
D. Buongiorno volendo acquistare un Echomap 72 sv quale trasduttore consigliate? Inoltre, vorrei sapere qual'è la differenza tra il trasduttore gt 54 e il gt56. Grazie e cordiali saluti. Aldo Bruno
R. 14-03-23 Buon pomeriggio, i due trasduttori sono del tutto simili, se per utilizzo in mare non vedrà assolutamente differenze, rimane più performante il GT56 per uso in acqua dolce. Valuterei eventualmente l'offerta dell'echoMAP 92SV con GT54: https://www.painestore.it/garmin_echomap_plus_92sv_chirp_eco/plotter_9_ Cordiali saluti. Luigi Bianchi
D. Buonasera, posseggo questo trasduttore collegato ad un Echomap 102 sv, avendo la neseccità di spostare lo strumento in du posizioni diverse dell'imbarcazione, chiedo se esiste un cavo sdoppiatore a Y per il trasduttore. Grazie
R. 25-07-22 Buonasera, purtroppo non è possibile. L'unica soluzione è quella di passare un cavo prolunga maschio / femmina, poi, nel caso debba spostare l'echoMAP nella seconda postazione, dovrà collegare manualmente il connettore maschio del cavo prolunga al trasduttore. https://www.painestore.it/cerca?keywords=prolunga+arancio Spero di essermi spiegato. Cordiali saluti. Luigi Bianchi
D. Salve! Sono possessore di un Garmin Echomap 62cv, volevo cambiare il trasduttore e applicare un GT23M-TM, è compatibile con il 62cv? Grazie!
R. 20-01-22 Buonasera, sì certo, confermo la compatibilità del 62CV con il trasduttore GT23M-TM, mediante cavo adattatore cod. 010-12719-00. https://www.painestore.it/garmin_cavo_adattamento_da_8_a_4_pin Cordiali saluti. Luigi Bianchi
D. Buongiorno Che differenza c è tra gt56 e gt 54? Quale il migliore? Grazie
R. 28-12-2021 Buonasera, l'unica differenza è data dal fatto che il GT56 ha in più la possibilità di selezionare sia le funzioni ClearVù e SideVù, indistintamente a 455, 800 e 1200khz con potenza di 500W, anzichè 350W. Cordiali saluti. Luigi Bianchi
D. Il trasduttore è compatibile con lo schermo Garmin Striker Vivid 9SV ? Quanti metri di profondità in acqua salata? Grazie
R. 26-12-2021 Buonasera, no, gli Striker non sono compatibili con GT54 e GT56, non supportano le frequenze UHD. Cordiali saluti. Luigi Bianchi
D. È compatibile con il 723 xsv? In acqua salata fino a che profondità arriva per tutte e tre le modalità ossia Chirp clearw e sidew
R. 14-09-2021 Buongiorno, sì, confermo la compatibilità. Trattandosi di trasduttore con 350w in eco standard, siamo al massimo intorno ai ca 180mt e ca 60/70 mt in Clear e Side. A mio avviso più indicato per utilizzo in acqua dolce, il rischio è che in acqua salata difficilmente si utilizzano le frequenze alte UHD, motivo per cui consigliamo sempre il classico GT51 le cui prestazioni sono certamente superiori, a discapito certo di una minor definizione. Cordiali saluti. Luigi Bianchi
