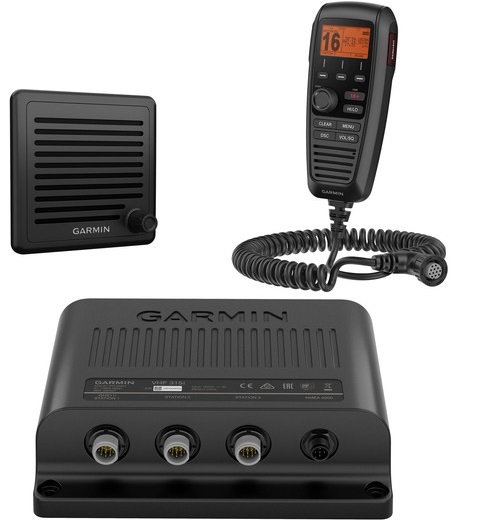

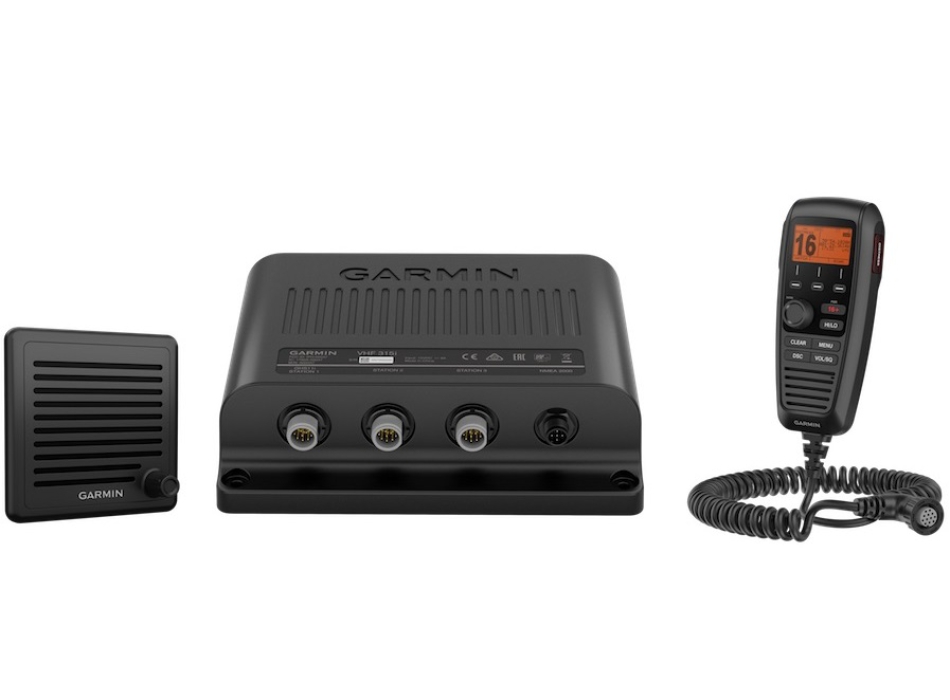

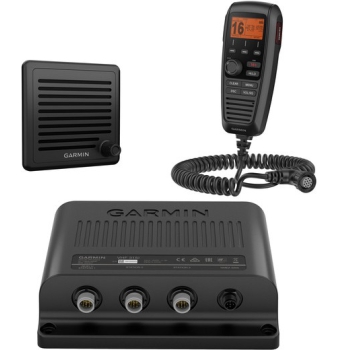

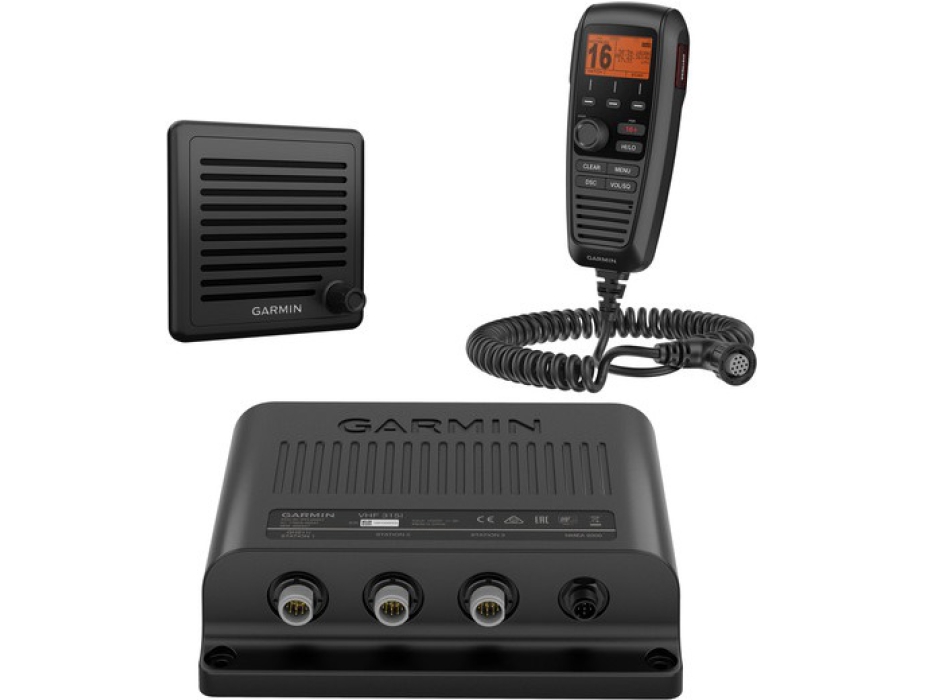

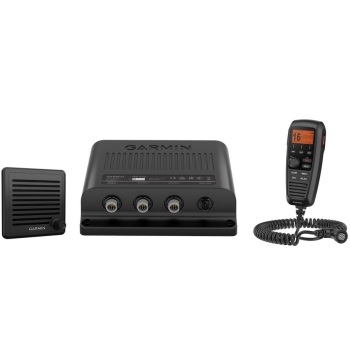

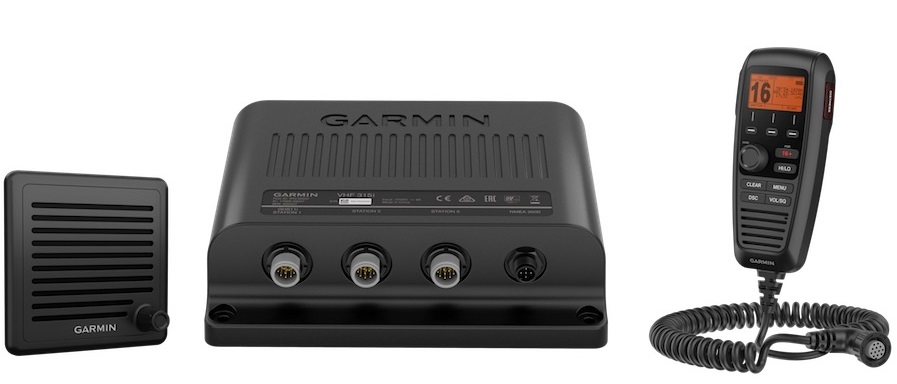

Garmin VHF 315i Black Box Handset System

  • Code: 010-02047-01
€ 755,00 € 839,00 -10%
Garmin VHF 315i GPS
Browse in total safety
Standard Class D Digital Selective Calling (DSC) functionality (distress call and direct call with user-programmed MMSI)
Including the GHS ™ 11i receiver and the new active loudspeaker to be used as an intercom for up to 3 stations
Integrated GPS receiver (requires external antenna)
NMEA 2000® connectivity for easy integration with compatible chartplotters and multifunction displays
All international VHF channels included

The new VHF 315i is a modular system that guarantees maximum comfort on large boats where it is necessary to have a station with multiple communication stations or on boats where there is no space to install a traditional console VHF.

It is equipped with DSC Class D selective digital calling, for emergency calls and direct calls with user-programmed MMSI, to be safe in any situation and comply with the latest industry standards. Programmed with international navigation channels, it is easy to use and integrates seamlessly into the onboard Garmin Marine system. It features an integrated GPS receiver with connector for the optional external antenna.

Included with the VHF 315i is a GHS 11i handset and a new active loudspeaker for use as an intercom for up to 3 stations. The GHS 11i unit is a compact and robust handset, completely waterproof, equipped with a 2 ”LCD display, multifunction keypad and dedicated buttons for accessing channel 16 and the DSC function. This device can also be used as a secondary station of the VHF unit.

The selectable 1/25 W transmit power of the new VHF 315i offers peace of mind and safety to all on board. NMEA 2000 connectivity allows for easy integration with compatible chartplotters, multifunction displays and simplifies the software upgrade process.

Packaging:
Black-box VHF 315i
GHS 11i
Cradle support for GHS 11i
Active speaker
Power cord
Bulkhead cable 10 meters
Standard support for GHS 11i
Installation kit
Documentation
TECHNICAL SPECIFICATIONS
Dimensions: 20.5 x 18.1 x 6.0 cm
Weight: 1.53 kg
Operating temperature: -15 ° C to 70 ° C
Waterproof classification: IPX7
Compass safety distance: 5 cm
DSC (Digital Selective Calling): Class D
Frequency bands: all international channels for boating
Operating voltage: from 9.6 to 16 Vdc
Absorption: Standby: 350 mA; Reception: 600 mA; High power transmission: 6 A max; Low power transmission: 2 A max
Transmission power (at 13.6 Vdc): High power: 23-25 W; Low power: 0.7-1W
NMEA 2000: 1 port
D. Buongiorno.interfacciando il vhf 315i con un plotter 8416 ottengo la funzione ais passiva? Vengono riportati i dati delle altre imbarcazioni che navigano intorno senza istallare un Ais ?
R. 21-09-22 Buonasera, no, i VHF 315i non hanno l'AIS incorporato, dovrebbe quindi valutare l'acquisto di un VHF 215i Garmin oppure di un AIS 800 indipendente. Cordiali saluti. Luigi Bianchi
