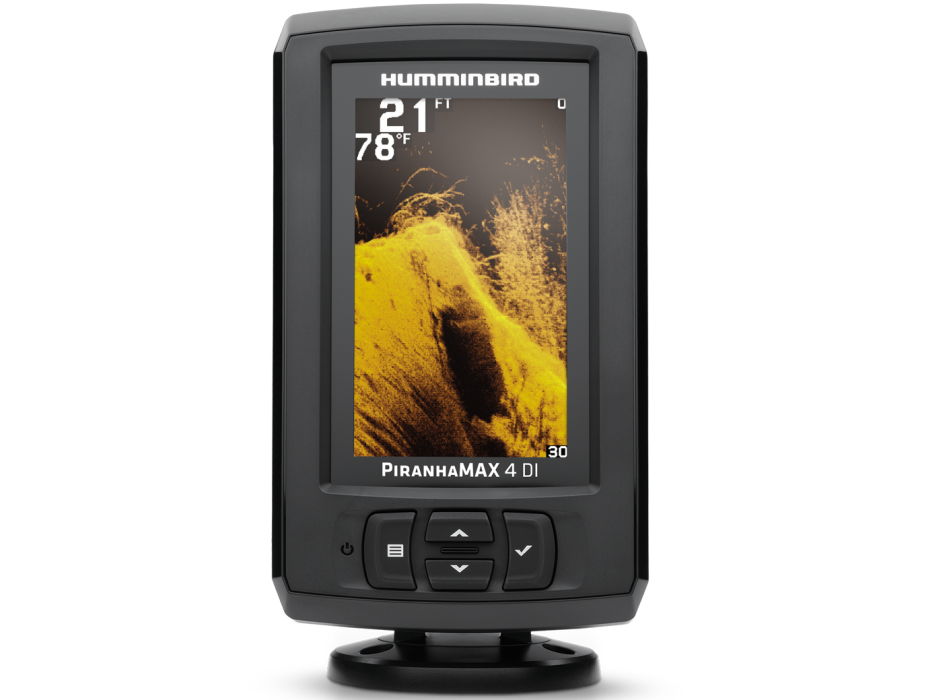

PiranhaMax 4DI
New Humminbird eco version with 4" PiranhaMAX 4DI display.
Dual functionality both Down Imaging and standard 2D echo.
PiranhaMax 4 OF | 410160-1
4.3'' display – 480V x 272H pixels – 256 colours
Sonar Down Imaging / Dual Beam PLUS – 300 w (RMS) – 200/455/455 kHz – Up to 180m (2D)
TECHNICAL DATA Display Size (diagonal): 4.3″
Resolution (pixels): 480V x 272H
Display Type: TFT color
Color gradation: 256 colors
Backlight: LED
RMS Power: 300 Watts
Peak to Peak Power: 2400 Watts
Sonar Type: Down Imaging/Dual Beam PLUS
Sonar Coverage: 28°, 16° & 75° @ -10db
Sonar Frequency: 200/455/455 kHz
Target separation: 2.5″
Max depth*: 180 m (2D)
Temperature Sensor: Included in the transducer
Standard transducer: XNT 9 DI T
Standard Transducer Mounting: Internal or Transom
Power supply: 10.8-20 VDC
Current consumption: 180 mA
Mounting options: On bracket or optional flush-mount kit
Dimensions cm (on bracket): 9.9 L x 18.6 H x 9.2 D
Dimensions cm (built-in): 9.9 L x 18.6 H x 6.6 D
Important Note: The maximum depth indicated is the maximum achievable under optimal conditions. In particular, the maximum depth can be influenced by various factors, including but not limited to water density, seabed type, instrument settings, and transducer mounting.
