-15%

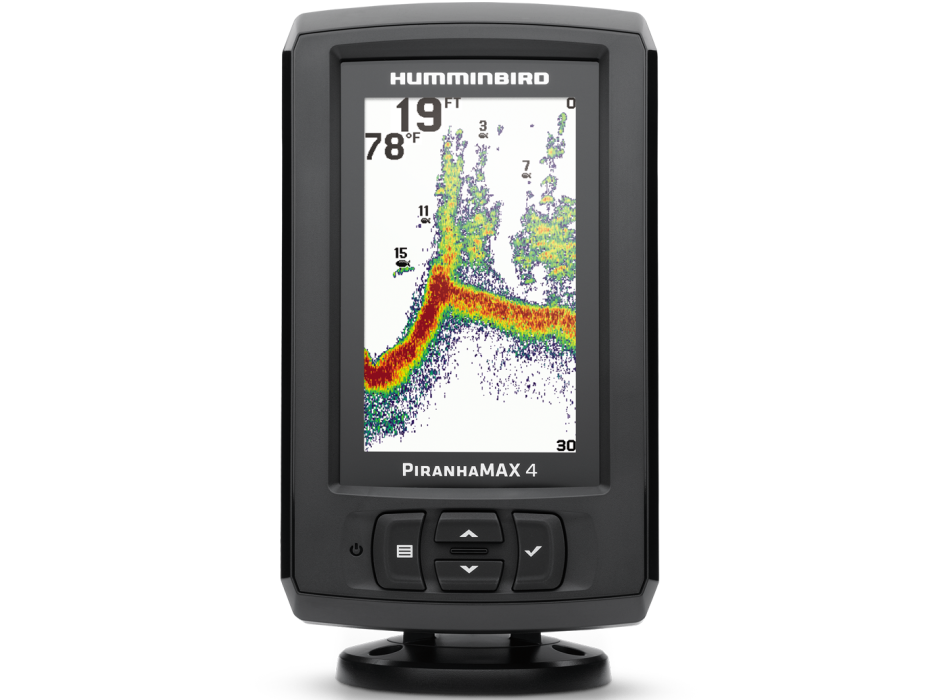

Humminbird PiranhaMax 4

  • Code: 410150-1
€ 177,00 € 209,00 -15%
PiranhaMax 4
New Humminbird eco version with 4 "PiranhaMAX 4 Display.

PiranhaMax 4 | 410150-1

4.3 '' display - 480V x 272H pixel - 256 colors
Dual Beam PLUS Sonar - 300 w (RMS) - 200/455 kHz - Up to 180m (2D)

TECHNICAL DATA

Display Size (diagonal): 4.3 ″
Resolution (pixels): 480V x 272H
Display type: TFT color
Color gradation: 256 colors
Backlight: LED
RMS power: 300 Watts
Peak to Peak Power: 2400 Watts
Sonar type: DualBeam PLUS
Sonar coverage: 28 ° & 16 ° @ -10db
Sonar frequency: 200/455 kHz
Target separation: 2.5 ″
Max depth *: 180 mt
Temperature sensor: included in the transducer
Standard transducer: XNT 9 28 T
Standard Transducer Mounting: Internal or Transom
Power supply: 10.8-20 VDC
Absorption: 180 mA
Mounting options: On bracket or optional flush kit
Dimensions in cm (on bracket): 9.9 L x 18.6 H x 9.2 P
Dimensions in cm (built-in): 9.9 L x 18.6 H x 6.6 P



Important note: the maximum depth indicated is intended as the maximum that can be reached in optimal conditions. In particular, the maximum depth can be influenced by various factors including, but not limited to, the density of the water, the type of seabed, the settings of the instrument and the mounting of the transducer.

D. Buongiorno, devo sostituire in barca l'humminbird Piranha 220max, volevo sapere se il trasduttore era compatibile.
R. 17-06-2021 Buonasera, direi di no, dovrebbe fare Lei la prova, perchè il trasduttore del Piranha 220 è un 83-200khz, mentre quello del Piranha Max 4 è solo 200khz. Cordiali saluti. Luigi Bianchi
D. Buongiorno, ho in barca un vecchio Piranha MAX20 che si è guastato, vorrei sostituirlo senza cambiare cavi e staffa: è possibile trovare un nuovo modello compatibile con quanto ho già montato? Grazie e cordiali saluti.
R. 29-07-2020 Buongiorno, purtroppo dovrà sostituire il tutto tranne il cavo di alimentazione, mi spiace. Cordiali saluti. Luigi Bianchi
D. Questo ecoscandaglio misura anche la velocità?
R. Buonasera, no, solo profondità, eventualmente potrebbe valutare un Garmin Striker, caratteristiche equivalenti all'Humminbird, però, avendo il GPS incorporato, è in grado di indicare anche la velocità della barca. Di seguito link al sito: https://www.rayitaly.com/trasduttore_chirp_passante_bronzo_cpt-110 Cordiali saluti. Luigi Bianchi
